Long Range RFID Scanner for Aerospace Manufacturing and MRO: How to Track Parts, Tools, and Equipment

Short Answer

A long range RFID scanner helps aerospace manufacturers and aircraft maintenance, repair, and overhaul teams identify and track aircraft components, production materials, maintenance tools, storage containers, and ground-support equipment. RFID can improve inventory visibility and movement traceability across receiving, inspection, assembly, maintenance, and dispatch areas, but metal parts, composite materials, strict security procedures, and aviation documentation require careful system design.

How Does RFID Work in Aerospace Manufacturing and MRO?

A typical aerospace RFID system includes:

1. RFID tags attached to aircraft parts, containers, tools, equipment, or material kits.
2. Long range UHF RFID readers installed at receiving doors, production checkpoints, tool rooms, or maintenance areas.
3. Directional antennas that create controlled reading zones.
4. Manufacturing, maintenance, or asset management software that connects RFID data with part and equipment records.

When a tagged item passes through a reading zone, the reader captures its EPC. The software can associate that EPC with information such as:

• Part number
• Serial number
• Batch or lot number
• Work order
• Aircraft or engine program
• Storage location
• Maintenance status
• Inspection status
• Calibration status
• Assigned technician
• Installation or removal history

This creates a digital movement record without requiring workers to scan each item manually.

For example:

Receiving → Inspection → Storage → Kitting → Assembly → Testing → Installation

In MRO operations, the workflow may be:

Tool Issue → Maintenance Task → Tool Return → Inspection → Storage

RFID can support these events when the reader zones and software rules are properly configured.

What Aerospace Assets Can RFID Track?

A long range RFID scanner may be used to identify many types of aerospace assets, including:

• Aircraft components
• Engine parts
• Avionics equipment
• Landing gear components
• Hydraulic components
• Cabin equipment
• Maintenance kits
• Toolboxes
• Calibration tools
• Ground-support equipment
• Material containers
• Composite material storage units
• Fastener and hardware kits
• Work-in-progress assemblies
• Reusable transport containers
• Inspection equipment

Not every part needs an individual RFID tag. Large components may be tagged individually, while small parts may be grouped in a tagged tray, bin, or material kit.

The correct tagging level depends on the required traceability, part value, regulatory requirements, and handling process.

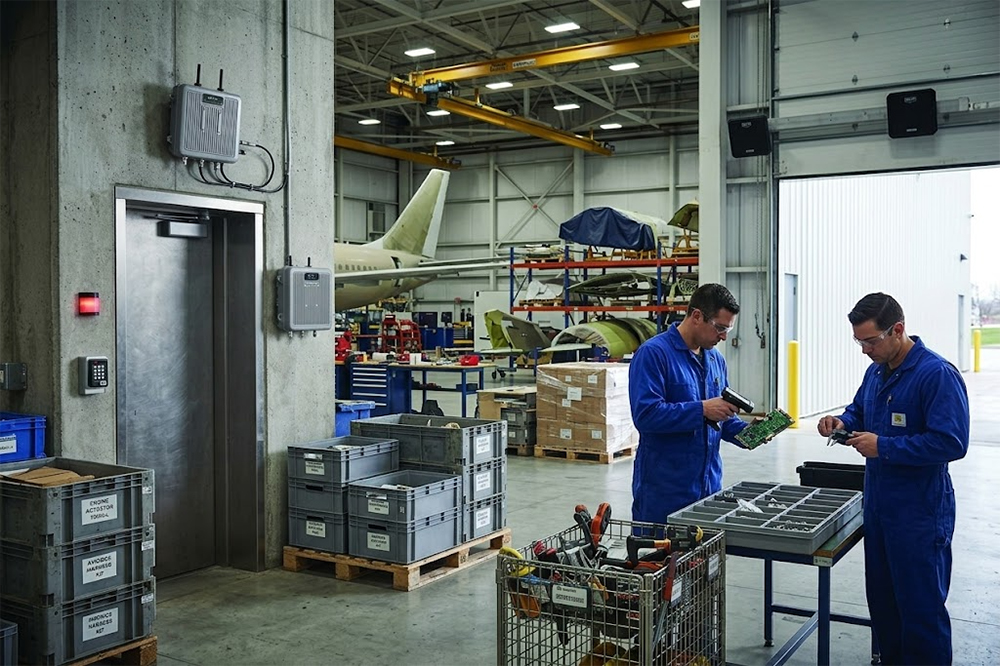

RFID for Aircraft Parts Receiving and Inspection

Aerospace facilities often receive parts from multiple suppliers. Each shipment may contain similar components with different part numbers, serial numbers, batch records, or inspection requirements.

A long range RFID scanner at the receiving area can identify tagged containers or components as they enter the facility. The system can then associate the read event with a purchase order, shipment, supplier, or inspection workflow.

Possible benefits include:

• Faster receiving confirmation
• Reduced manual data entry
• Better visibility of incoming parts
• Improved separation of inspected and uninspected materials
• Easier location tracking
• More accurate inventory records

RFID should not automatically mark a part as approved simply because it was read. Inspection, quality release, and documentation must remain separate software steps.

For aerospace applications, the system should distinguish between:

Part Identified → Part Received → Part Inspected → Part Approved

These are different events and should not be treated as one.

RFID for Aerospace Production and Assembly

Aerospace manufacturing often involves long production cycles and complex assemblies. Parts may move between machining, surface treatment, inspection, kitting, assembly, testing, and storage.

RFID can help track work-in-progress materials and production kits as they move between these areas.

For example, a tagged material container may be recorded when it moves from the warehouse to a production cell. A tagged assembly fixture may be identified when it enters a testing area. A work order can then be connected to the movement event in the manufacturing execution system.

Common applications include:

• Production kit tracking
• Work-in-progress identification
• Assembly fixture tracking
• Material issue and return
• Inspection queue management
• Tool and equipment allocation
• Finished component dispatch

The system is most effective when each reading zone corresponds to a meaningful production event.

RFID for Aircraft Maintenance, Repair, and Overhaul

MRO facilities manage many tools, parts, components, and equipment during maintenance activities. A missing tool or incorrectly stored component can delay a maintenance task and increase administrative work.

A long range RFID scanner can support:

• Tool room entry and return
• Maintenance kit issue
• Aircraft component removal
• Replacement part movement
• Inspection area tracking
• Quarantine area management
• Repairable component circulation
• Ground-support equipment tracking

For example, a tagged tool case may be issued to a technician and recorded when it leaves the tool room. When the case returns, the system can create a return event and trigger a tool inspection or inventory check.

RFID can also help identify whether a component is in storage, under repair, waiting for inspection, or ready for installation.

However, RFID should support existing maintenance records rather than replace required technical documentation.

RFID for Aviation Tool Tracking

Tool control is an important concern in aircraft maintenance. Tools may move between tool rooms, aircraft hangars, workshops, and maintenance platforms.

A long range RFID scanner can identify tagged:

• Toolboxes
• Tool trays
• Torque tools
• Inspection tools
• Calibration equipment
• Portable test devices
• Maintenance kits
• Ground-support tools

For small tools, individual tagging may be practical when tool accountability is critical. In other situations, tagging the toolbox or tray may be more efficient.

Calibration status should be managed separately. An RFID read can identify a tool, but the software must check whether the tool is currently calibrated, assigned, or approved for use.

A useful workflow may be:

RFID Identification → Tool Record → Calibration Check → Issue Approval

This is more reliable than treating every tool read as an automatic authorization.

Can RFID Work Around Metal Aircraft Parts?

Yes, but metal aircraft components can affect RFID performance. Many aerospace parts are made from aluminum, titanium, steel, or other conductive materials. Some composite structures may also contain conductive layers or metallic coatings.

The tag must be selected according to the mounting surface. Possible options include:

• On-metal UHF RFID tags
• Tags mounted on approved non-metal brackets
• Tags attached to plastic containers
• Tags installed on tool cases
• Tags placed on designated identification panels
• Small rugged tags for constrained surfaces

Tag placement must also respect engineering, safety, maintenance, and certification requirements. A tag should not interfere with moving parts, inspection surfaces, fasteners, wiring, or aircraft operation.

The reader performance depends on:

• Part material
• Tag design
• Tag orientation
• Mounting distance from metal
• Component geometry
• Antenna position
• Reading distance
• Nearby metal structures
• Reader power
• Movement speed

A tag that performs well on a flat metal sample may behave differently on a curved aircraft component or inside a dense storage rack.

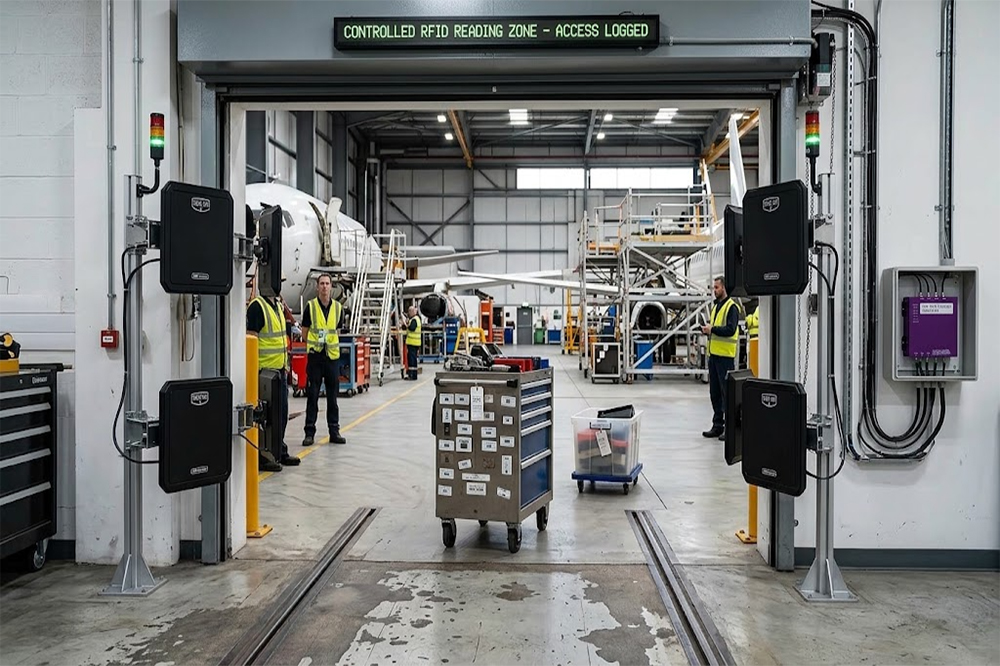

Why Controlled Reading Zones Matter

Aerospace facilities often contain secure rooms, production cells, hangars, tool rooms, and inspection areas located close together. RFID reader should not identify assets outside the intended checkpoint.

For example, a tool-room reader should record tools leaving or returning through the doorway. It should not accidentally identify tools that remain on a nearby workbench.

System designers may use:

• Directional antennas
• Lower reader power
• Shielding
• Door sensors
• Motion triggers
• Multiple antenna zones
• Software filtering
• Time-based event rules
• Separate entry and exit logic

The purpose is not to achieve the greatest possible reading distance. The purpose is to create reliable and meaningful movement events.

RFID for Aircraft Component Storage

Aerospace parts may require controlled storage, inspection status separation, environmental protection, and strict location management.

RFID can help identify tagged containers or components when they move between:

• Receiving storage
• Approved inventory
• Quarantine areas
• Repair storage
• Kitting areas
• Production cells
• Inspection rooms
• Dispatch staging

The system can provide a clearer view of where a part was last recorded. It may also reduce the time required to locate material kits or reusable containers.

For exact shelf-level or bin-level tracking, a single long range reader may not be enough. Additional readers, shelf antennas, handheld readers, or manual confirmation may be required.

It is important to distinguish between:

• Area-level tracking
• Room-level tracking
• Rack-level tracking
• Exact bin-level tracking

Each level requires a different system design.

RFID and Aerospace Software Integration

RFID data can be connected to:

• Manufacturing Execution Systems
• Enterprise Resource Planning platforms
• Maintenance Management Systems
• Warehouse Management Systems
• Aviation asset management software
• Tool control systems
• Quality management systems
• Configuration management databases
• Calibration management platforms

The RFID reader may communicate through Ethernet, TCP/IP, serial interfaces, APIs, or digital I/O.

A software workflow could look like this:

RFID Read → EPC Lookup → Part or Tool Identification → Work Order Match → Status Update

For maintenance applications, the software may also include:

RFID Read + Technician Login + Work Order → Tool Issue or Return Event

This prevents the system from generating inaccurate records based only on a nearby tag read.

A Practical Aerospace RFID Example

Consider an aircraft MRO facility managing maintenance tools, replacement components, and reusable equipment containers.

The company attaches rugged RFID tags to toolboxes, material kits, selected aircraft components, and ground-support equipment. Long range RFID readers are installed at:

1. The central tool room
2. The component receiving area
3. The maintenance workshop entrance
4. The inspection area
5. The dispatch and return zone

When a tool case leaves the tool room, the system records the issue event. When it returns, the system creates a return record and checks whether the toolbox requires inspection.

A tagged component container can also be tracked from receiving to inspection, then to the maintenance work area and back to storage.

The RFID system does not replace aircraft maintenance documentation. Instead, it provides additional movement and identity data that can reduce manual tracking work.

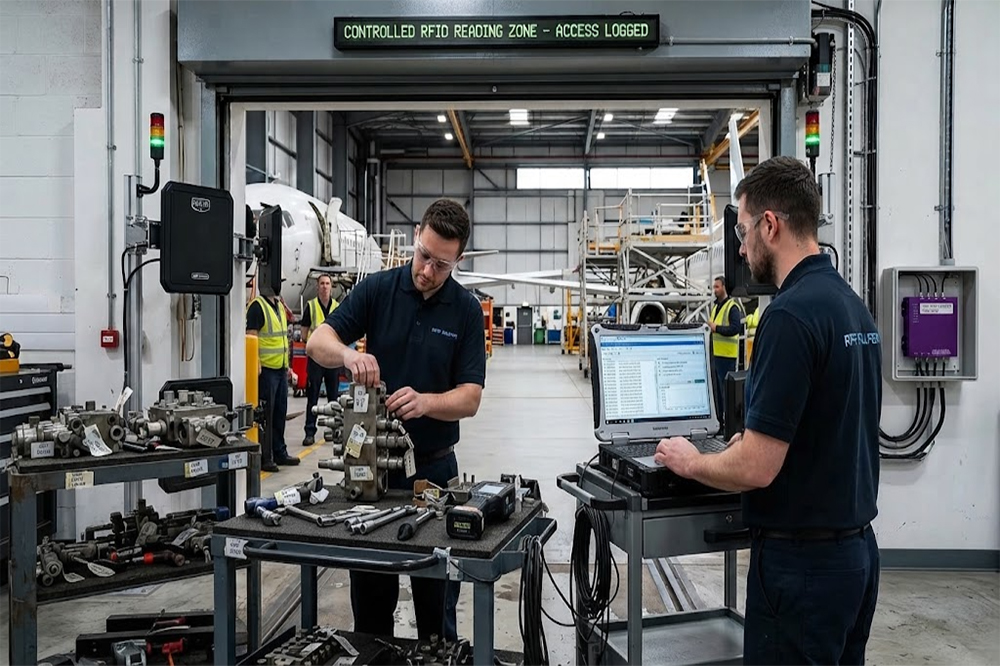

What Should You Test Before Deployment?

An aerospace RFID pilot should use actual parts, tools, containers, and facility layouts.

Important test conditions include:

• Metal aircraft components
• Curved and irregular surfaces
• Composite structures
• Toolboxes and tool trays
• Dense storage racks
• Tagged material kits
• Multiple assets passing together
• Secure doors and access points
• Hangar or workshop layouts
• Tag durability during handling
• Cleaning and chemical exposure
• Reading distance
• Antenna angle
• Reader interference
• Software filtering
• Work order integration
• Inspection and quarantine workflows

The pilot should also test normal maintenance activity. Technicians may carry several tools, move equipment on carts, work around aircraft structures, or pass through a doorway quickly.

These real conditions can affect RFID performance more than the reader’s nominal specifications.

What Should Distributors and System Integrators Look For?

When selecting a long range RFID scanner for aerospace manufacturing or MRO, consider:

• Support for the required UHF frequency range
• EPC C1G2 or ISO18000-6C compatibility
• Stable performance near metal components
• Compatibility with on-metal RFID tags
• Adjustable reader output power
• Suitable reader sensitivity
• Multiple antenna ports
• Directional antenna support
• Ethernet, serial, or API communication
• External trigger and digital I/O support
• Industrial housing
• Reliable long-term operation
• Software development support
• Integration with ERP, MES, WMS, or MRO systems
• Availability of samples for actual part testing
• OEM and custom configuration options

For aerospace applications, the supplier should also be able to support documentation, repeatable tag placement, engineering samples, and deployment testing.

RFID Supports Traceability but Does Not Replace Aviation Compliance

RFID can improve asset visibility and movement tracking, but it does not replace aviation quality and maintenance procedures.

A complete aerospace process may still require:

• Part certification
• Serial number verification
• Inspection approval
• Maintenance records
• Calibration control
• Tool accountability
• Configuration management
• Access control
• Airworthiness documentation
• Quarantine procedures
• Final quality release

RFID should provide supporting identity and movement data while the official technical and quality records remain controlled by the appropriate systems.

Final Takeaway

A long range RFID scanner can help aerospace manufacturers and MRO teams track aircraft components, production materials, maintenance tools, reusable containers, and ground-support equipment across controlled facilities.

The main technical challenges include metal surfaces, irregular component shapes, secure reading zones, strict documentation requirements, and the need to distinguish identification from approval or maintenance authorization.

With suitable on-metal tags, carefully positioned antennas, controlled reading zones, and software integration, RFID can reduce manual inventory work and improve the traceability of aerospace assets throughout manufacturing and maintenance operations.

Frequently Asked Questions

1. Can RFID track aircraft parts?

Yes. RFID can identify and track aircraft components, material kits, containers, and equipment. The tag type and mounting method must match the part’s material and operating environment.

2. Are on-metal RFID tags required for aerospace applications?

They are often recommended for metal aircraft components, tools, cabinets, and equipment. The exact tag should be tested on the actual surface before deployment.

3. Can RFID replace aircraft maintenance records?

No. RFID provides identity and movement information. Official maintenance, inspection, calibration, and airworthiness records must remain controlled by the appropriate systems.

4. Can RFID track tools in an aircraft maintenance facility?

Yes. RFID can track toolboxes, trays, maintenance kits, and selected individual tools as they leave and return to tool rooms or workshops.

5. Does one RFID reader provide exact rack or bin location?

Not necessarily. A fixed reader usually provides checkpoint or area-level information. Exact location may require additional readers, antenna zones, handheld devices, or manual confirmation.
