9dBi Antenna UHF RFID Reader Device

CYKEO SSD-RA09L can reach around 20 meters under typical conditions, and its output power and antenna design help maintain read stability across moving or angled tags. It supports ISO 18000-6C/6B and GB/T29768 formats, so compatibility is broad. Weather, tag position, and nearby metal can influence results, but adjusting the power level usually keeps performance predictable in outdoor locations.

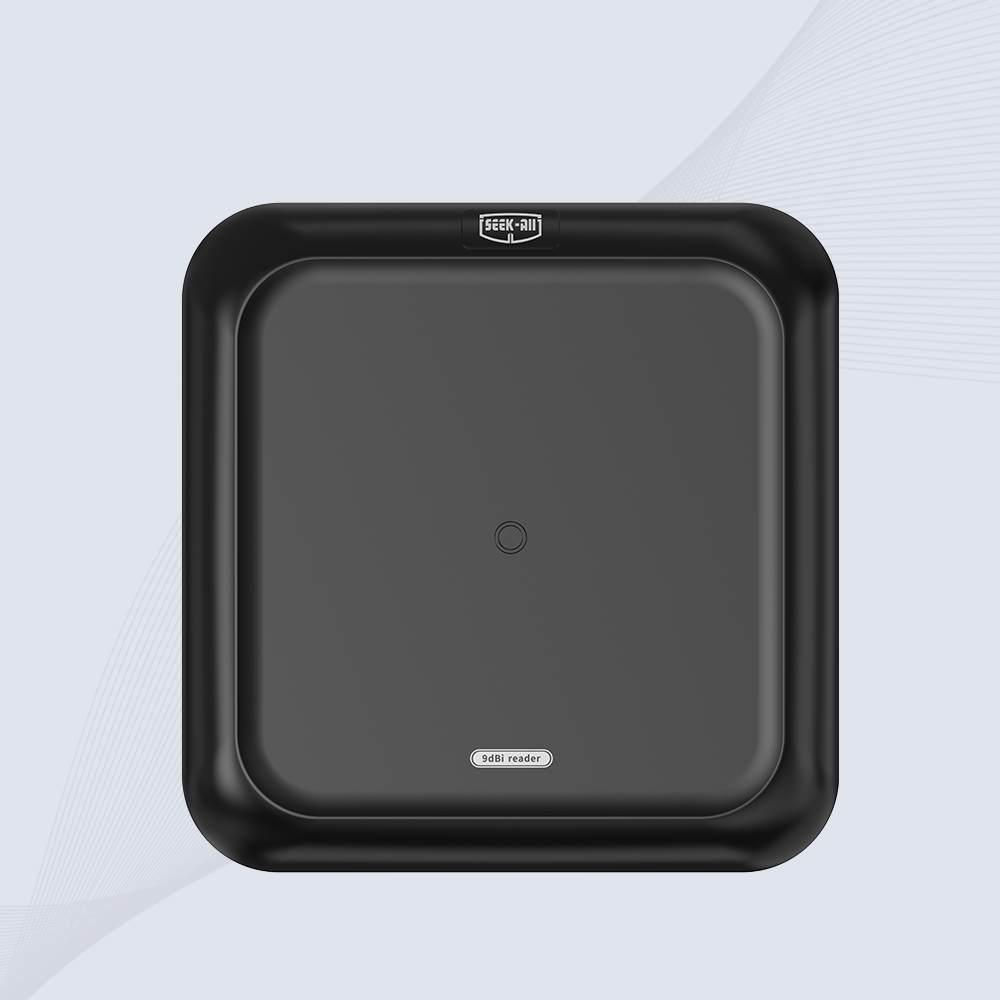

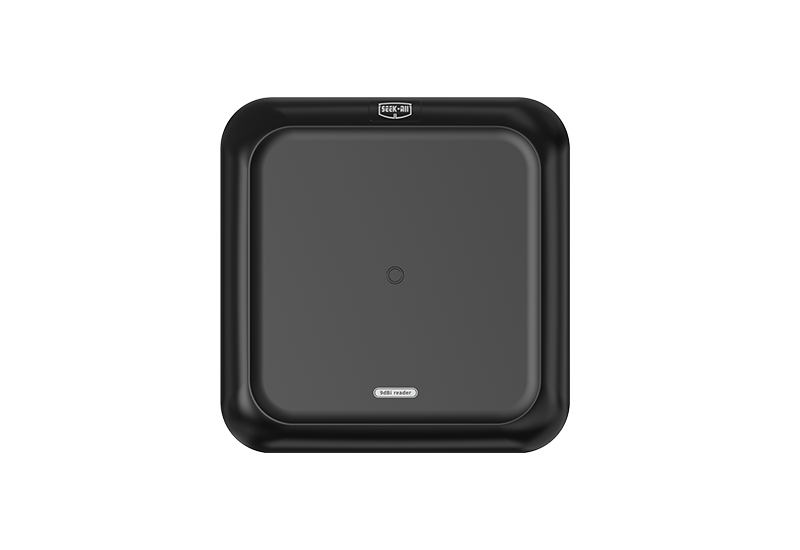

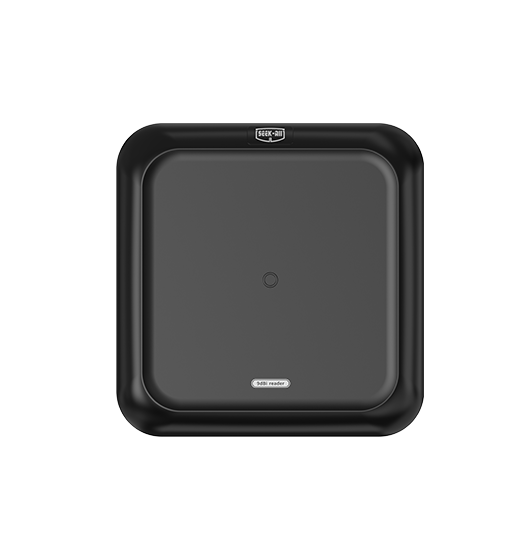

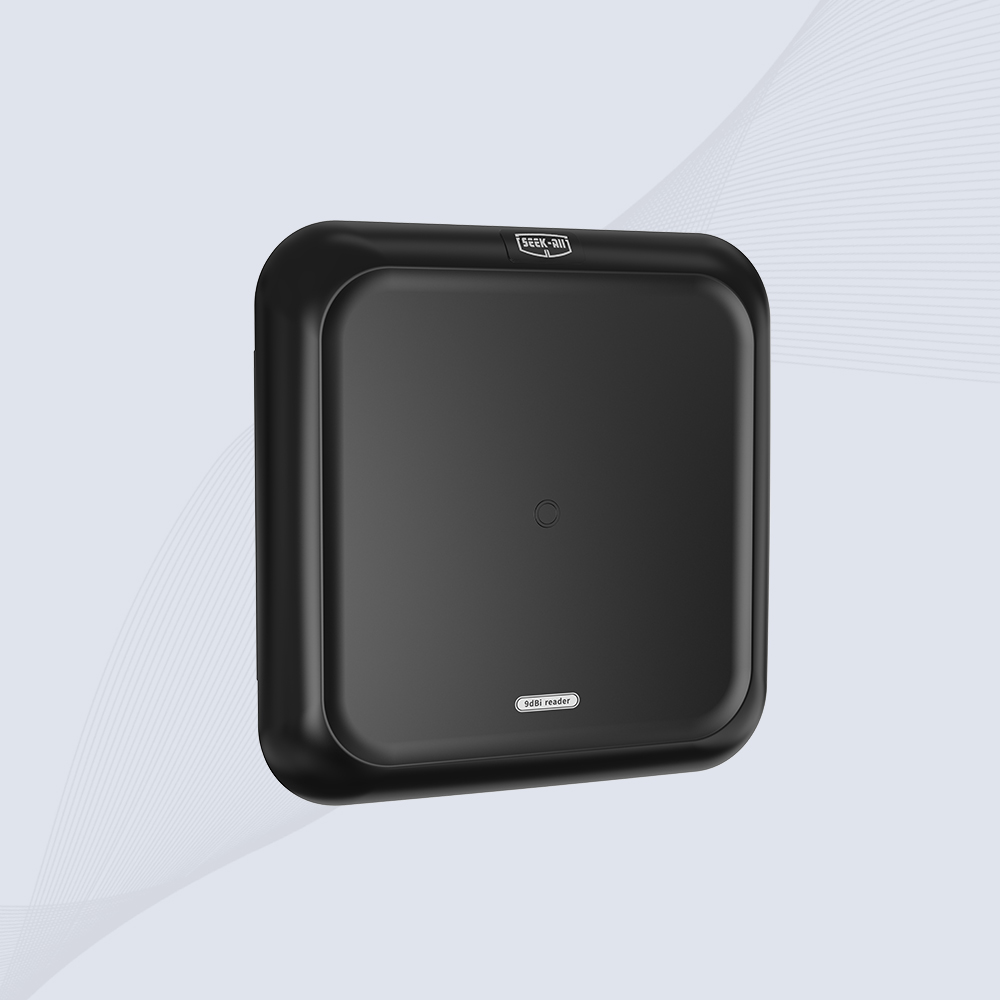

SSD-RA09L is an integrated rfid tag reader combining a UHF RFID module and a 9 dBi antenna in one device.

The reading distance can reach up to 10 meters, depending on the RFID tag, environment and installation conditions.

It supports EPC C1G2 and ISO18000-6B/C protocols for common passive UHF RFID tags.

Yes. It is a fixed rfid reader designed for applications such as warehouse portals, access control and production lines.

Ethernet and RS232 are standard. Wi-Fi, 4G and PoE can be provided as optional configurations.

The specified recognition speed is more than 600 tags per second, depending on tags and operating conditions.

Yes. The operating frequency is adjustable from 840 MHz to 960 MHz.

Yes. Its integrated design, multiple interfaces and wide operating temperature range make it suitable for industrial RFID deployments.

The reader processes well above 500 tags per second and uses RSSI-based filtering to cut noise from nearby clusters. Its TCP/IP communication channel keeps uploads quick, making it suitable for gates, vehicle lanes, or inventory points where many tags pass together.

SSD-RA09L fits operations where equipment and materials move across wide areas—construction yards, outdoor staging zones, warehouse entrances, and secured vehicle routes. Its IP67 metal body withstands harsh temperatures and humidity, and the built-in lightning protection keeps uptime steady. Developers can use the SDK or API to connect directly to existing management software.
