7dBi UHF RFID Long Range Reader​

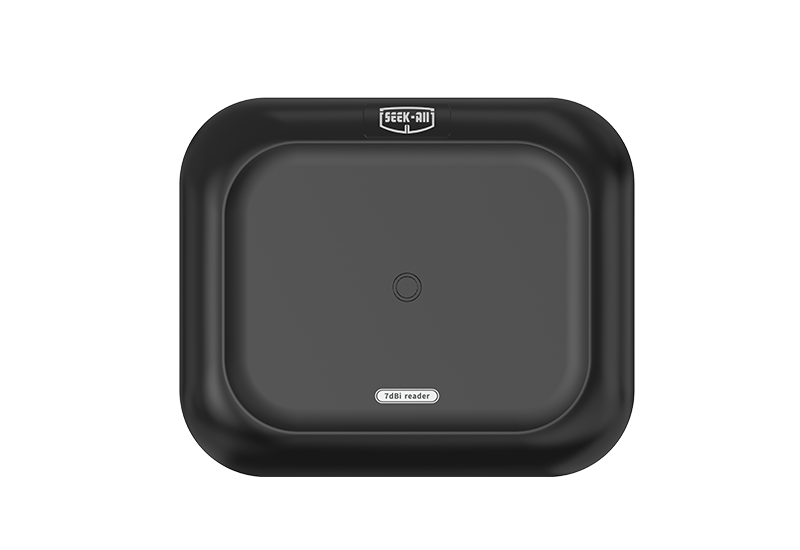

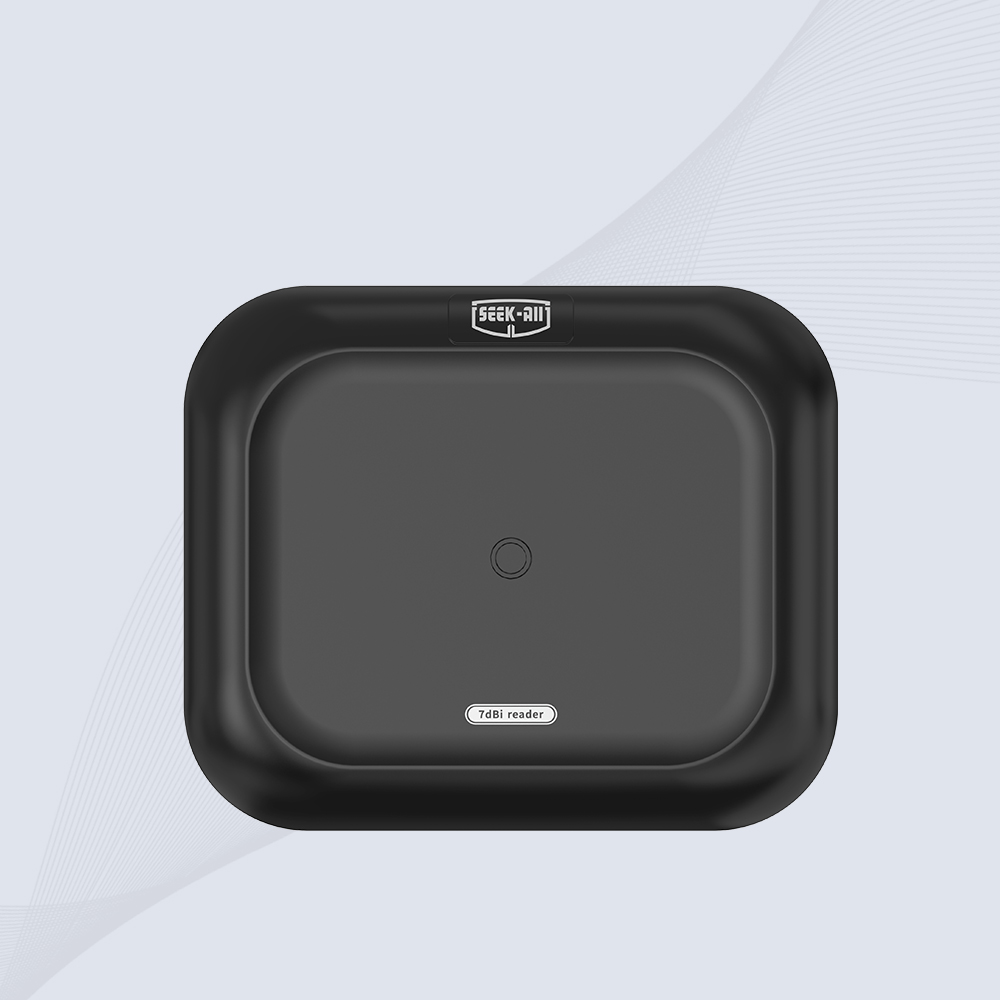

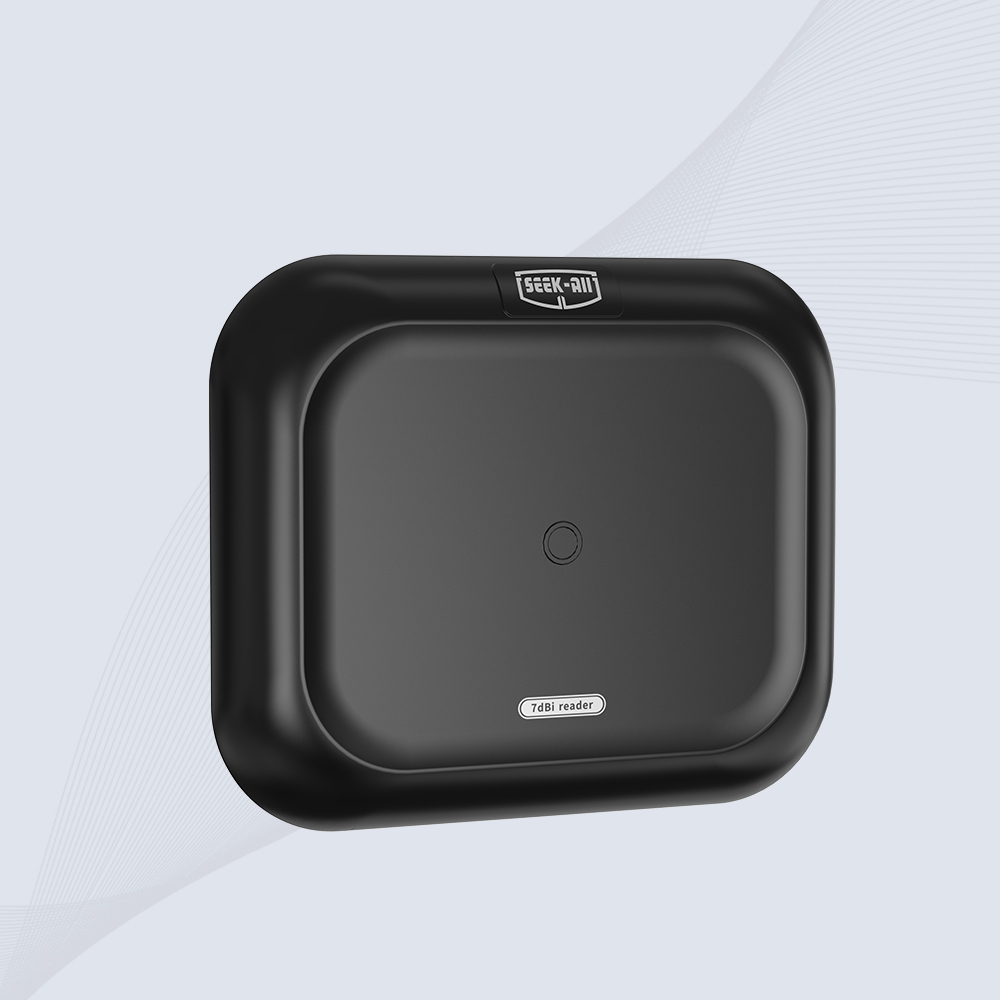

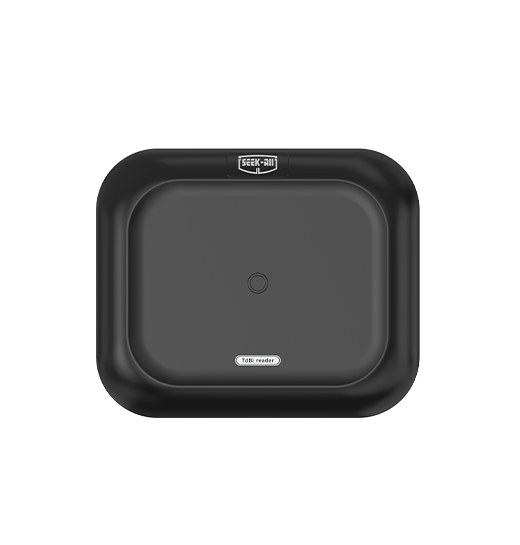

SSD-RA07L is an integrated UHF RFID reader that combines an RFID read/write module with a built-in 7 dBi antenna for fixed-position RFID tag identification.

Yes. SSD-RA07L supports TCP, HTTP, and MQTT, allowing the RFID tag reader to communicate with IoT platforms, software systems, and customized applications.

Ethernet and RS232 are standard interfaces. Wi-Fi, 4G, and PoE can be selected according to different installation and networking requirements.

SSD-RA07L provides a reading distance of approximately 0–6 meters. The actual distance can vary depending on the RFID tag, installation position, surrounding environment, and operating conditions.

Yes. SSD-RA07L is designed as a fixed RFID reader for applications such as access control, portals, production lines, workstations, warehouses, and automated inventory systems.

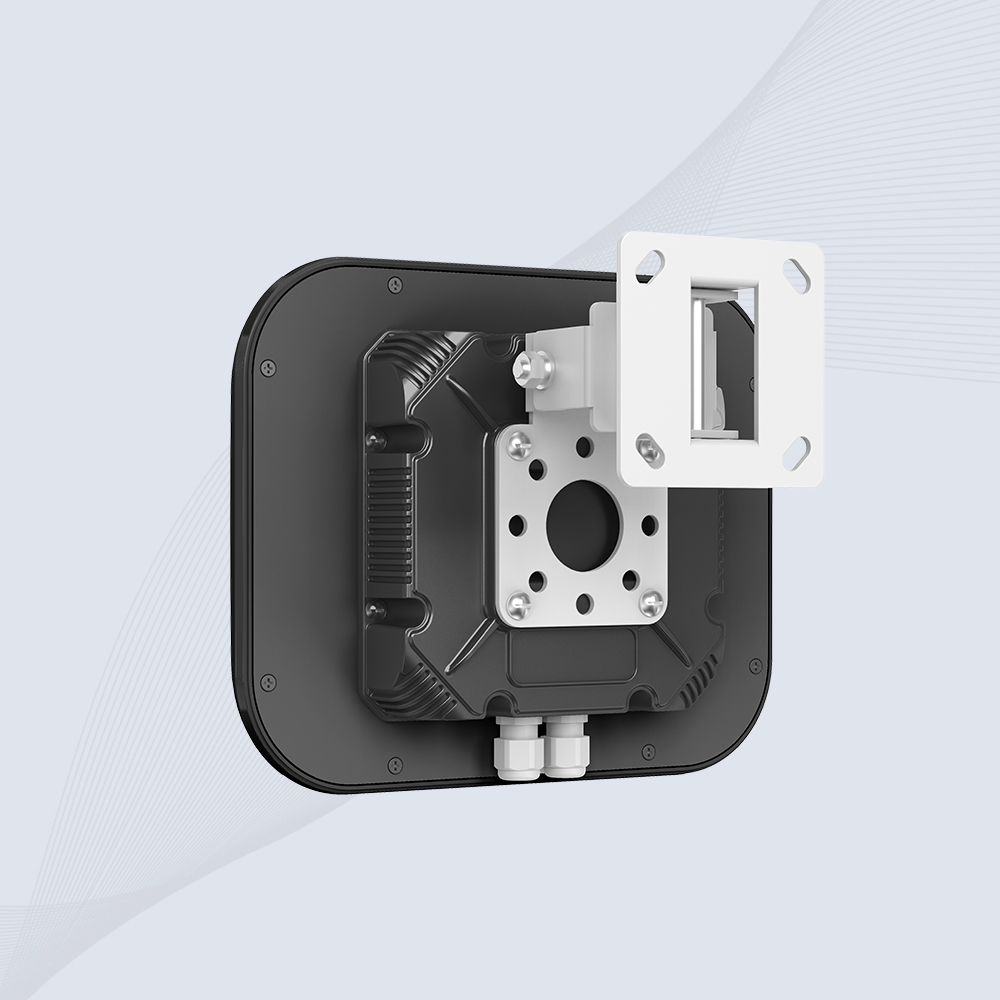

SSD-RA07L UHF RFID Long Range Reader uses adaptive frequency hopping (902-928MHz) to cut through interference from metal and machinery, while its IP67 aluminum housing doubles as an EMI shield and the 6dBi circular-polarized antenna keeps signals steady around steel structures. Mount it 15–20 cm from metal surfaces using the included anti-vibration brackets, turn on “Metal Mode” in the SDK to boost tag sensitivity by about 30%, and pair with anti-metal tags like the CM-T80 for direct attachment to steel assets. An automotive plant using the CYKEO-RA6L with directional antennas achieved 99.3% read accuracy on metal engine parts, even with 5–8 mm metal obstructions.

SSD-RA07L Industrial RFID Reader, powered by the Impinj R2000 chip and advanced anti-collision algorithms, can handle 500+ tags/sec in standard mode and up to 1,200 tags/sec in batch mode. It automatically filters duplicate reads using RSSI/TID analysis, stores over 100,000 tag IDs if the network goes down, and lets you divide racks into zones via software to focus on high-traffic areas. In a 3PL logistics test with 850 pallets, each holding 50–70 tagged items, the CYKEO-RA6L achieved 98.6% first-pass read accuracy while syncing data to SAP EWM in real time.

SSD-RA07L UHF RFID Long Range Reader is built for extreme cold and meets MIL-STD-810G standards. It runs from -30°C to 85°C without heaters, and its heated lens stops frost from forming during freezer-to-ambient transitions. Even at -25°C, it boots in under 15 seconds, compared with 45+ seconds for standard readers.

For frozen storage, we recommend the Heated Enclosure Kit (HEK-6X) to keep the internal temperature around 10°C in -45°C environments, using LT-T50 low-temp RFID tags for meat or packing-line tracking. Vertical antenna placement also helps reduce ice interference.
