6dBi UHF RFID Long Range Reader​

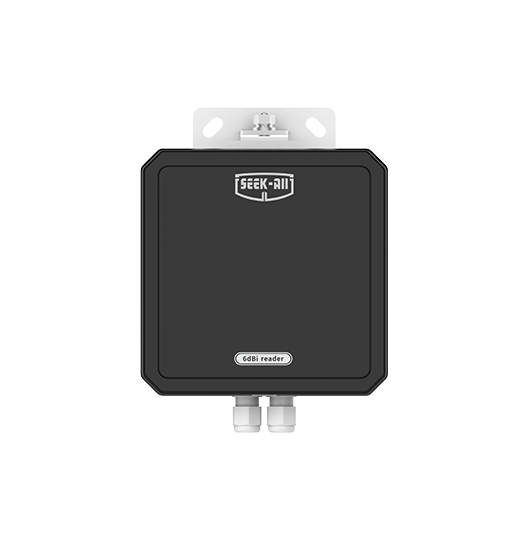

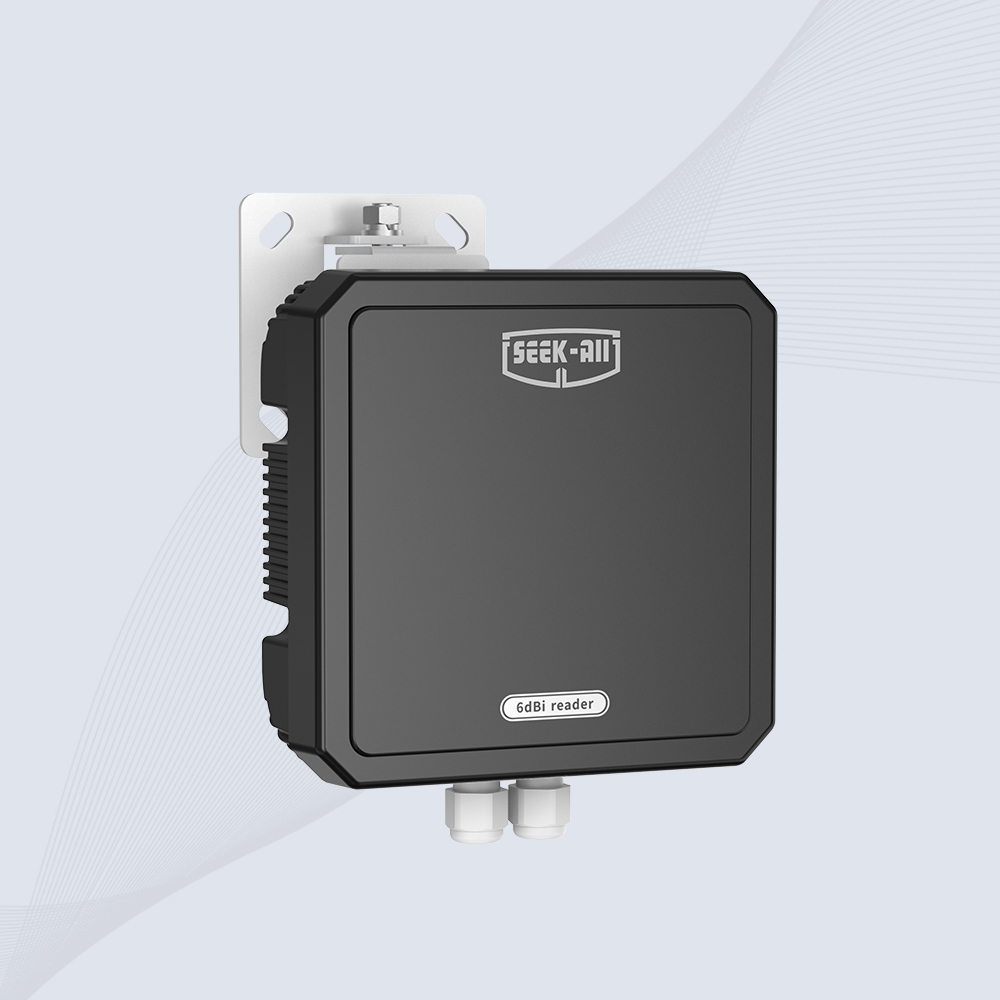

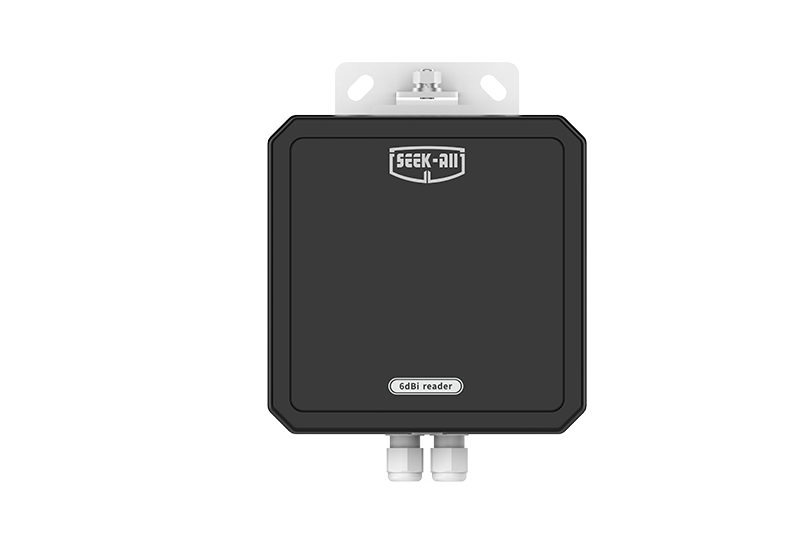

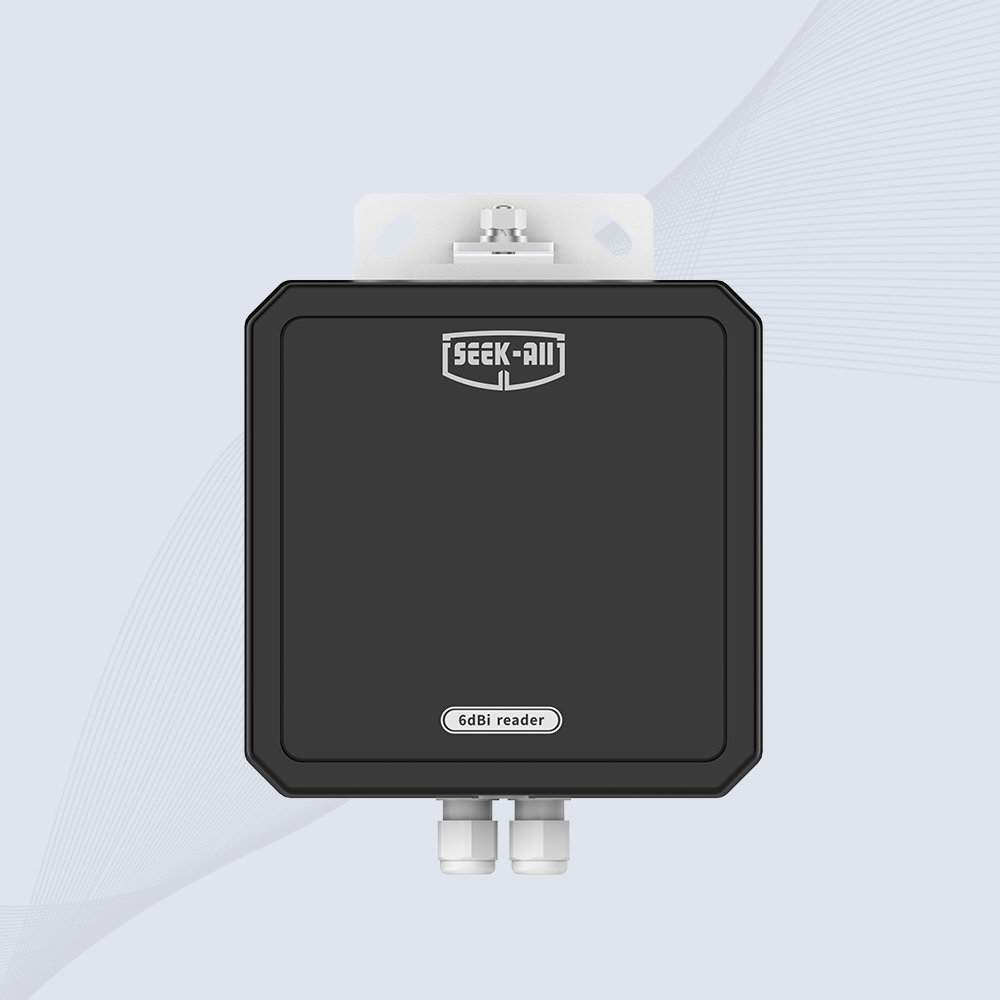

SSD-RA06L is an integrated rfid reader that combines a UHF RFID module with a built-in 6 dBi antenna for fixed RFID applications.

The reading distance can reach up to 3 meters. Actual performance depends on the RFID tag, tag orientation, installation position, and surrounding environment.

The reader supports EPC C1G2 and ISO18000-6B/C protocols for compatibility with common passive UHF RFID tags.

Yes. It supports TCP, HTTP, and MQTT communication protocols. Ethernet and RS232 are standard, while Wi-Fi and 4G are optional.

Yes. Its integrated structure, fast tag recognition, multiple communication options, and fixed mounting design make it suitable for production lines, warehouses, workstations, access control, and asset tracking.

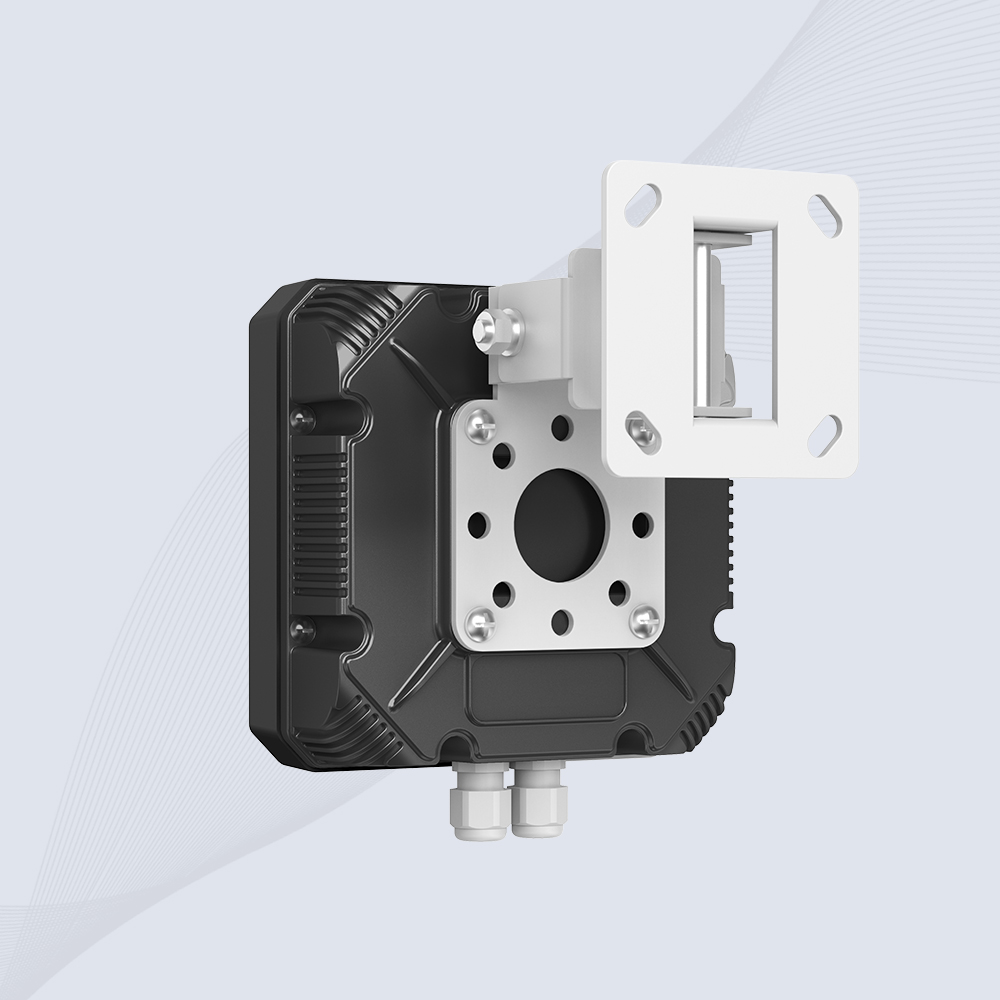

SSD-RA06L UHF RFID Long Range Reader uses adaptive frequency hopping (902-928MHz) to cut through interference from metal and machinery, while its IP67 aluminum housing doubles as an EMI shield and the 6dBi circular-polarized antenna keeps signals steady around steel structures. Mount it 15–20 cm from metal surfaces using the included anti-vibration brackets, turn on “Metal Mode” in the SDK to boost tag sensitivity by about 30%, and pair with anti-metal tags like the CM-T80 for direct attachment to steel assets. An automotive plant using the CYKEO-RA6L with directional antennas achieved 99.3% read accuracy on metal engine parts, even with 5–8 mm metal obstructions.

SSD-RA06L Industrial RFID Reader, powered by the Impinj R2000 chip and advanced anti-collision algorithms, can handle 500+ tags/sec in standard mode and up to 1,200 tags/sec in batch mode. It automatically filters duplicate reads using RSSI/TID analysis, stores over 100,000 tag IDs if the network goes down, and lets you divide racks into zones via software to focus on high-traffic areas. In a 3PL logistics test with 850 pallets, each holding 50–70 tagged items, the CYKEO-RA6L achieved 98.6% first-pass read accuracy while syncing data to SAP EWM in real time.

SSD-RA06L UHF RFID Long Range Reader is built for extreme cold and meets MIL-STD-810G standards. It runs from -30°C to 85°C without heaters, and its heated lens stops frost from forming during freezer-to-ambient transitions. Even at -25°C, it boots in under 15 seconds, compared with 45+ seconds for standard readers.

For frozen storage, we recommend the Heated Enclosure Kit (HEK-6X) to keep the internal temperature around 10°C in -45°C environments, using LT-T50 low-temp RFID tags for meat or packing-line tracking. Vertical antenna placement also helps reduce ice interference.
