What Are the Best Long Range RFID Readers for Industrial Asset Tracking?

2025-05-15Cykeo News RFID FAQ 12600

Long-range RFID readers are essential for tracking assets in large industrial facilities like warehouses, factories, and construction sites. These devices combine extended read ranges (up to 15+ meters) with rugged designs to withstand dust, moisture, and temperature extremes. Below, we break down the key features to prioritize and how to select the right reader for your operations.

Cykeo RFID reader mounted on a forklift, scanning a tagged pallet.

How to choose the right Long Range RFID Readers based on your needs?

1. Critical Features for Industrial-Grade RFID Readers

Read Range & Speed: Look for UHF (Ultra-High Frequency) readers with EPC Gen2v2 compliance, offering 12–15 meters (40–50 feet) range to scan pallets, machinery, or vehicles quickly.
Durability: IP67 or IP68 ratings ensure protection against water immersion and dust. Metal housings and anti-vibration mounts are ideal for heavy machinery zones.
- Multi-Tag Scanning: Ability to read 1,000+ RFID tags per second minimizes downtime during bulk inventory checks.
Integration: Compatibility with ERP systems like SAP or Oracle streamlines data workflows.

Cykeo’s industrial RFID readers, for instance, support real-time GPS tracking and operate in temperatures from -30°C to 75°C (-22°F to 167°F), making them suitable for steel mills or outdoor storage yards.

2. How to Maximize ROI in Industrial Settings

Antenna Placement: Install directional antennas near loading docks or conveyor belts to focus on high-traffic zones.
Interference Mitigation: Use frequency-hopping modes to avoid signal clashes from machinery or Wi-Fi networks.
Maintenance Alerts: Configure readers to send automated alerts for firmware updates or hardware wear.

A logistics company using Cykeo’s readers reduced asset retrieval time by 50% by tagging shipping containers and integrating data with their warehouse management system.

3. Common Challenges and Solutions

Metal Interference: Opt for on-metal RFID tags and readers with adjustable power settings (2–4W).
Battery Life: Choose readers with PoE (Power over Ethernet) or solar-powered options for remote areas.
Data Security: Enable AES-256 encryption to protect sensitive asset data during transmission.

4. Future-Proofing Your RFID System

Scalability: Ensure readers support additional antennas or software upgrades as your facility expands.
Edge Computing: Select readers with onboard processing to analyze data locally, reducing cloud dependency.

Why Cykeo Excels in Industrial Environments

Cykeo’s readers are tested in extreme conditions, from oil rigs to frozen food warehouses. Their devices include multi-protocol support (RAIN RFID, BLE) and customizable APIs, allowing seamless adoption into existing IoT ecosystems.

Long Range RFID Readeindustrial rfid readerr Performance in Real Industrial Environments

On paper, a long range RFID reader promises 15 meters. In reality, that number shifts the moment steel, humidity, and motion enter the equation.

In a port yard project I supported, the same RFID reader long range unit dropped from 14 meters to just under 9 meters once mounted near stacked containers. Not a fault—just physics. Signal reflection and absorption behave differently outdoors.

RAIN RFID (by the RAIN Alliance) notes that environmental factors can reduce effective read range by 30–60%, especially in dense metal environments. That’s why long range RFID scanner performance should always be evaluated in-field, not just from datasheets.

Industrial RFID Reader vs Long Range RFID Scanner: What Matters

Parameter	Long Range RFID Reader	Industrial RFID Reader
Read Distance	10–15m typical	5–12m optimized
Environment	Open / semi-open	Harsh industrial
Stability	Moderate	High
Durability	Medium	High (IP67+)
Use Case	Yard tracking	Production tracking

A long range RFID scanner isn’t automatically an industrial RFID scanner. The difference shows up after months of exposure to dust, vibration, and temperature cycling.

Field Insight: What Actually Extends RFID Read Range

1. Antenna Gain Matters More Than Reader Power

In one Cykeo deployment, switching from a 6 dBi to a 9 dBi antenna increased stable read distance by nearly 40%—without touching reader output power.

More power often increases noise. Better antennas improve signal quality.

2. Long Range RFID Tag Selection Changes Everything

Not all long range RFID tag designs behave equally.

According to Impinj application notes, tag orientation and substrate material can shift read distance by over 2×. In practice, I’ve seen plastic pallet tags outperform metal tags simply due to placement consistency.

Choosing the right long range RFID tag is often more impactful than upgrading the reader itself.

3. Mounting Height and Angle Are Underrated

A reader mounted at 5 meters with a slight downward angle often outperforms one mounted directly facing assets at 2 meters.

Why? Less obstruction, better coverage cone.

Small adjustments—sometimes just 10–15 degrees—change everything.

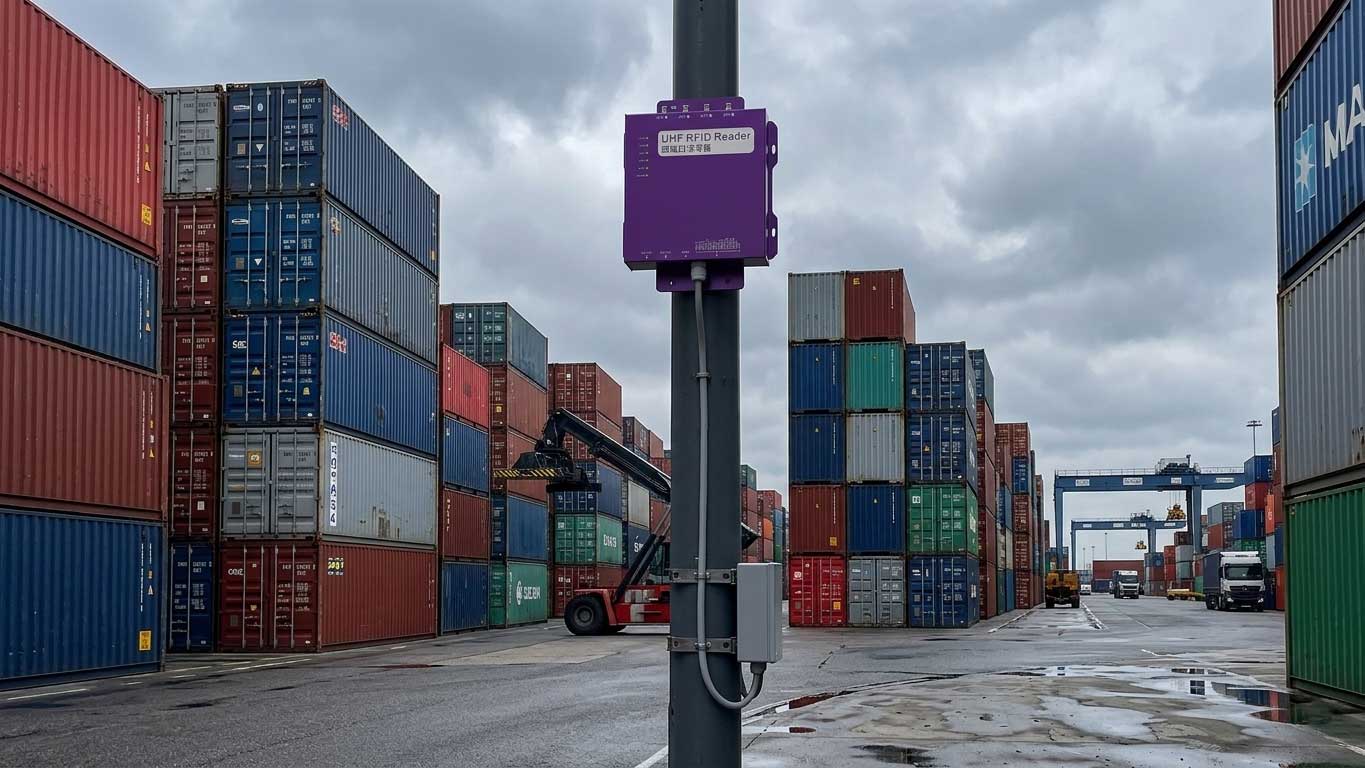

Real Deployment Case – Cykeo Long Range RFID System

Project: Container yard tracking
Environment: Coastal logistics terminal
System: Cykeo long range RFID reader + industrial RFID scanner setup

Conditions:

Outdoor exposure (rain, salt air)
Large metal container stacks
Vehicle movement (forklifts, trucks)

Challenges:

Signal reflection from containers
Tag occlusion during stacking
Inconsistent reads during rain

Optimization:

Elevated mounting (6m poles)
Directional antennas with focused beam
Custom long range RFID tag placement on container corners

Results:

Effective read range stabilized at 12–14 meters
Asset identification accuracy improved to 97%
Retrieval time reduced significantly (close to 45%)

This is where a true industrial RFID reader combined with a long range RFID scanner approach becomes reliable—not just powerful.

Choosing the Right Long Range RFID Reader

Warehouse & Logistics

– Long range RFID reader (12–15m)

– Multi-tag scanning capability

– Integration with WMS systems

Construction Sites

– Industrial RFID scanner with rugged housing

– Weather-resistant design

– Long range RFID tag for equipment tracking

Manufacturing Yards

– RFID reader long range with directional antennas

– Anti-interference capability

– Edge processing support

Common Mistakes in Long Range RFID Deployments

Assuming max range equals usable range
Ignoring antenna polarization
Using incorrect long range RFID tag types
Mounting readers too low or too close to metal

One overlooked issue: cable loss. Long RF cables can reduce signal strength significantly if not properly specified.

FAQ – Long Range RFID Reader for Industrial Use

What is the maximum range of a long range RFID reader?

Typically 10–15 meters under ideal conditions. Real environments often reduce this to 8–12 meters.

How many tags can be read simultaneously?

Advanced systems support 1,000+ tags per second depending on configuration.

Is a long range RFID reader suitable for metal environments?

Yes, but only with proper long range RFID tag selection and antenna tuning.

What affects RFID read range the most?

Antenna design, tag type, environment, and mounting position—not just reader power.

Final Field Note

The biggest misconception about long range RFID reader systems is that range equals performance.

It doesn’t.

Reliable tracking comes from system design:

Right long range RFID tag
Proper antenna setup
Smart mounting strategy
Environmental adaptation

That’s where Cykeo systems tend to stand out—not because they read farther, but because they read consistently.
