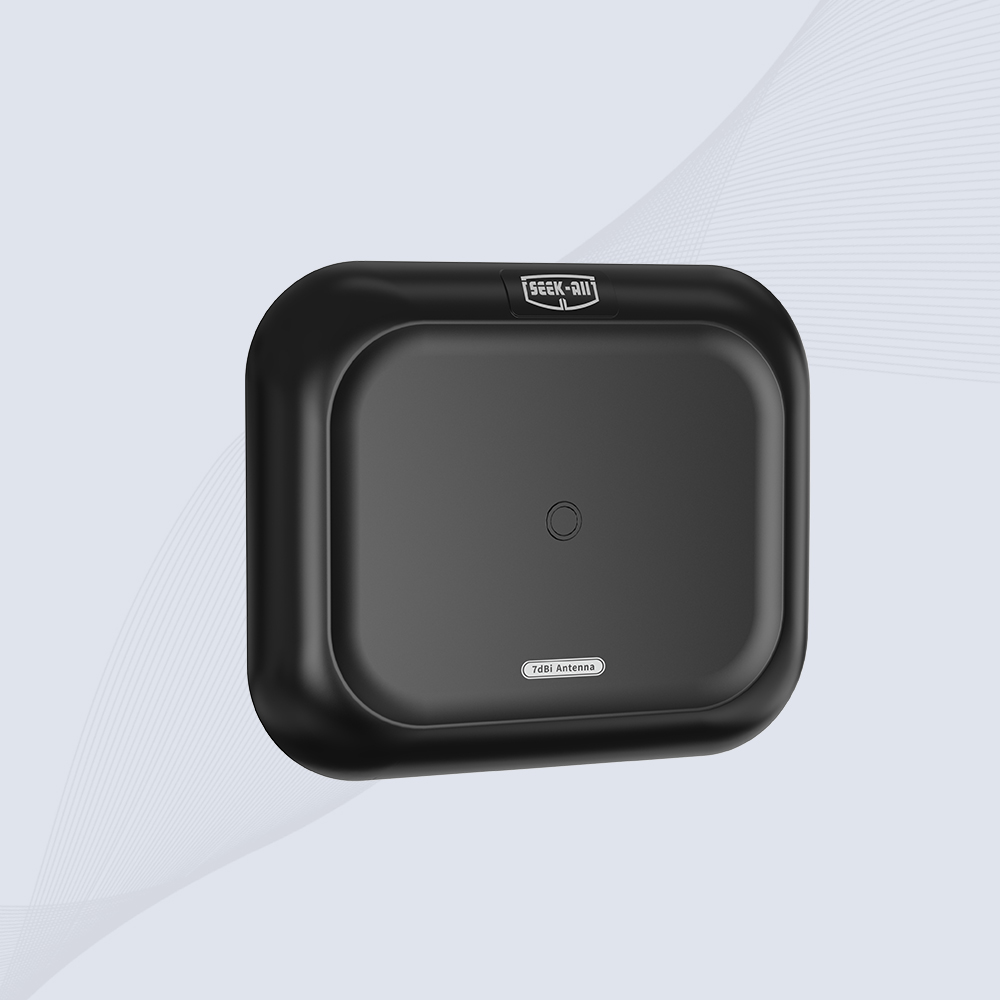

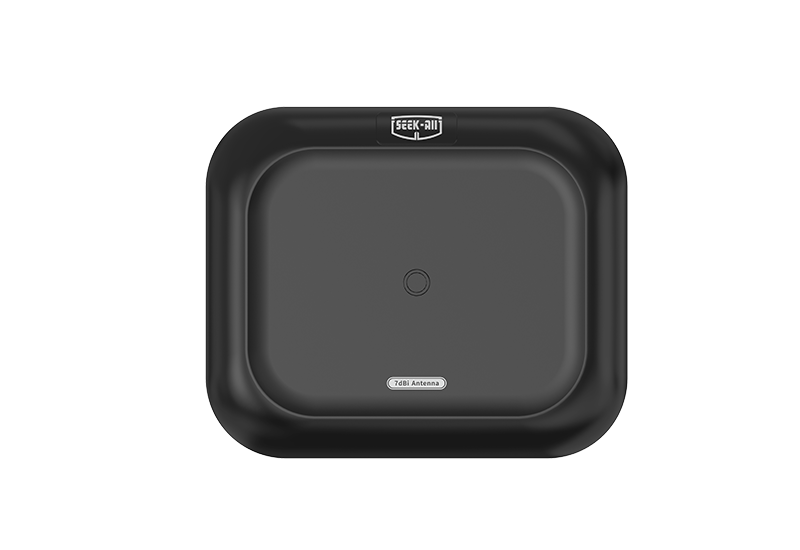

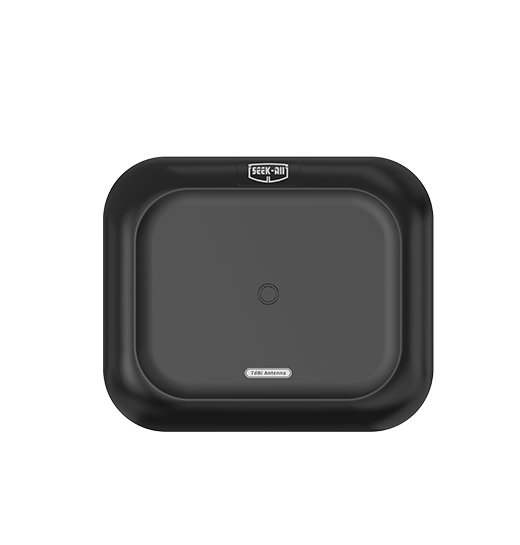

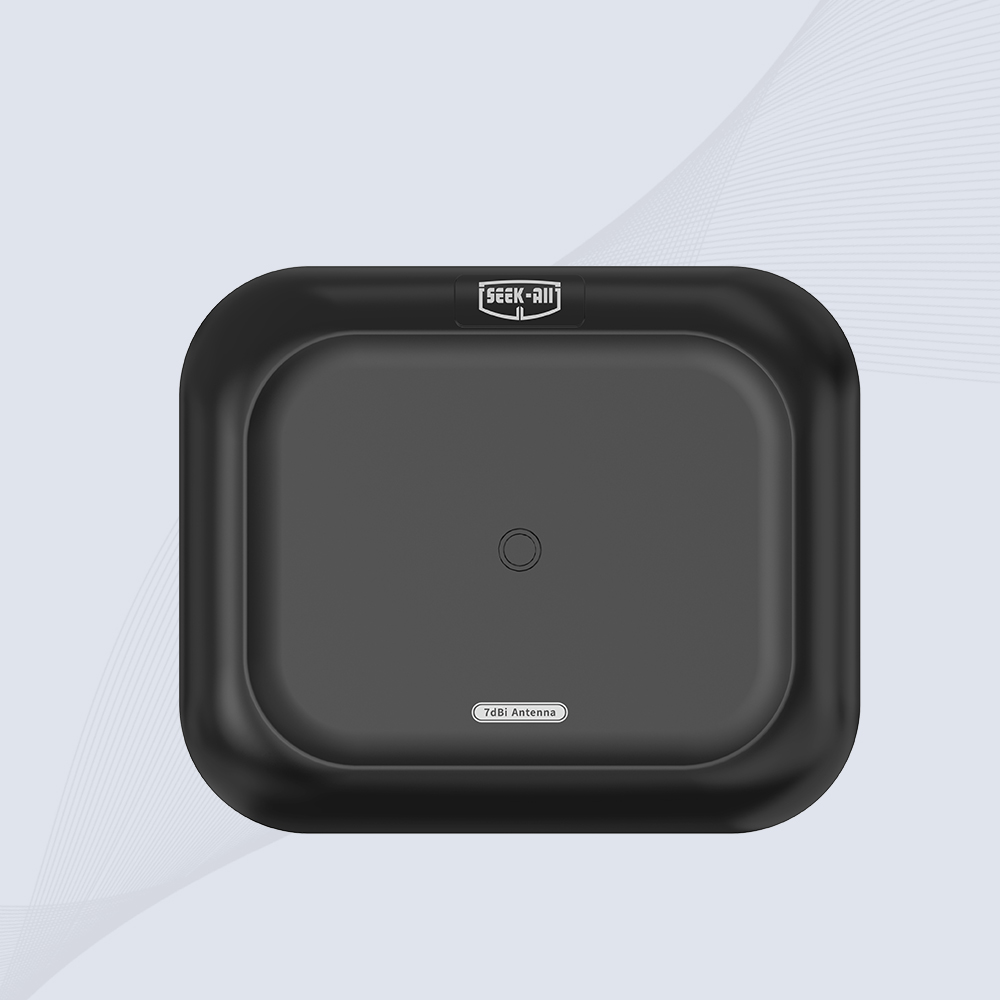

7dBi Ultra-Thin RFID Panel Antenna

To get the best reads from panel antennas on warehouse shelves, placement matters. Mount them around 2.5–3 m high and tilt them down 15–30° so the beam covers multiple shelf tiers. The 105° horizontal spread can handle a couple of aisles without overlapping too much.

Keep a bit of space—about 50 cm—from metal beams or conduits to cut reflections, and if your shelves mix wood and metal, offset the antenna 20 cm from vertical supports. In real tests, the SSD-A07 hit over 98% on metal shelf tags and 99% on fast-moving conveyors, far better than standard antennas. Using planning software to map the radiation pattern before mounting helps catch dead zones early.

To keep panel antennas working well in humid environments, a few simple steps go a long way. The SSD-A07 IP65 ABS-aluminum housing already blocks moisture, and its sealed connectors with silicone gaskets stop water from creeping in. In really damp or coastal areas, a light coating of dielectric grease every few months helps even more.

The anodized aluminum back resists corrosion, and the UV-stable radome keeps the antenna from warping in sun exposure. Shifting to local bands like 920–925 MHz in APAC and letting the reader adjust power helps signals cut through moisture in the air. A quick monthly wipe with alcohol to remove condensation keeps performance steady over time.

Yes. The SSD-A07 is designed to work with compatible UHF RFID readers and can be integrated into different rfid reader antenna systems.

The antenna uses a standard 50Ω interface.

The housing is made from ABS+PP.

The specified beamwidth is 60°/75°..

The antenna provides a 7 dBi gain.

Yes. It uses circular polarization to reduce signal loss caused by tag orientation.

It supports an adjustable operating frequency range of 840–960 MHz.

SSD-A07 is a 7 dBi directional UHF RFID antenna designed for stable RFID read/write performance.

The SSD-A07 can fit right into existing IoT setups like LoRaWAN or Zigbee. You can link it through dual-protocol gateways—like MultiTech Conduit—for bridging RFID data into LoRa networks, or use Zigbee 3.0 modules for mesh networks in smart shelves.

On the edge, a small board like a Raspberry Pi CM4 can run analytics right on the antenna, filtering out most redundant reads before sending data to the cloud. It also supports industrial standards like OPC UA for monitoring antenna health and MQTT for AWS or Azure IoT integration. Plus, it’s globally certified, so you don’t have to worry about compliance.
