Long Range RFID Scanner for Vehicle Tracking: A Practical Guide for Logistics and Access Control Projects

long range RFID scanner for vehicle tracking is a UHF RFID solution that can automatically identify vehicles from several meters away using RFID tags attached to vehicles or equipment. It is commonly used in parking systems, logistics yards, factories, and access control applications. The actual performance depends on RFID reader power, antenna selection, tag type, installation position, and operating environment.

When companies start looking for a long range RFID scanner for vehicle tracking, the first requirement is often very direct:

“We want to identify vehicles automatically when they arrive.”

It sounds simple, but vehicle RFID projects usually involve more details than expected.

A truck does not always stop at the same position.

Weather conditions change.

Vehicles move at different speeds.

Metal surfaces may affect RFID signals.

A solution that works perfectly in a testing area may need adjustment after being installed at a real factory gate.

This is why experienced RFID system integrators usually focus on the complete application, not only the reading distance.

---

Why Companies Use RFID for Vehicle Tracking

Traditional vehicle management often depends on:

• Manual registration
• Security checks
• License plate recognition
• Paper records

These methods can work, but they may become inefficient when vehicle traffic increases.

For example, imagine a logistics center receiving hundreds of trucks every day.

Every vehicle entering and leaving requires recording:

• Vehicle identity
• Entry time
• Exit time
• Driver information
• Cargo movement

Manual processes create waiting time.

A long range RFID scanner can automate this step.

A vehicle equipped with an RFID tag can be recognized when it enters the reading area.

The system then sends the information to the management platform.

---

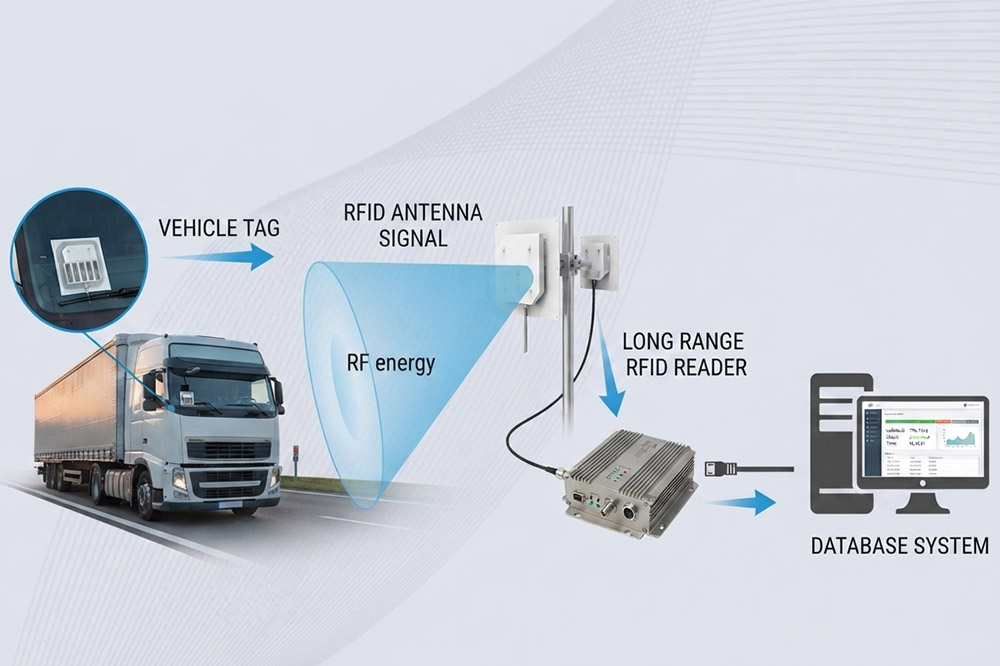

How Long Range RFID Scanner Works for Vehicles

A typical vehicle RFID tracking system includes:

• UHF RFID reader
• Directional antenna
• Vehicle RFID tag
• Software platform
• Barrier or access control system

The RFID reader continuously sends signals through the antenna.

When a tagged vehicle enters the area, the tag responds.

The reader captures the information and transfers it to the database.

The whole process happens quickly, often without the driver doing anything.

This is especially useful in:

• Logistics parks
• Factory entrances
• Parking facilities
• Container yards
• Mining areas

---

Common Vehicle Tracking Applications

Logistics Yard Management

Large logistics companies often need to manage many trucks every day.

RFID helps record vehicle movement automatically.

For example:

A truck arrives at the warehouse.

The RFID system identifies it.

The gate opens.

The arrival information is stored.

This reduces manual work at busy entrances.

---

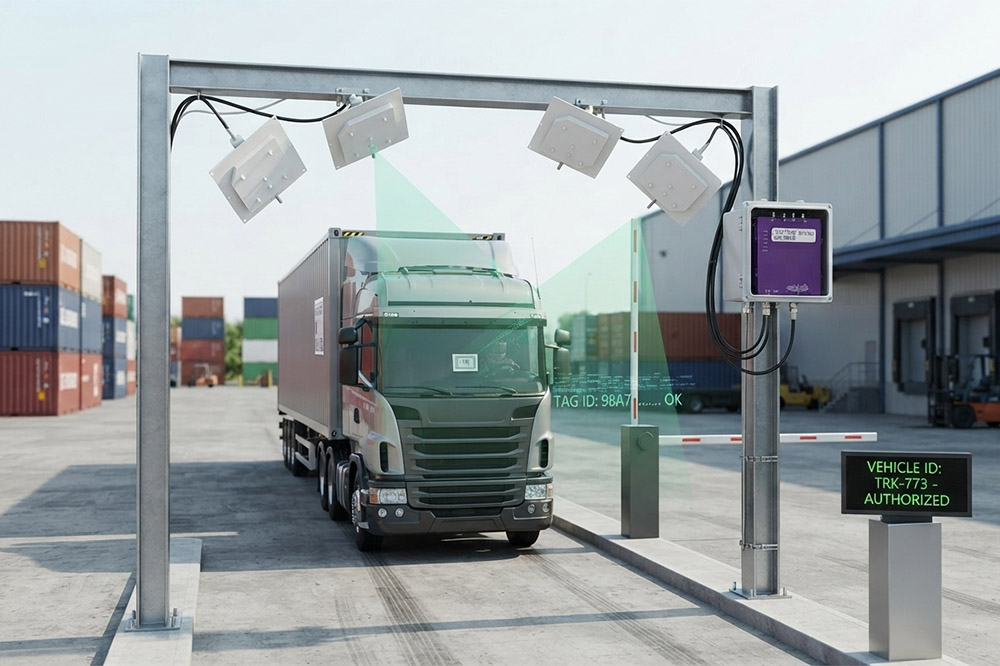

Factory Vehicle Access Control

Factories often need to control which vehicles enter production areas.

RFID can help manage:

• Supplier trucks
• Delivery vehicles
• Employee vehicles
• Service vehicles

Compared with manual checking, automated identification improves efficiency.

---

Parking and Smart Access Systems

Long range RFID scanners are also used in parking applications.

Vehicles with RFID tags can enter without stopping to scan tickets.

This creates a smoother user experience.

---

Reading Distance Is Important, But Vehicle Movement Matters More

Many customers ask:

“Can your RFID scanner read 20 meters?”

The answer depends.

A vehicle tracking system is not just about distance.

The important questions are:

• How fast is the vehicle moving?
• Where is the RFID tag installed?
• What direction does the vehicle approach from?
• How wide is the entrance?

For example:

A factory gate may only require 5-8 meters of stable reading.

A highway-style vehicle checkpoint may need a longer range.

A longer reading distance does not automatically create a better system.

Sometimes it creates extra reads from unwanted areas.

---

Choosing the Right RFID Tag for Vehicles

The RFID tag is another important part that is sometimes overlooked.

Vehicles may use different tag types depending on the application.

Examples:

Windshield RFID Tags

Suitable for:

• Parking access
• Employee vehicles
• Private areas

Metal Mount RFID Tags

Suitable for:

• Trucks
• Containers
• Industrial equipment

Heavy Duty RFID Tags

Suitable for:

• Outdoor environments
• Harsh conditions

A good RFID reader cannot solve a poor tag selection problem.

The entire system needs to work together.

---

Antenna Installation Makes a Big Difference

For vehicle tracking projects, antenna placement is critical.

Engineers usually consider:

• Antenna height
• Reading angle
• Vehicle direction
• Signal coverage area

A common mistake is installing antennas without considering the actual traffic flow.

For example:

A truck entrance may have two lanes.

One antenna position may work well for one lane but miss vehicles in another lane.

Small installation details can affect the final performance.

---

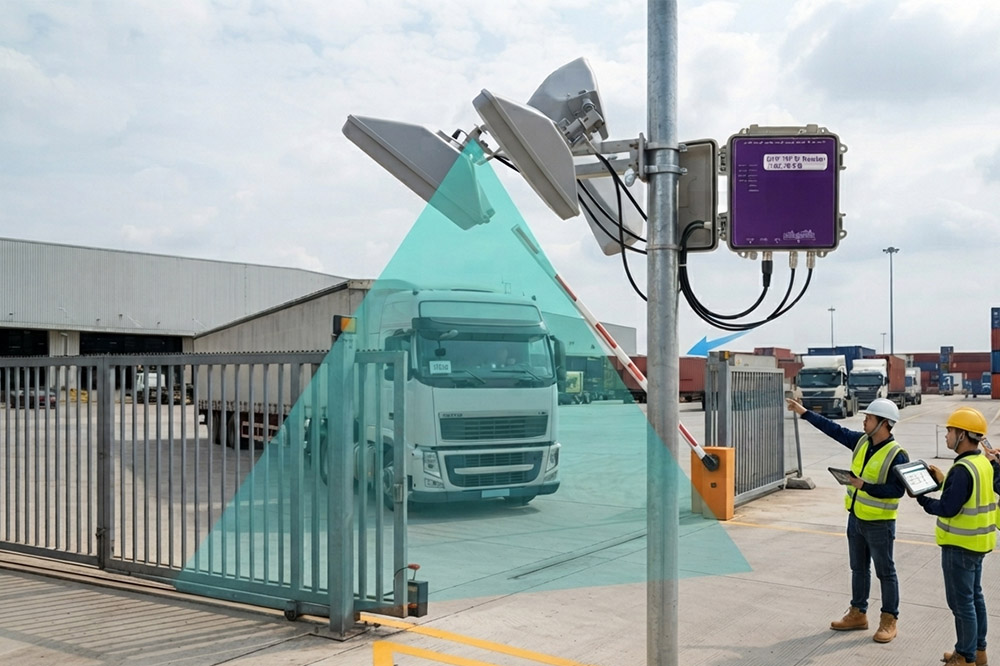

Challenges in Outdoor Vehicle RFID Projects

Outdoor environments are more complicated than indoor applications.

Common issues include:

Weather Conditions

Rain, dust, and temperature changes may affect equipment requirements.

Metal Interference

Vehicles contain a lot of metal, which can influence RFID performance.

Multiple Vehicles

Several vehicles may enter at the same time.

The system needs proper configuration to identify them correctly.

Unwanted Reads

A powerful reader may detect vehicles outside the intended area.

The reading zone needs to be controlled.

---

Why RFID Integrators Need Reliable Hardware Partners

For RFID solution providers, vehicle projects are usually customized.

Different customers may need:

• Different antenna layouts
• Different communication methods
• Different software connections
• Different tag designs

A supplier should provide more than a standard RFID reader.

Important capabilities include:

• Technical support
• SDK/API access
• OEM customization
• Stable production
• Bulk supply ability

Many vehicle RFID projects expand after the first installation, so long-term cooperation becomes important.

---

Long Range RFID Scanner vs License Plate Recognition

Some customers compare RFID with camera-based vehicle recognition.

Both technologies have advantages.

License plate recognition depends on:

• Camera quality
• Lighting conditions
• Plate visibility

RFID identification depends on:

• RFID tag
• Reader performance
• Installation design

In some projects, companies even combine both technologies.

The camera provides visual confirmation, while RFID provides automatic identification.

---

Before Purchasing a Vehicle RFID Scanner, Consider These Questions

Before selecting hardware, check:

✓ How many vehicles enter daily?
✓ What is the vehicle speed?
✓ Indoor or outdoor installation?
✓ How many lanes need coverage?
✓ What software system needs integration?
✓ What reading distance is actually required?
✓ Are OEM or customized solutions needed?

These questions help avoid choosing equipment based only on specifications.

---

Building Better Vehicle Tracking Solutions With RFID

Long range RFID scanners are becoming an important part of modern logistics and industrial automation.

The biggest value is not simply identifying a vehicle from far away.

It is creating a smoother connection between physical movement and digital records.

For logistics companies, factories, parking operators, and RFID system integrators, a well-designed RFID vehicle tracking solution can reduce manual work and improve operational visibility.

---
