Long Range RFID Scanner for Manufacturing: Tracking Production, Tools and Materials

Long range RFID scanner for manufacturing can automatically identify tools, work-in-process materials, components, and finished products as they move between production areas. The biggest advantage is not simply longer reading distance, but creating reliable identification points that connect physical production movement with MES, ERP, or factory management software.

Walk through a factory for ten minutes and you will probably notice something that is easy to ignore from an office.

Things are constantly moving.

Parts arrive at the warehouse.

Components go to production.

Semi-finished products move from one workstation to another.

Tools disappear from one department and turn up somewhere else.

Finished products eventually leave the factory.

The physical movement is continuous, but the digital record is often not.

This is one reason manufacturers are looking at long range RFID scanners.

Instead of asking workers to manually record every movement, RFID can automatically identify tagged items when they pass through important production points.

It sounds straightforward. In practice, though, the factory environment makes RFID considerably more interesting.

---

Where RFID Fits Into Manufacturing Process

RFID does not necessarily need to cover the entire factory.

That can actually make the project more complicated.

A better approach is often to identify the places where knowing the movement of an item really matters.

For example:

Material warehouse → production line → inspection → assembly → finished goods

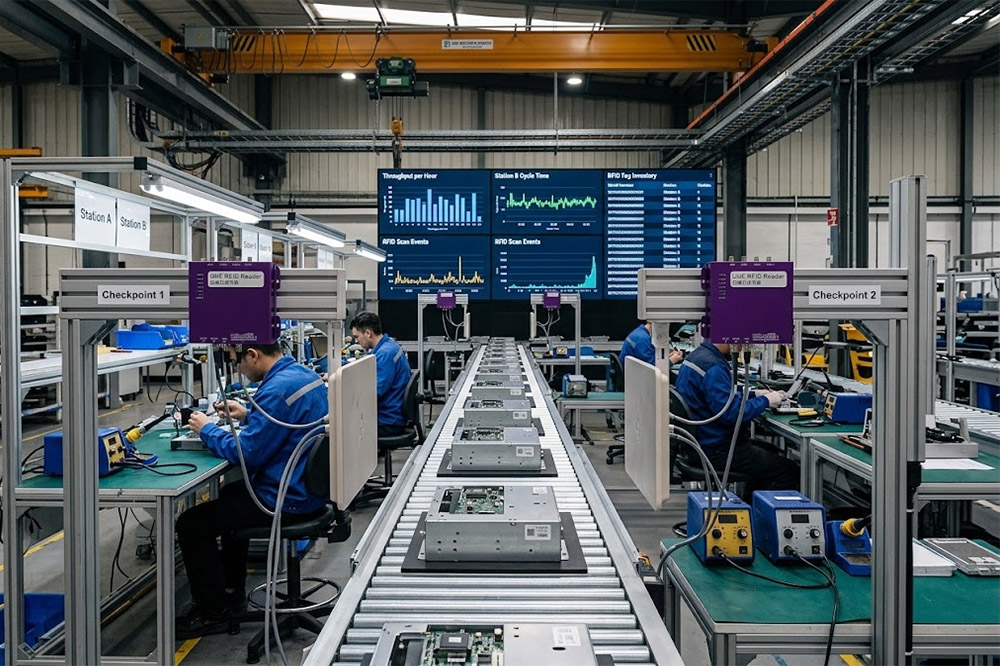

A fixed RFID reader can be installed at selected checkpoints.

When a tagged container passes through, the reader detects the RFID tag and sends the information to the factory software.

The system now knows that the material reached a particular stage.

That is much more useful than simply knowing that “RFID tag 12345 was detected.”

---

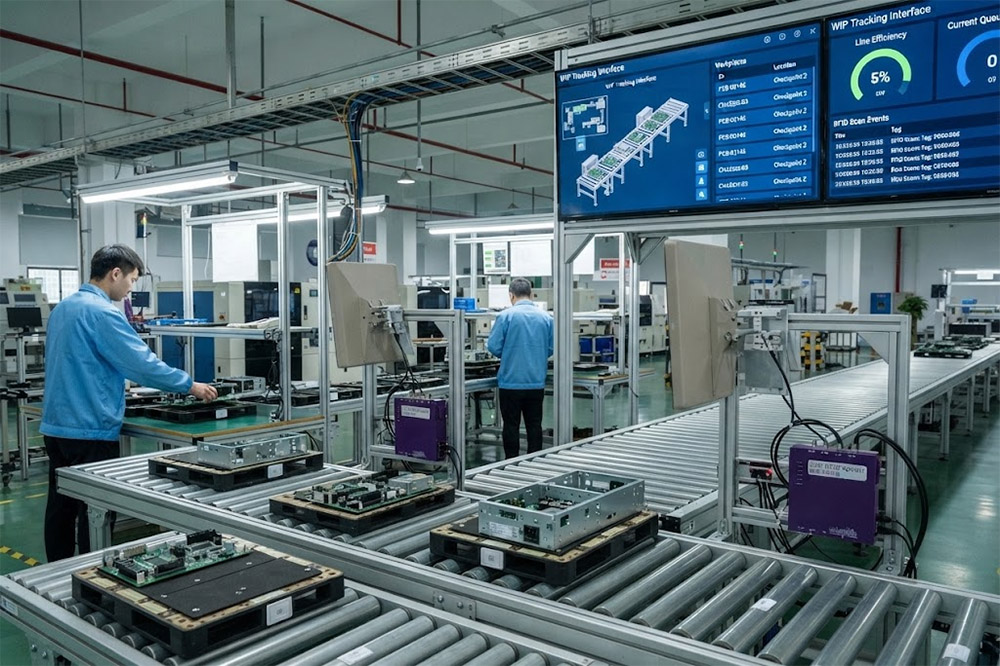

Tracking Work-in-Process Products

WIP, or work-in-process, is one of the areas where RFID can be useful.

Consider a factory producing electronic equipment.

A batch of components may move through several stations:

• Assembly
• Testing
• Inspection
• Packaging

Without automatic identification, workers may need to scan barcodes or enter information manually at each stage.

With RFID, the product or its production container can carry a tag.

A fixed scanner at the workstation detects the tag.

The production system records the movement.

There is still software logic behind the process, of course. RFID does not know by itself whether a product has passed inspection. It only provides the identification event.

That distinction is important when designing the system.

---

Long Range RFID Scanner for Tool Tracking

Tools are another surprisingly practical application.

Factories may have:

• Torque wrenches
• Measuring equipment
• Welding tools
• Fixtures
• Molds
• Maintenance equipment

Some tools are expensive.

Others are simply easy to lose.

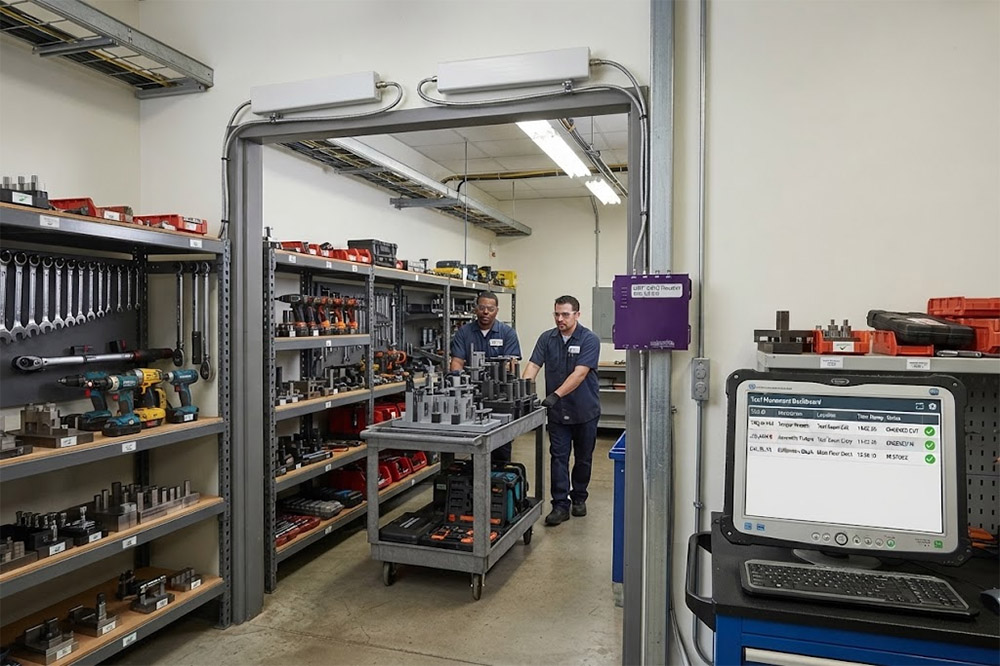

A fixed RFID reader at the tool room entrance can automatically record movement.

If a worker takes a tagged tool out, the system can record the event.

When the tool returns, another RFID read can update its status.

For larger factories, this can reduce the amount of manual checking.

It may not completely replace an asset management process, but it gives the system much better information to work with.

---

The Factory Environment Is the Difficult Part

A clean demonstration room is one thing.

A real factory is another.

You may have:

• Metal machinery
• Motors
• Steel racks
• Cables
• Liquid materials
• Moving vehicles
• Workers
• Multiple RFID tags close together

These factors can affect RFID performance.

Metal is particularly important.

If an RFID tag is mounted directly onto metal equipment, a normal label may not perform properly.

An on-metal RFID tag is usually a better option.

This is why I would always test the actual tag on the actual production asset before placing a large order.

---

Reading Distance Needs to Match the Production Process

A customer may ask for a 15-meter RFID scanner because they want “long range.”

But suppose the production station only needs to detect a workpiece when it enters a 2-meter area.

A very long reading distance may not help.

It could even create unwanted reads from products waiting at the next station.

For manufacturing, the better question is:

“Where should the system recognize this item?”

That leads to a much more useful discussion about antenna type, power level, mounting position, and reading-zone control.

---

RFID Antenna Placement on Production Lines

Antenna installation can be quite different from a warehouse gate.

On a conveyor, the antenna may need to cover a relatively narrow path.

At a production entrance, the reading zone might need to be wider.

For carts carrying several RFID-tagged products, the antenna may need to detect multiple tags at once.

The installer needs to consider:

• Product size
• Tag position
• Conveyor speed
• Antenna angle
• Reading distance
• Nearby metal

Sometimes moving an antenna a small distance produces a surprisingly large improvement.

That is why factory testing should happen before the final installation design is fixed.

---

RFID Can Help Connect Physical Production With MES

This is where RFID becomes more interesting for manufacturers.

A reader detects an RFID tag.

The reader sends the tag information to the software.

The software identifies the product or work order.

The MES or ERP system updates the corresponding production record.

So instead of having separate physical and digital processes, the factory can connect them.

For example:

RFID detected → Work order identified → Production station confirmed → Process status updated

The exact workflow depends on the customer’s software.

For RFID solution providers, API and SDK support can therefore become a major purchasing factor.

---

What Should RFID Integrators Consider?

Before recommending a long range RFID scanner to a factory customer, I would ask a few practical questions.

What is being tracked?

Is it a component, tool, pallet, container, or finished product?

What is the material?

Plastic, cardboard, metal, liquid-filled container?

How fast is it moving?

A stationary tool and a fast-moving conveyor product have different requirements.

Where should it be detected?

At the production line, entrance, workstation, warehouse, or inspection area?

What software does the factory already use?

MES, ERP, WMS, SCADA, or a custom system?

These questions usually tell you more than simply asking for the reader’s maximum range.

---

Fixed RFID Scanner or Handheld Device?

Manufacturing projects can benefit from both.

A fixed reader is ideal for automatic production checkpoints.

A handheld RFID scanner can be useful for:

• Maintenance
• Tool searching
• Inventory checking
• Equipment verification

For example, fixed readers can monitor the production flow while a maintenance worker uses a handheld scanner to locate a missing piece of equipment.

There is no reason to force every task into one RFID device.

---

A Simple Production Example

Imagine an automotive parts factory.

A metal container holds components for a particular production order.

The container has an RFID tag.

When it leaves the warehouse, a fixed reader records the movement.

It reaches the assembly area and is detected again.

Later, the empty container returns.

The system now has a basic movement history.

Multiply this by hundreds or thousands of containers and the value becomes much clearer.

The factory does not need someone standing at every doorway with a scanner.

---

Common Problems in Manufacturing RFID Projects

Too Much Reading Range

The reader detects items outside the intended workstation.

Wrong RFID Tag

A standard label is used on a metal component.

Poor Antenna Position

The reader works well in testing but misses tags after installation.

No Software Planning

The hardware collects tag IDs, but nobody has defined what the IDs mean in the production system.

No Pilot Testing

A large quantity is ordered before the application has been tested.

The last one is particularly risky for distributors and system integrators.

A small pilot can be much cheaper than replacing hundreds of incorrectly selected devices.

---

What Should RFID Distributors Look for in a Supplier?

For B2B RFID buyers, the supplier should be able to support more than a basic hardware order.

Useful capabilities include:

• UHF RFID readers
• Long range fixed readers
• Industrial antennas
• RFID tags
• SDK/API support
• OEM customization
• Application testing
• Stable bulk production

A factory may eventually need dozens or hundreds of readers.

Consistency between batches becomes important.

Technical support also matters when the integrator starts deploying the equipment at different production sites.

---

Before You Place Bulk Order

For a manufacturing RFID project, test the complete setup.

Use the actual:

• Production material
• RFID tag
• Reader
• Antenna
• Installation location
• Software

Then simulate real movement.

Move products at actual production speeds.

Test multiple tags.

Test metal equipment.

Test unwanted reads.

Only after that does it make sense to finalize the bulk hardware order.

---

Conclusion

Manufacturing RFID is not simply about putting a long range scanner beside a production line.

The better approach is to identify the production events that need automatic identification, then design the RFID reading zone around those events.

For manufacturers, this can mean better WIP visibility, tool management, material tracking, and production data.

For RFID solution providers, it creates an opportunity to supply a complete system rather than a single reader.
