how far can an rfid chip transmit

For passive UHF RFID, practical communication typically reaches several meters, with RAIN RFID systems commonly specified up to 10 meters (33 feet) under suitable conditions. Active RFID can reach substantially farther because its tag contains its own power source.

The wording matters. An RFID chip does not behave like a Wi-Fi transmitter sitting inside a tag. In a passive system, the reader creates the RF field; the tag harvests enough energy to respond, and its antenna-chip combination sends information back through modulation of the reflected signal.

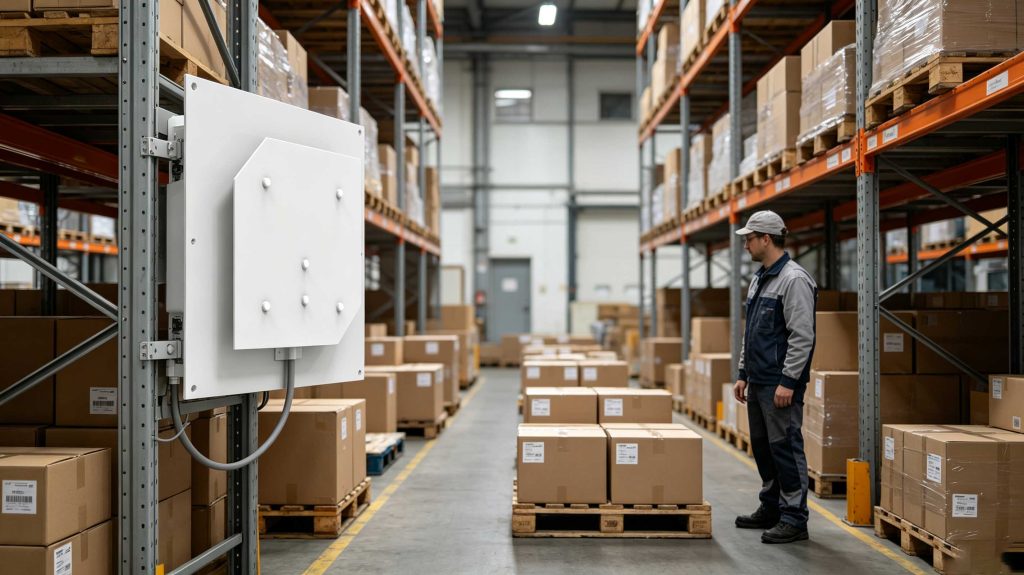

That distinction becomes obvious on a warehouse floor.

A tag on a cardboard carton may respond comfortably from several meters away. Move essentially the same tag onto a poorly matched metal surface, rotate it ninety degrees, or put it behind densely packed products, and the useful read zone can change sharply.

What determines RFID transmission distance?

For passive RFID, range is a system characteristic rather than a fixed chip specification.

The major variables include:

Factor	Effect on practical range
RFID frequency	UHF/RAIN generally provides longer range than LF/HF
Reader transmit power	More available RF energy can extend the usable zone
Tag antenna	Determines how effectively the tag couples to the RF field
Tag sensitivity	Affects how weak a reader signal the tag can respond to
Tag orientation	Misalignment can reduce signal strength
Material being tagged	Metal and liquids can significantly alter RF behavior
Reader antenna	Gain, polarization, beam pattern and placement shape coverage
RF environment	Interference and reflections can reduce consistency

GS1 states that passive UHF/RAIN RFID normally provides a read range of several meters, with up to 15 meters possible in special cases; highly capable readers and antennas can reach around 20 meters in suitable installations.

That should not be interpreted as a promise that every tag will read at 20 meters.

In deployment work, the useful question is usually: Where must the tag be reliably detected?

A loading-bay reader, for example, needs a controlled read corridor rather than maximum theoretical distance. Extending the range too aggressively can cause tags outside the intended lane to enter the read zone.

How far can passive UHF RFID reach?

For mainstream passive UHF RFID, 10 meters is a widely cited practical upper range.

GS1 identifies UHF RFID as operating around 860–930 MHz, with read ranges up to approximately 10 meters depending on the environment.

Impinj likewise describes RAIN RFID as capable of reading from a few centimeters to 10 meters, without requiring direct line of sight.

The protocol is also standardized. GS1’s EPC Gen2 family defines the air interface for passive UHF RFID systems, while ISO/IEC 18000-63 covers the corresponding UHF RFID air-interface framework.

Why 10 meters is not a universal number

Consider two installations:

Installation A — open carton flow

• Large UHF label
• Cardboard packaging
• Correct antenna polarization
• Clear path between reader and tag
• Controlled RF environment

Several-meter detection can be straightforward.

Installation B — metal storage rack

• Small tag
• Metal surface
• Mixed tag orientations
• Closely stacked inventory
• Multiple reflective surfaces

The nominal reader power may be identical, yet the practical detection distance can be dramatically different.

This is why experienced RFID engineers test the tag on the actual product, not merely a loose sample tag on a laboratory table.

Reader power and antenna design matter

A reader does not simply “send farther” by increasing power.

The antenna determines where that energy goes.

A directional rfid antenna can create a concentrated read zone, while polarization determines how effectively the reader interacts with differently oriented tag antennas. GS1 specifically notes that antenna directivity, gain, polarization and tag orientation strongly influence the volume in which tags can be read.

Modern fixed readers can also provide substantial RF performance. For example, the Impinj R700 specification lists transmit power up to 33 dBm in applicable configurations and read rates up to 1,100 reads per second.

The number is useful for understanding reader capability, but it should never be confused with guaranteed physical range.

The overlooked variable: tag sensitivity

Tag sensitivity is one of the details that frequently separates a clean pilot from a frustrating installation.

A recent Impinj deployment guide describes tag sensitivity as a critical contributor to long-range applications, particularly where reading beyond 3 meters is required. It also identifies IC sensitivity, inlay design and interaction with the tagged object as important factors.

That matches what matters in field testing: the tag is part of the RF system.

A reader may be excellent. If the inlay is poorly matched to the product, the system will still disappoint.

What about active RFID?

Active RFID is a different proposition.

Active tags contain a battery and can transmit their signal rather than depending entirely on energy supplied by the reader. GS1 notes that active RFID can provide ranges of 100 meters or more, substantially beyond typical passive RFID.

This makes active RFID attractive for applications requiring longer-distance asset visibility, while passive UHF remains particularly strong for item-level identification, inventory, retail, logistics and warehouse operations.

Quick comparison

RFID type	Typical operating behavior	Approximate range
LF RFID	Short-range identification	Up to ~1 m
HF RFID	Near-field communication	~10 cm–1 m
Passive UHF / RAIN	Reader-powered long-range identification	Several meters, commonly up to ~10 m
Active RFID	Battery-powered transmission	100 m+ possible

GS1 reports LF/HF systems generally at much shorter distances, while UHF/RAIN is designed for significantly longer-range item identification.

A practical Cykeo perspective

At Cykeo, the useful measurement is not simply maximum read distance. It is the distance at which the system can maintain reliable identification while ignoring tags outside the intended zone.

For a warehouse doorway, that may mean shaping the antenna field so a pallet crossing the threshold is captured while inventory several meters inside the rack is not accidentally included.

For an apparel store, the requirement can be almost the opposite: broad enough coverage for multiple garments, but controlled enough to prevent neighboring merchandise from being included during checkout.

That is why RFID deployment should begin with the application geometry, tag construction and material environment—not with a headline distance printed on a reader datasheet.

how far can an rfid chip transmit ultimately depends on the complete RFID link: chip sensitivity, tag antenna, reader power, reader antenna, orientation, product material and surrounding RF conditions. For passive UHF RFID, several meters is realistic, while approximately 10 meters represents a commonly cited upper range for well-designed RAIN RFID deployments.

RFID Read Range: What Actually Extends the Distance?

A long-range RFID installation is not created by reader power alone. The usable distance comes from the interaction between reader sensitivity, antenna design, tag performance, polarization, mounting position, and the RF environment.

GS1 specifically identifies antenna directivity, gain, polarization and tag orientation as major factors affecting the volume in which passive UHF tags can be read.

Reader and antenna working as one RF system

For a fixed UHF installation, I would not evaluate the reader separately from its antenna.

A reader may provide high transmit power, but the antenna decides where that energy is concentrated. A narrow, controlled beam can be useful at a dock door; a wider coverage pattern may make more sense around a conveyor or inventory station.

For reference, the Impinj R700 specification lists up to 33 dBm transmit power, receive sensitivity down to -92 dBm, and a maximum stated read rate of 1,100 tags per second. Those figures demonstrate reader capability, but they are not a guarantee of a 10- or 15-meter read distance in every installation.

That distinction matters.

A specification sheet describes what the hardware can do. The warehouse floor decides what it actually does.

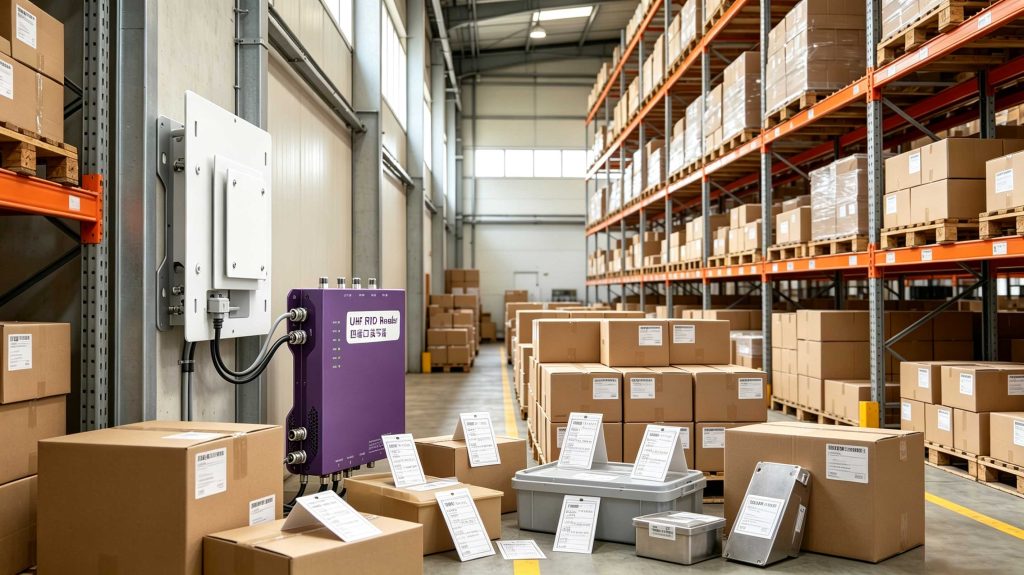

Tag orientation can change the result

A passive UHF tag communicates through backscatter. The reader supplies RF energy, the tag harvests that energy, and the tag changes the reflection characteristics of its antenna to return information.

So the physical orientation of the tag becomes part of the RF problem.

A tag facing an antenna correctly may perform strongly. Turn it ninety degrees and the coupling can deteriorate. This is particularly important when tags are attached to:

• Garments hanging in different directions
• Boxes stacked on pallets
• Plastic containers
• Metal equipment
• Returnable transport items
• Irregularly positioned assets

RAIN RFID system-design guidance lists tag sensitivity, backscatter strength, orientation, interference, reflection, absorption, radiated power and antenna propagation among the variables affecting system performance.

How Material Changes RFID Distance

The same RFID tag can produce very different results on different objects.

Cardboard is generally straightforward for UHF RFID. Metal is more demanding because it can reflect and detune RF energy. Liquids can absorb RF energy and reduce the available signal.

GS1 notes that absorbing or shielding materials can substantially reduce or extend the typical interrogation distance, which is why the nominal 10-meter figure should never be treated as a universal operating range.

This is one reason Cykeo deployment testing focuses on the finished tagged product, rather than approving a tag based only on its performance in free air.

Why the maximum distance is not always the best distance

There is an engineering trap in long-range RFID: maximizing distance can make the system less selective.

Imagine a warehouse portal where the target pallet is 6 meters away.

A reader that can identify that pallet at 10 meters sounds impressive. But if it also detects tagged cartons sitting on the adjacent rack, the extra range has created a data-quality problem.

The better design may deliberately establish a stable 4–6 meter read zone.

GS1 makes this same conceptual point: the shape of the readable volume can matter more than the maximum distance itself.

That is an important practical distinction between range and read-zone control.

RFID Distance by Application

Application	Typical design priority	Useful RFID approach
Warehouse portal	Controlled entry/exit zone	Fixed UHF reader + directional antennas
Conveyor	Fast multi-tag capture	Fixed reader + tuned antenna geometry
Pallet tracking	Several-meter detection	High-performance UHF tags and readers
Retail inventory	Broad item visibility	Handheld or fixed UHF RFID
Apparel checkout	Dense multi-tag reading	Near-field or controlled UHF configuration
Metal asset tracking	Stable performance on metal	Purpose-designed on-metal RFID tag
Long-distance asset monitoring	Extended range	Active RFID or specialized passive systems

Passive UHF/RAIN RFID normally operates in the 860–930 MHz region, with GS1 describing typical ranges of several meters and up to about 15 meters in special cases. GS1 also notes that specialized phased-array systems can reach approximately 20 meters.

Passive RFID vs. Active RFID Range

It is important not to compare passive and active RFID as though they were the same technology.

Passive tags receive operating energy from the reader. Active tags have their own battery and can therefore support much longer communication distances.

GS1 reports that active RFID can reach 100 meters or more, while passive UHF RFID is generally measured in the several-meter range.

For item-level inventory, apparel, logistics and warehouse identification, passive UHF remains attractive because the tag itself can be small, battery-free and relatively inexpensive.

Cykeo RFID Engineering Considerations

Cykeo’s approach to UHF RFID applications is based on the complete reading environment rather than a single headline distance.

A practical deployment assessment should examine:

• Tag type: standard, high-sensitivity, or on-metal
• Reader output: sufficient energy without excessive overspill
• Antenna gain and polarization: matched to the application
• Tag orientation: especially important for moving assets
• Product composition: cardboard, plastic, liquid, metal or mixed materials
• Read-zone boundaries: preventing unwanted reads
• Tag population: multiple tags must be handled simultaneously
• Reader placement: height, angle and distance from the target
• RF interference: neighboring readers and surrounding equipment
• Real operating speed: tags should be tested while the asset is moving

RAIN RFID architecture itself is built around this interaction between items, tags, readers, software and network systems, rather than treating read distance as an isolated specification.

FAQ: How Far Can an RFID Chip Transmit?

1. How far can a passive RFID chip transmit?

A passive RFID chip does not independently transmit like a battery-powered radio. In a UHF RFID system, it responds through backscatter. Practical read distance is commonly several meters, with special systems reaching considerably farther.

2. Can an RFID tag be read from 10 meters away?

Yes. Passive UHF/RAIN RFID systems can reach around 10 meters under suitable conditions. GS1 identifies several meters as typical and up to 15 meters in special cases.

3. Can RFID work through cardboard?

Yes. Cardboard is generally RFID-friendly for UHF applications. The actual result still depends on tag design, orientation, reader antenna, power and the contents of the package.

4. Does metal reduce RFID read distance?

It can. Metal can reflect RF energy and interfere with tag antenna behavior. For metal assets, an RFID tag specifically designed for on-metal mounting is normally a better choice than a conventional paper-label inlay.

5. Does increasing reader power always increase RFID range?

No. Higher power can help when the system is power-limited, but antenna characteristics, tag sensitivity, orientation, interference and environmental absorption also determine the usable range.

6. What is the longest range for passive RFID?

There is no single maximum for every passive RFID system. GS1 reports specialized UHF systems reaching around 20 meters, while some experimental or highly specialized tag designs have demonstrated longer distances under controlled conditions.

7. Is longer RFID range always better?

No. In many installations, a controlled read zone is more valuable than maximum distance. Excessive range can cause unwanted tags outside the intended area to be captured.
