How Many Antennas Do You Need for RFID Reader?

The number of antennas connected to an RFID reader affects coverage, installation flexibility and overall system design. A 4-port reader may be enough for a small application, while larger gates, warehouses and industrial systems may need 8 or more antenna connections.

When someone starts planning an RFID system, the first question is often about the reader.

How far can it read?

How many tags can it identify?

What protocol does it support?

All reasonable questions.

But there is another one that sometimes gets pushed aside until later:

How many antennas do we actually need?

That question can change the reader you buy.

A small RFID application may only need one or two antennas. A warehouse portal might need four. A larger loading gate could require several antennas to cover different directions and reduce blind spots.

And then there are industrial applications where antennas may be installed above, below and beside a conveyor.

This is why you will see RFID readers described as 4-port, 8-port or 16-port readers.

The port count is not just a specification sitting on a product page. It tells you how many external RFID antennas the reader can normally support.

Still, buying the reader with the highest number of ports is not automatically the right answer.

---

What Does an RFID Antenna Port Do?

A fixed UHF RFID reader normally works together with one or more external antennas.

The reader generates the RF signal.

The antenna sends that signal into the reading area and receives the response from RFID tags.

An antenna port is the physical connection between the reader and an antenna.

So a simplified system might look like this:

RFID Reader → Antenna → RFID Tag

With multiple antennas:

RFID Reader → Antenna 1

RFID Reader → Antenna 2

RFID Reader → Antenna 3

RFID Reader → Antenna 4

A 4-port reader can therefore support multiple antenna positions without requiring a separate reader for every antenna.

This can be useful when you need to cover a wider area or approach a reading point from several directions.

---

Why One Antenna Is Not Always Enough

Imagine a warehouse entrance.

A pallet is moving through the doorway.

The RFID tags might be attached to the front, back or sides of cartons.

If you place one antenna on the left side, it may read some tags very well.

But tags facing away from it could be harder to detect.

Move the pallet slightly.

The reading result may change again.

This is where multiple antennas become useful.

You might install:

• One antenna on the left
• One antenna on the right
• One antenna above
• One antenna near the entrance

The goal is not simply to increase reading distance.

The goal is to create a more useful reading zone.

That distinction matters quite a lot in real installations.

---

4-Port RFID Reader: A Common Starting Point

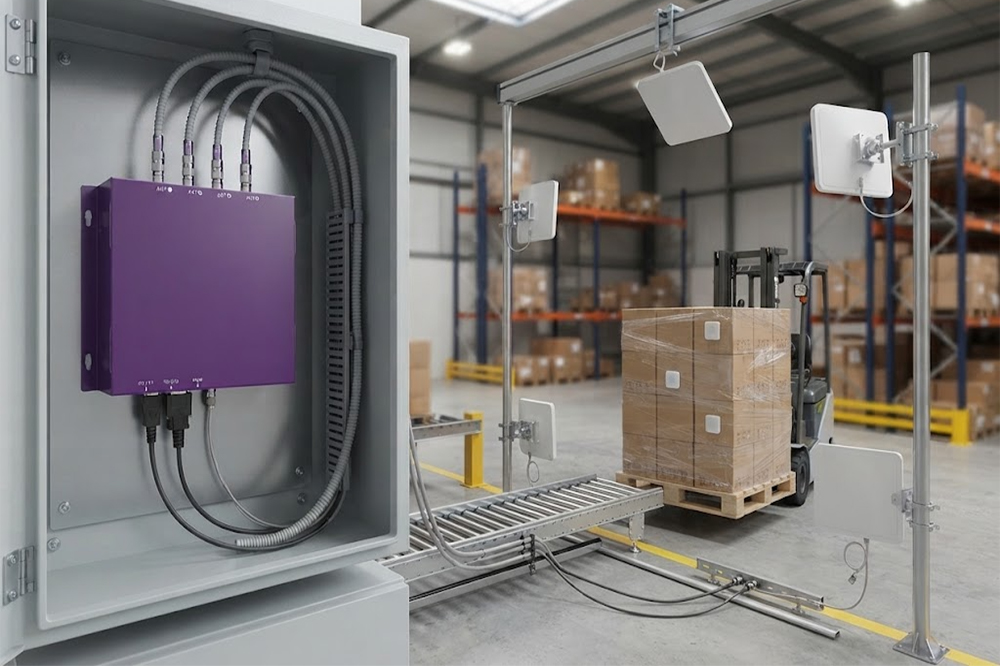

A 4-port RFID reader is often a practical choice for smaller fixed installations.

For example:

Port 1 → Left antenna

Port 2 → Right antenna

Port 3 → Entrance antenna

Port 4 → Exit antenna

This could work for a warehouse doorway, small RFID gate or a compact industrial checkpoint.

It also leaves some flexibility.

You may initially use three antennas and keep one port available for future changes.

For distributors and system integrators, 4-port readers can be useful because they fit a fairly broad range of projects without making the hardware unnecessarily large.

Of course, the actual requirement depends on the application.

A small warehouse door does not need the same antenna arrangement as a truck loading gate.

---

When 8-Port RFID Reader Makes More Sense

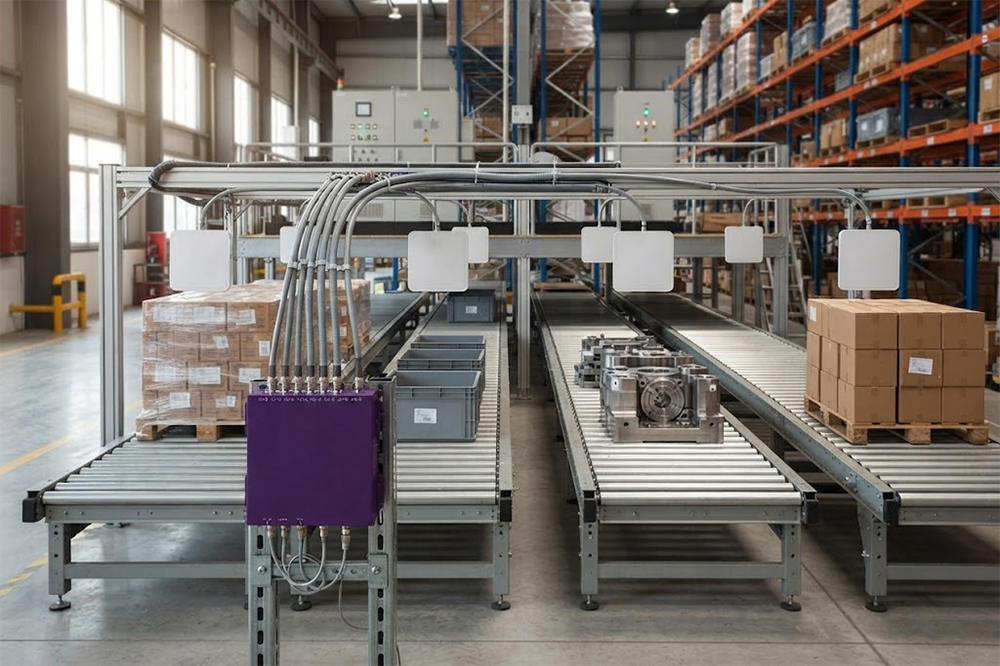

An 8-port reader becomes more interesting when the reading area gets larger or the antenna layout becomes more complicated.

Consider a warehouse with several lanes.

Each lane may need antennas on both sides.

A simple setup could require:

Lane 1 → 2 antennas

Lane 2 → 2 antennas

Lane 3 → 2 antennas

Lane 4 → 2 antennas

Now eight antenna connections are already being used.

Instead of installing multiple readers, an 8-port RFID reader can potentially handle the antenna layout from one device.

This can simplify wiring and system management.

It may also make sense for larger production lines, sorting systems, warehouse portals and asset tracking installations.

But there is a practical point here.

If you only need two antennas, buying an 8-port reader just because it has more ports usually adds little value.

Unused ports do not improve RFID performance by themselves.

---

What About 16-Port RFID Readers?

Larger RFID systems sometimes need even more antenna connections.

A 16-port configuration can be useful when many reading points are located relatively close to each other and the project benefits from centralizing the RFID hardware.

For example, an automated warehouse might have several identification points across a material-handling area.

A production facility could have multiple conveyors and workstations.

A logistics sorting system may have several lanes operating simultaneously.

In these situations, a high-port-count reader can reduce the number of individual reader units.

However, installation design becomes more important as the number of antennas increases.

You need to think about:

• Antenna positioning
• Cable length
• RF interference
• Reading zones
• Tag density
• Switching behavior
• Software configuration

It is not simply a case of connecting 16 antennas and turning everything on.

---

More Antennas Do Not Always Mean Better Reading

This is one of the easiest mistakes to make.

Someone sees a difficult reading environment and thinks:

“Let’s add more antennas.”

Sometimes that helps.

Sometimes it makes the system harder to control.

Suppose four antennas are positioned around a narrow doorway.

If their coverage overlaps too much, the reader may detect tags outside the intended area.

In another installation, antennas may interfere with the identification process if the configuration is not planned correctly.

The better question is:

Where do we need RFID coverage?

Not:

How many antennas can we install?

A good RFID installation usually has a reason behind every antenna.

---

Think About the Shape of the Reading Area

RFID coverage is not a perfect invisible bubble.

The shape and direction of the antenna’s RF field matter.

This becomes obvious in a warehouse.

A pallet can be tall.

A carton can be small.

A metal container can reflect or absorb RF energy differently from a cardboard box.

A tag attached to the side of a pallet may behave differently from one placed on top.

So antenna placement should follow the movement of the tagged object.

For a conveyor, an antenna above the belt may be enough.

For a pallet portal, side antennas may be more useful.

For a large object, multiple antenna positions could provide better coverage.

The reader port count comes after this design decision.

---

Antenna Polarization Also Matters

RFID antennas are commonly designed with different polarization characteristics.

For practical system design, this matters because RFID tag orientation is rarely perfectly controlled.

Imagine boxes moving through a warehouse.

Some tags are vertical.

Some are horizontal.

Some may be tilted.

If tag orientation changes constantly, antenna selection becomes more important.

Circularly polarized antennas can often be useful where tag orientation is unpredictable.

Linear polarization can be useful when the tag orientation is relatively controlled.

The correct choice depends on the actual application.

There is no need to use the same antenna type everywhere in a large RFID project.

---

A Conveyor Example

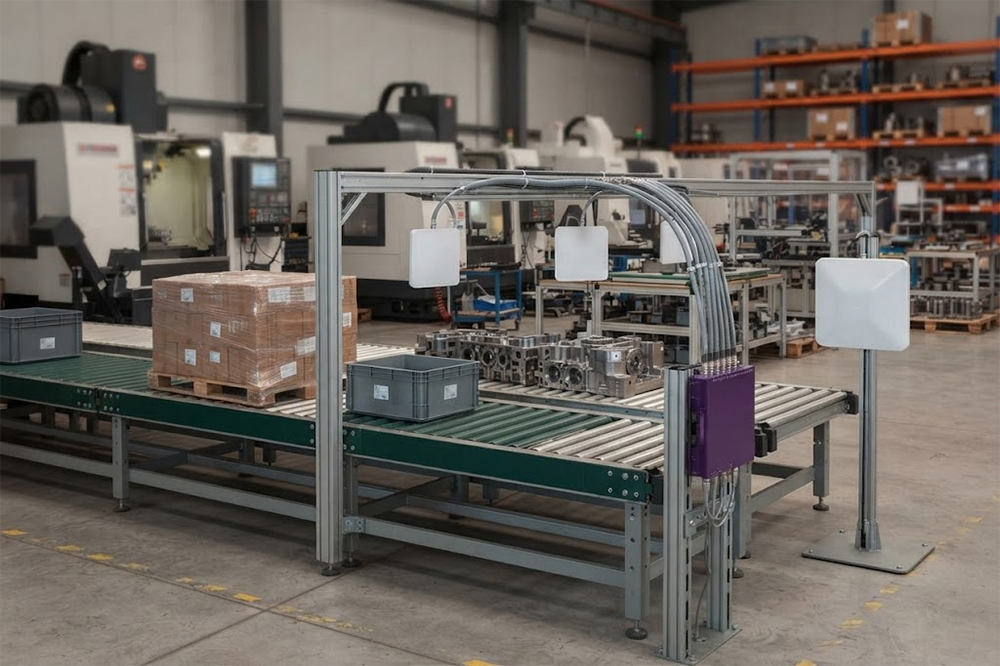

Let’s take a production conveyor.

Products move from left to right.

The RFID tag is attached to the top of each product.

A practical starting point might be one overhead antenna.

Now imagine the product orientation changes.

Some tags face upward.

Others are partially covered.

The reading rate may drop.

A second antenna could be added from the side.

Now the system has another opportunity to detect the tag.

But before adding more hardware, it is worth checking whether the problem is actually caused by antenna position, tag placement or reader power.

This is why testing is important.

Sometimes moving an antenna 20 or 30 centimeters produces a bigger improvement than adding another antenna.

---

RFID Reader Port Count and Cable Planning

There is another practical issue that is easy to overlook: cable routing.

An antenna needs to connect to the reader.

In a large warehouse, the reader may be installed inside an equipment cabinet while the antennas are several meters away.

Long RF cables can introduce additional signal loss.

Cable quality also matters.

The installation should therefore consider:

• Cable length
• Cable type
• Connector type
• Routing path
• Mechanical protection
• RF loss

If an RFID reader has eight antenna ports but the antennas are located far away, the installation team should consider the cable layout before finalizing the hardware.

The reader specification alone does not tell you how the complete system will perform.

---

What Happens When Several Antennas Are Connected?

A multi-port RFID reader normally manages the connected antennas through its internal control system.

Depending on the reader design and software, antennas may operate sequentially or according to a configured reading strategy.

This allows the system to cover different areas.

For example:

Antenna 1 → Zone A

Antenna 2 → Zone B

Antenna 3 → Zone C

Antenna 4 → Zone D

The software can then associate detected tags with the corresponding reader and antenna information.

For a warehouse or factory, this can be useful when the application needs to know not only which tag was detected, but also where it was detected.

---

Do You Need a Separate Reader for Every Antenna?

Usually, no.

That is one of the advantages of multi-port RFID readers.

Instead of installing four individual readers for four antennas, you may use one 4-port reader.

This can reduce:

• Hardware quantity
• Power requirements
• Network connections
• Installation space
• Maintenance points

But there are exceptions.

If the antennas are installed at locations that are physically far apart, separate readers may sometimes be more practical.

The final architecture depends on the physical layout and the required read performance.

---

Choosing Between 4-Port and 8-Port RFID Readers

A simple way to think about it is this:

Choose a 4-port reader when:

• You need one to four antennas
• The reading area is relatively compact
• The application has a small number of zones
• You want a straightforward fixed RFID installation

Consider an 8-port reader when:

• You need more than four antennas
• Several lanes need RFID coverage
• Multiple directions must be covered
• You want to centralize several antenna connections
• The project may expand later

Consider a higher-port-count solution when:

• Many reading zones are located together
• The installation is large
• Multiple conveyors or lanes are involved
• Centralized RFID hardware is useful

These are starting points rather than strict rules.

The actual tag and environment can change the recommendation.

---

Warehouse Gate Example

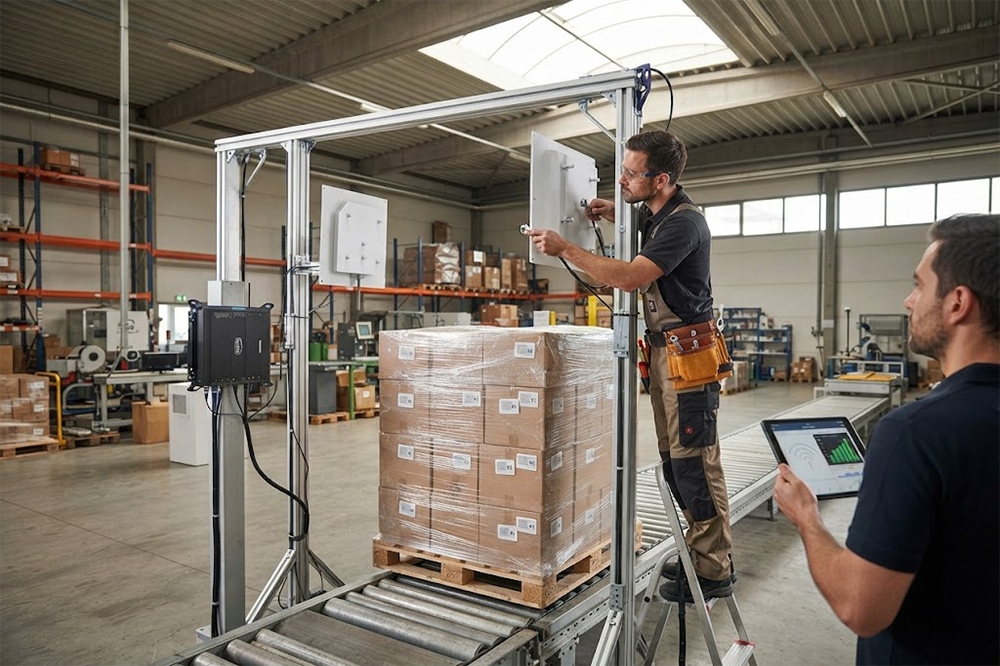

Let’s say a distributor is installing an RFID portal at a warehouse entrance.

Trucks bring pallets through the gate.

Each pallet carries multiple tagged cartons.

The customer wants to identify the cartons automatically.

A possible setup could include:

2 side antennas

2 additional directional antennas

1 fixed RFID reader

The four antenna ports are used to create coverage around the portal.

During testing, the team discovers that tags near the back of the pallet are sometimes missed.

Instead of immediately buying another reader, they adjust antenna height and angle.

The result improves.

This kind of small installation adjustment is quite common.

RFID is a physical technology.

The physical setup matters.

---

Industrial Automation Needs a Different Approach

In a factory, antenna count is often connected to the production process.

A conveyor may have one reading point.

A workstation may have another.

A second conveyor could require another antenna pair.

If several production stations are located close together, a multi-port reader may make sense.

For example:

Station 1 → Antennas 1–2

Station 2 → Antennas 3–4

Station 3 → Antennas 5–6

Station 4 → Antennas 7–8

An 8-port reader could potentially support the entire group.

The important word here is potentially.

The actual configuration should be validated with the tag type, product material, distance and required reading zone.

---

How Many Antennas Should You Order?

For a new RFID project, I would not start with a large bulk order of antennas.

Start with the application.

Provide the supplier with:

• Product dimensions
• Product material
• RFID tag model
• Tag mounting position
• Reading distance
• Product movement speed
• Number of lanes
• Reading zones
• Installation photos
• Expected quantity

Then test the reader and antenna combination.

Once the setup is stable, calculate the quantity needed for the complete deployment.

This is particularly important for system integrators.

A sample that works on a workbench is useful.

A sample that works on the actual customer site is much more valuable.

---

Buying RFID Readers for Resale

For RFID distributors, port count can also affect which products are worth stocking.

A small distributor may want several common configurations:

4-port RFID reader

8-port RFID reader

Long-range fixed RFID reader

Compact fixed RFID reader

This provides more flexibility when customers have different project requirements.

Instead of trying to sell one reader to every customer, you can match the hardware to the installation.

For OEM projects, other factors become important too, including stable supply, firmware consistency, SDK/API availability, technical support and long-term product availability.

If you expect repeat orders, discuss these points before the first large purchase.

---

What Should You Tell an RFID Reader Supplier?

If you are requesting a wholesale quotation, the following information is useful:

Application: Warehouse, gate, conveyor, factory, asset tracking, etc.

Required antenna count: 1, 2, 4, 8 or more

Reading distance: Approximate target

Tag type: UHF tag model or sample

Product material: Cardboard, plastic, metal, liquid, mixed

Installation: Ceiling, wall, conveyor, portal or cabinet

Environment: Indoor, outdoor or industrial

Communication: Ethernet, serial, API, SDK or other interface

Quantity: Sample and estimated bulk order

If you can provide photos of the installation area, even better.

A picture of the actual environment can tell an RFID engineer things that a paragraph sometimes cannot.

---

A Practical Way to Start

If you are unsure whether your project needs a 4-port or 8-port RFID reader, don’t start by comparing ten specification tables.

Draw the reading zones.

Mark where the tagged products will pass.

Then mark where you think an antenna should be installed.

You may end up with two antennas.

Or four.

Or eight.

That number gives you a much better starting point for choosing the reader.

For warehouses, production lines, RFID gates and automated tracking systems, Cykeo provides fixed RFID readers designed to work with external UHF RFID antennas. You can review the available reader range and discuss your antenna configuration before placing a bulk order. Cykeo RFID Readers

Frequently Asked Questions

What does a 4-port RFID reader mean?

A 4-port RFID reader normally provides four antenna connections, allowing multiple external antennas to be used with one reader. The actual antenna arrangement depends on the application.

Is an 8-port RFID reader better than a 4-port reader?

Not necessarily. An 8-port model is useful when more antennas or reading zones are required. If an application only needs two antennas, a 4-port reader may be sufficient.

How many antennas do I need for an RFID gate?

Many RFID gates use two or four antennas, but the exact number depends on gate width, tag position, product size, movement direction and required reading coverage.

Can one RFID reader support multiple antennas?

Yes. Multi-port fixed RFID readers are designed to connect to multiple external antennas. The number of antennas depends on the reader’s available ports.

Should I choose the reader before the antenna?

It is better to consider them together. Tag type, installation position, reading distance and coverage requirements all affect the reader and antenna configuration.

Before deciding how many antennas a project needs, it is useful to understand the basic role of the RFID reader in the complete RFID system. Our guide to RFID reader and how it works explains how the reader communicates with tags and antennas.
