What Is an RFID Reader and How Does It Work?

What Is an RFID Reader?

If you have ever seen a warehouse worker walk past a pallet and suddenly several items appear in an inventory system, there is usually an RFID reader somewhere behind that process.

An RFID reader is the part of an RFID system that communicates with RFID tags. It sends a radio signal through an antenna, receives the response from the tag, and converts that response into usable identification data.

The basic setup is not complicated:

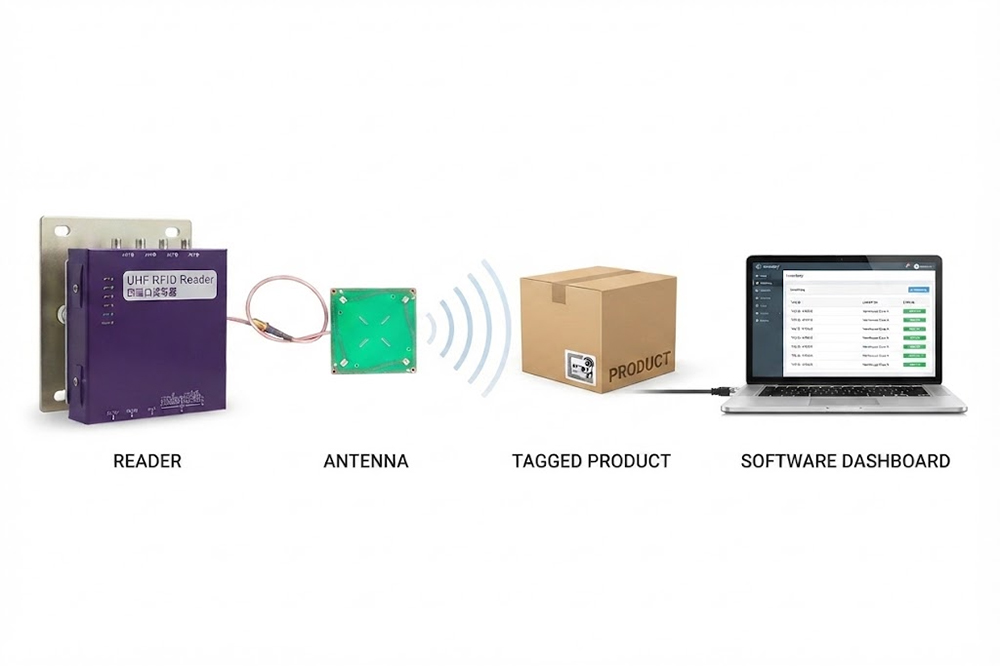

RFID Reader → RFID Antenna → RFID Tag → Software System

But the real-world installation can be much more complicated.

A reader sitting on a desk and a reader installed beside a warehouse gate may both be called an “RFID reader,” but they are not necessarily designed for the same job.

Cykeo’s RFID product range includes fixed, USB, handheld, portable and long-range readers, as well as RFID reader modules for projects that need different levels of integration.

Explore Cykeo RFID Readers

How Does an RFID Reader Work?

The easiest way to understand an RFID reader is to follow what happens when a tagged object enters its reading area.

Imagine a pallet moving through a warehouse doorway.

The RFID reader sends RF energy through one or more connected antennas. A compatible RFID tag inside the reading zone responds to the signal and sends its stored identification information back.

The reader captures that response, filters and processes the tag data, and then sends the information to another system.

That system might be a:

• Warehouse Management System (WMS)
• Enterprise Resource Planning (ERP) system
• Manufacturing Execution System (MES)
• Access control platform
• Asset tracking application
• Custom software platform

This is where RFID becomes more useful than simply “reading a tag.” The reader is normally one part of a larger workflow.

For example, a logistics company may not really care that tag EPC E200001... was detected. What matters is that the pallet associated with that tag entered Dock 3 at a particular time.

That distinction becomes important when choosing hardware.

---

The Reader Does Not Work Alone

One thing I have noticed when discussing RFID projects is that people sometimes focus too much on the reader specification.

They ask, “How many meters can this RFID reader read?”

That is a reasonable question, but it is not enough.

The actual reading result can change with the antenna, tag type, tag orientation, output power, installation height, nearby metal, liquids and other environmental conditions.

Cykeo also notes that fixed-reader performance depends on antenna type, antenna port configuration, power settings, installation height and surrounding structures.

So, a 20-meter specification does not automatically mean every tag will be read at 20 meters in every installation.

A warehouse with metal racks is a very different environment from a clean office desk.

---

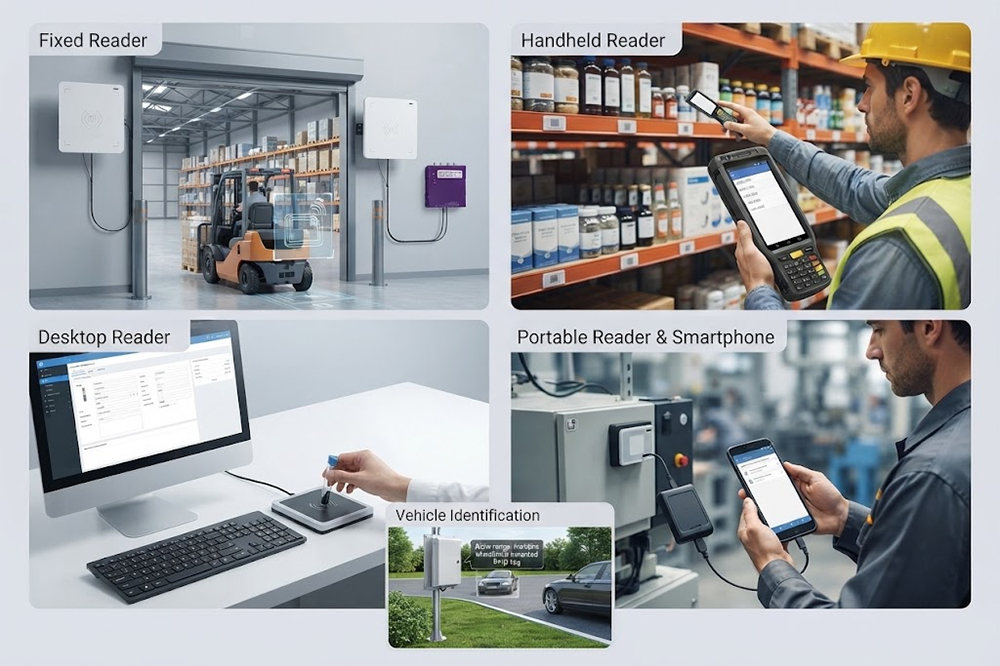

Common Types of RFID Readers

There is no single RFID reader that makes sense for every project.

Fixed RFID Reader

A fixed RFID reader is normally installed in one location and operates continuously.

Typical locations include:

• Warehouse entrances
• Conveyor lines
• Production stations
• Gates
• Access points
• Smart cabinets
• Forklifts

Cykeo’s fixed RFID reader range includes 4-port, 8-port and 16-port models, as well as forklift-oriented readers. These configurations allow multiple antennas to be connected for wider or directional reading zones.

This type makes sense when the RFID reading process needs to happen automatically, without asking an employee to scan every item.

USB RFID Reader

USB RFID readers are more suitable for controlled, close-range applications.

Think about a desktop workstation where an employee places a tagged product or document in front of the reader.

Cykeo offers USB RFID readers for desktop and embedded applications, with USB Type-C and other interface options depending on the model.

For a small registration station, a USB reader can be much more practical than installing a complete industrial RFID gate.

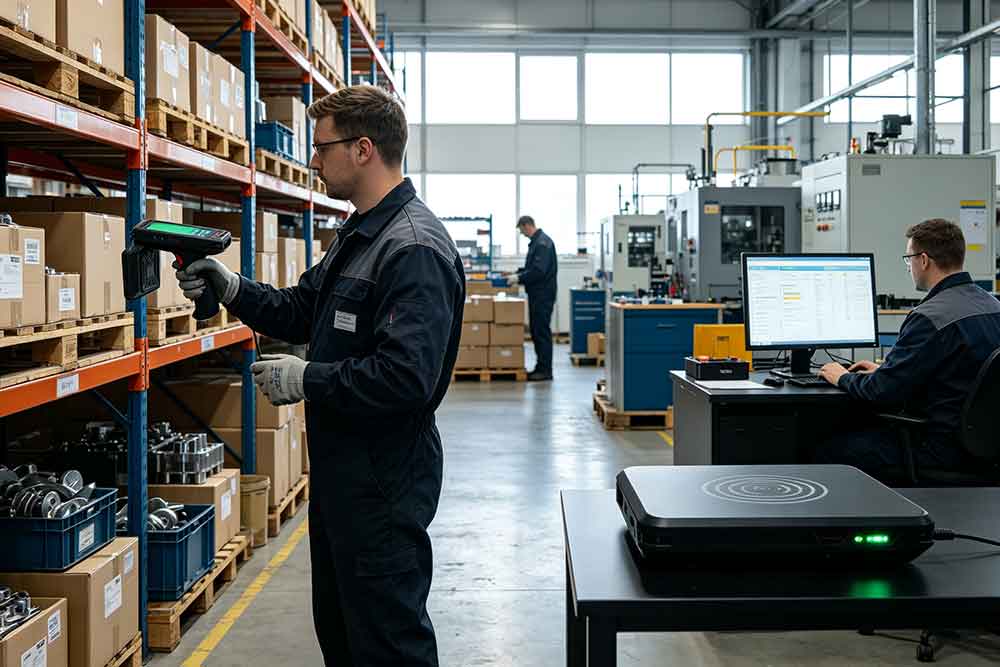

Handheld RFID Reader

A handheld reader is useful when the operator needs to move around.

Warehouse inventory checks are a good example. Instead of bringing every item to a fixed station, the employee carries the reader to the items.

This is also useful for asset inspection, stock counting and field work.

Portable RFID Reader

Portable readers take the mobile concept a little further.

Some models can connect with smartphones through Bluetooth or USB-C, allowing the phone to act as the control terminal while the external RFID reader handles the RFID communication.

This can be useful when a customer already has a mobile application and does not want to build a completely new handheld terminal.

Long Range RFID Reader

When tags need to be detected from several meters away, a long-range UHF RFID reader becomes more interesting.

These readers are commonly used for vehicle identification, warehouse portals, logistics and asset tracking. Cykeo’s long-range range includes antenna options from 4 dBi to 12 dBi, with actual performance depending on the tag, antenna and installation environment.

---

What Should You Consider Before Buying an RFID Reader?

This is probably the part that matters most to a buyer.

Before asking for a quotation, it helps to know a few basic details.

1. What are you reading?

Products, pallets, tools, vehicles and documents may require different tag types and reading setups.

2. How far away are the tags?

A few centimeters is one situation. Five meters, ten meters or more is another.

3. Do you need fixed or mobile reading?

If the reader stays at a gate, fixed hardware usually makes more sense. If an employee walks through a warehouse, handheld or portable hardware may be more suitable.

4. How many tags are present at one time?

Reading one tag at a workstation is different from identifying hundreds of tagged items in a warehouse.

5. How many antennas do you need?

A larger reading zone may require several antennas. Fixed Cykeo readers are available with multiple antenna ports for these types of installations.

6. How will the reader connect to your software?

For B2B projects, this question is often overlooked until late in development.

Cykeo provides SDKs, APIs and demo software for integration with existing software platforms.

---

RFID Reader Applications

Once the reader is matched with the right antenna and tags, there are quite a few practical applications.

In warehouses, fixed readers can identify pallets and goods as they move through checkpoints.

In manufacturing, RFID can follow work-in-progress materials from one process to another.

For asset management, tagged tools, machines or equipment can be monitored without manually checking each item.

In vehicle applications, long-range readers can identify tagged vehicles approaching an access point.

Retail and inventory operations can also use RFID readers to speed up stock verification.

The interesting part is that the same basic RFID principle sits behind all of these applications. What changes is the hardware configuration and the way the data is used.

---

RFID Reader Selection Is Really a System Decision

It is tempting to choose an RFID reader by looking at one number — read range, tag speed or output power.

In actual projects, that rarely tells the whole story.

A reader with excellent specifications may still be the wrong choice if the antenna does not fit the installation, the tag is poorly positioned, or the software cannot communicate with the hardware.

For system integrators and distributors, this becomes even more important. You may be buying the reader for a customer’s warehouse, factory or access-control project rather than for your own operation.

In that situation, it is worth discussing the application before deciding on the model.

Cykeo supplies RFID readers for fixed, mobile, long-range and embedded applications, with SDK/API support for software integration and technical assistance for reader, port and antenna selection.

If you are sourcing RFID readers for a new project, OEM system or distribution business, you can review the available RFID reader solutions and contact Cykeo for model selection and bulk quotation.

---

FAQ

What does an RFID reader do?

An RFID reader sends radio signals to RFID tags, receives their responses, processes the tag information, and transfers the data to a connected software system.

How far can an RFID reader read?

There is no single answer. Reading distance depends on the reader, antenna, tag, power settings, tag orientation and installation environment. Long-range UHF systems can reach several meters, and some industrial configurations are designed for much longer distances.

What is the difference between fixed and handheld RFID readers?

A fixed reader stays installed at a specific location and can monitor tags automatically. A handheld reader is carried by an operator and is better suited to inventory checks, asset inspections and mobile applications.

Do RFID readers need an antenna?

Many fixed UHF RFID readers use external antennas. The antenna plays an important role in shaping the reading area and affecting practical read performance.

Can an RFID reader connect to existing software?

Yes. Depending on the model, RFID readers can communicate with software through interfaces, SDKs or APIs. Cykeo provides SDK, API and demo software support for system integration.

---
