USB RFID Reader Buying Guide: How to Choose the Right RFID Scanner

Choosing a USB RFID reader is mainly about matching the reader, tag, antenna, reading zone, environment, and software to the actual application. For wholesale and OEM projects, real-product testing and software compatibility are usually more important than simply choosing the reader with the longest advertised range.

Buying a USB RFID reader sounds easy.

Search for “USB RFID reader,” compare a few prices, look at the reading distance, and choose the one that looks strongest.

In practice, it rarely works that way.

A reader that performs well for a warehouse workstation may not be the right choice for a library. A long-range UHF reader may be unnecessary for a desktop tool-registration station. And a reader with impressive specifications can still perform poorly if the RFID tag is not suitable for the product.

This is something buyers often discover only after receiving samples.

So before placing a wholesale order, it is worth looking at the whole application, not just the reader itself.

If you are new to USB RFID technology and want to understand the different reader types before comparing specifications, start with our main USB RFID Scanner Guide.

---

Start With the Application, Not the Reader

The first question should be:

What are you trying to identify?

That sounds obvious, but it changes almost everything.

You might be tracking:

• Retail products
• Warehouse cartons
• Books
• Tools
• Medical equipment
• Laboratory instruments
• Documents
• Industrial assets

Each application can have different requirements.

For example, a library may need controlled reading at a desktop workstation.

A warehouse may need multiple-tag reading.

A tool cabinet may need very controlled RF coverage inside a metal enclosure.

A doorway application may need a wider reading zone.

So instead of asking:

“Which USB RFID reader is best?”

ask:

“Which USB RFID reader is suitable for this particular reading environment?”

That is usually a much better starting point.

---

1. Check the RFID Frequency First

For many business applications, UHF RFID is the first technology buyers consider when they need longer reading distances and multiple-tag identification.

UHF RFID systems commonly operate in the 860–960 MHz range, although the exact operating frequency depends on the target market and regional regulations.

This matters when buying equipment internationally.

A reader intended for one regional frequency configuration may not be the right choice for another market.

If you are buying for Europe, North America, the Middle East, or Asia, check the supported frequency range and regulatory requirements before ordering.

For distributors, this is especially important.

A reader that works perfectly in one market should not automatically be assumed to be suitable everywhere.

---

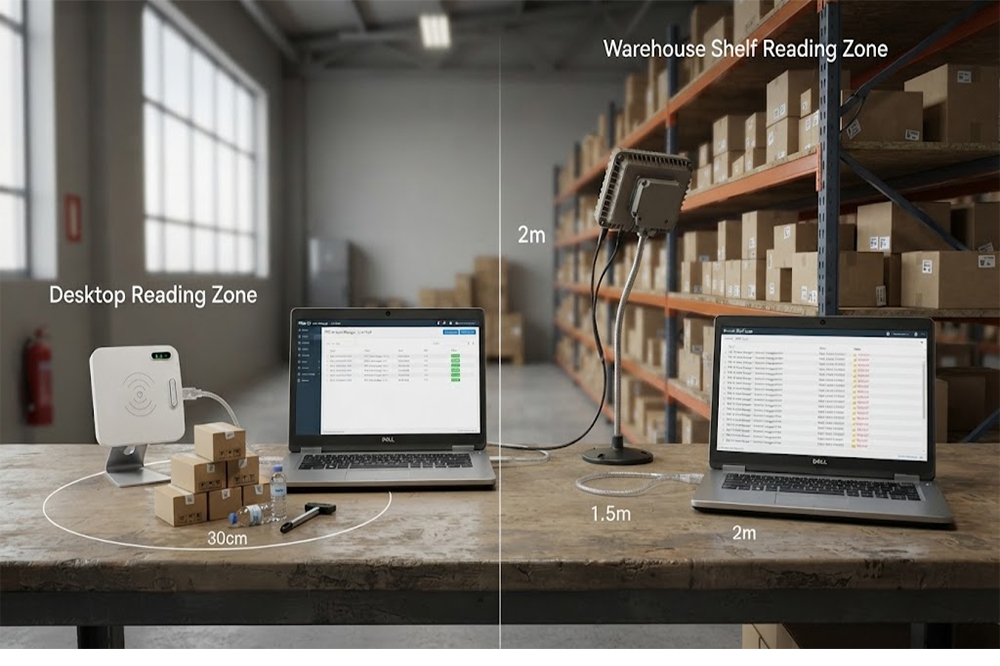

2. How Much Reading Distance Do You Actually Need?

Reading distance is probably the specification buyers ask about most often.

But there is a small trap here.

More distance is not always better.

Imagine a desktop workstation.

The operator places a tagged item 30 cm from the reader.

A 10-meter reading range sounds impressive, but it could actually become annoying if the reader starts detecting products several meters away.

You may want the reader to identify this item, not everything in the room.

Now change the application.

A warehouse doorway may need to detect tags several meters away.

That is a completely different requirement.

So define the desired reading zone first.

For example:

Desktop: 10–50 cm

Workstation: 0.5–2 m

Warehouse: several meters

These are only rough application examples, not guaranteed performance figures.

Actual range depends heavily on the reader, antenna, RFID tag, orientation, product material, transmit power, and environment.

Before comparing reading specifications, it helps to understand what actually happens when an RFID tag communicates with a reader. Our guide explains how a USB RFID scanner works, from the RFID signal to USB communication and software

---

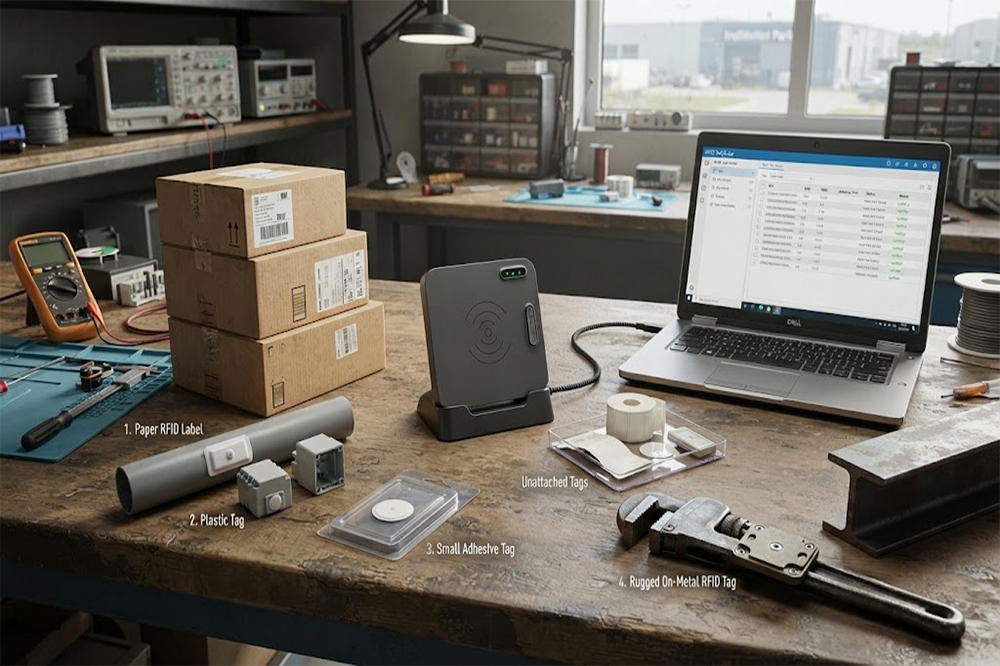

3. Look at the RFID Tag Before Comparing Readers

This is one of the most overlooked parts of RFID purchasing.

The reader does not operate by itself.

The tag is part of the system.

A small RFID label attached to cardboard may perform quite differently from an on-metal tag attached to a steel tool.

Consider a warehouse customer.

Their products are plastic containers.

Then another customer asks for the same reader for metal equipment.

The reader might be identical.

The RFID tags should probably not be.

This is why a serious RFID project should test the reader and the actual tag together.

For wholesale buyers, it is often worth requesting samples of both.

---

4. Multiple-Tag Reading

If the customer only needs to identify one item at a time, multiple-tag capability may not be a major concern.

But warehouse, retail, library, and inventory applications can involve many tags in the reading area.

For example:

A receiving station has 30 RFID-tagged cartons.

The operator wants to identify the shipment without scanning every carton individually.

A UHF RFID reader capable of multiple-tag identification can make this workflow much more practical.

However, there is a difference between:

“The reader can read multiple tags.”

and

“The reader can reliably read 100 tags in my actual environment.”

The second statement requires testing.

Tag density, orientation, product materials, antenna design, and interference can all change the result.

---

5. USB Interface and Software Compatibility

USB sounds straightforward.

Usually, it is.

But the physical USB connection is only the beginning.

You also need to know how the reader communicates with the application.

Depending on the reader and project, buyers may need:

• USB communication
• SDK
• API
• Serial communication
• Windows compatibility
• Custom application support
• Data output configuration

For a simple desktop application, plug-and-play operation may be enough.

For an OEM project, the customer may want to integrate the reader into its own software.

That changes the purchasing requirements.

Cykeo provides USB RFID readers with software development and integration options for different applications, including SDK/API support depending on the product and project requirements.

Cykeo USB RFID Reader Products

---

6. Antenna Design Matters More Than Many Buyers Expect

A reader is not simply a box that “creates RFID range.”

The antenna is a major part of the RF system.

Two readers with similar specifications can behave differently when paired with different antenna designs.

Antenna gain, polarization, orientation, and placement all affect practical performance.

This becomes particularly obvious when the customer has a specific reading zone.

For example, a library workstation may need a relatively controlled reading area.

A warehouse gate may need broader coverage.

A tool cabinet may need RF energy concentrated inside the cabinet rather than outside it.

So when comparing RFID readers, ask whether the reader is being used with an integrated antenna or an external antenna configuration.

That detail can affect the entire system design.

---

7. Pay Attention to the Working Environment

The clean laboratory test is rarely the real warehouse.

Real applications contain things that interfere with RFID performance.

Metal is one obvious example.

Liquids can also affect RF behavior.

Dense stacks of products can make tag identification more difficult.

Human bodies, shelves, cables, walls, and nearby RF equipment can also change the environment.

This does not mean RFID is unreliable.

It means the reader should be selected and tested for the environment where it will actually operate.

If the customer says:

“We need RFID for metal tools.”

Don’t simply quote the longest-range reader.

Ask for the tools.

Test the tags.

Try different tag positions.

That is usually more useful.

---

8. Decide Between Desktop, Embedded and Industrial Use

USB RFID readers come in different physical forms.

Desktop USB Reader

Useful for:

• Product registration
• Library workstations
• Retail receiving
• Asset registration
• Small inventory operations

Embedded RFID Reader

Useful when the reader needs to be built into another machine, cabinet, kiosk, or equipment system.

Industrial RFID Reader

More appropriate when the equipment needs to operate continuously in a demanding environment.

For distributors, this distinction can help avoid a common mistake: selling the same physical reader to every customer simply because the interface is USB.

USB describes the connection.

It does not describe the whole application.

---

9. What About Reading and Writing?

Some RFID applications only need to identify the tag.

Others may need to write data to the tag memory.

This difference should be confirmed before ordering.

For example, a customer may want to encode an RFID tag during product registration.

Another customer may only need to read an existing EPC number.

Those are not necessarily the same requirement.

When requesting a quotation, explain whether the application needs:

Read only

or

Read + Write

This simple detail can save time during product selection.

---

10. Don’t Ignore Software Integration

The RFID reader captures the tag.

The software turns that tag ID into useful information.

Without integration, the reader may only give you a list of IDs.

A complete system might display:

RFID: E200341201234567
Product: Industrial Sensor
SKU: IS-2048
Location: Warehouse B
Status: In Stock

For an OEM project, this software connection may be just as important as the RFID hardware.

Cykeo supports RFID system integration through SDKs, APIs, and related RFID hardware, allowing distributors and system integrators to develop application-specific solutions.

---

11. Buying One Reader vs Buying for a Project

The purchasing process is different.

If you need one USB RFID reader for development, the main concerns may be:

• Compatibility
• SDK
• Sample availability
• Basic reading performance

If you need 500 readers for a retail deployment, additional questions appear:

• Consistent performance
• Production capacity
• Quality control
• Packaging
• Certifications
• Firmware consistency
• Technical support
• Delivery schedule
• OEM customization

This is where the supplier becomes important.

For a commercial RFID project, a low unit price is not necessarily the lowest total cost.

A reader that needs repeated troubleshooting or software modification can quickly become expensive.

---

A Practical Buying Checklist

Before sending an RFQ to an RFID supplier, prepare these details:

Application:
Retail / warehouse / library / hospital / tools / laboratory

RFID frequency:
Target market and required frequency

Tag type:
Paper / plastic / on-metal / special tag

Reading distance:
Actual required range

Number of tags:
Single / several / dozens / hundreds

Antenna:
Integrated / external

Interface:
USB / SDK / API / other

Read or write:
Read only / read and write

Software:
Existing application / custom software

Quantity:
Sample / small batch / mass production

Customization:
Standard / OEM / customized enclosure

Having this information ready makes the supplier conversation much easier.

---

Test Before You Place a Large Order

This is probably the advice I would put at the top of any RFID buying guide.

Test the actual application.

Don’t test a random RFID tag on an empty desk and assume the same result will happen in the warehouse.

Use:

• The actual product
• The actual RFID tag
• The actual mounting position
• The expected reading distance
• The expected product quantity
• Similar shelves or cabinets

Then measure the result.

Maybe the customer needs a shorter reading zone.

Maybe an on-metal tag performs much better.

Maybe the antenna needs to move.

Sometimes a small change in tag position makes a bigger difference than buying a more powerful reader.

---

Buying for Wholesale or OEM Projects?

For distributors and system integrators, the conversation should go beyond unit price.

If you are purchasing USB RFID readers for resale or integrating them into your own equipment, consider asking about:

• Sample testing
• MOQ
• Production lead time
• Firmware
• SDK/API
• OEM customization
• Packaging
• Certifications
• Long-term supply
• Technical support

Cykeo provides USB RFID readers and broader RFID hardware for applications including inventory management, tool tracking, retail, asset management, and system integration.

Explore Cykeo USB RFID Reader Solutions

For larger projects, sending the supplier your application details first is usually much more productive than simply asking:

“How much is your RFID reader?”
