how far rfid can be read

how far rfid can be read depends on the RFID frequency, tag type, reader power, antenna design, tag orientation, and surrounding materials. Passive UHF RFID typically works across several meters; GS1 cites up to 15 meters in special cases, while typical UHF deployments are often around 10 meters.

The number printed on a reader datasheet is only the beginning. On an actual warehouse floor, the tag may face sideways, sit against corrugated cardboard, pass beside steel racking, or disappear behind a liquid-filled container. Those few details can change the usable reading zone considerably.

At Cykeo, RFID engineers generally treat read distance as a system-design parameter, not a single reader specification. The useful range is the distance at which the intended tags can be identified consistently while unwanted tags remain outside the reading zone.

What Determines How Far RFID Can Be Read?

RFID does not have one universal reading distance.

GS1 separates RFID into LF, HF and UHF technologies. LF systems commonly operate at 125 or 134 kHz and typically provide 10–50 cm of range. HF systems operating around 13.56 MHz commonly provide 10 cm to 1 m. Passive UHF/RAIN RFID operates in the 860–930 MHz region and can reach up to about 10 m depending on the environment.

That difference becomes obvious when standing beside a reader.

A short-range HF reader is deliberately useful when the operator wants to bring an item close. A UHF portal is designed around the opposite idea: several tagged objects may pass through a defined area without requiring individual alignment.

Passive vs. Active RFID Read Distance

Passive RFID tags do not contain their own transmitter or battery. The reader supplies RF energy, and the tag responds through backscatter. NIST describes this limited energy budget as one of the fundamental constraints on passive RFID operating range.

Active RFID is different. A battery powers the tag’s circuitry and radio communication, allowing substantially greater operating distances. GS1 notes that active RFID can reach 100 meters or more, depending on the system.

For item-level warehouse, apparel, carton and inventory applications, passive UHF is often the more economical architecture.

UHF RFID Read Distance in Real Environments

A clean laboratory measurement and a working warehouse are two very different places.

GS1 reports that a typical UHF RFID read range can be up to 10 meters, while special passive UHF installations can reach approximately 15 meters. Highly sensitive phased-array systems may reach around 20 meters under suitable conditions.

Those figures should not be interpreted as guaranteed distances for every tag.

NIST research has demonstrated that the forward link from reader to tag and the reverse backscatter link can impose different range limitations. Multipath effects can also behave differently between these two links.

That is why an installation can produce excellent reads at 6 meters and inconsistent reads at 8 meters even though the reader itself is rated for a much longer distance.

Key Variables Affecting Read Range

• Reader output power — more RF energy can increase available operating margin.
• Reader sensitivity — determines whether weak tag backscatter can still be decoded.
• Antenna gain and directionality — shape the interrogation zone.
• Polarization — affects how effectively the tag antenna couples with the reader field.
• Tag orientation — a poorly aligned tag can become difficult to read.
• Tag antenna design — different tag constructions have different sensitivity.
• Object material — metal and liquids can significantly alter RF behavior.
• RF interference — nearby wireless equipment can affect read performance.

GS1 specifically identifies reader power, antenna characteristics, polarization, tag orientation and interference as important read-range factors.

Why the Longest Possible Range Is Not Always Better

This is one of the practical details that gets lost in product comparisons.

Imagine a retail exit where the reader can theoretically detect a tagged garment 12 meters away. If merchandise on a display located behind the entrance also falls inside that field, the extra distance is not an advantage.

It is a false-read problem.

For warehouse portals, the same issue appears between adjacent lanes. A system may need to detect every pallet crossing Lane A while ignoring tagged goods waiting in Lane B.

GS1’s system architecture documentation therefore emphasizes the shape and volume of the reading zone, not merely its maximum distance.

A controlled 6-meter zone can be more valuable than an uncontrolled 12-meter zone.

RFID Read Range by Technology

RFID Technology	Typical Range	Common Applications
LF RFID	10–50 cm	Access control, animal identification
HF RFID	10 cm–1 m	Tickets, cards, documents
Passive UHF / RAIN RFID	Up to about 10 m typically	Inventory, logistics, apparel
Special UHF installations	Up to about 15 m	Long-range industrial identification
Advanced phased-array UHF	Around 20 m in suitable cases	Specialized tracking
Active RFID	100 m+ possible	Long-range asset tracking

The ranges above are technology-level reference values, not guaranteed performance for a particular product or installation. GS1 explicitly notes that environmental conditions can substantially reduce or extend RFID read distance.

Engineering Insight: Read Range Should Be Tested, Not Assumed

A specification sheet can tell you the maximum theoretical capability. It cannot tell you whether a tag mounted on a steel container will behave the same way as a tag on a cardboard carton.

GS1 recommends testing RFID solutions because readability is influenced by the chip, rfid antenna, complete tag construction and surrounding environment. Metal objects can create unwanted reflections and make reading more difficult.

NIST research reaches the same practical conclusion from another direction: passive UHF RFID performance depends on the interaction between transmitted energy, tag backscatter, tag antenna characteristics and reader sensitivity.

For a serious deployment, measure:

1. Maximum reliable read distance.
2. Minimum reliable read distance.
3. Read rate at different tag orientations.
4. Performance with the actual product or packaging.
5. Adjacent-zone false reads.
6. Performance under expected movement speed.
7. Performance after nearby equipment is operating normally.

That produces a useful engineering specification—not simply a large number in meters.

How Far Can RFID Be Read in a Real Installation?

For passive UHF RFID, several meters is a realistic working range, while GS1 states that typical UHF systems can reach up to about 10 meters, with up to 15 meters in special cases. Highly sensitive phased-array systems can reach around 20 meters under suitable conditions.

Those figures are useful benchmarks, but they are not installation guarantees.

A warehouse portal, for example, may intentionally use a shorter effective zone. If the reader captures pallets waiting in the neighboring lane, a longer range has become a problem rather than an advantage.

NIST research also shows that UHF RFID range can be limited by either the forward reader-to-tag link or the reverse tag-to-reader backscatter link, with multipath effects changing performance in real environments.

Passive UHF RFID Read Range: What Actually Controls It?

The distance is produced by the reader, antenna, tag and environment working together.

GS1 identifies reader power, interference, antenna directivity and gain, polarization, and tag orientation as important factors affecting the volume in which tags can be read.

In practical commissioning work, the following variables deserve attention:

• Reader output power: Determines how much RF energy reaches the tag.
• Receiver sensitivity: Determines how weak a returned signal can be successfully decoded.
• Antenna gain: Influences the strength and shape of the RF field.
• Antenna polarization: Affects coupling when tag orientation changes.
• Tag antenna design: Different tag constructions have very different sensitivity.
• Tag orientation: A sideways or poorly aligned tag can reduce the usable distance.
• Product material: Metal and liquids can alter RF behavior significantly.
• Interference: Nearby RF equipment can reduce reading stability.

NIST explains that passive RFID tags draw their operating energy from the reader’s electromagnetic field, while active tags use an internal power source and therefore can support greater ranges.

Passive RFID vs. Active RFID

The distinction is important when someone asks simply, “How far can RFID be read?”

RFID type	Power source	Typical range characteristic	Typical use
LF passive	Reader field	Short, typically 10–50 cm	Access, animal identification
HF passive	Reader field	Typically 10 cm–1 m	Cards, tickets, documents
UHF passive / RAIN	Reader field	Several meters; typically up to ~10 m	Logistics, inventory, apparel
Active RFID	Internal battery	100 m or more can be possible	Long-range asset tracking

GS1 gives LF a typical 10–50 cm range, HF approximately 10 cm–1 m, and passive UHF up to around 10 m depending on the environment. GS1 also notes that active RFID can reach 100 meters or more.

For high-volume item identification, passive UHF is usually the more relevant technology.

Why 10 Meters Does Not Mean Every Tag Will Read at 10 Meters

A specification such as “10 m read range” should be treated as a reference point, not a promise that every tagged object will be detected at exactly 10 meters.

Consider a carton moving through a warehouse portal.

One tag faces directly toward the antenna. Another is rotated 90 degrees. A third is attached close to a metal component. A fourth is surrounded by liquid-containing products.

They occupy almost the same physical location, yet their RF behavior can be very different.

GS1 specifically notes that absorbing and shielding materials can substantially reduce or extend the stated UHF range.

Research into high-gain passive UHF tags also demonstrates an important trade-off: making a tag more directional can increase range, but it can simultaneously make performance more dependent on tag orientation.

That is why “maximum range” and “reliable range” should never be treated as interchangeable terms.

Cykeo RFID Read-Range Engineering

Cykeo’s UHF RFID architecture is designed around controlled multi-tag identification, not simply pushing RF power as high as possible.

Applicable Cykeo UHF reader platforms support features such as:

• ISO 18000-6C / EPC C1G2 compatibility
• Adjustable RF output power
• Multi-tag identification
• Anti-collision processing
• Tag-data filtering
• Fixed-frequency or frequency-hopping operation
• Ethernet and serial communication options
• API/SDK integration for application development

Some Cykeo UHF reader configurations provide output power up to 33 dBm, with adjustable power levels. In a real installation, that flexibility is valuable because the best setting may be below the maximum.

The engineering target is not:

“How far can we make it read?”

It is:

“How large should the reliable reading zone be?”

That difference becomes critical at warehouse doors, retail exits, conveyor stations and adjacent inventory lanes.

NIST’s RFID guidance similarly recommends controlling antenna coverage so that it is sufficient for intended tags while avoiding unnecessary coverage and interference.

Where RFID Read Range Matters Most

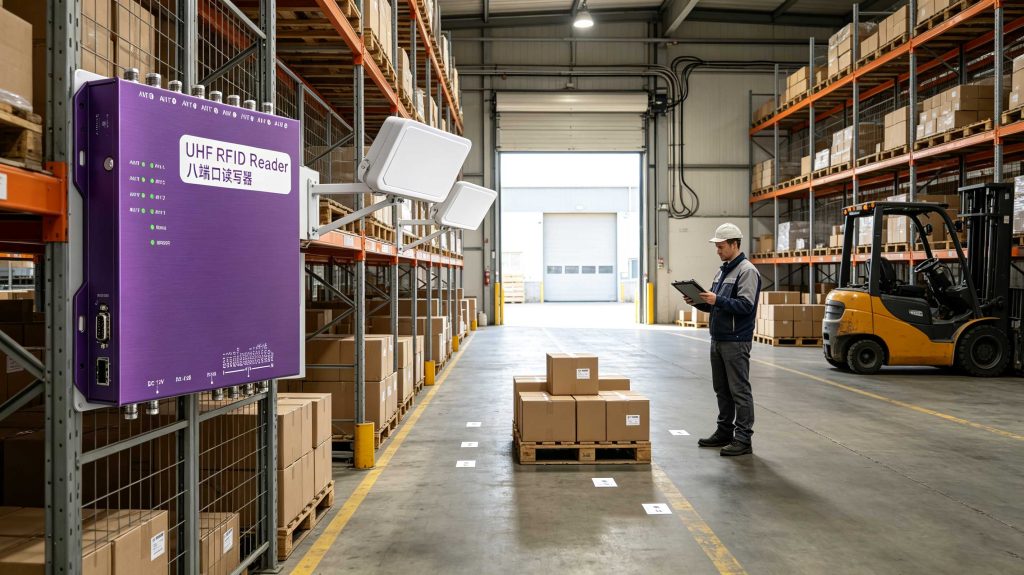

Warehouse Dock Doors

Fixed UHF readers can identify tagged cartons or pallets as they pass through a defined portal. The goal is usually complete capture within the doorway—not detection across the entire warehouse.

Retail and Apparel

Long range is not automatically desirable. A self-checkout station needs to identify the products being purchased without pulling tags from nearby racks into the transaction.

Conveyor Lines

Read distance must be considered together with product speed, tag orientation and antenna placement. A tag may enter the field only briefly.

Asset and Pallet Tracking

Longer-range UHF can be useful when tagged assets are moving through open areas. Here, antenna gain and field geometry become especially important.

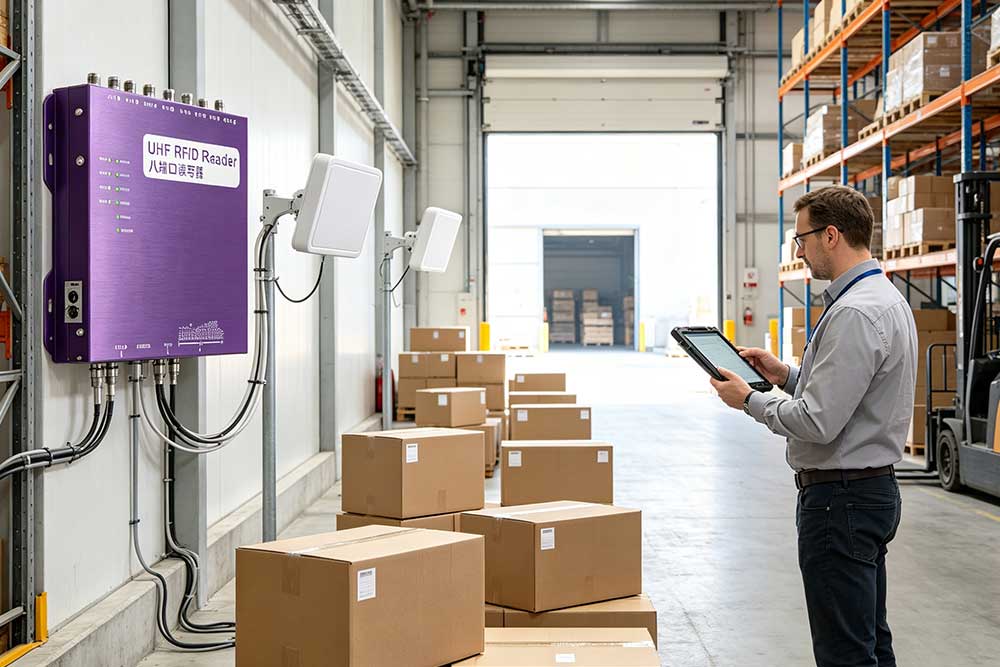

Practical RFID Read-Range Test

A serious deployment should measure the complete system rather than relying on a reader datasheet.

A useful field test records:

1. Maximum reliable read distance
2. Read rate at different distances
3. Tag performance at different orientations
4. Performance on the actual product
5. Performance near metal and liquids
6. Reads from adjacent zones
7. Performance at actual operating speed

This matters because RFID is a radio system operating in a physical environment.

NIST has documented interference testing specifically for passive UHF RFID around the 900 MHz band, measuring how other wireless transmissions affect tag reading success and throughput.

The result worth keeping is not the largest number.

It is the distance at which the system remains predictable.

RFID Read-Range FAQ

1. How far can passive UHF RFID be read?

Passive UHF RFID generally works over several meters. GS1 states that typical ranges can reach about 10 meters, with up to 15 meters possible in special cases.

2. Can RFID be read from 10 meters away?

Yes. Ten meters is within the stated capability of many UHF RFID systems, although actual performance depends on the tag, antenna, reader and surrounding environment.

3. Can passive RFID work through cardboard?

Yes. Passive UHF RFID does not require optical line of sight, so tagged cartons can be identified without visually exposing the tag. However, the contents and packaging can influence RF performance.

4. Does metal reduce RFID read distance?

It can. Metal can reflect or shield RF energy and alter the behavior of the tag antenna. Tags specifically designed for metal surfaces are normally used when direct attachment to metal is required.

5. Does increasing RFID reader power always increase range?

No. Higher power can increase the available RF energy, but tag sensitivity, antenna configuration, orientation, interference and environmental conditions also determine reliable read distance.

6. What RFID frequency has the longest passive read range?

Passive UHF/RAIN RFID generally provides the longest practical range for item-level identification. GS1 identifies passive UHF/RAIN RFID as operating in the 860–930 MHz region, depending on regional implementation.

7. Is a longer RFID range always better?

No. A controlled reading zone is often more valuable than maximum distance. In a warehouse or retail environment, excessive range can cause tags outside the intended process to be detected.
