How Far Away Can RFID Chips Be Read?

how far away can rfid chips be read depends on RFID frequency, whether the chip is passive or active, reader power, antenna design, tag orientation, and surrounding materials. Passive UHF RFID chips can typically be read several meters away, with GS1 reporting ranges up to 10 meters commonly and up to 15 meters in special conditions.

How Far Can an RFID Chip Actually Be Read?

There is no single RFID reading distance.

That matters because an RFID chip is not normally tested as an isolated electronic component. In practical deployments, the chip is part of an RFID tag, and the tag’s antenna, mounting surface, reader antenna, transmit power, and environment all affect the final reading distance.

GS1 states that passive LF and HF RFID generally operate at much shorter distances, while passive UHF or RAIN RFID typically reaches several meters. Under special conditions, UHF passive tags can reach up to 15 meters, while highly sensitive UHF readers using phased-array antennas can reach as far as 20 meters.

For ordinary warehouse and retail applications, however, I would not design around the maximum number.

I would design around the usable reading zone.

That distinction becomes obvious when a reader is installed beside a loading door. A system that reads a pallet 8 meters away is useful. A system that also reads a pallet sitting in the neighboring aisle 8 meters away may create a completely different problem.

UHF RFID Chip Read Distance vs. HF and LF

RFID chips operate within different frequency technologies, and the distance changes significantly between them.

RFID Technology	Typical Read Range	Common Applications
LF RFID	10–50 cm	Animal identification, access control
HF RFID	10 cm–1 m	Tickets, cards, documents
NFC	Usually below 10 cm	Smartphones, payments, access
Passive UHF / RAIN RFID	Up to about 10 m depending on environment	Logistics, inventory, retail
UHF special configurations	Up to 15 m or more	Long-range industrial applications
Active RFID	100 m or more possible	Long-range asset tracking

GS1 identifies LF RFID at 125/134 kHz, HF RFID primarily at 13.56 MHz, and passive UHF/RAIN RFID in the 860–930 MHz range. GS1 also notes that UHF RFID can provide read ranges of up to approximately 10 meters depending on the environment.

So when someone asks how far an “RFID chip” can be read, the first question should actually be:

Which RFID technology?

A small HF chip inside a card and a passive UHF chip attached to a shipping carton may both be called RFID, but their RF behavior is completely different.

Why Passive UHF RFID Reaches Several Meters

A passive UHF RFID chip does not normally contain its own battery or radio transmitter.

The reader sends electromagnetic energy through its antenna. The RFID tag captures part of that energy through its antenna and uses it to power the chip. The chip then communicates by changing the characteristics of the reflected RF signal, known as backscatter.

GS1 describes this reader-to-tag energy transfer and backscatter mechanism as the operating principle of passive RFID systems.

The practical sequence is simple:

1. The reader transmits RF energy.
2. The tag antenna receives the energy.
3. The chip activates.
4. The chip modulates the reflected signal.
5. The reader receives and decodes the response.
6. The RFID system sends the identifier to application software.

The distance therefore depends on whether the RF link remains strong enough for reliable communication.

This is why increasing distance eventually becomes difficult. The tag receives less usable energy, while the reader has to distinguish a weaker backscattered response from environmental noise and interference.

What Determines RFID Chip Read Distance?

1. Reader Transmit Power

Reader power directly affects the RF energy available to a passive tag.

More power can extend the interrogation area, but maximum power is not automatically the correct setting.

In a warehouse, excessive power may cause the reader to detect tags beyond the intended doorway or workstation. In retail, it can increase the chance of reading merchandise outside the checkout area.

The goal is controlled coverage, not simply maximum distance.

GS1’s RFID architecture notes that the typical reading distance can be around 10 meters, but can be substantially reduced or extended depending on shielding and absorbing materials.

2. Antenna Gain and Direction

The reader antenna determines where RF energy is concentrated.

A directional antenna can project energy toward a defined portal or aisle. A different antenna configuration can create wider coverage.

This is one reason two installations using the same RFID reader can produce noticeably different results.

The reader is only one half of the RF system.

3. RFID Tag Antenna Design

The RFID chip itself is tiny. The antenna around it does much of the physical RF work.

A tag designed for apparel may behave differently from a logistics tag. An on-metal tag uses a specialized structure because conventional tag designs can perform poorly when mounted directly against metal.

In field testing, I prefer to test the complete tag attached to the real product rather than testing an inlay in free air and treating that measurement as the production specification.

The difference can be substantial.

4. Tag Orientation

Orientation is easy to overlook during an installation.

A tag facing the reader antenna can behave very differently from the same tag rotated 90 degrees or hidden between other products.

GS1 specifically identifies antenna directivity, antenna gain, electromagnetic polarization, and tag orientation as factors that influence the volume in which RFID tags can be read.

That is why a pallet test should never use only one tag position.

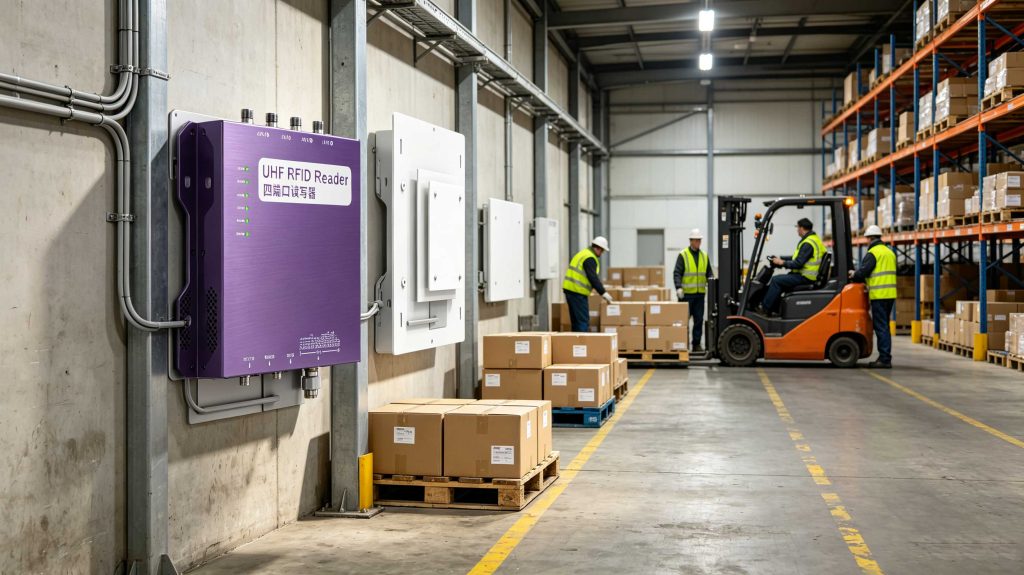

Passive RFID Range in Real Warehouse Conditions

A clean laboratory test is useful for establishing a baseline.

A warehouse is where the real work starts.

Consider a receiving dock:

• Steel racking surrounds the doorway.
• Forklifts move through the same area.
• Pallets contain different materials.
• Tags are attached at inconsistent heights.
• Some cartons contain liquids.
• Multiple RFID readers may operate nearby.

Metal can reflect and diffract electromagnetic waves, while liquids can absorb RF energy and detune RFID antennas. GS1 notes that these effects can substantially reduce the performance of conventional RAIN RFID tags.

This is particularly important when someone asks for a guaranteed “20-meter RFID chip.”

The number by itself tells very little.

A stable 6-meter reading zone that captures every intended pallet and ignores the adjacent aisle can be far more valuable than a nominal 15-meter range that produces unwanted reads.

How Far Away Can RFID Chips Be Read Without Line of Sight?

Passive UHF RFID is particularly useful because the reader does not need optical line of sight to the tag.

GS1 describes RAIN RFID as capable of capturing unique identifiers at distances well in excess of 10 meters in suitable implementations without direct line-of-sight contact.

That is fundamentally different from barcode scanning.

A barcode scanner needs the optical code to be visible to the scanner. An RFID reader can detect a tagged item inside a carton, beneath another product, or with the tag facing away from the operator, provided the RF conditions are suitable.

For logistics, this is where the distance becomes operationally useful.

The operator does not need to stop and aim.

The tagged goods simply pass through the RF field.

What Happens When RFID Chips Are Near Metal or Liquid?

Metal and liquid are two of the first materials I check during an RFID site survey.

Metal can alter the RF field around a conventional RFID tag. Liquid absorbs electromagnetic energy and can reduce the amount of power reaching a passive tag.

GS1 explains that water or liquids can both absorb electromagnetic waves and detune RFID tags, reducing sensitivity. It also notes that specialized antenna designs can mitigate these effects.

This is why an RFID chip placed on a cardboard carton can have a completely different read distance from the same chip integrated into a metal tool case.

The chip has not changed.

The RF environment has.

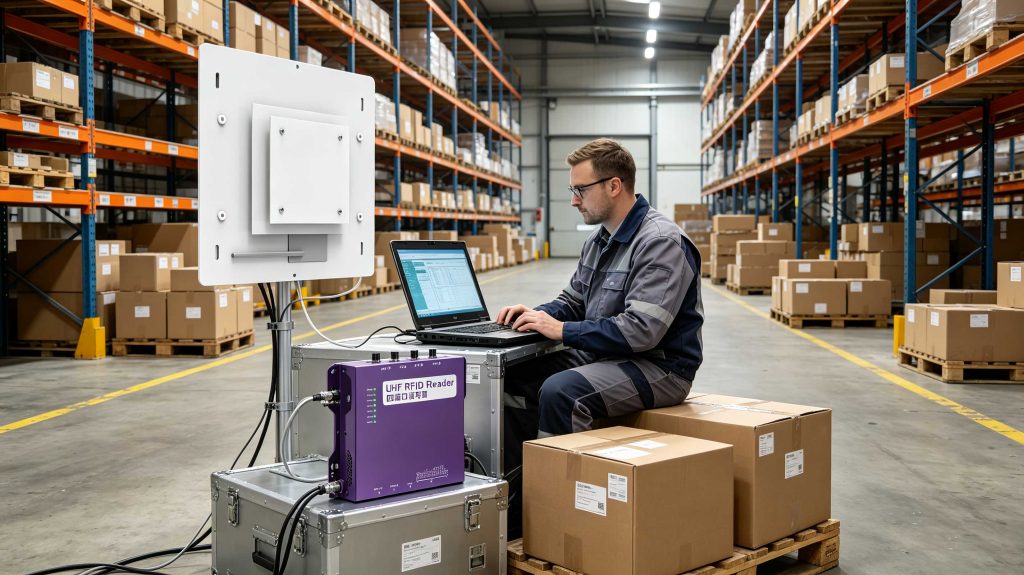

How to Test RFID Chip Read Distance Correctly

A reliable range test should use the actual RFID chip and tag construction, the actual product, and the intended reader–antenna configuration.

GS1 specifically recommends testing RFID solutions in their operating environment because readability is affected by the chip, antenna, tag construction, surrounding materials, and installation environment.

A practical commissioning test should include:

1. Free-air baseline — establish the tag’s basic RF performance.
2. Real-product test — mount the tag exactly as it will be used.
3. Distance test — measure performance at progressively greater distances.
4. Orientation test — rotate the tag through realistic positions.
5. Multi-tag test — test the actual number of tags expected simultaneously.
6. Boundary test — check whether tags outside the intended zone are accidentally detected.
7. Movement test — repeat the test while products move at production speed.

The boundary test is particularly important.

A warehouse reader that can technically detect a tag at 12 meters may look impressive in a demonstration. If the same reader repeatedly detects inventory sitting in the next aisle, the installation is not performing correctly.

The issue is not insufficient range.

It is excessive uncontrolled range.

UHF RFID Chip Read Range in Real Applications

Different applications require very different distances.

Application	Typical Design Priority	Suitable RFID Approach
Access control	Very short controlled field	LF / HF
Library item identification	Short to medium distance	HF / UHF
Retail checkout	Controlled near-field or short UHF zone	UHF
Warehouse shelf inventory	Several meters	Passive UHF
Conveyor identification	Several meters + movement	Passive UHF
Dock-door tracking	Wide controlled portal	Passive UHF
Vehicle or long-range asset tracking	Long distance	Active RFID or specialized UHF

GS1 lists LF RFID at roughly 10–50 cm, HF RFID at approximately 10 cm–1 m, and passive UHF RFID at up to about 10 m depending on environmental conditions.

This is why asking only “How far can an RFID chip be read?” is incomplete.

The better engineering question is:

How far does this RFID system need to read reliably for this particular process?

Cykeo RFID Engineering: Designing the Read Zone

Cykeo’s UHF RFID systems are designed for applications where multiple tagged objects must be identified without requiring individual visual scanning.

A typical architecture is:

RFID Tag → RFID Antenna → UHF Reader → Ethernet / RS-232 → Application Software

For industrial installations, the reader’s adjustable transmit power, antenna characteristics, tag selection, communication interface, and software filtering can be coordinated around the required reading area.

Cykeo UHF readers can support ISO 18000-6C / EPC C1G2 and multi-tag identification. Depending on the model and configuration, output power can be adjusted to suit the installation rather than leaving the system permanently at its maximum setting.

That matters when a portal sits beside a storage rack.

The objective is not to illuminate the entire warehouse with RF.

It is to create a repeatable identification zone exactly where the business event occurs.

Why Tag Size Can Change RFID Read Distance

The RFID chip is not the only factor determining range.

The antenna surrounding the chip is critical.

The U.S. Federal Highway Administration notes that RFID tag size is directly related to antenna size and associated read range: larger tag antennas can generally support greater reading distances.

This creates a practical trade-off.

A very small tag may be visually attractive and easy to conceal, but its compact antenna can limit UHF performance.

A larger logistics label may have considerably more RF aperture and therefore better range.

For product engineers, this is often a better optimization path than simply increasing reader power.

Metal, Liquid and RFID Chip Detection Distance

Metal and liquids deserve separate validation.

GS1 explains that metallic objects can reflect and diffract electromagnetic waves, while liquids absorb RF energy and can detune RFID tags, reducing sensitivity and read performance.

That does not mean RFID cannot be used around these materials.

Specialized on-metal RFID tags are designed specifically for metallic surfaces, while different antenna and tag constructions can improve performance around challenging products.

A tag attached to a cardboard carton and the same chip integrated into a steel equipment case should never be expected to produce identical results.

The installation material is part of the RF design.

What Read Rate Should Be Expected at Long Distance?

Distance alone should not be used as the performance metric.

GS1 has documented RFID deployments with read rates averaging 95–99%, while emphasizing that distance, tag material, tag orientation, and design all influence performance.

In production, I would therefore record:

• Successful reads
• Missed reads
• Duplicate reads
• Unwanted reads
• Read time
• Tag orientation
• Distance
• Product material
• Number of tags in the field

A single successful read at the maximum distance proves very little.

A stable read rate across hundreds or thousands of realistic tag movements is much more meaningful.

FAQ: How Far Away Can RFID Chips Be Read?

1. How far can a passive UHF RFID chip be read?

Passive UHF RFID can typically be read several meters away. GS1 states that UHF passive tags can reach up to 15 meters in very special cases, while highly sensitive phased-array systems can reach approximately 20 meters.

2. Can RFID chips be read through clothing?

Yes. Passive UHF RFID tags are commonly used on apparel because fabric generally presents relatively little RF obstruction. Actual performance depends on tag design, placement, nearby materials, and reader configuration.

3. Can an RFID chip be read without touching the reader?

Yes. Passive UHF RFID is specifically designed for wireless identification at distance. Depending on the system, tagged objects can be identified from several meters away without physical contact or optical line of sight.

4. Does a larger RFID tag always have a longer range?

No, but a larger antenna can provide advantages for RF performance. The U.S. Federal Highway Administration notes a direct relationship between RFID tag size, antenna size, and associated read range.

5. Why does my RFID chip read farther in the laboratory than in the warehouse?

A warehouse introduces metal racks, liquids, machinery, nearby RF devices, tag orientation changes, product stacking, and reflections. GS1 specifically identifies shielding and absorbing materials as factors that can substantially reduce or alter RFID read range.

6. Can increasing RFID reader power solve a short read-range problem?

Not necessarily. Higher power may extend coverage, but it cannot compensate for a poorly matched tag, antenna polarization, unsuitable mounting surface, or severe RF interference. It can also create unwanted reads outside the intended area.

7. What is the best RFID chip reading distance?

There is no universal best distance. The correct distance is the one that reliably captures the intended items while minimizing reads from outside the process. For many warehouse applications, a controlled several-meter UHF zone is more useful than an uncontrolled maximum-range field.

Final Takeaway

The answer to how far away can rfid chips be read is measured in centimeters for some RFID technologies and several meters for passive UHF systems. GS1’s data shows that UHF can reach approximately 10 meters in typical conditions, with substantially longer distances possible in specially engineered installations.

For Cykeo deployments, the practical target is not the largest possible number.

It is a stable, repeatable RF reading zone that matches the actual movement of products, tags, people, and equipment.
