Long Range RFID Scanner: Complete Guide for Industrial RFID Projects

If you’ve searched for a long range RFID scanner, chances are you’re not actually looking for “the longest reading distance.”

Most companies start with that assumption. After a few conversations, though, the real requirement usually becomes much clearer.

They want products to identify themselves automatically.

No manual scanning.

No stopping forklifts.

No workers remembering to press a trigger.

That difference matters more than another two or three meters of reading range.

In industrial RFID projects, a scanner isn’t simply measuring distance. It’s becoming part of the workflow.

---

What Is Long Range RFID Scanner?

A long range RFID scanner is a fixed or portable RFID device designed to identify RFID tags from several meters away.

Most industrial systems today use UHF RFID technology, which supports passive tags while still achieving read distances between 3 and 15 meters, depending on the antenna, tag quality, installation angle, and surrounding environment.

You’ll also hear people call it a:

• industrial long range RFID scanner
• long range UHF scanner
• long distance RFID reader
• fixed RFID scanner

Although these names differ slightly, they usually refer to equipment built around the same UHF RFID principles.

---

Why Industrial Projects Prefer Fixed RFID Scanners

One thing I’ve noticed across warehouse and manufacturing projects is that companies rarely replace barcode scanners because RFID reads farther.

They replace them because RFID removes repetitive work.

Imagine a warehouse dock where dozens of pallets leave every hour.

With barcode labels, someone has to stop, point the scanner, verify the barcode, and continue.

With a fixed long range RFID scanner, tagged pallets simply move through the gate.

The system captures every tag automatically.

Nothing pauses.

Nothing needs to be aimed.

Over thousands of shipments, those saved seconds become significant.

---

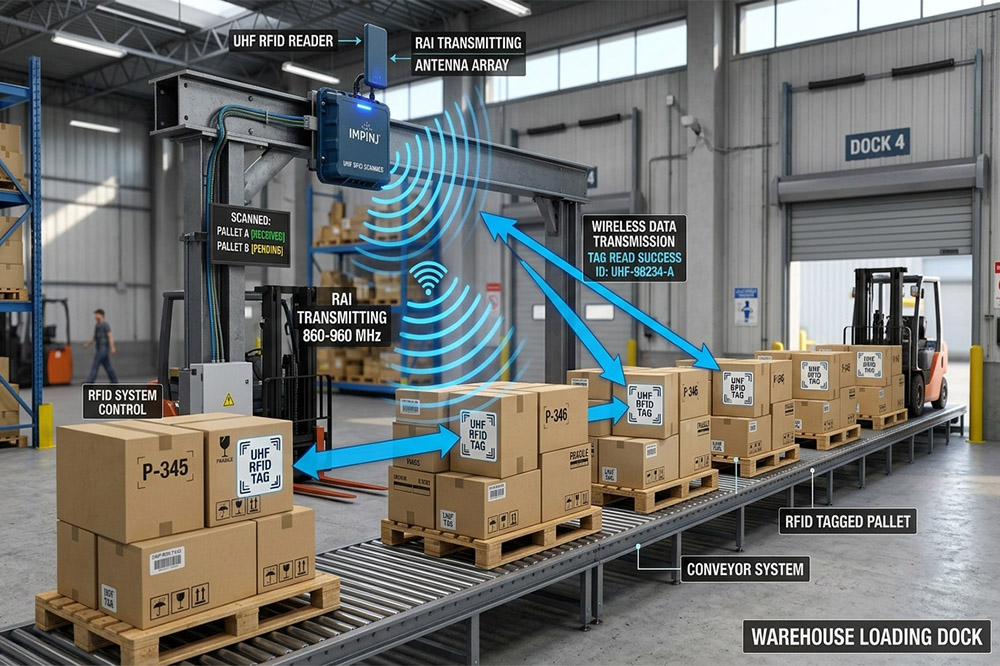

How Does a Long Range UHF Scanner Work?

The process is fairly straightforward.

The scanner continuously transmits UHF radio waves through one or multiple antennas.

When passive RFID tags enter the reading field, they receive energy from the signal and immediately respond with their unique EPC number.

The reader collects all responses, filters duplicates, and sends the data to software such as:

• Warehouse Management Systems
• ERP platforms
• Manufacturing Execution Systems
• Vehicle management software
• Asset tracking platforms

The operator often doesn’t even notice the scanner working because the entire identification process happens in the background.

---

Passive Long Range RFID Scanner vs Active RFID

This question comes up quite often.

People assume long distance always requires battery-powered tags.

Actually, many industrial projects successfully use passive long range RFID scanners.

Here’s a quick comparison.

Feature	Passive RFID	Active RFID
Tag Battery	No	Yes
Tag Cost	Low	High
Typical Distance	3-15 meters	30-100+ meters
Maintenance	None	Battery replacement
Typical Use	Warehouses, logistics, retail	Vehicle fleets, mining, ports

Unless extremely long distances are required, passive UHF RFID is usually the more economical choice.

---

Typical Reading Distance

Reading distance depends on much more than the scanner itself.

Several factors influence performance:

• RFID chip sensitivity
• Tag size
• Reader power
• RFID Antenna gain
• Installation height
• Tag orientation
• Metal interference
• Liquid products nearby

For example, a high-quality outdoor RFID scanner paired with a 12 dBi directional antenna may consistently identify pallet tags from 8 to 12 meters.

Meanwhile, the exact same reader could struggle to reach 5 meters if tags are mounted directly against metal without proper spacing.

That surprises first-time users more often than you’d expect.

---

Common Industrial Applications

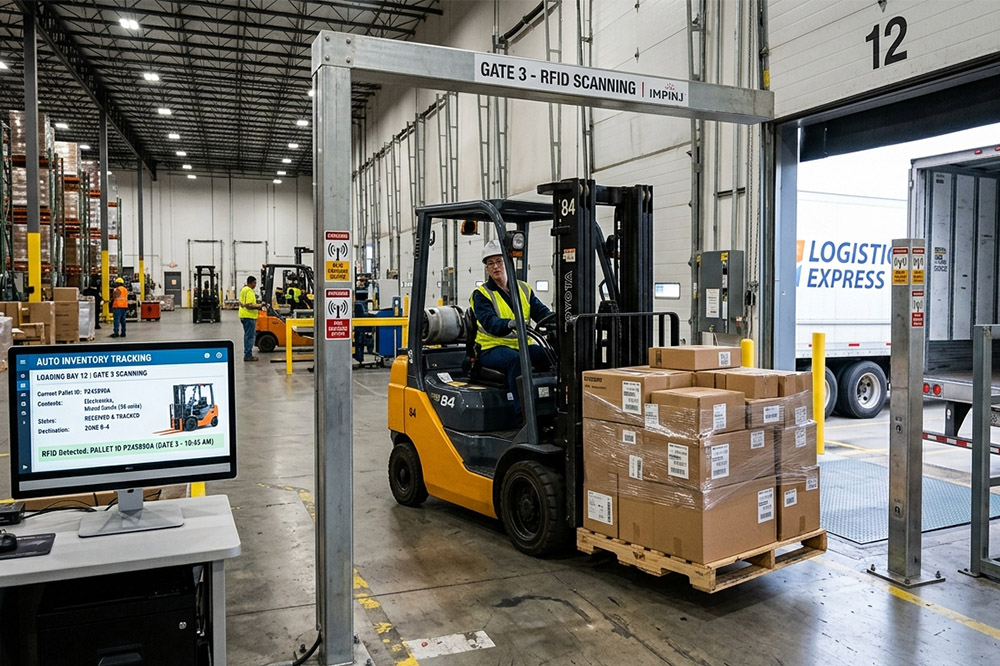

Warehouse Automation

Forklifts carrying RFID-tagged pallets automatically pass through dock doors without stopping.

Inventory updates instantly.

Shipping errors become easier to detect before trucks leave.

---

Manufacturing

Work-in-progress products move between production stations.

Instead of scanning each container manually, fixed scanners identify everything automatically as production continues.

This becomes especially useful when hundreds of components circulate every hour.

---

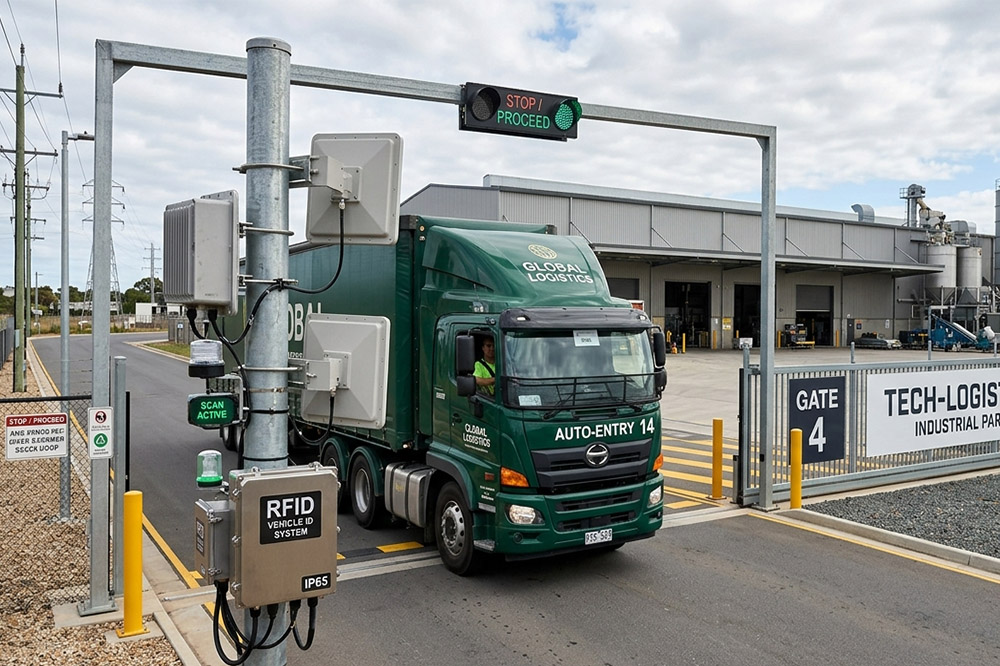

Vehicle Identification

Factories, campuses, logistics parks, and ports often install long range RFID scanners at entrances.

Authorized vehicles pass without opening windows or presenting access cards.

The experience feels closer to electronic toll collection than traditional security gates.

---

Outdoor Asset Tracking

An outdoor RFID scanner with an IP65 or IP67 enclosure can operate in rain, dust, or direct sunlight.

Construction equipment, reusable containers, steel racks, and large assets can all be monitored as they move between work zones.

---

How to Choose the Right Industrial Long Range RFID Scanner

This is probably where many purchasing teams spend the most time.

Reading distance is important, but it shouldn’t be the first specification on your checklist.

I’d normally look at these questions instead.

What are you identifying?

Boxes?

Pallets?

Vehicles?

Metal containers?

Different objects require different tag designs.

---

Is the scanner fixed or mobile?

A fixed long range RFID scanner works best for permanent checkpoints.

Handheld readers make more sense for inventory counting or exception handling.

Many projects actually combine both.

---

Indoor or outdoor?

Outdoor deployments need weather-resistant housings, stable operating temperatures, and surge protection.

Ignoring these details often creates maintenance problems months later.

---

How many tags pass at once?

If multiple pallets move together, anti-collision performance becomes critical.

Industrial UHF readers can process hundreds of tags every second, but actual performance still depends on antenna layout.

---

Can it integrate with existing software?

Most businesses don’t need another standalone application.

Instead, they want RFID data flowing directly into existing ERP or warehouse systems through APIs or middleware.

Checking integration capabilities early usually avoids expensive custom development later.

---

Installation Matters More Than Many Expect

One lesson that comes up repeatedly during deployments is that even excellent hardware can produce disappointing results if it’s installed poorly.

I’ve seen readers blamed for missed tags when the real issue was simply antenna positioning.

Sometimes moving an antenna just 20 or 30 centimeters changes the reading field enough to eliminate dead zones.

Other times, adjusting the antenna angle works better than increasing transmit power.

RFID projects tend to reward careful testing more than theoretical specifications.

That’s why experienced system integrators almost always perform site surveys before final installation.

---

Final Thoughts

A long range RFID scanner isn’t just a device that reads farther.

Its real value comes from making identification automatic, reliable, and nearly invisible to daily operations.

Whether you’re managing warehouse logistics, production lines, vehicle access, or industrial assets, choosing the right hardware, antenna configuration, and software integration will usually have a much bigger impact than simply chasing maximum reading distance.

Every site is a little different, and that’s exactly why successful RFID projects begin with understanding the workflow first—and selecting equipment second.
