SSD-T4A
Smart access control with real-time crowd tracking
✔️ AI-Powered Tag Filtering
Supports AI algorithms and up to 6 EPC filtering sets to reduce unwanted tag reads and improve gate detection accuracy.
✔️ Long-Range, High-Speed RFID Detection
With 11 dBi circularly polarized antenna and up to 33 dBm RF output power, SSD-T4A supports reading distances of up to 10 meters, depending on tag performance and environment.
✔️ Reliable Smart Access Management

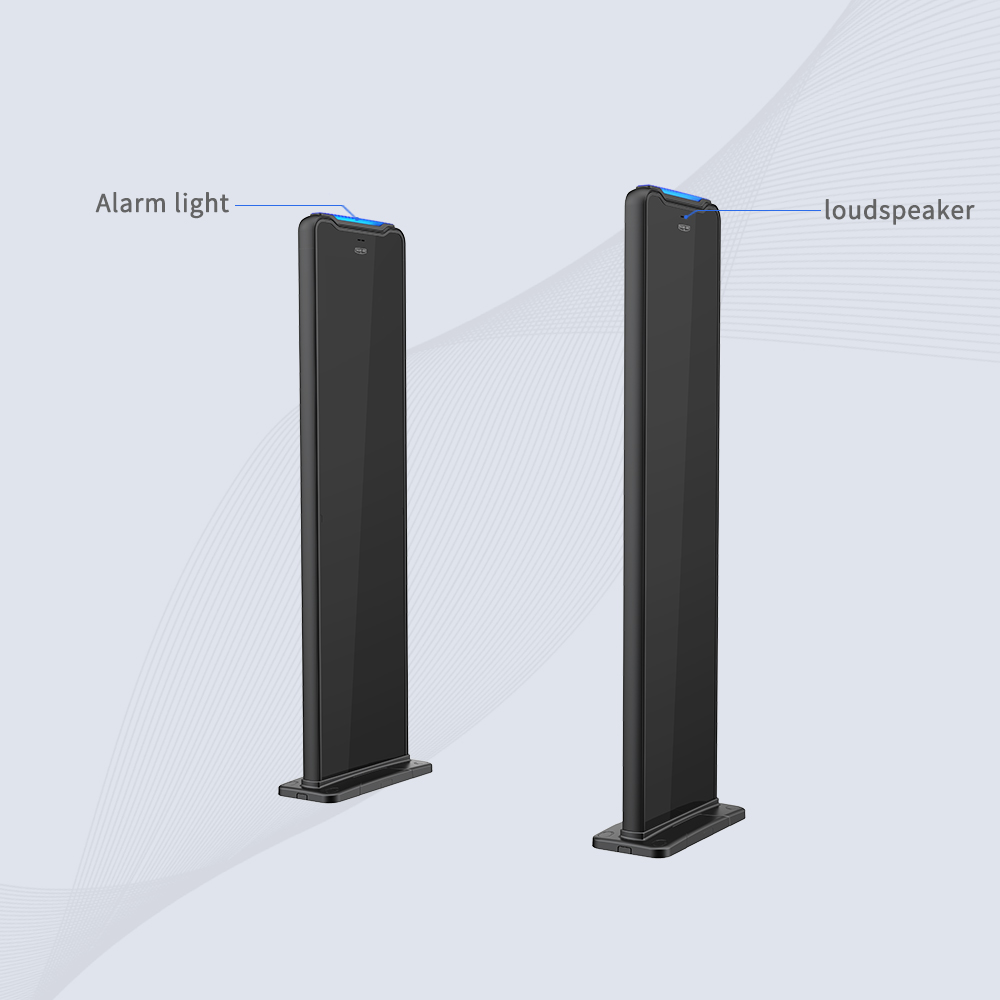

Supports in/out detection, visual and audio alarms, backend synchronization, up to 300,000 data records, and data resuming after network disconnection.

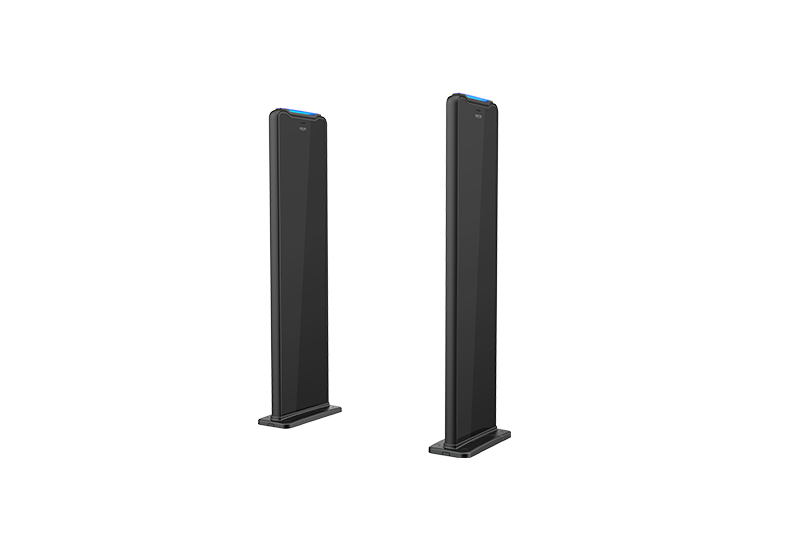

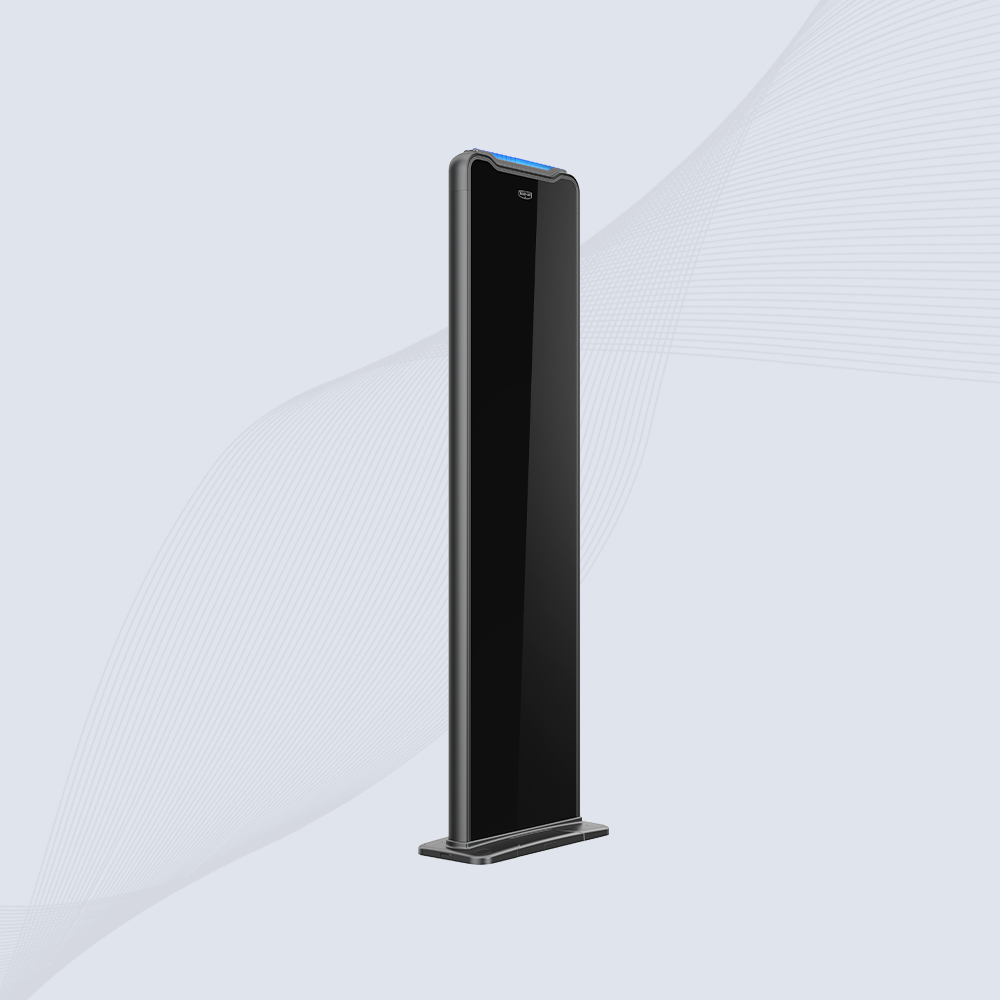

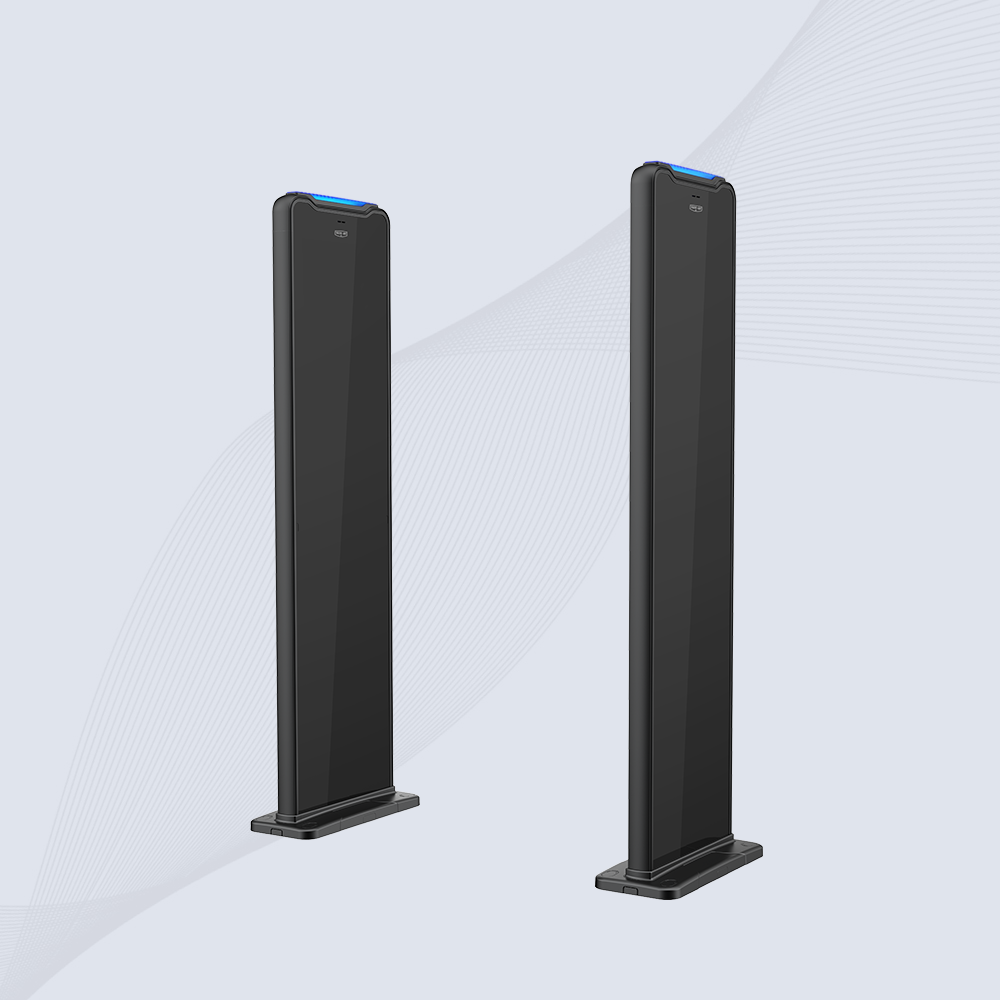

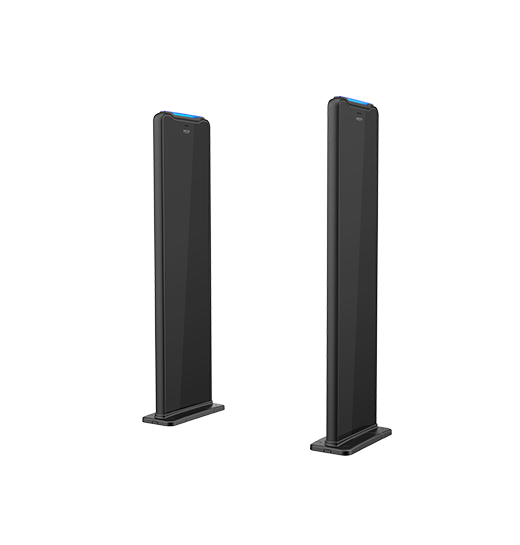

SSD-T4A UHF RFID Gate Reader is designed for automatic identification, access control, and anti-theft applications in retail stores, warehouses, libraries, factories, logistics centers, and other controlled-access areas. The dual-panel gate creates an RFID detection channel for identifying tagged items or personnel as they pass through. With an Impinj E710/X3M1 chipset, 11 dBi antennas, AI tag filtering, and up to 10 meters of reading distance, the system can quickly detect multiple RFID tags. Its TCP, HTTP, and MQTT support also makes it suitable for integration with existing inventory, security, and IoT management systems.
* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.
SSD-T4A is a UHF RFID gate reader designed for automatic identification, access control, inventory monitoring, and anti-theft applications..
It supports EPC C1G2 and ISO18000-6B/C RFID protocols.
The reading distance can reach up to 10 meters, although the actual distance depends on the RFID tag, installation environment, antenna positioning, and other factors.
Yes. SSD-T4A supports in and out detection, making it suitable for monitoring whether tagged items or personnel enter or leave a controlled area.
The system supports AI-based tag filtering and up to six EPC filtering sets to help identify target tags and reduce unwanted tag reads.
SSD-T4A can store up to 300,000 pieces of data and supports synchronization with backend systems..
The standard communication options include Ethernet and optional Wi-Fi. It also supports TCP, HTTP, and MQTT communication protocols.
It can be deployed in retail stores, warehouses, libraries, factories, logistics centers, equipment management areas, and other access-controlled locations.
