SSD-T1G
Smart ceiling RFID that keeps tabs on your stock without you lifting a finger.
✔️ 12 dBi High-Gain RFID Detection
SSD-T1G features a 12 dBi high-gain antenna with a reading distance of up to 10 meters, providing broad RFID coverage for entrances, exits, aisles, and other controlled areas.
✔️ AI-Powered False Alarm Control
Built with Seekall’s proprietary AI algorithm, SSD-T1G can intelligently filter RFID tag reads and supports up to 6 sets of EPC filtering rules. Whitelist and blacklist management can also be used for local alarm control.
✔️ Built for Connected RFID Management
SSD-T1G supports 300,000 local data records and can resume data transmission after network interruptions. With TCP, HTTP, MQTT, Ethernet, and optional Wi-Fi, it can connect with RFID software and IoT platforms.

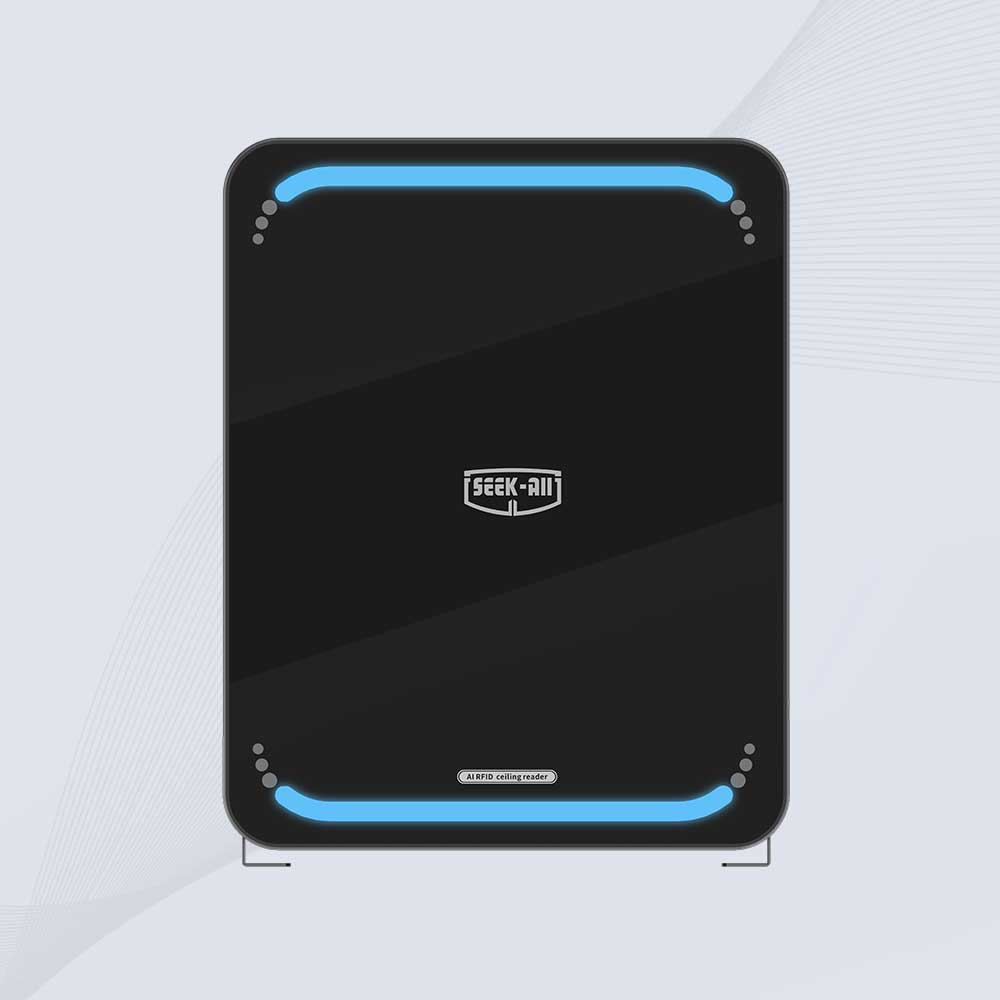

SSD-T1G AI RFID Ceiling-Mounted Reader is designed for RFID monitoring at entrances, exits, and controlled areas. It can be installed above or around access points in retail stores, warehouses, libraries, equipment rooms, and other locations where tagged items need to be monitored.
The reader combines a 12 dBi high-gain antenna with Seekall’s AI algorithm to improve tag filtering and help reduce unwanted alarms. It supports In/Out detection and provides both audio and visual alarms for detected events.
For offline operation, SSD-T1G supports whitelist and blacklist management and can store up to 300,000 records locally. When the network connection is restored, stored data can be resumed and synchronized with the backend system.
* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

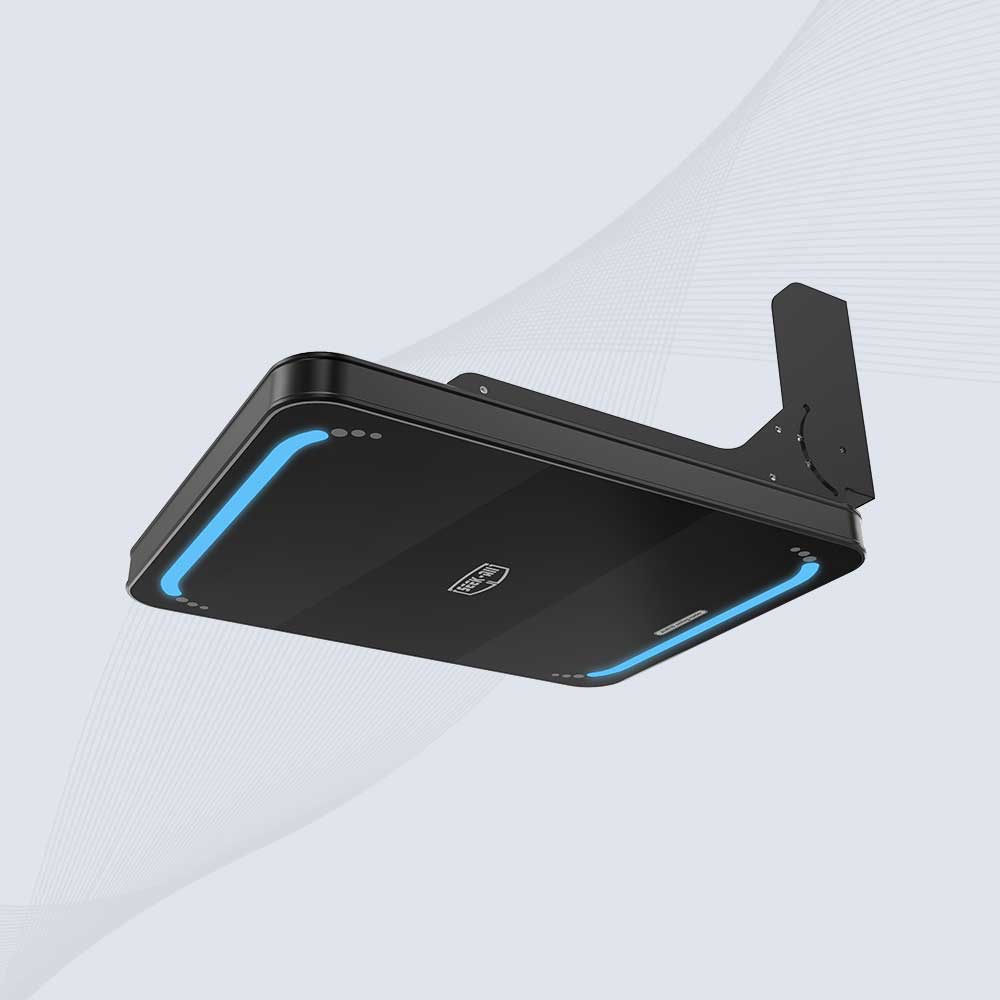

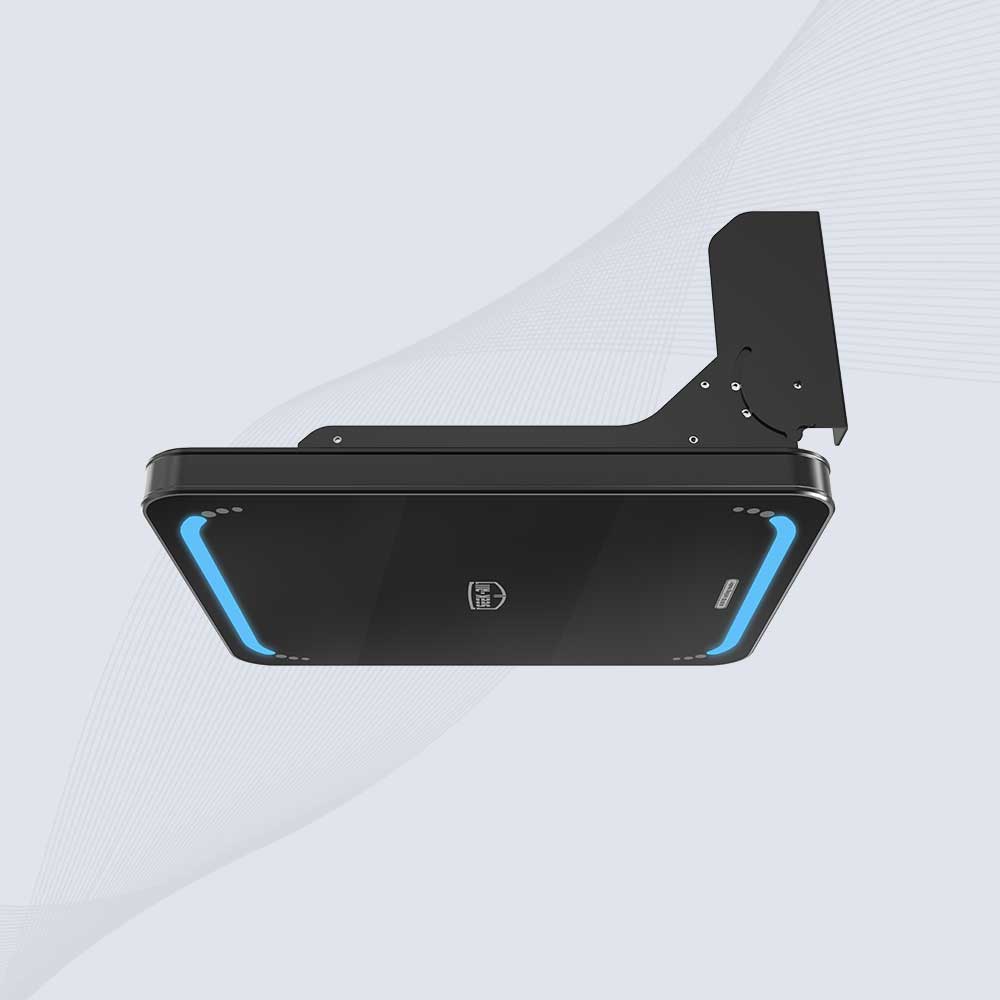

Screw it onto the included brackets—works for 5–12m ceilings

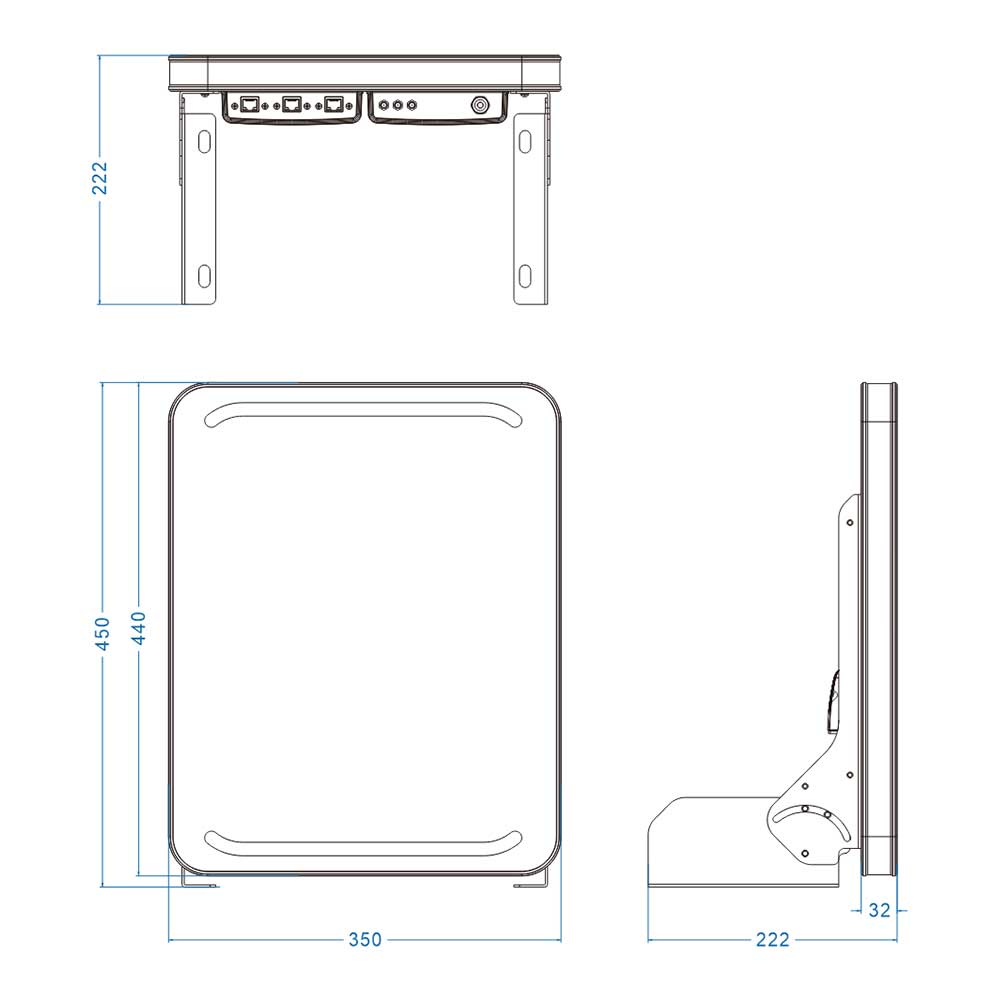

Make sure the mounting spot is flat, around 110×120mm
Keep it at least 3m away from big metal stuff
Want full coverage for 800㎡? You’ll need four units working together
Yeah, it can. Here’s how it works in plain language:
You can set up a whitelist right from the web panel
The mobile app lets you tweak three different alert levels
It checks EPC codes almost instantly—usually under 50ms
And if you need records, you can export all unauthorized tag logs as a CSV
SSD-T1G is an AI-powered ceiling-mounted RFID reader designed for RFID tag detection, In/Out monitoring, security alarms, and item movement management.
SSD-T1G uses a 12 dBi antenna.
The reading distance is up to approximately 10 meters, depending on the RFID tag, antenna environment, installation height, and surrounding conditions.
It supports EPC C1G2 and ISO18000-6B/C RFID protocols.
SSD-T1G uses Seekall’s proprietary AI algorithm together with EPC filtering rules to help filter unwanted tag reads and improve alarm accuracy.
The reader can store up to 300,000 pieces of data locally and synchronize the data with the backend system.
SSD-T1G supports data resuming after network disconnection. Collected data can be retained and transmitted after the network connection is restored.
Yes. SSD-T1G supports TCP, HTTP, and MQTT, as well as Ethernet and optional 2.4 GHz Wi-Fi, allowing integration with different RFID and IoT systems.
Integration’s pretty straightforward:
It has a REST API/SDK that works with SAP, Oracle, or whatever custom system you’re using
Data can auto-sync over TCP/IP every 15 minutes (or whatever interval you set)
Supports dual authentication with 256-bit encryption for secure access
You can dump batch data through USB or straight to the cloud
