All RFID Product

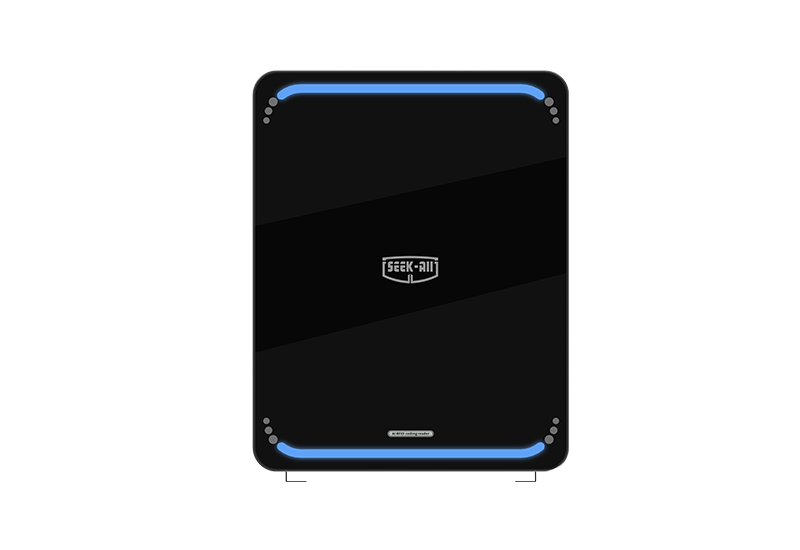

SSD-T1H
Smart ceiling RFID that keeps tabs on your stock without you lifting a finger.
✔️ AI-Powered Tag Filtering
Proprietary AI algorithm helps reduce false RFID alarms and unwanted tag reads. With up to 6 EPC filtering rules and whitelist/blacklist management, SSD-T1H provides more accurate entrance and exit monitoring.
✔️ 9 dBi Antenna with Up to 10m Reading Range
Equipped with a 9 dBi antenna, SSD-T1H delivers reliable UHF RFID detection up to 10 meters, making it suitable for retail stores, warehouses, libraries, and other indoor applications.
✔️ Reliable Data & IoT Connectivity
Supports up to 300,000 local data records, data resuming after network disconnection, and TCP/HTTP/MQTT protocols. Ethernet and optional Wi-Fi make system integration more flexible.
The SSD-T1H UHF RFID Ceiling Reader makes keeping track of inventory a breeze. It reads tags up to 10m, processes data, and flashes alerts—all from one compact ceiling unit. Works with EPC C1G2/ISO 18000-6B/C tags, logs entries and exits automatically, and hooks up via TCP/IP, so you can skip the manual scanning.
Perfect for hands-free tracking in warehouses, stockrooms, libraries, or production lines.
SSD-T1H is designed for RFID monitoring at entrances and exits in retail stores, warehouses, libraries, and similar facilities. Installed above a doorway or passage, it can detect RFID-tagged items moving in or out of a defined area. Its AI-based tag filtering helps control false alarms caused by nearby tags or complex environments. The reader also supports whitelist and blacklist management, local data storage, and offline data resuming, making it suitable for both connected and standalone RFID management systems.
* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.
Screw it onto the included brackets—works for 5–12m ceilings
Make sure the mounting spot is flat, around 110×120mm
Keep it at least 3m away from big metal stuff
Want full coverage for 800㎡? You’ll need four units working together
Yeah, it can. Here’s how it works in plain language:
You can set up a whitelist right from the web panel
The mobile app lets you tweak three different alert levels
It checks EPC codes almost instantly—usually under 50ms
And if you need records, you can export all unauthorized tag logs as a CSV
SSD-T1H is an AI-powered UHF RFID reader designed for ceiling-mounted installation. It is mainly used for entrance and exit monitoring, RFID tag detection, asset tracking, and security applications.
The maximum reading distance is up to 10 meters, depending on the RFID tag, antenna configuration, installation environment, and surrounding interference.
Yes. The SSD-T1H uses an AI-based tag filtering algorithm to help control unnecessary alarms. It also supports up to 6 sets of EPC filtering rules and whitelist/blacklist management.
It can be installed above entrances, exits, passages, or other monitoring areas in retail stores, warehouses, libraries, and similar facilities. The reader is fixed through four screw holes.
SSD-T1H can store up to 300,000 pieces of data locally. Stored information can also be synchronized with a backend system.
SSD-T1H supports data resuming after network disconnection. This helps maintain data continuity when the Ethernet or Wi-Fi connection temporarily fails.
The reader supports TCP, HTTP, and MQTT communication protocols. It can communicate through Ethernet or optional Wi-Fi.
SSD-T1H supports EPC C1G2 and ISO18000-6B/C protocols and uses the Impinj E710/X3M1 chipset. The operating frequency can be adjusted from 840MHz to 960MHz.
Integration’s pretty straightforward:
It has a REST API/SDK that works with SAP, Oracle, or whatever custom system you’re using
Data can auto-sync over TCP/IP every 15 minutes (or whatever interval you set)
Supports dual authentication with 256-bit encryption for secure access
You can dump batch data through USB or straight to the cloud
