Long Range RFID Reader for Parking: What Integrators Need to Know Before Installation

Parking RFID projects often look simple from the outside.

A vehicle arrives.
The gate opens.
The car enters.

But behind this simple action, there are many small decisions that affect whether the system works smoothly.

The RFID reader position, antenna direction, tag type, vehicle speed, and lane design all influence the final result.

A common situation we see in parking projects is this:

The reader works perfectly during testing.

Then after the parking lot starts operating:

• One lane reads another lane
• Some vehicles need to stop too long
• Tags are detected too early
• Vehicles with different windshields behave differently

The hardware is only one part of the system.

The whole access process needs to be designed together.

---

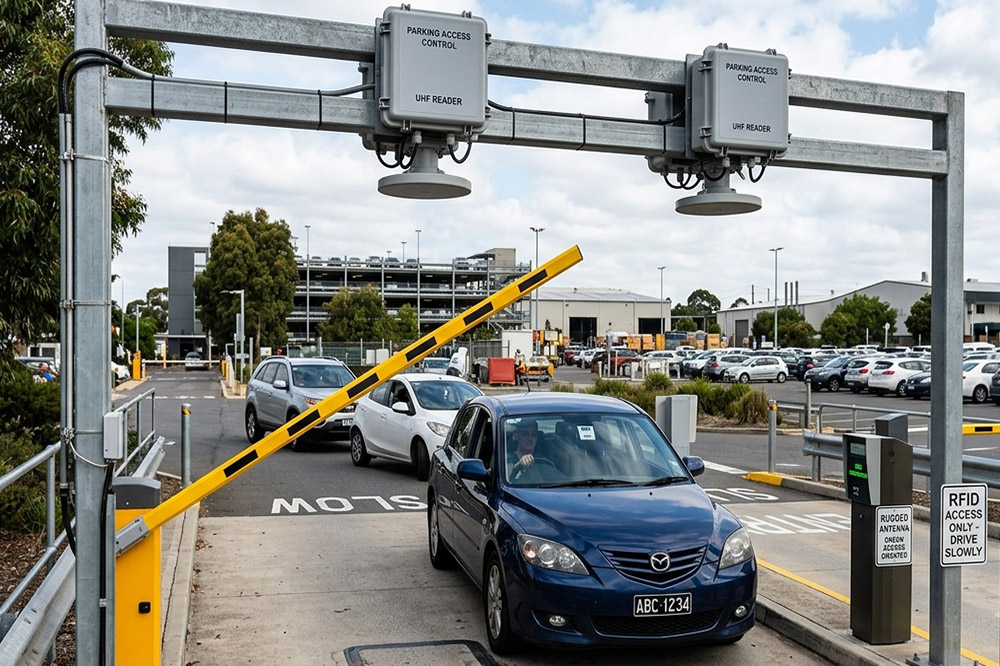

How a Long Range RFID Reader Works in Parking Systems

A long range RFID parking system normally includes:

• UHF RFID reader
• RFID antenna
• Vehicle tag
• Barrier gate
• Vehicle detection sensor
• Management software

When a vehicle approaches the entrance:

1. The antenna creates an RFID reading zone
2. The vehicle tag responds
3. The reader sends vehicle information to the control system
4. The system verifies permission
5. The boom gate opens

The whole process may take only a few seconds.

The challenge is making sure the system only reacts to the correct vehicle.

---

Parking Barrier: More Than Just a Gate

The barrier gate is where the RFID system connects with physical movement.

A good parking RFID solution needs to consider:

• Vehicle speed
• Lane width
• Gate opening time
• Queue distance
• Safety detection

For example, if a vehicle enters too quickly, the reader needs enough time to identify the tag before the boom gate.

If the reading zone is too far away:

The system may detect vehicles waiting behind.

If it is too close:

The gate may not open in time.

The “perfect distance” is usually decided by the actual traffic flow.

---

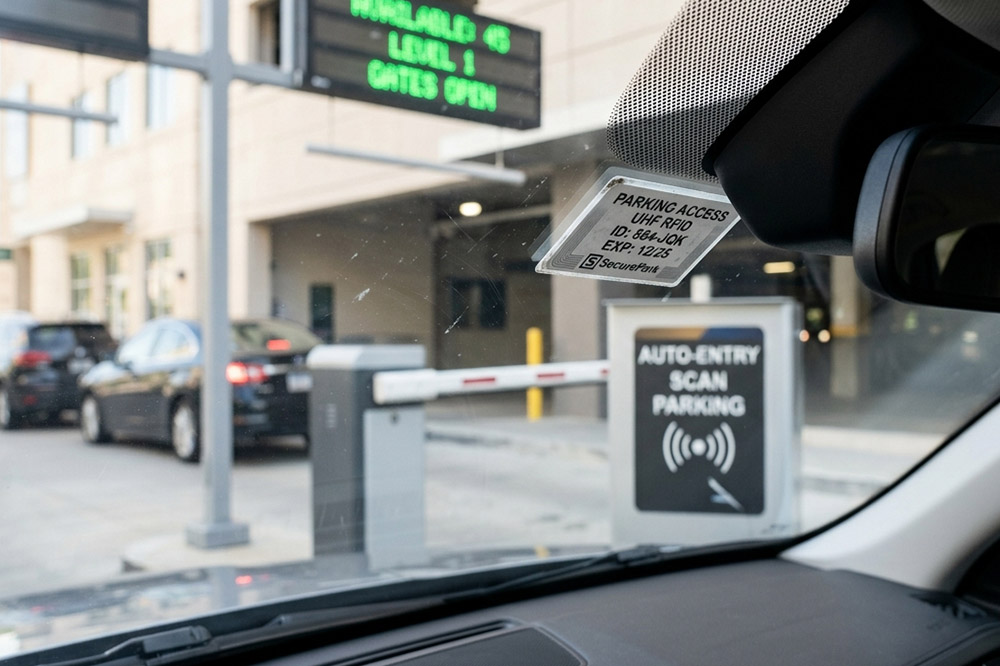

Windshield RFID Tag: Common Choice for Vehicle Identification

Windshield tags are widely used in parking applications.

They are usually attached inside the vehicle windshield.

Advantages:

• Easy installation
• Low maintenance
• Suitable for long-term vehicle identification
• No external modification required

Typical applications:

• Office buildings
• Residential communities
• Corporate parking
• Private vehicle access

But windshield material can affect performance.

Some vehicles use special heat-reflective glass, which may reduce RFID signal transmission.

This is something that often appears only after deployment.

---

License Plate RFID Tag: When External Identification Is Needed

License plate tags are another option.

They are installed near or on the vehicle plate area.

Compared with windshield tags, they are useful when:

• Vehicle ownership management is important
• External identification is preferred
• Fleet tracking is required

However, installation conditions are more demanding.

The tag position, vehicle angle, and environmental exposure need to be considered.

Outdoor parking systems usually require more testing because vehicles are not always positioned the same way.

---

Vehicle Detection: RFID Alone Is Not Always Enough

One question appears frequently:

“Can RFID know when a vehicle arrives?”

Technically, RFID detects the tag.

But in a parking system, knowing the vehicle position is also important.

That is why many projects combine RFID with:

• Loop detectors
• Radar sensors
• Infrared sensors
• Camera systems

The sensor tells the system:

“A vehicle is here.”

The RFID reader answers:

“Which vehicle is it?”

This combination improves reliability.

---

Boom Gate RFID Layout Design

A typical parking entrance includes:

Vehicle Lane

        ↓

Vehicle Detection Sensor

        ↓

RFID Reading Zone

        ↓

Barrier Gate

        ↓

Parking Area

The reader and antenna are usually installed:

• Beside the lane
• Above the lane
• On a dedicated pole

The final position depends on:

• Lane width
• Tag location
• Vehicle direction
• Reading distance requirement

---

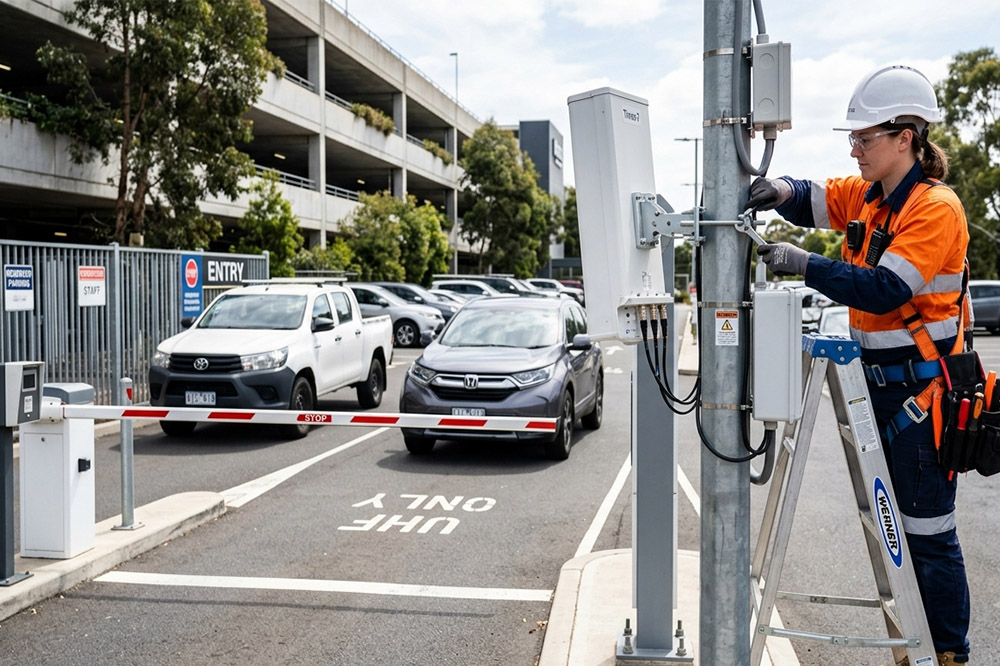

Recommended Installation Considerations

Reader Position

Avoid installing the antenna where large metal structures create reflections.

Common problems:

• Metal columns nearby
• Underground parking walls
• Narrow lanes

---

Antenna Angle

The antenna should focus on the vehicle path.

A small angle change can affect:

• Reading distance
• Lane separation
• Detection accuracy

---

Reading Distance Adjustment

Longer distance is not always better.

For parking systems, controlled detection is usually more important.

Many successful installations intentionally limit the reading zone.

---

Common Problems in RFID Parking Projects

1. One lane reads another lane

This is probably the most common issue.

Possible reasons:

• Antenna beam too wide
• Reader power too high
• Poor installation angle

Solutions:

• Adjust antenna direction
• Reduce power
• Add physical separation

---

2. Vehicle tag cannot be detected

Possible reasons:

• Wrong tag position
• Windshield interference
• Weak tag performance

Solutions:

• Test different tag locations
• Select suitable vehicle tags
• Adjust antenna height

---

3. Gate opens too slowly

Usually related to:

• Reader position too close
• Communication delay
• Poor system timing

The solution is often workflow adjustment rather than simply changing hardware.

---

4. Multiple vehicles detected together

This happens in busy parking areas.

Possible reasons:

• Reading range too wide
• Queue distance too short

Solutions:

• Optimize reading zone
• Combine RFID with vehicle sensors

---

Case Study: RFID Vehicle Access System Optimization

A parking operator wanted to replace manual card access with an RFID-based entrance system.

Initial setup:

• Long range RFID reader
• Windshield tags
• Automatic boom gate

During testing, the system worked.

After real operation started, problems appeared:

• Vehicles in nearby lanes were detected
• Some vehicles required repositioning

The adjustment process included:

• Changing antenna angle
• Reducing unnecessary reading distance
• Adjusting installation height
• Optimizing vehicle detection timing

The final system did not focus on maximum range.

It focused on predictable vehicle identification.

That is usually what parking operators actually need.

---

FAQ

How far can a parking RFID reader read a vehicle tag?

Depending on the reader, antenna, and tag type, long range RFID parking systems commonly work from several meters to more than 10 meters.

Which RFID tag is better for parking systems?

Windshield tags are common for private vehicles, while license plate tags may fit fleet and outdoor applications better.

Why does my RFID parking system read wrong vehicles?

Usually because of antenna coverage, installation angle, or excessive reading range.

Does RFID replace vehicle detection sensors?

Not always. Many professional parking systems combine RFID identification with vehicle detection sensors.
