Choosing an RFID reader is less about finding the reader with the biggest specifications and more about matching the hardware to the actual reading environment. This guide looks at the practical points buyers should check before ordering RFID readers for inventory, warehouses, industrial automation, asset tracking or OEM projects.

Buying an RFID reader sounds easy until you start comparing models.

One supplier says the reader can reach 20 meters.

Another says 30 meters.

One model has four antenna ports.

Another has eight or sixteen.

Then there are fixed rfid readers, handheld rfid readers, USB rfid readers, embedded rfid modules and readers with different interfaces.

At some point, the product list starts looking more confusing than helpful.

And honestly, the longest reading distance is not always the reason to choose one reader over another.

Imagine a warehouse door where you only need to detect products passing through a two-meter opening. A reader capable of reading tags across the entire warehouse might actually create more problems because it could detect products sitting on nearby shelves.

So when choosing an RFID reader, the first question should not be:

“Which reader has the longest range?”

A better question is:

“What exactly do I need the reader to detect, and where?”

That small change in thinking makes the selection process much easier.

---

Start With the Application

Before looking at models, describe the application.

For example:

• Warehouse inventory
• Pallet tracking
• Tool management
• Production line tracking
• Retail inventory
• Library management
• Access control
• Conveyor tracking
• Asset management
• Vehicle identification

These applications can all use RFID, but the reader configuration may be completely different.

A warehouse employee walking between racks may need a handheld reader.

A production conveyor usually needs a fixed reader.

A smart cabinet may need an embedded or compact reader.

A large logistics gate may need a multi-antenna fixed reader.

The application gives you the first direction.

---

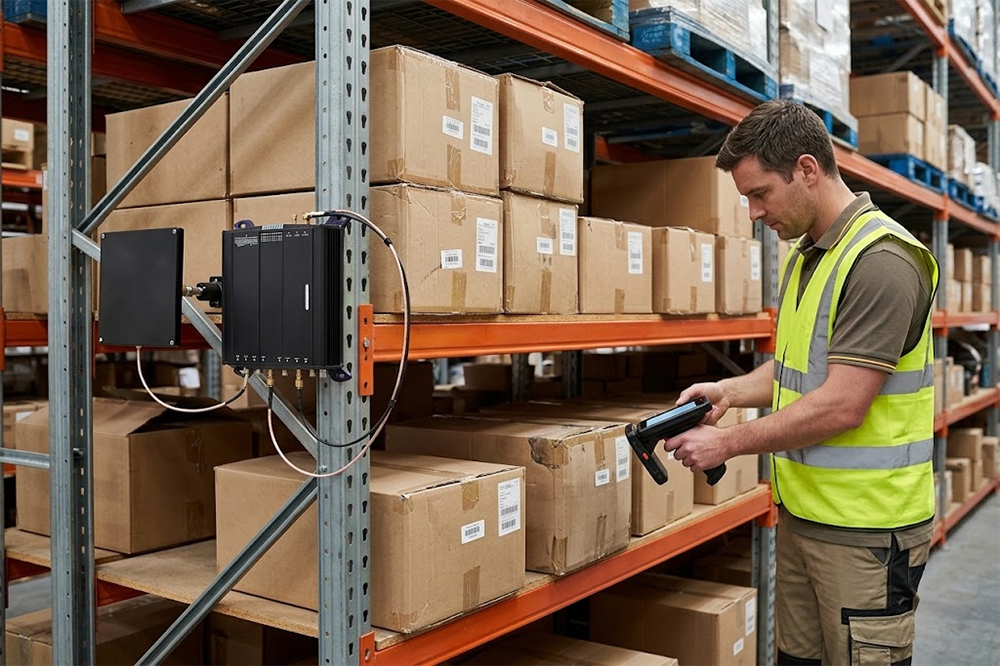

Fixed or Handheld?

This is probably the first hardware decision most buyers need to make.

Fixed RFID Reader

A fixed reader stays in one location.

It can be installed at:

• Doors
• Gates
• Conveyors
• Shelves
• Workstations
• Production lines
• Smart cabinets

It works well when assets or products move through a predictable reading area.

For example, a pallet passes through a warehouse gate.

The reader detects the tags.

The software records the movement.

Nobody has to stop and scan every carton individually.

Handheld RFID Reader

A handheld reader is more flexible.

A worker can carry it through a warehouse or storage room and scan multiple tags while walking.

This makes it useful for:

• Stocktaking
• Asset searches
• Tool inventory
• Warehouse checks
• Equipment management

If the location of the asset changes constantly, handheld RFID is often easier to work with.

Some businesses use both.

Fixed readers automatically capture important movement points, while handheld readers deal with areas where automatic coverage is not practical.

---

What Frequency Does the RFID Reader Use?

Frequency matters because RFID systems operate differently at different frequency bands.

For many warehouse, logistics and industrial applications, UHF RFID is a popular choice because it supports relatively long reading distances and can identify multiple tags.

A common UHF RFID reader specification is a frequency range around 840–960 MHz, with the exact operating range depending on the target market and local regulations.

For buyers working across different countries, this point should not be ignored.

A reader intended for one region may need a different configuration for another.

If you are purchasing in bulk, confirm the supported frequency and regional requirements before placing the order.

---

How Much Reading Distance Do You Actually Need?

This is where buyers sometimes overestimate their requirements.

Suppose the application is a tool cabinet.

The tool only needs to be detected when it is inside or near the cabinet.

A very long reading distance might be unnecessary.

Now imagine a warehouse gate where pallets move through a doorway.

A longer range could be useful.

But even there, excessive range may cause unwanted reads.

RFID range depends on more than the reader.

The result is affected by:

• Reader output power
• Antenna gain
• RFID tag design
• Tag orientation
• Product material
• Installation position
• RF environment

So a specification such as “20-meter reading distance” should be treated as a reference rather than a promise for every installation.

The actual application should always be tested.

For a more detailed discussion, see our guide to RFID reader reading distance.

---

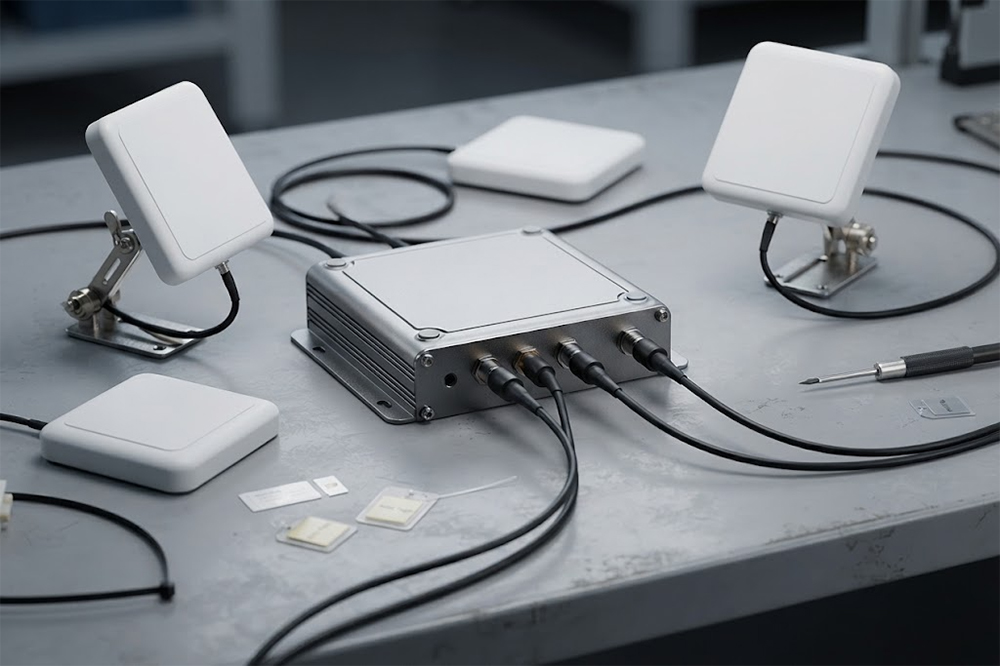

How Many Antenna Ports Do You Need?

Antenna ports become important when you need to cover a larger or more complicated reading area.

A four-port reader can connect to multiple antennas.

An eight-port model gives you more options.

A sixteen-port reader can support even larger or more complex installations.

For example, a warehouse gate may have antennas positioned on both sides of the doorway.

A conveyor system may need antennas above and beside the product path.

A large sorting area may require several reading zones.

But more ports do not automatically mean better performance.

If your application only needs one antenna, paying for sixteen ports may not make much sense.

Choose according to the installation.

---

The RFID Tag Matters More Than Many Buyers Expect

It is easy to focus entirely on the reader.

But the tag is the other half of the RF conversation.

A reader can have excellent specifications and still perform poorly if the selected tag does not match the product.

Consider three examples.

Cardboard carton: Standard UHF label may work well.

Metal tool: An on-metal RFID tag may be necessary.

Liquid container: Tag placement and tag design need additional attention.

This is why we usually recommend testing the actual tag on the actual product.

A sample tag on a desk does not tell you much about what will happen after the tag is attached to a metal machine or packed between dozens of products.

---

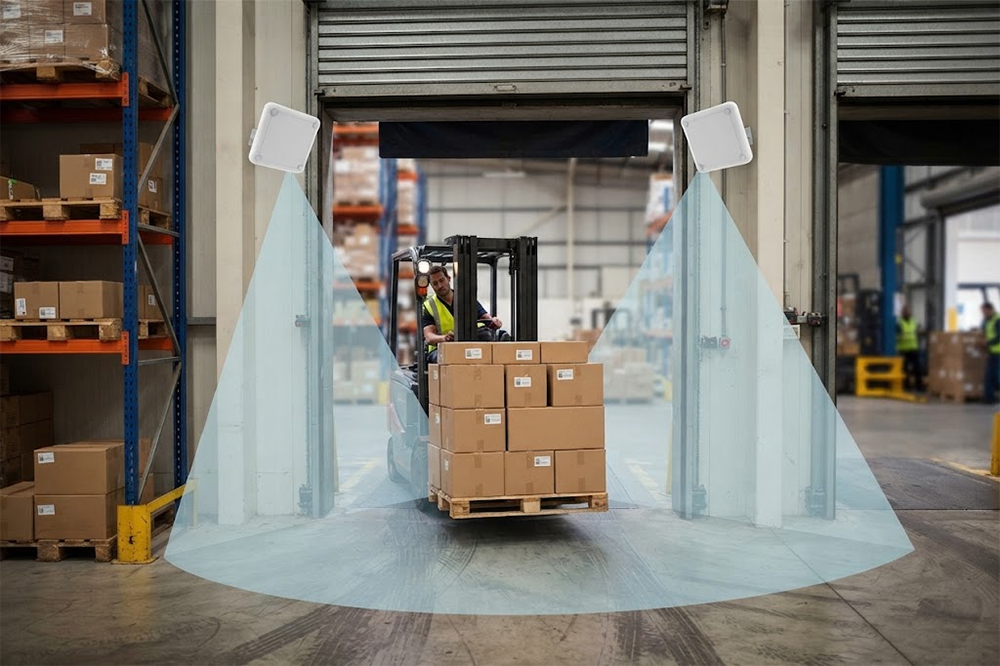

Think About the Reading Zone, Not Just Range

One of the more useful concepts in RFID system design is the reading zone.

A reading zone is the physical area where you want the reader to detect tags.

Imagine a shipping door.

You want the reader to detect products being shipped.

You probably do not want it detecting products sitting ten meters away in storage.

The solution may involve:

• Antenna direction
• Antenna placement
• Reader power adjustment
• Physical shielding
• Tag positioning
• Software filtering

The goal is controlled identification.

That is often more valuable than simply achieving the largest possible reading distance.

---

What Is the Working Environment Like?

Tell the supplier where the reader will be installed.

Is it:

• An office?
• Warehouse?
• Factory?
• Outdoor gate?
• Cold storage?
• Production machine?
• Smart cabinet?
• Retail store?

Industrial environments can be considerably more demanding.

There may be dust, vibration, metal equipment, temperature changes and electrical interference.

An indoor office installation is a different situation from a reader mounted next to a production machine.

For outdoor or harsh environments, enclosure protection and operating temperature should also be checked.

---

What Interface Does the RFID Reader Need?

This question becomes important once the RFID reader needs to communicate with other equipment.

Depending on the project, buyers may need:

• Ethernet
• USB
• Serial communication
• RS232
• RS485
• Wi-Fi
• TCP/IP
• API
• SDK

The right interface depends on the existing system.

For example, a warehouse RFID reader may need to communicate with a WMS.

An industrial reader may need to exchange information with a PLC or industrial PC.

An OEM developer may want an SDK or API so the RFID function can be built directly into its own software.

For distributors and system integrators, checking the communication options before ordering samples can save a lot of back-and-forth later.

---

Reader Performance Is Only Part of the Project

This is something worth remembering when comparing supplier quotations.

Two readers may have similar RF specifications but perform differently in the final installation.

Why?

The antenna is different.

The tag is different.

The product is different.

The software filtering is different.

The installation is different.

Even the angle of the tag can change the result.

So I would not compare RFID readers using only one specification.

Look at the complete system:

Reader + antenna + tag + product + environment + software.

That gives you a much more realistic picture.

---

A Simple Example: Choosing a Reader for a Warehouse

Let’s say a distributor wants to track pallets.

The pallets move through one receiving door and one shipping door.

The warehouse has several hundred pallets.

The company wants automatic identification.

A reasonable starting configuration could be:

Fixed UHF RFID reader

Installed at receiving and shipping checkpoints.

Multiple antennas

Positioned around the doorway to create a controlled reading zone.

UHF RFID tags

Attached to pallets or cartons.

WMS integration

The RFID events are sent to the warehouse system.

The company does not necessarily need handheld readers everywhere.

It might add one later for inventory audits.

This is a much more practical approach than buying a large number of readers before understanding the workflow.

---

Another Example: Industrial Production

Now consider a production line.

A factory has reusable carriers moving between several workstations.

Each carrier has an RFID tag.

At specific stations, the system needs to know which carrier has arrived.

In this case, fixed RFID readers are a natural choice.

The antenna is positioned beside the carrier path.

The reader detects the tag.

The production system identifies the carrier.

The PLC or software can then continue the process.

Here, reading speed and controlled detection may be more important than achieving a huge reading distance.

This is why two customers can ask for an “RFID reader” and actually need completely different products.

---

What About Long-Range RFID Readers?

Long-range readers are useful when the application requires greater separation between the reader antenna and tag.

Typical applications may include:

• Vehicle identification
• Large warehouse gates
• Yard management
• Pallet tracking
• Logistics
• Industrial asset tracking

But long-range does not mean “works perfectly everywhere.”

The tag still matters.

A metal vehicle and a cardboard carton do not behave the same way.

The antenna still matters.

The installation still matters.

And the surrounding environment still matters.

If a supplier offers a long-range reader, ask how the stated distance was measured and under what tag and environmental conditions.

That question can tell you quite a lot about the practical value of the specification.

---

How Many RFID Readers Will You Need?

The answer depends on the number of reading points rather than simply the warehouse size.

For example:

One door = one reading point

Three production stations = three reading points

Ten warehouse checkpoints = ten reading points

Of course, one reader may support multiple antennas, so the number of readers and number of antennas are not necessarily the same.

This is another reason to draw the application before requesting a quotation.

Even a simple floor plan can help.

Mark:

• Entry
• Exit
• Storage
• Conveyor
• Workstations
• Reading points

Then decide where RFID detection is actually required.

---

Ask for Samples Before a Large Order

If the application is straightforward, a sample test may be enough to confirm compatibility.

For more complicated projects, a small pilot is better.

Use the real product.

Use the real RFID tag.

Install the antenna roughly where it will be used.

Move the product through the reading zone.

Try different tag orientations.

Test nearby products.

It is not unusual for the first setup to need a small adjustment.

Maybe the antenna should move 30 centimeters.

Maybe the tag needs to be placed on another surface.

Maybe the reader power needs to be reduced.

These are normal parts of RFID system development.

---

What Information Should You Send for a Quote?

If you are contacting an RFID reader manufacturer, avoid sending only:

“Please send me your best price for 100 RFID readers.”

The supplier may still give you a price.

But it may not be the right reader.

Instead, provide:

Application: Warehouse, factory, retail, asset tracking, etc.

Reader type: Fixed or handheld, if known.

Required reading distance: Approximate range.

Tag type: Existing tag or new tag.

Product material: Metal, plastic, cardboard, liquid, mixed.

Antenna requirement: Number and installation position.

Communication: Ethernet, USB, RS232, API, SDK, etc.

Quantity: Sample and expected bulk quantity.

Target country: Important for frequency configuration.

This gives the manufacturer enough information to recommend a realistic configuration.

---

Choosing an RFID Reader Supplier

For B2B buyers, the supplier itself is part of the product decision.

You may need more than a box containing a reader.

A project could require:

• Reader configuration
• Antenna matching
• RFID tags
• SDK
• API support
• Sample testing
• OEM customization
• Technical assistance
• Bulk supply
• After-sales support

This becomes especially important for system integrators.

If you are building an RFID solution for your own customers, hardware support from the manufacturer can save considerable development time.

Cykeo provides RFID reader products for applications including warehouse management, asset tracking, industrial automation and other RFID identification scenarios. Cykeo RFID Readers

---

A Practical RFID Reader Selection Checklist

Before making a purchase, I would check these points:

1. Application
What exactly will the reader identify?

2. Reader type
Fixed, handheld, USB or embedded?

3. Frequency
Does it match your target market?

4. Reading distance
What range is actually required?

5. Antenna ports
How many antennas will the application need?

6. Tag compatibility
Will the selected tags work on the actual products?

7. Environment
Indoor, outdoor, warehouse or industrial?

8. Interface
How will the reader connect to your system?

9. Software
Is API or SDK support required?

10. Testing
Can you test the reader before bulk purchasing?

That last point is particularly important for larger projects.

---

The Cheapest RFID Reader Is Not Always the Cheapest Solution

A low unit price can look attractive in a quotation.

But if the reader needs extra hardware, has limited interfaces or cannot achieve reliable reads in the real application, the project cost can increase quickly.

On the other hand, buying the most expensive reader “just to be safe” is not necessarily smart either.

The better approach is to match the specification to the actual requirement.

For a small inventory application, a basic reader may be enough.

For a multi-door warehouse, a multi-antenna fixed reader could be more appropriate.

For an industrial automation project, integration capability may be the deciding factor.

The right balance is usually found through application testing rather than a specification race.

---

Final Buying Advice

When someone asks which RFID reader they should buy, there is no useful answer until the application is clear.

Start with the product.

Then look at movement.

Then define the reading zone.

After that, choose the reader, antenna and tag combination.

Finally, consider software integration and future quantity.

This order may sound slower, but it avoids a common purchasing mistake: choosing hardware first and trying to make the application fit afterward.

If you are sourcing RFID readers for warehouse inventory, industrial automation, asset tracking, retail, logistics or OEM projects, you can review the Cykeo RFID reader product range and send the application details for sample testing or a wholesale quotation.

Frequently Asked Questions

How do I choose an RFID reader?

Start with the application, product material, required reading distance, tag type, reading zone and installation environment. Then select the reader, antenna and communication interface around those requirements.

Is a long-range RFID reader always better?

No. Excessive range can create unwanted tag reads. For many applications, a controlled reading zone is more important than maximum reading distance.

How many antenna ports do I need?

It depends on the reading area. One or two antennas may be enough for a simple checkpoint, while larger gates and industrial systems may require four, eight or more ports.

Should I test RFID readers before buying in bulk?

Yes. Testing the actual reader, antenna, tag and product together can reveal issues that specifications alone cannot show.

Can RFID readers be customized for OEM projects?

Many RFID manufacturers support different communication interfaces, antenna configurations, firmware or software integration options. Discuss the required functions and expected quantity with the supplier before development.

If you are comparing RFID reader models for the first time, it is useful to understand what actually happens between the reader, antenna and tag. Our guide on what is RFID reader and how does it work explains the basic technology before you move into product selection.

Reading distance is one of the first specifications buyers usually notice, but it can be misleading without considering the antenna, tag and environment. See our guide to RFID reader reading distance before deciding how much range your application really needs.

If the reader will be used to track tools, equipment or reusable assets, the selection process can be slightly different from a warehouse inventory project. Our guide to the RFID reader for asset tracking looks at fixed checkpoints, handheld readers and real-world asset identification.

Warehouse projects often combine receiving, inventory, picking and shipping. If your main requirement is warehouse-wide identification rather than a single RFID checkpoint, see our guide to the RFID reader for warehouse management.

For production lines, conveyors and automated equipment, reader selection depends heavily on movement speed, tag orientation and integration with PLCs or industrial software. Our guide to the RFID reader for industrial automation covers these considerations in more detail.
