Long Range RFID Scanner for Warehouse Management: Where It Actually Makes Sense

A long range RFID scanner for warehouse management can automatically identify tagged goods, pallets, cartons, and reusable containers as they move through receiving, storage, picking, and shipping areas. For RFID solution providers, the main challenge is usually not getting a long reading distance, but controlling the reading zone so the system captures the right goods at the right time.

A warehouse can look organized from the outside and still have inventory problems hiding inside.

A pallet arrives at 9:00.

It gets unloaded.

Someone moves it to another temporary area.

Later, another forklift operator moves it again.

By the afternoon, the warehouse system still says the pallet is in the receiving zone.

The pallet itself has already gone somewhere else.

This is where long range RFID scanners for warehouse management become interesting.

RFID can automatically identify tagged pallets, cartons, containers, and other assets as they pass specific points.

It does not mean every item needs to be tracked every second.

Sometimes knowing that a pallet passed a particular doorway is enough.

And, in my experience, that is often a much more practical starting point.

---

Why Warehouses Are Looking at RFID

Most warehouses already have some kind of management software.

The problem is not necessarily a lack of data.

It is the gap between what the software thinks happened and what physically happened on the warehouse floor.

A worker may forget to update a location.

A barcode may not be scanned.

Two pallets may be moved together.

A carton may be placed on the wrong rack.

Small mistakes accumulate.

RFID can reduce some of these manual steps by creating identification events automatically.

For example:

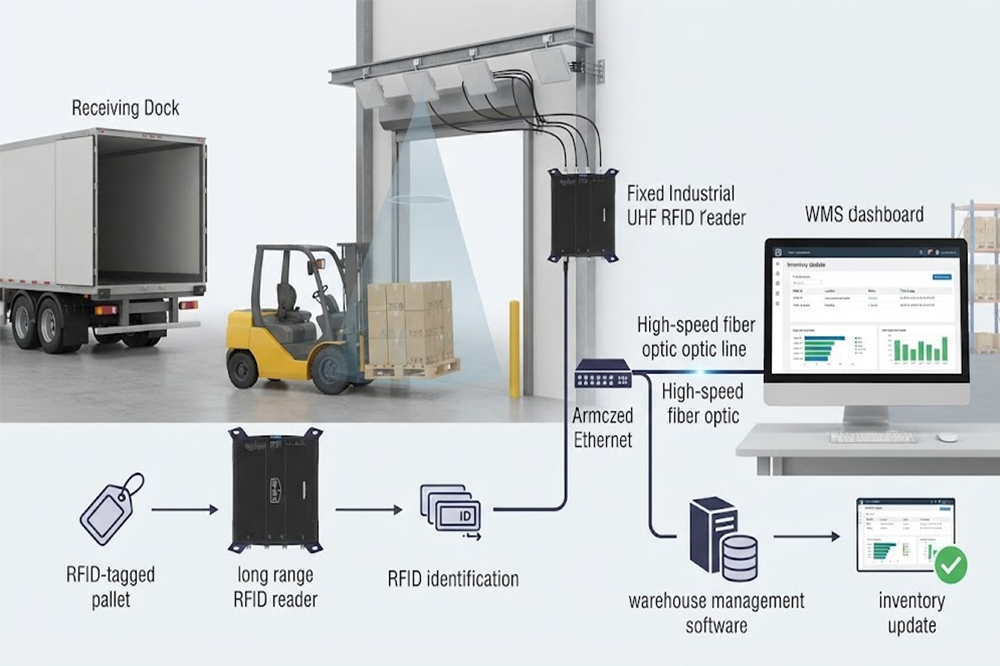

Pallet enters receiving area → RFID reader detects tag → system records arrival

No employee needs to stop and scan every pallet individually.

---

Where a Long Range RFID Scanner Fits

A warehouse normally has several natural checkpoints.

These might include:

• Receiving doors
• Shipping doors
• Loading docks
• Conveyor lines
• Storage-area entrances
• Sorting areas
• Return processing areas

These are good locations for fixed RFID readers.

The reader does not need to cover the entire warehouse.

Instead, it creates a reading zone around an important movement point.

This is an important difference between an RFID system and the simple idea of “long range scanning.”

---

Don’t Chase the Biggest Reading Distance

This is probably one of the first things I would discuss with a warehouse customer.

A buyer may say:

“We need a 20-meter RFID reader.”

But why 20 meters?

If the loading door is only five meters wide, excessive range could create unwanted reads.

A pallet waiting beside the door might be detected.

A pallet being unloaded from the next dock might also appear.

Suddenly the WMS receives an event that does not match the actual movement.

So a long range RFID scanner should not be judged only by its maximum reading distance.

The useful reading zone is more important.

A directional antenna can help focus the RF coverage toward the intended area.

---

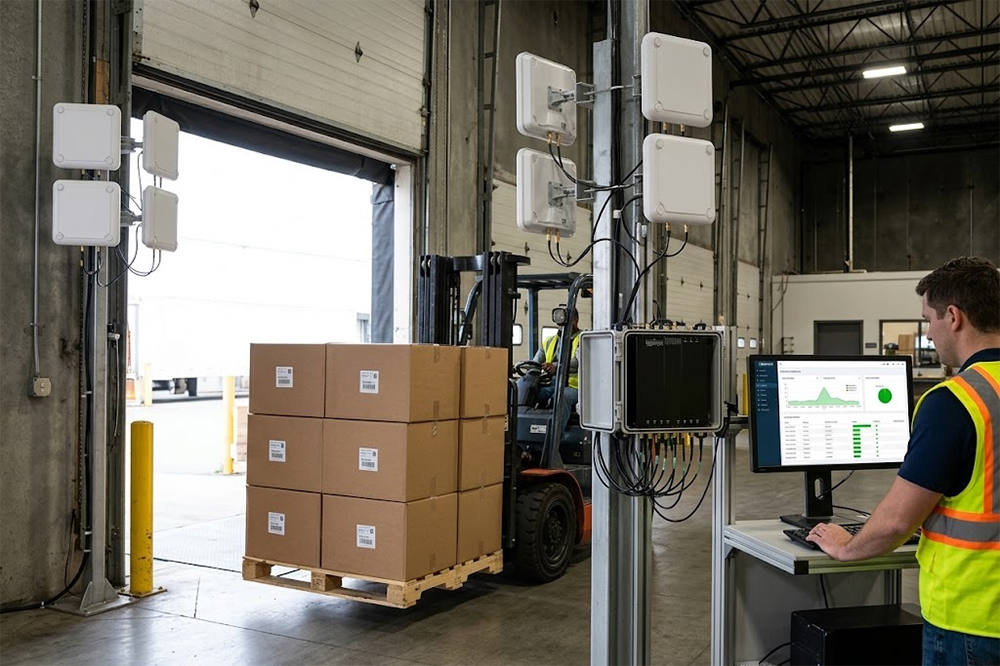

RFID at the Receiving Dock

Receiving is one of the more interesting warehouse applications.

Imagine 30 pallets arriving from a supplier.

Each pallet has an RFID tag.

The pallets pass through the receiving area.

A fixed RFID reader detects the tags.

The warehouse software receives the tag IDs.

The system can then compare those IDs with the expected shipment.

If the shipment contains 30 pallets and only 28 expected tags are detected, the operator has something to investigate.

This does not remove the need for human checking.

It simply gives the warehouse another layer of information.

---

Pallet Tracking Is Not the Same as GPS

There is sometimes confusion about this.

RFID does not normally provide GPS-style continuous location tracking.

If a pallet passes Reader A, the system knows it was detected at Reader A.

If it later passes Reader B, the system knows it reached Reader B.

Between those points, the pallet could be somewhere else.

That is why RFID works particularly well for checkpoint tracking.

If the warehouse needs detailed real-time location, additional technologies or more RFID infrastructure may be necessary.

For many warehouses, however, checkpoint information is already useful enough.

---

What About Cartons?

RFID can also be applied below the pallet level.

A pallet may contain 40 cartons.

The customer might want to know which cartons entered the warehouse and which cartons were shipped.

That is possible, but the system becomes more demanding.

Tag density increases.

Products may overlap.

Cartons can contain materials that affect RF performance.

The reader may detect many tags at the same time.

The software also needs to handle the larger amount of tag data.

So I would not automatically recommend item-level RFID just because the technology can do it.

Start with the business problem.

---

Warehouse Shelves and RFID Reading

Another common question is whether an RFID reader can simply identify everything on nearby shelves.

Technically, tags can be detected from shelves.

Practically, uncontrolled reading can create problems.

Suppose a fixed reader is installed near one storage area.

There are 800 tagged cartons on surrounding racks.

If the antenna sees half of the warehouse, how does the software know which carton actually moved?

It doesn’t.

The installation needs a defined reading zone.

This can involve antenna direction, mounting height, RF power settings, physical layout, and software filtering.

---

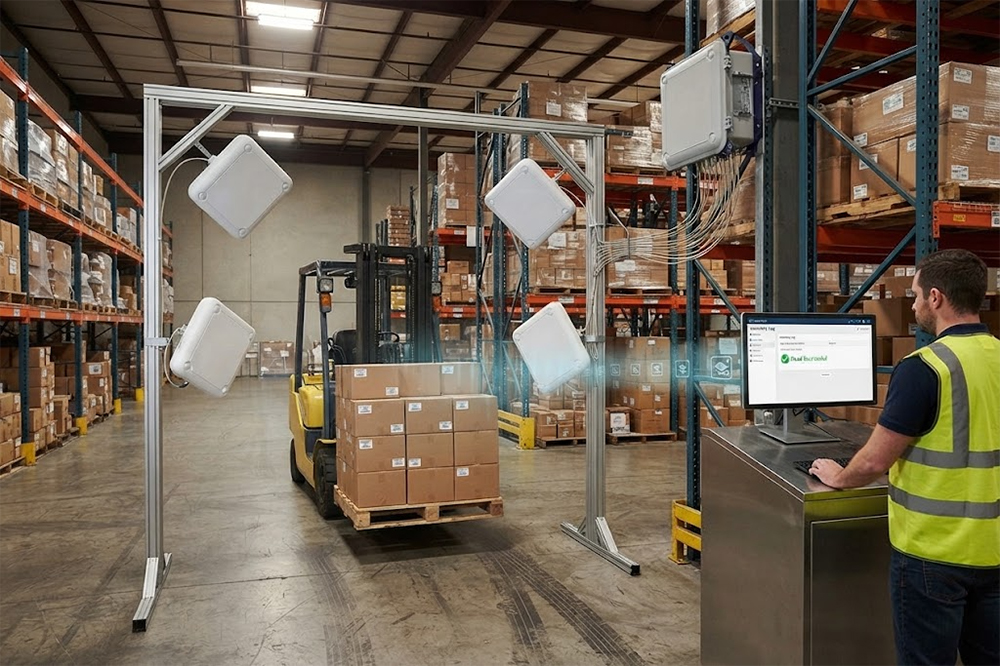

RFID and Forklifts

Forklifts are often part of the warehouse RFID workflow.

A forklift may carry a pallet from receiving to storage.

A reader can detect the pallet as it passes a fixed checkpoint.

In some projects, RFID equipment can also be installed directly on or around the forklift, depending on the application.

The goal is usually to connect:

Pallet ID + movement event + time + location

That information can then be sent to the warehouse management system.

It becomes easier to see how inventory moves through the facility.

---

RFID in Shipping Areas

Shipping creates another useful checkpoint.

Before loading a truck, the warehouse needs to make sure the correct goods are being shipped.

RFID can identify tagged pallets or cartons as they pass the shipping area.

The system can compare the detected RFID IDs with the expected shipment.

If the wrong pallet appears, the software can flag it.

This is potentially more useful than simply recording that “a pallet left the warehouse.”

The RFID event can be tied to the specific shipment.

---

A Simple Example From a Logistics Warehouse

Imagine a distribution center handling 5,000 pallets each month.

The warehouse currently relies heavily on barcode scanning.

The company has a recurring problem with pallets being moved to temporary locations without the WMS being updated.

Instead of installing readers throughout the building, the company starts with four points:

Receiving

Main storage entrance

Dispatch

Returns

Each pallet receives an RFID tag.

The readers record movement events.

After several weeks, the warehouse has a clearer picture of when pallets entered and left these zones.

It may discover that the real problem is not the WMS at all.

The problem may be a particular workflow between receiving and storage.

That is one reason pilot projects are useful.

RFID sometimes exposes process problems that were not obvious before.

---

The RFID Reader Is Only One Part

A warehouse RFID project may include:

• UHF RFID reader
• RFID antennas
• RFID tags
• Network connection
• Reader management software
• WMS integration
• Middleware
• Mounting hardware

For an RFID solution provider, this is where technical support becomes important.

The reader needs to communicate with the customer’s system.

Some projects may require APIs.

Others may need SDKs or custom middleware.

If the hardware is easy to integrate, the deployment can move much faster.

---

What Can Cause Unwanted Reads?

Warehouses are full of moving objects.

That creates some interesting RFID problems.

Nearby Pallets

A pallet waiting next to the reading zone gets detected too early.

Multiple Pallets

Several tagged pallets pass through together.

Metal Structures

Racks and machinery affect RF behavior.

Dense Tags

Many cartons carrying RFID tags are packed closely together.

Repeated Detection

A pallet stays inside the reader’s coverage for several seconds.

The software needs to understand these events rather than simply recording every RF response as a new transaction.

---

RFID Tag Selection Matters More Than It Looks

A long range reader cannot compensate for a poor RFID tag.

A tag designed for cardboard may not be suitable for metal.

A small label may work perfectly on one carton but perform poorly on another product.

Temperature and outdoor exposure can also matter.

For a warehouse project, I would test tags on the actual goods whenever possible.

It is a small step, but it can save a lot of trouble later.

---

Questions RFID Distributors Should Ask Before Quoting

If a customer asks for a long range RFID scanner for a warehouse, don’t start with the reader model.

Start with the application.

Ask:

What are you tracking?

Pallets, cartons, containers, or individual products?

Where are the tags installed?

Plastic, cardboard, metal, wood?

Where should RFID identify the goods?

Receiving door, conveyor, storage area, or shipping dock?

How wide is the reading zone?

One lane or several lanes?

How fast are the goods moving?

Walking speed and forklift speed are different situations.

What software receives the RFID data?

WMS, ERP, custom warehouse software?

How many readers are expected after the pilot?

This matters for a distributor planning inventory and pricing.

---

Start Small Before a Large RFID Deployment

A warehouse does not necessarily need 50 readers on day one.

One receiving door may be enough for a pilot.

Use the actual pallets.

Use the actual tags.

Use the actual forklift.

Run the system during normal warehouse operations.

Then deliberately create difficult situations.

Move two pallets together.

Leave one pallet near the reading zone.

Change tag positions.

Move goods at different speeds.

See what the reader detects.

This is where the difference between a laboratory demonstration and a real warehouse system becomes obvious.

---

A Good RFID Supplier Should Understand the Project

For RFID wholesalers and solution providers, the opportunity is not only the reader.

Customers may need a complete package:

Long range UHF RFID reader + antenna + RFID tags + software interface + installation accessories.

Some may also require OEM branding, customized firmware, different communication interfaces, or technical support during deployment.

For larger logistics projects, consistent product quality and stable supply become important as well.

A customer who successfully installs 5 readers may later need 50.

That second order is often where a reliable supplier relationship becomes valuable.

If you are sourcing long range RFID scanners, UHF RFID readers, warehouse antennas, RFID tags, or customized RFID hardware for warehouse and logistics projects, send us your warehouse layout, reading distance, tracked goods, application point, and estimated quantity for bulk pricing and solution support.

Frequently Asked Questions

1. What is a long range RFID scanner used for in warehouses?

It identifies RFID-tagged pallets, cartons, containers, and assets as they pass through receiving, storage, shipping, and other defined warehouse reading zones.

2. Can RFID track pallets automatically?

Yes. RFID tags can be attached to pallets, and fixed readers can capture their IDs as they pass selected checkpoints.

3. Does RFID provide real-time pallet location?

Not by itself. Fixed RFID readers provide location information at detection points. More readers or additional technologies are needed for continuous or highly precise positioning.

4. What affects RFID reading distance in a warehouse?

Reader power, antenna type, tag design, tag orientation, metal structures, product materials, installation position, and the surrounding RF environment can all affect reading performance.

5. Should I test RFID before buying in bulk?

Yes. Testing the actual goods, RFID tags, reader, antenna, and warehouse environment can identify unwanted reads and tag-performance issues before large-scale deployment.
