RFID readers can help industrial systems identify products, tools, pallets and workpieces automatically as they move through production and logistics processes. The practical choice depends on the production environment, reading distance, tag type, antenna position and system integration requirements.
Before integrating RFID into an automated production line, it helps to understand what happens between the tag, antenna and reader. Our guide explains how an RFID reader works and why the antenna and RF environment matter when designing an RFID system.
A production line rarely waits for someone.
A conveyor keeps moving. A pallet reaches the next workstation. A component needs to be identified before the machine starts its next operation.
In an older production setup, an operator may scan a barcode, enter a number or press a button to confirm what has arrived.
That works.
Until the production volume increases.
Then small delays begin to add up.
A missed scan here. A wrong component there. Someone puts a tray in the wrong position. The machine continues because nobody told it otherwise.
This is one reason RFID readers have become interesting in industrial automation.
Instead of asking a worker to identify every item manually, an RFID reader can detect a tagged product or workpiece automatically when it reaches a defined point.
The idea sounds simple, but industrial environments are not particularly friendly to radio communication.
There is metal everywhere.
Motors are running.
Conveyors are moving.
Tags can face different directions.
Sometimes several tagged objects arrive together.
So the interesting question is not really “Can RFID work in automation?”
It is:
“Can the RFID system reliably identify the right item at the right point in the production process?”
A common industrial RFID setup includes four basic parts:
The tag carries a unique identification number.
The reader communicates with the tag through radio frequency.
The antenna creates the reading area.
The control system decides what to do with the information.
For example, a tagged workpiece arrives at Station 3.
The RFID reader detects the tag.
The control system checks the tag ID.
The system knows which product variant has arrived.
The machine can then load the correct production parameters.
That can be much more useful than simply knowing that “something” arrived.
Imagine a manufacturer producing several versions of the same product.
The outside appearance is almost identical.
However, the internal components are different.
Normally, an operator checks the work order before the product reaches the next machine.
With RFID, each workpiece or production carrier can have its own tag.
When it reaches the workstation, the reader identifies it.
The software looks up the product information.
The machine receives the correct instructions.
If the wrong workpiece arrives, the system can stop the process or send an alert.
It is not necessarily about replacing workers.
In many cases, RFID simply takes over a repetitive identification step that people are not particularly good at doing hundreds of times per day.
Work-in-process tracking is one of the more useful industrial RFID applications.
A product may pass through ten or twenty production steps before it becomes a finished item.
Without automatic identification, it can be difficult to know exactly where each item is.
RFID can create checkpoints.
For example:
Assembly → Testing → Painting → Inspection → Packaging
At each station, the RFID reader detects the tag.
The manufacturing system records the event.
After several hours, the company can see the product’s movement history.
This is not continuous GPS tracking.
It is more like a series of reliable checkpoints.
For manufacturing, that can be enough.

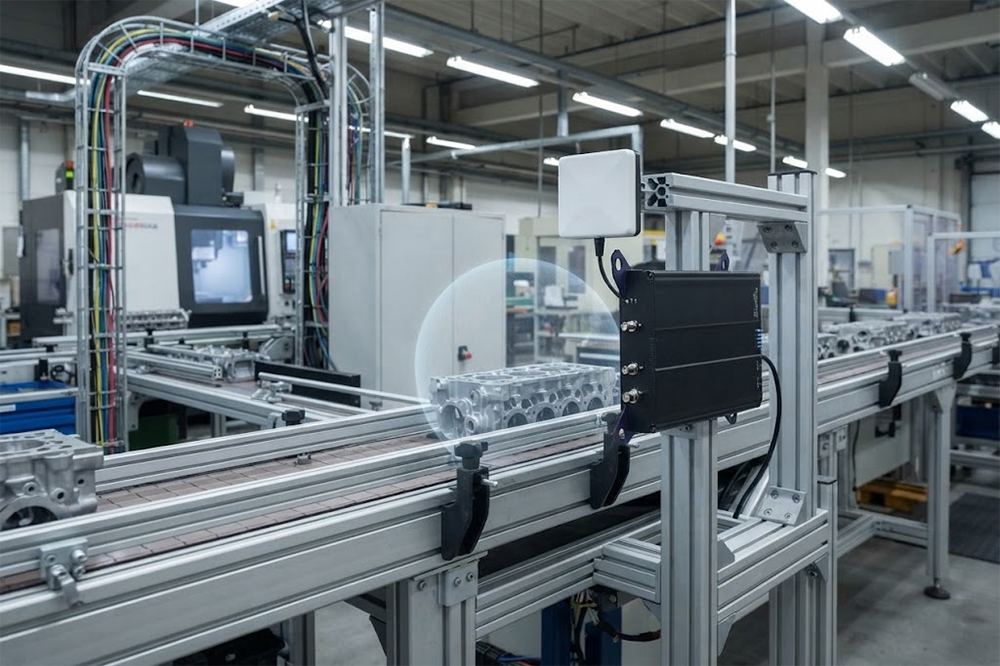

Conveyors create a fairly predictable RFID environment.
Products move along a defined path.
That makes it easier to create a controlled reading zone.

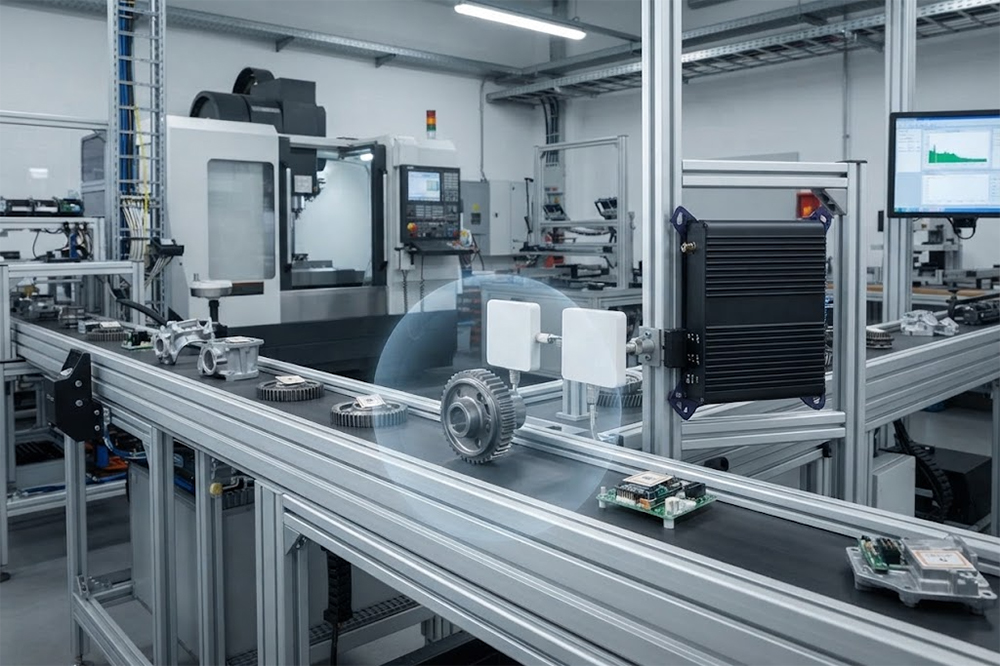

A fixed RFID reader can be installed beside the conveyor, with one or more antennas positioned toward the tags.
When the product reaches the reading area, the tag is detected.
The software can then trigger the next operation.
The exact antenna position matters.
If the reading area is too large, nearby products may also be detected.
If it is too small, a fast-moving product might pass through before the reader gets a reliable read.
So conveyor speed should be part of the technical discussion.
It is a small detail that can make a surprisingly large difference.
This is a common question.
RFID can identify fast-moving objects, but actual performance depends on the complete system.
You need to consider:
A tag passing directly in front of an antenna is one situation.
A tag mounted sideways on a fast-moving metal carrier is another.
For a production line, it is much better to test at the actual conveyor speed than to rely only on a laboratory reading-distance specification.
Industrial automation often means metal.
Machines.
Steel frames.
Metal trays.
Production tools.
Motors.
Equipment cabinets.
Unfortunately, metal can affect RFID performance.
If the tag is attached directly to metal, a standard RFID label may not perform as expected.
An on-metal RFID tag may be more appropriate.
Even then, the final result depends on the application.
A small aluminum component and a large steel production carrier can produce very different RF behavior.
This is why industrial RFID buyers should provide actual product samples when possible.
A supplier can make a much better recommendation after testing the real object.
One of RFID’s biggest advantages in automation is that the identification process can happen without someone physically scanning each item.
Consider an automated sorting system.
Products arrive on a conveyor.
The reader detects the RFID tags.
The control system identifies each product.
The sorting equipment sends each item to the correct destination.
The operator does not need to stop the conveyor and scan every box.
This becomes particularly valuable when the same identification step happens thousands of times.
Even saving a few seconds per item can become significant over a full production shift.
Industrial automation sometimes involves many tagged items in one area.
Suppose a pallet contains 30 tagged boxes.
A reader may detect multiple tags.
That is useful if the goal is to identify the entire pallet.
But it could be a problem if the system only wants to identify the item currently passing a workstation.
The antenna arrangement and reading zone need to reflect the actual business requirement.
This is where “long range” can become a misleading selling point.
For industrial automation, a controlled reading area is often more valuable than maximum range.

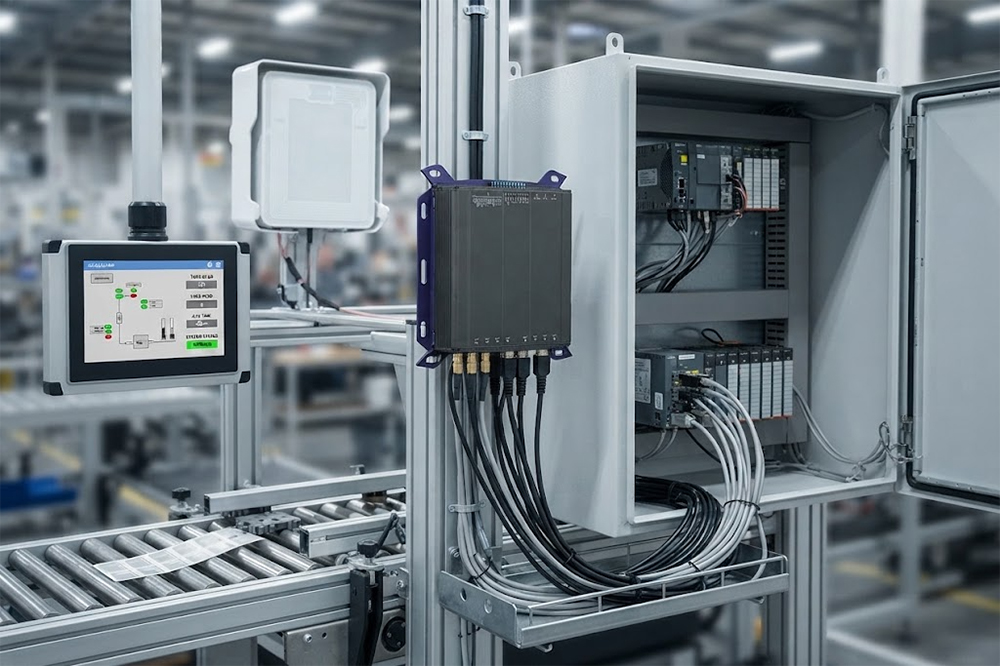

Industrial customers rarely want an RFID reader operating by itself.
The reader normally needs to communicate with the existing automation system.
Depending on the project, this could involve:
The RFID reader provides identification data.
The control system uses that data to make a decision.
For example:
Tag detected → Product identified → PLC checks process → Machine starts operation
Or:
Unknown tag → PLC receives error → Conveyor stops
That is where RFID becomes part of automation rather than simply an inventory tool.
For system integrators, API and SDK support can therefore be an important purchasing consideration.
Cykeo provides RFID reader solutions for industrial applications and supports integration requirements for system developers and integrators. Cykeo RFID Readers
For industrial automation, fixed readers are often the natural choice.
The reader stays at the workstation.
The antenna stays in a known position.
The production item moves through the reading area.
This creates a repeatable setup.
Handheld RFID readers still have their place, particularly for maintenance, inventory checks and troubleshooting.
But if the goal is automatic identification during production, fixed RFID readers are generally more suitable.
The final configuration may include one antenna or several antennas depending on the physical layout.
A reader can be technically powerful and still perform poorly if the antenna is installed in the wrong place.
Imagine a conveyor carrying products at waist height.
The tag is mounted underneath the product.
An antenna mounted above the conveyor may have difficulty reading it.
Move the antenna underneath or to the side, and the situation may change considerably.
This is why RFID installation is partly an engineering problem.
The antenna should be positioned according to:
Where is the tag?
How does the product move?
How fast does it move?
What is around the reading area?
What other tags are nearby?
Those questions are more useful than simply asking which reader has the longest range.

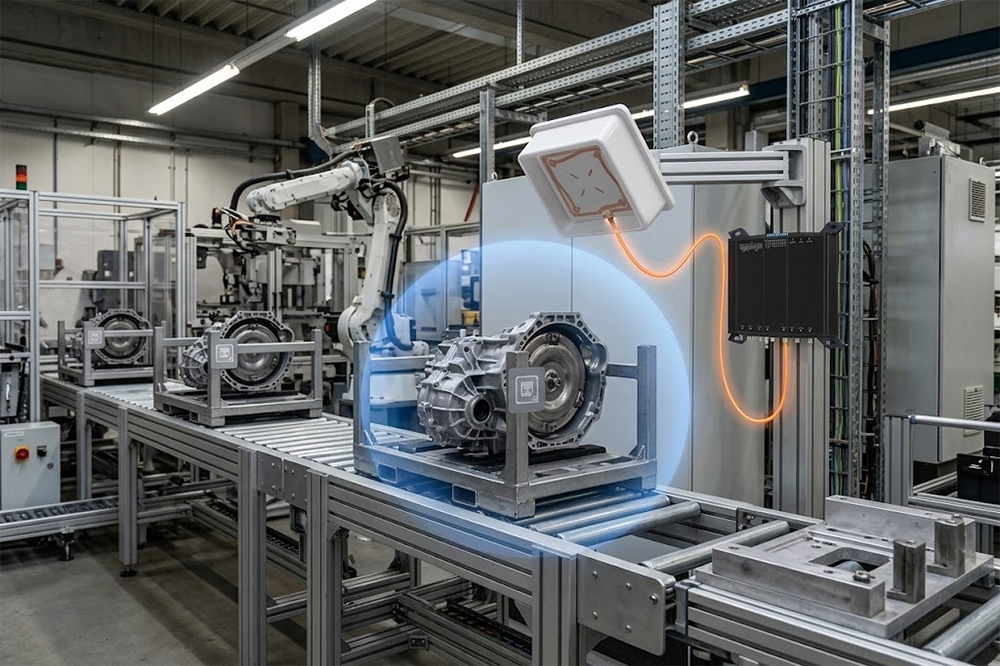

Automotive production is a good example of where RFID can fit naturally.
Production carriers move components through different stations.
Each carrier can have an RFID tag.
At one workstation, the reader identifies the carrier.
The manufacturing system knows which vehicle or component is associated with it.
The machine loads the correct process information.
At the next station, another reader records the movement.
This creates a production history without requiring operators to manually enter every transition.
The same basic idea can be adapted to electronics, machinery, appliance manufacturing and other industries.
Not every RFID application involves the product itself.
Production tools and fixtures can also be tagged.
A factory may have hundreds of fixtures that look similar.
When a fixture arrives at a workstation, an RFID reader can identify it automatically.
The system can check:
This connects industrial RFID with asset tracking.
If you are also considering RFID for tools, equipment or reusable assets, see the related guide on the RFID reader for asset tracking.
Before requesting a quotation, collect a few practical details.
Application: Production line, conveyor, sorting, tool tracking, etc.
Product: What exactly will be tagged?
Material: Plastic, metal, cardboard or mixed materials.
Tag location: Top, side, bottom or embedded.
Movement speed: Stationary, slow-moving or high-speed.
Reading distance: Approximate required distance.
Tag quantity: One tag or many tags in the reading zone.
Installation: Wall, machine, conveyor, cabinet or custom equipment.
Interface: PLC, PC, API, SDK or other control system.
Quantity: Sample, pilot project or bulk order.
This information helps the supplier understand the application before recommending hardware.
This point is easy to overlook.
You can test an RFID reader on a desk and get an impressive reading distance.
Then install it beside a real machine and get a completely different result.
Why?
Because the real environment contains metal, moving machinery, cables, products and other RF effects.
The tag may also be mounted differently.
For industrial projects, test:
Reader + antenna + tag + actual product + actual machine environment.
If the product moves at 1 meter per second in the final system, test it at 1 meter per second.
If ten tagged carriers can be nearby, test ten.
If the reader needs to work continuously for eight hours, run a longer test.
A short sample test can reveal problems that would otherwise appear after mass installation.
RFID is worth considering when identification happens repeatedly and manually scanning creates unnecessary work.
Typical situations include:
It may not be necessary for every production process.
If a worker handles five products per day, manual identification is probably fine.
If a machine processes thousands of products per shift, automatic identification becomes much more interesting.
The best industrial RFID reader is not necessarily the reader with the longest range or the largest specification sheet.
It is the one that can reliably identify the right tag at the right point in your production process.
For one project, that might mean a compact fixed reader and one antenna.
For another, it could mean several antennas, multiple readers and PLC integration.
And for a system integrator, API and SDK support may matter almost as much as RF performance.
If you are sourcing RFID readers for manufacturing automation, production lines, conveyor tracking or OEM equipment, you can review the Cykeo RFID reader product range and send the application details for a sample recommendation or wholesale quotation.
Yes. Fixed RFID readers can identify tagged products, carriers, tools or workpieces as they pass through defined production checkpoints.
Yes, but metal can affect RFID performance. On-metal tags, suitable antennas and careful installation may be required. Testing the actual machine environment is recommended.
Yes. The exact integration method depends on the reader and PLC architecture. API, SDK and communication interfaces should be confirmed before selecting hardware.
It can, provided the reader, antenna, tag and reading zone are properly designed. Conveyor speed and tag orientation should be included in the testing process.
Not necessarily. Industrial automation often needs a controlled reading zone rather than maximum range. Excessive range can cause unwanted tag reads from nearby products.
In industrial automation, reading distance is only part of the equation. A reader that detects tags too far away may create unwanted reads, while insufficient range can cause missed products. Our guide to RFID reader reading distance explains the factors behind practical RFID range.
Production lines often need to track more than finished products. Tools, fixtures, production carriers and reusable equipment can also be identified with RFID. See our guide to the RFID reader for asset tracking for more practical examples.
Production and warehouse operations are often connected. Materials move from receiving to storage and eventually onto the production line. Our guide to the RFID reader for warehouse management explains how RFID can be used across warehouse receiving, inventory and shipping processes.
SSD-R16L Multi-Channel RFID Infrastructure for Automated Inventory Management ✔️ 16-Port High-Density RFID Reading Equipped with 16 SMA antenna ports, SSD-R16L supports multi-antenna deployment for warehouses, retail stores, logistics, production lines, and large-area RFID identification. ✔️ High-Speed & Long-Range Performance With up to 33…
SSD-R8L 8-port UHF RFID reader with 33dBm output, up to 20m reading range and 600+ tags/s recognition. Ideal for warehouse, logistics, retail and asset tracking.
SSD-R4L is a 4-port UHF RFID fixed reader with 33dBm output power, up to 20m reading range, EPC C1G2 support and 600+ tags/s reading speed.
CYKEO Embedded RFID Modules are designed for compact industrial and IoT devices that require stable UHF performance. These UHF RFID Modules support global protocols, flexible power control, and reliable multi-tag reading for smart cabinets, production lines, and asset tracking systems.
CYKEO Embedded RFID Module is built for compact IoT and industrial devices that need stable UHF performance. This UHF module supports global protocols, low power operation, and reliable multi-tag reading for smart lockers, production lines, and always-on RFID systems.
CYKEO CYKEO-M1 drone rfid module is a compact UHF RFID reader module designed for drones and UAV platforms. It supports long-range aerial scanning, fast multi-tag reading, and stable performance in wind, vibration, and outdoor environments.
CYKEO CYKEO-M4 RC522 RFID Module is an industrial-grade UHF RFID reader with 4 ports, supporting ISO, EPC, and GB protocols. High-speed, accurate reading for IoT, automation, and warehouse applications.
CYKEO CYKEO-M8 Module RFID is an 8-port UHF R2000 RFID Module designed for high-density, multi-tag environments. Stable 33dBm output, ISO & GB protocol support, ideal for warehouses, factories, and automated systems.
CYKEO CYKEO-M16 RFID Module is a 16-port UHF RFID reader module based on the R2000 chipset. Designed for dense tag environments, it supports ISO and GB standards and delivers stable multi-antenna control for industrial automation.
The CYKEO CYKEO-M16L RFID Reader Module is a 16-channel UHF RFID core designed for dense tag environments. With adjustable 33dBm output, multi-protocol support, and stable multi-antenna control, this RFID Tag Reader Module fits industrial automation, warehouse systems, and large-scale IoT deployments.
CYKEO CYKEO-M8L module RFID is a compact industrial UHF module built for dense tag and multi-antenna environments. With 8 RF ports, adjustable 33 dBm output, and ISO & GB protocol support, it is widely used in factories, warehouses, and automated tracking systems.
CYKEOCYKEO-M4L UHF RFID Module is a compact 4-channel RFID tag reader module designed for dense tag environments. Supporting ISO and GB protocols, it delivers stable reads up to 10 meters for industrial and IoT systems.
Cykeo CYKEO-A11 UHF RFID reader antenna delivers 11dBi gain, 840-960MHz frequency range, and IP65 ruggedness for retail, logistics, and industrial RFID systems. Features low VSWR and easy installation.
CYKEO Antenna RFID Reader delivers stable long-range UHF performance with a 10.5dBi directional design, built for warehouses, conveyor portals, and industrial RFID systems. This rfid reader antenna provides 20m+ read distance and rugged IP67 protection.
Cykeo CYKEO-PHF3 industrial HF RFID Antenna offers 24-point dynamic tracking, ISO 14443A/15693 protocols, metal-environment stability for archives/libraries/manufacturing.
Cykeo CYKEO-A5B industrial Linear RFID Antenna delivers 5dBi gain, ≤1.5:1 VSWR, and IP65 rugged design for warehouse, production line, and logistics UHF systems.
Cykeo’s CYKEO-B12 Long Range RFID Antenna delivers 15m+ read range with 12dBi gain, IP65 rugged design, and global 840-960MHz UHF support. Ideal for warehouse/logistics asset tracking.
Cykeo CYKEO-B10 Long Distance RFID Antenna offers 10dBi gain, 840-960MHz frequency range, IP65 rating, and 20m+ coverage for logistics/warehousing/ETC systems. Low VSWR ensures stable signal transmission.
Cykeo CYKEO-A6 UHF RFID panel antenna features 6dBi gain, 840-960MHz broadband, IP65 metal-ready housing for logistics/smart retail. 18mm ultra-thin design with tool-free mounting.
Cykeo CK-A3 industrial antenna RFID UHF offers 5m+ tag detection, ≤1.3:1 VSWR, IP65 rugged design, and global UHF spectrum compatibility (840-960MHz) for warehouses, factories, and retail.
Cykeo CYKEO-B5 directional RFID antenna provides 5dBi gain with 60° narrow beamwidth for precise inventory tracking. IP65-rated, global UHF frequency support, and low VSWR.
Create your own high-performance DIY RFID antenna! 5dBi gain, 840-960MHz tunable, step-by-step guides. Compatible with Arduino, Raspberry Pi, and commercial UHF readers.
Cykeo CYKEO-A7 Flexible RFID Antenna features 840-960MHz wideband tuning, 7dBi gain, and IP68 rating for medical/retail/industrial curved surface deployments. 98% read accuracy with peel-and-stick installation.
Cykeo CYKEO-B5A industrial Passive RFID Antenna delivers 5dBi gain, 70° beamwidth, and -40°C~55°C operation for warehouses/smart cabinets. Compatible with Zebra/Impinj readers.
Cykeo’s CYKEO-A9B High Gain RFID Antenna delivers 15m+ read range with 9dBi amplification. Features IP54 rugged design, 840-960MHz bandwidth, and 80° beamwidth for warehouse/manufacturing RFID systems.
Cykeo’s enterprise-grade 8dbi Impinj RFID Antenna 10m+ read range with 840-960MHz tuning. Features IP65 housing, 1.4 VSWR, 35° beamwidth for retail/warehouse RFID systems.
Cykeo CYKEO-A9 industrial UHF RFID antenna delivers 9dBi gain, 840-960MHz frequency range, and IP65 protection for warehouse/logistics/retail RFID systems. Features N-type connector and ≤1.3:1 VSWR.
CYKEO UHF RFID Antenna built for long-distance and industrial applications. This antenna rfid uhf delivers strong gain, outdoor durability, and reliable tag performance in warehouses, yards, and vehicle ID systems.
CYKEO Antenna RFID delivers reliable long-range UHF performance in warehouses, retail shelves, and cold-chain environments. This compact uhf rfid antenna provides stable reads with circular polarization and ultra-wide 840–960 MHz support, ideal for industrial tracking, smart shelves, and asset monitoring.
Cykeo’s CYKEO-C8 UHF RFID antennas delivers 8dBi gain, 840-960MHz full-band coverage, and IP65 ruggedness for manufacturing/warehouse RFID systems. Industrial RFID Antennas Features
Cykeo’s 8dBi UHF RFID antenna and reader kit delivers 10m+ range, 840-960MHz broadband, and IP65 ruggedness for factories, warehouses, and logistics. ISO 18000-6C & EPC Gen2 certified.
Cykeo CYKEO-A9A industrial UHF RFID reader and antenna kit delivers 10m range, 500 tags/sec, IP65 ruggedness for manufacturing/logistics. Supports EPC Gen2, ISO18000-6C.
Cykeo’s CYKEO-A12C UHF Large RFID Antenna delivers 12dBi gain, 840-960MHz global frequency, IP65 ruggedness for logistics/warehousing/automotive. 40° beamwidth ensures stable 15m+ tag reads.
CYKEO Near Field RFID Antenna provides precise 5–30 cm reading for shelves, cabinets, and workstations. This compact rfid shelf antenna delivers stable short-range performance around metal and clutter, ideal for pharmacies, libraries, and electronics sorting.
Cykeo CYKEO-C1 industrial Forklift RFID Reader features 20m read range, 600 tags/sec scanning, Impinj R2000 chipset, and IP67 rugged design. Ideal for warehouse logistics and manufacturing. Supports ISO 18000-6C/6B protocols.
Cykeo CYKEO-R4 industrial UHF RFID Fixed Reader features 4 TNC ports, 400+ tags/sec speed, IP67 housing, and global frequency compliance for vehicle inspection, smart warehouse, and asset management systems.
Cykeo’s CYKEO-R4L 4-port Fixed UHF RFID Reader delivers 400 tags/sec scanning, ISO 18000-6C compliance, and IP65 protection. Ideal for warehouse automation, manufacturing WIP tracking, and logistics management.
CYKEO CYKEO-R8L Fixed RFID Reader with 8-port UHF design, Impinj-based RF core and up to 20m read range. An industrial Fixed RFID Reader for vehicle inspection, warehouse portals, smart manufacturing lines and secure access checkpoints.
RFID Fixed Reader from CYKEO – the CYKEO-R16L 16-port UHF fixed reader for warehouses, smart cabinets, and production lines. Long-range, multi-tag reading, stable performance for 24/7 industrial use.
RFID Industry Writer | IoT & Asset Tracking Analyst
James writes about RFID technology, asset tracking, and the practical challenges of digital transformation across warehousing, retail, manufacturing, and logistics.
His work focuses on how RFID is applied in real-world operations—improving inventory visibility, automating workflows, and helping businesses manage assets with greater accuracy and efficiency.
He regularly covers topics including UHF RFID, smart cabinets, RFID portals, tool tracking, warehouse automation, and industrial IoT trends..
RFID tool control cart designed for aircraft hangars, assembly lines, and power plant workshops. Real-time tool tracking, fast inventory, open API, and support for custom RFID integration.
More
Discover how RFID gate access control systems enhance security and streamline vehicle or personnel entry. Learn practical setup tips, real-world cases, and integration ideas.
More
Having trouble with your CK-R4 UHF RFID reader? This guide walks you through common issues with TCP client mode, network connection, and demo software. Plus, learn how to optimize integration with CYKEO RFID antennas for faster and more accurate r...
More
Explore RFID asset tracking costs with Cykeo's expert guide—breakdown of tag, reader, and software pricing for efficient asset management.
More
Cykeo RFID IoT Solution Products R&D Manufacturer
