Long Range RFID Scanner for Toll Roads: How RFID Automates Vehicle Identification

Toll roads need to identify vehicles quickly.

When a vehicle approaches a toll point, the system may need to recognize the vehicle, check its account or authorization, record the passage, and then trigger the next step in the process.

A long range RFID scanner can help with this by identifying an RFID tag attached to a vehicle without requiring the driver to stop and manually scan a card.

The interesting part is that the RFID reader is only one piece of the system.

The antenna, vehicle tag, lane layout, vehicle speed, sensors, barrier controller, and software all affect whether the system works reliably.

How RFID Vehicle Identification Works on Toll Roads

A basic RFID toll identification process looks like this:

Vehicle tag → RFID antenna → RFID reader → identification data → toll software

An RFID tag is attached to the vehicle or placed in a suitable position.

As the vehicle approaches the toll checkpoint, the long range UHF RFID reader detects the tag through its antenna.

The reader receives the tag ID and sends it to the toll management system.

The software can then determine what should happen next.

For example:

• Identify the vehicle
• Check the vehicle account
• Record the checkpoint
• Record the passage time
• Check access permissions
• Associate the vehicle with a transaction
• Trigger a barrier or traffic-control device

The RFID reader provides the identification event. The software handles the business logic.

---

Why Use RFID for Vehicle Identification?

Traditional vehicle identification can rely on tickets, manual cards, QR codes, license plate recognition, or other technologies.

RFID offers another approach.

The vehicle does not necessarily need to stop and present a barcode to a scanner. A fixed RFID reader can detect the tag as the vehicle passes through a defined reading area.

This can be useful when many vehicles need to pass through the same checkpoint.

For example, a private road may have hundreds or thousands of registered vehicles using the same entrance every day.

Instead of requiring each driver to interact with a terminal, RFID can make the identification process more automatic.

Of course, RFID is not always the only technology required. Cameras, vehicle sensors, barriers, and other systems may still have important roles.

---

Long Range Does Not Mean Unlimited Coverage

There is a common misunderstanding with the term “long range RFID scanner.”

Some buyers think a longer reading distance is always better.

For a toll road application, that is not necessarily true.

The system normally needs to know when the vehicle reaches a specific checkpoint.

If the reader detects a vehicle too early, the software may record the event before the vehicle actually reaches the toll point.

A very wide reading zone can also create problems when multiple lanes are close together.

For this reason, antenna direction and reading-zone control are extremely important.

A good RFID toll installation aims for a stable detection area rather than simply the maximum possible reading distance.

---

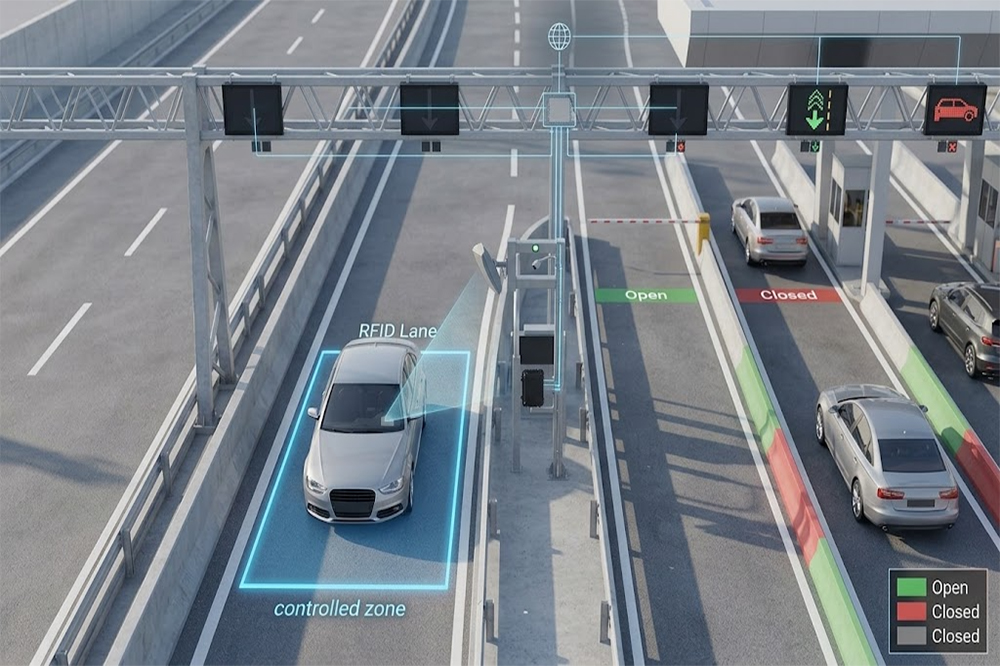

Controlling the RFID Reading Zone

The antenna creates much of the practical reading behavior.

Depending on the road layout, an antenna may be installed beside the lane or positioned above the vehicle path.

The installation needs to consider:

• Lane width
• Vehicle height
• Antenna angle
• Reading distance
• Tag location
• Reader output power
• Road direction
• Vehicle speed
• Adjacent lanes
• Metal structures
• Weather and environmental conditions

The exact configuration depends on the application.

A small private toll entrance may need a very different antenna arrangement from a multi-lane transportation checkpoint.

This is one reason field testing matters before selecting the final hardware configuration.

---

RFID Tags on Vehicles

Vehicle tags can be installed in different locations depending on the application.

A windshield-mounted RFID tag may work well for some systems.

Other applications may require a tag designed for mounting on or near metal surfaces.

The tag’s orientation also matters.

A vehicle does not always approach the antenna at exactly the same angle. Different vehicle models may also have different windshield angles, mounting heights, and structures around the tag.

For a supplier or system integrator, testing several vehicle types can reveal problems that a single laboratory test will not show.

A reader may detect a loose tag very easily, while the same tag performs differently after installation on a real vehicle.

---

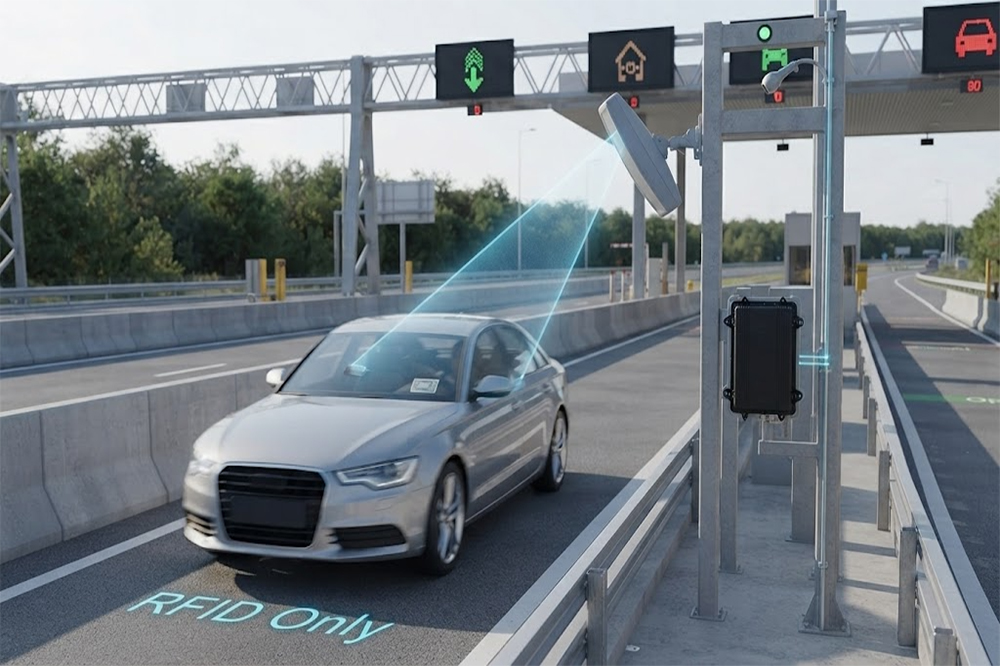

Can RFID Identify Vehicles at High Speed?

RFID can be used for moving vehicles, but speed changes the available reading time.

Imagine a vehicle passing through a reading zone in a fraction of a second.

The reader needs to detect the tag during that short period.

If vehicles move faster, the system has less time to collect reliable reads.

This makes antenna placement, tag performance, reader settings, and software filtering more important.

Testing should therefore include different vehicle speeds rather than only testing a stationary vehicle.

For a real transportation project, the useful question is not simply:

“Can the reader read the tag?”

It is:

“Can the system reliably identify the correct vehicle while it is moving through the lane?”

That is a much better engineering question.

---

Multiple Vehicles and Multiple Lanes

Road systems often have more than one vehicle in the area at the same time.

A UHF RFID reader can detect multiple tags within its reading zone, but detecting several tags is not the same as knowing exactly which vehicle belongs to which lane or event.

Consider a two-lane checkpoint.

A vehicle in Lane 1 passes at the same time as another vehicle in Lane 2.

If both RFID signals reach the same antenna coverage area, the software may need additional information to determine which event belongs to which lane.

Possible supporting technologies include:

• Vehicle sensors
• Loop detectors
• Cameras
• Lane controllers
• Barrier status
• Timing logic
• Traffic signals

RFID can provide the vehicle identification data, while other devices help establish the physical event.

---

RFID and Toll Gate Automation

For controlled-access roads, RFID can be connected to an automated gate.

The process might look like this:

Vehicle approaches → RFID tag detected → software checks ID → access approved → barrier opens

If the vehicle is not authorized, the system can follow another workflow.

The same approach can be used for private roads, company campuses, industrial parks, logistics centers, parking areas, and restricted transportation entrances.

The exact gate integration depends on the controller and software interface.

For system integrators, checking communication interfaces early can make the implementation much easier.

---

RFID Checkpoints and Vehicle Tracking

RFID can also create a checkpoint-based vehicle tracking system.

It does not provide continuous GPS positioning.

Instead, every RFID reader creates an event when it detects a tagged vehicle.

For example:

07:42 — Entrance Checkpoint — Vehicle A1023

09:15 — Warehouse Road Checkpoint — Vehicle A1023

16:38 — Exit Checkpoint — Vehicle A1023

When several readers are installed at important locations, the software can build a history of vehicle movements between those checkpoints.

This can be useful for:

• Industrial parks
• Ports
• Logistics centers
• Company campuses
• Private roads
• Fleet yards
• Restricted areas
• Large transportation facilities

---

RFID for Fleet and Commercial Vehicles

Commercial fleets can also benefit from automated RFID identification.

A logistics company may want to know when a truck enters a distribution center and when it leaves.

Instead of manually recording each vehicle, RFID readers can be installed at the entrance and exit.

The software can associate the RFID tag with the vehicle record.

This creates a simple event history:

Vehicle → Checkpoint → Time → Event

The system can then connect this information with warehouse, fleet, or logistics software.

For a large fleet, this can reduce manual data entry and provide better visibility into vehicle movements.

---

RFID Reader Integration

A toll or vehicle identification system normally requires integration between several devices.

Depending on the RFID reader, available interfaces may include:

• Ethernet
• TCP/IP
• Serial communication
• Digital input/output
• API
• SDK
• HTTP
• MQTT

The reader may communicate with a local controller or central software platform.

The complete system can also include:

RFID reader + antenna + vehicle sensor + camera + barrier + software

Each part has a different role.

This modular approach also gives system integrators more flexibility when adapting the solution to different road layouts.

---

A Practical Example

Imagine an industrial park with one controlled vehicle entrance.

Around 500 registered vehicles use the entrance every working day.

The park wants to reduce manual access checks.

Each authorized vehicle receives an RFID tag. A long range UHF RFID reader is installed beside the entrance lane.

When a vehicle approaches, the antenna creates a controlled reading zone.

The reader detects the RFID tag and sends the EPC to the access-control software.

The software checks the vehicle database.

If the vehicle is authorized, the gate controller receives the open command.

The system records the entry time.

At first, the installation appears to work well.

Then the integrator notices occasional detection of vehicles in the neighboring lane.

Instead of simply increasing reader power, the team adjusts the antenna angle, changes the reading zone, checks tag placement, and improves the event filtering.

This is a fairly typical lesson with RFID projects.

The solution is often found in the system configuration, not just in using a more powerful reader.

---

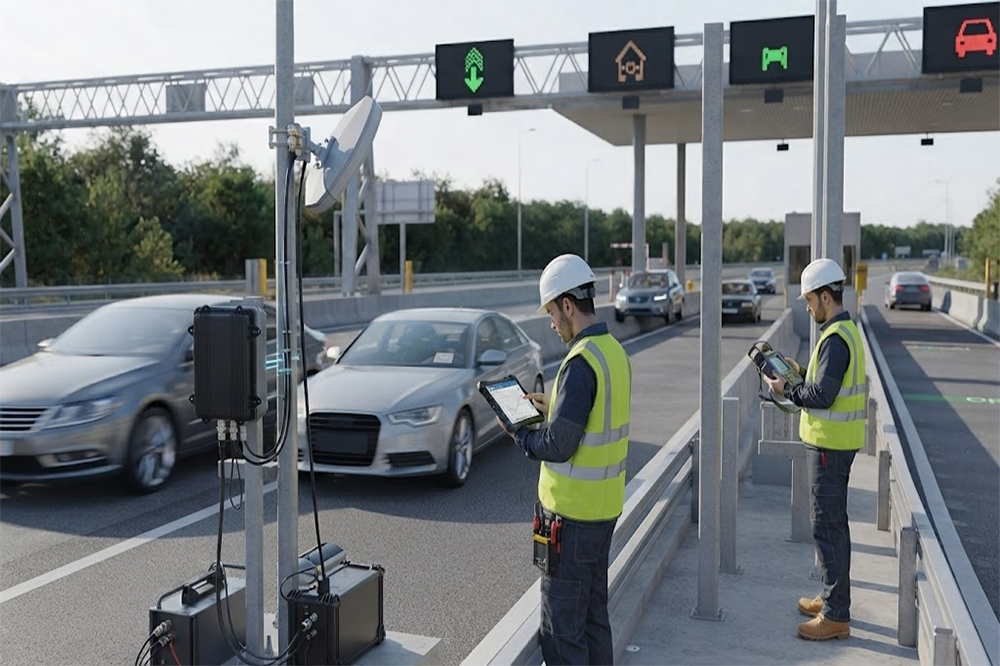

Testing a Long Range RFID Scanner for Toll Applications

Before placing a large order, the RFID system should be tested under realistic conditions.

The test should include:

• Actual vehicle types
• Actual RFID tags
• Tag mounting position
• Vehicle speed
• Lane width
• Antenna position
• Antenna angle
• Reader power
• Reading distance
• Adjacent lanes
• Multiple vehicles
• Metal structures
• Sensors
• Barrier timing
• Software response

Repeated testing is also important.

One successful read does not prove that the system is reliable.

A better test records many vehicle passes and checks the percentage of correct identification, missed reads, unwanted reads, and incorrect lane associations.

That data gives the integrator something much more useful than a single maximum-distance number.

---

What Should RFID Buyers Check?

For RFID distributors, wholesalers, and system integrators, the hardware specification is only part of the purchasing decision.

Check:

• Frequency range
• RFID protocol
• Reader chipset
• Output power
• Receiving sensitivity
• Antenna ports
• Communication interfaces
• Digital I/O
• API and SDK
• Firmware
• Antenna options
• Vehicle tag compatibility
• OEM customization
• Sample availability
• MOQ
• Production lead time
• Technical support

It is also worth asking whether the supplier can provide matching antennas and tags.

A reader that works well with the wrong tag or antenna may not produce the expected result in the field.

---

Final Thoughts

A long range RFID scanner for toll roads can automate vehicle identification at controlled checkpoints and reduce the need for manual vehicle access.

It can also support fleet management, private-road access, industrial park vehicle tracking, and transportation checkpoints.

But successful deployment is not simply about choosing the reader with the longest advertised range.

The RFID tag, RFID antenna, vehicle speed, lane layout, sensors, software, and gate controller all matter.

For system integrators and RFID distributors, a practical sample test is often the best way to determine whether a particular reader and antenna combination is suitable for the customer’s road environment.

The most useful RFID system is not necessarily the one that reads the farthest.

It is the one that reads the right vehicle, at the right location, at the right time.
