Long Range RFID Scanner for Textile Manufacturing and Garment Production

Textile and garment factories manage a large number of materials and work-in-progress items. Fabric rolls, cutting panels, sewing bundles, accessories, finished garments, reusable containers, and production tools may move between warehouses, cutting rooms, sewing lines, inspection areas, and packing departments every day.

When these movements are recorded manually, production teams may lose track of material status or spend time searching for the correct bundle. Barcodes can improve identification, but they still require workers to scan items individually and maintain a clear line of sight.

A long range RFID scanner can help textile manufacturers identify and track tagged materials, production bundles, garments, and equipment as they pass through selected reading zones. With suitable RFID tags, rfid antennas, and software integration, factories can improve production visibility while reducing repetitive manual scanning.

Short Answer: How Can a Long Range RFID Scanner Help Textile Factories?

A long range RFID scanner helps textile and garment manufacturers track fabric rolls, cutting bundles, work-in-progress garments, production kits, reusable containers, tools, and finished products across warehouses and production areas. RFID reading points can record material movement between receiving, cutting, sewing, inspection, finishing, and packing without requiring every item to be scanned individually.

The final performance depends on tag selection, material composition, tag placement, antenna layout, reading zone design, and software logic. RFID is especially useful when the factory needs to track groups of items moving between defined production stages.

Why Textile Manufacturing Needs Better Tracking

Garment production involves many small and large material movements. A single order may include different fabrics, colors, sizes, accessories, labels, packaging materials, and production batches.

A typical production process may include:

1. Fabric receiving
2. Material inspection
3. Fabric storage
4. Cutting
5. Bundling and sorting
6. Sewing
7. Washing or finishing
8. Quality inspection
9. Packing
10. Dispatch

Materials can be divided into smaller bundles during cutting and later combined into finished garments. This makes manual tracking more difficult because the original fabric roll and the resulting production bundle may no longer be managed as one physical unit.

Common problems include:

• Fabric rolls stored in the wrong location
• Cutting bundles sent to the wrong sewing line
• Missing production kits
• Work-in-progress waiting without clear status
• Finished garments mixed between orders
• Accessories not matched with the correct production batch
• Reusable bins and carts not returned
• Manual production records updated too late
• Workers searching for materials between departments

RFID can create a digital movement record for important materials and production units. It does not replace production planning or quality control, but it can improve the visibility of physical items as they move through the factory.

How RFID Works in Textile and Garment Production

A typical UHF RFID tracking system includes:

• RFID tags attached to materials or containers
• A long range RFID reader
• One or more antennas
• Software or middleware
• An ERP, MES, WMS, or production management system

Each tag contains a unique identification number. The software links that number to information such as:

• Fabric roll number
• Purchase order
• Supplier
• Material composition
• Color and width
• Production order
• Garment style
• Size range
• Cutting bundle number
• Sewing line
• Quality status
• Packing status
• Storage location

When a tagged item passes through an RFID reading zone, the reader captures the tag ID. The software can then update the item’s latest detected location or production stage.

For example, a cutting bundle may be recorded when it leaves the cutting room and again when it arrives at the sewing line. The system can compare the movement with the planned production order and identify delays or unexpected transfers.

What Can a Long Range RFID Scanner Track?

Fabric Rolls

Fabric rolls are often large, heavy, and stored in rows or racks. RFID tags can be attached to the roll core, label, or reusable holder, depending on the material and handling method.

The tag record may include:

• Roll number
• Fabric type
• Color
• Width
• Length
• Weight
• Supplier
• Inspection result
• Assigned production order
• Current storage area

For textile factories, the goal is not always to read every roll from a very long distance. A controlled reading point near the warehouse entrance or storage aisle may provide more reliable results.

Cutting Bundles

After fabric is cut, panels are grouped into bundles for a specific style, size, color, or production order.

A bundle tag can be linked to:

• Style number
• Size
• Color
• Quantity
• Cutting batch
• Production order
• Sewing line
• Required accessories
• Planned completion date

RFID can help confirm whether the correct bundle has reached the correct production area. This is useful when several orders have similar colors, styles, or material types.

Work-in-Progress Garments

Garments may move through sewing, inspection, trimming, ironing, washing, finishing, and packing. RFID tags can be attached to bundles, trays, carts, or reusable production containers.

Depending on the workflow, the factory may track:

• Bundle movement
• Production stage
• Sewing line
• Operator group
• Inspection status
• Rework status
• Finishing status
• Packing status

Tracking the bundle or container is often more practical than attaching a permanent RFID tag to every individual garment during early deployment.

Accessories and Production Kits

Garment production also depends on accessories such as:

• Buttons
• Zippers
• Labels
• Thread
• Hooks
• Buckles
• Packaging materials
• Brand tags
• Special trims

These items may be grouped into production kits. RFID can help identify the kit and associate it with a specific order or garment style.

Reusable Containers and Carts

Textile factories often use bins, carts, trays, racks, and hanging garment carriers. These reusable assets may move between departments many times per day.

RFID can help track:

• Empty carts
• Full production carts
• Bundle trays
• Fabric containers
• Garment racks
• Returnable boxes
• Material handling equipment

This can reduce the number of containers that disappear into another department and improve the utilization of reusable assets.

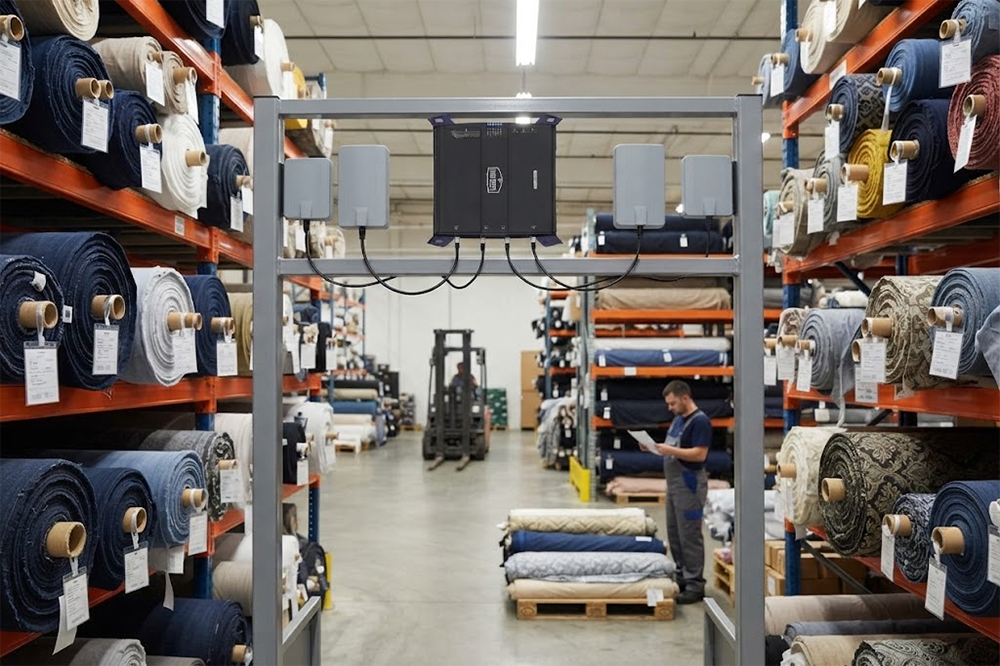

RFID in Fabric Receiving and Warehouse Management

The receiving area is a practical starting point for RFID deployment.

When fabric arrives, the factory can create or associate an RFID tag with the roll record. The system may connect the tag to the purchase order, supplier information, inspection status, and storage location.

A typical workflow may include:

1. Fabric rolls arrive at the factory
2. RFID tags are attached or encoded
3. Tag IDs are linked with fabric records
4. Rolls pass through a receiving reading zone
5. The system records the arrival event
6. Rolls move to inspection or storage
7. The software updates the latest detected location

A reader installed at a warehouse entrance can help record movement without requiring workers to scan every roll manually. However, the reading zone should be designed to prevent tags from nearby storage areas from being captured unintentionally.

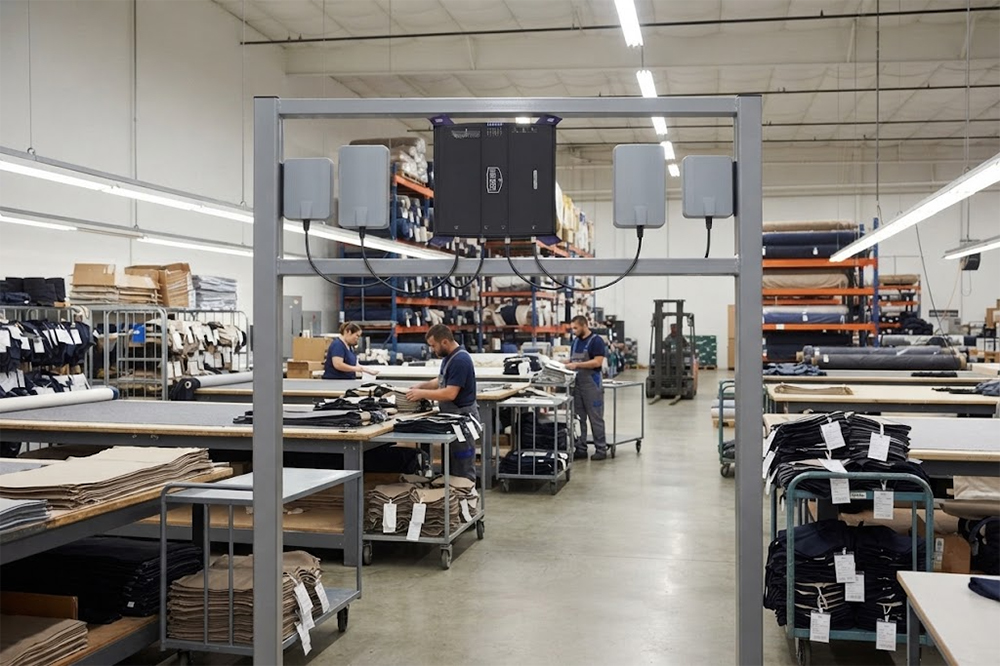

RFID for Cutting Room Management

The cutting room is an important transition point because one fabric roll may become multiple cutting bundles.

A factory can assign RFID tags to bundles after cutting. Each tag can be linked to the original fabric roll and the relevant production order.

This creates a traceable relationship between:

• Fabric roll
• Cutting batch
• Bundle number
• Garment style
• Size
• Color
• Quantity
• Sewing line

When a bundle passes through a reading point, the software can confirm that it has moved to the expected production stage.

RFID can also help identify bundles waiting for sewing, bundles sent for rework, or bundles that have remained in the cutting area longer than planned.

RFID for Sewing Lines and Production Flow

Sewing lines may handle several styles or orders during the same shift. Similar-looking bundles can be difficult to distinguish, especially when production volume is high.

RFID reading zones can be installed near:

• Sewing line entrances
• Bundle distribution areas
• Production line exits
• Rework stations
• Inspection points
• Finishing areas

The system can record when a bundle enters or leaves a production zone. Production software may then compare the physical movement with the planned workflow.

For example, if a bundle assigned to Sewing Line A is detected near Sewing Line B, the system can generate an exception for review. This does not necessarily mean the movement is wrong, but it gives supervisors a chance to confirm the transfer.

RFID events can also support production reporting by showing how long bundles remain between major process stages.

RFID for Garment Inspection and Finishing

After sewing, garments may pass through inspection, trimming, ironing, washing, printing, embroidery, or other finishing processes.

RFID can help distinguish between:

• Awaiting inspection
• Passed inspection
• Sent for rework
• Waiting for finishing
• Ready for packing
• Completed production orders

The system should not treat a simple RFID read as proof that a garment passed quality inspection. Instead, RFID identifies the physical item, while inspection software records the actual quality result.

This separation helps maintain more reliable production records.

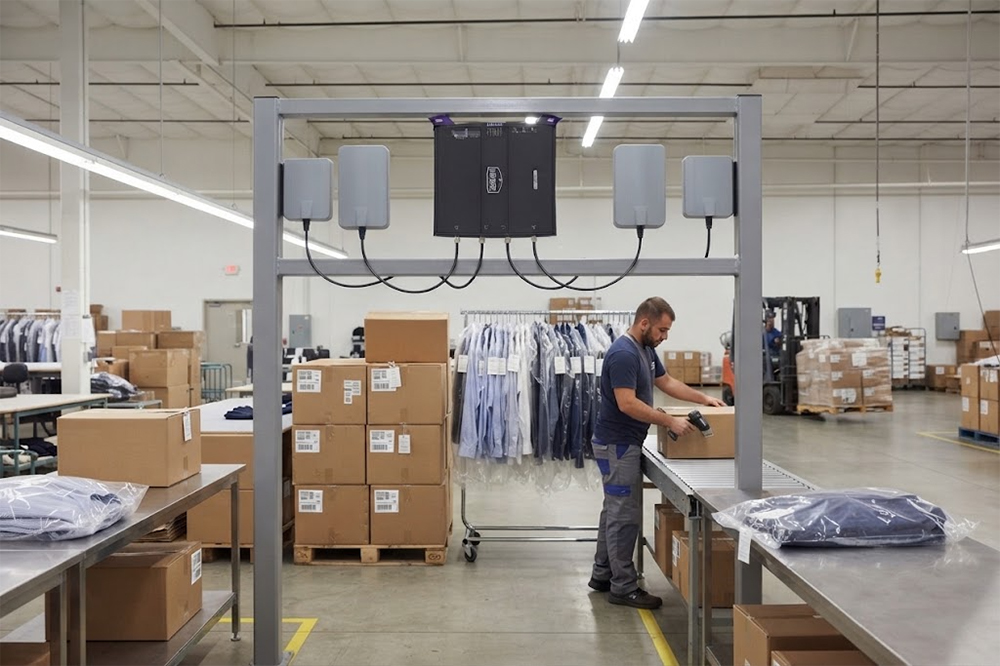

RFID for Packing and Finished Goods

At the packing stage, RFID can connect finished garments with the correct order, size, color, carton, or shipment.

Possible tracking units include:

• Individual garment
• Garment bundle
• Carton
• Packing box
• Pallet
• Shipping container

For many factories, carton-level or bundle-level RFID is easier to implement than item-level tagging. The appropriate level depends on customer requirements, production volume, product value, and the need for item-level traceability.

At the dispatch area, a long range RFID scanner can record when tagged cartons or pallets pass through the outbound reading zone. The software can compare the detected items with the planned shipment list.

Challenges When Using RFID with Fabric and Garments

Textile materials are different from metal equipment or plastic containers. Fabric, foam, liquids, folded garments, and dense bundles can influence RFID performance.

Several factors should be evaluated.

Fabric Composition

Cotton, polyester, wool, blended fabrics, coated textiles, and waterproof materials may affect tag performance differently. The tag should be tested on the actual material rather than selected only from a product catalogue.

Folded and Stacked Garments

A tag may be hidden between layers of fabric or surrounded by many garments. The reading distance can change when bundles become dense or compressed.

Tag Placement

The tag should be placed where it remains attached during cutting, sewing, washing, handling, and transport. It should also be positioned to reduce blocking by other materials.

Reading Direction

A tag may read differently when it faces the antenna directly or turns sideways. The reading zone should be tested with realistic bundle orientations.

Multiple Tags

A production cart may contain many bundles, each with its own tag. The reader and software should be tested for multi-tag reading performance and event filtering.

Creating Controlled RFID Reading Zones

A long range RFID scanner should not be expected to identify every item across an entire factory. A better approach is to install reading zones at important process transitions.

Common locations include:

• Fabric receiving gates
• Warehouse entrances
• Cutting room exits
• Sewing line entrances
• Inspection areas
• Finishing department entrances
• Packing stations
• Dispatch gates
• Tool rooms
• Cart and container return points

A controlled zone may use directional antennas, carefully selected reader power, shielding, physical barriers, and software filtering.

The purpose is to record meaningful movement events while reducing reads from nearby departments or storage racks.

Integrating RFID with Factory Software

RFID data becomes more valuable when connected with existing production and inventory systems.

Possible integration targets include:

• ERP systems
• MES platforms
• WMS software
• Production planning systems
• Order management software
• Quality management systems
• Warehouse control systems
• Packing and shipping software

The RFID reader may communicate through Ethernet, TCP/IP, serial interfaces, APIs, SDKs, or middleware.

A typical integration workflow may look like this:

1. Reader detects a tag
2. Reader sends the tag ID to middleware
3. Middleware filters duplicate or weak events
4. Software matches the tag with a production record
5. The system updates the item’s latest detected zone
6. The event is displayed in a dashboard or production report

The software should define how long a tag must remain in a zone before the event is accepted. Without event filtering, one item moving near an antenna may generate repeated reads that create confusing records.

Practical Example: Tracking Garment Bundles

A garment factory produces several styles for different customers. After cutting, each bundle receives an RFID tag linked to its style, size, color, quantity, and production order.

RFID readers are installed at:

• Cutting room exit
• Sewing line entrance
• Inspection area
• Packing department entrance

The system can then show:

• Which bundles have left cutting
• Which bundles are waiting for sewing
• Which bundles reached the wrong production line
• Which bundles are under inspection
• Which bundles are ready for packing
• Which bundles have not moved within the expected time

The factory does not need to scan each bundle manually at every department. RFID events provide a continuous movement record at selected checkpoints.

Testing a Long Range RFID Scanner in a Textile Factory

A field test should use real fabric rolls, cutting bundles, garment carts, and production containers.

The test should evaluate:

• Tag performance on different fabrics
• Reading distance
• Tag orientation
• Bundle density
• Cart and rack materials
• Number of tags in one reading zone
• Reading speed
• False reads from nearby areas
• Performance at doors and narrow passages
• Reader and antenna mounting positions
• Software event filtering

The test should measure consistency rather than only maximum reading distance. A stable reading zone that accurately records production movement is usually more useful than a very long reading range that detects unrelated items.

Procurement Checklist

Before purchasing a long range RFID scanner for textile manufacturing, consider the following questions:

1. Does the reader support the required UHF RFID protocol?
2. Is the operating frequency suitable for the target market?
3. Can the reader support the required number of antennas?
4. Does it work reliably with fabric, bundles, carts, and containers?
5. Can the supplier provide sample tags for textile testing?
6. Does the reader support Ethernet, serial communication, or APIs?
7. Can it integrate with ERP, MES, WMS, or production software?
8. Can the reading zone be adjusted for different production areas?
9. Does the supplier support OEM or project-specific requirements?
10. Can the supplier assist with antenna layout and field testing?
11. Can the system filter duplicate reads?
12. Are suitable tags available for washing, heat, moisture, or repeated handling?

The reader, antenna, tag, mounting method, and software should be evaluated as one complete system.

Final Takeaway

A long range RFID scanner can help textile and garment factories improve visibility across fabric receiving, cutting, sewing, inspection, finishing, packing, and dispatch.

The most practical deployment usually starts with bundles, rolls, carts, containers, or cartons rather than immediately tagging every individual garment. Suitable tags, controlled reading zones, reliable software integration, and real factory testing are essential for consistent performance.

When properly designed, RFID can reduce manual tracking work, improve production material visibility, and help managers understand where important materials and work-in-progress items were last detected.

Frequently Asked Questions

1. Can RFID track fabric rolls in a textile factory?

Yes. RFID tags can be attached to fabric rolls, roll cores, labels, or reusable holders. The tag should be tested with the actual fabric and storage conditions.

2. Can a long range RFID scanner track garment bundles?

Yes. RFID tags can be attached to bundles, trays, carts, or production containers. The system can record when bundles move between cutting, sewing, inspection, and packing areas.

3. Is RFID suitable for individual garment tracking?

It can be used for item-level tracking, but many factories begin with bundle-level, carton-level, or container-level identification. The best approach depends on production volume and traceability requirements.

4. Does fabric affect RFID reading performance?

Yes. Fabric composition, thickness, moisture, folding, and bundle density can affect reading performance. Tags should be tested on real materials before deployment.

5. Can RFID integrate with garment production software?

Yes. RFID readers can connect with ERP, MES, WMS, production planning, quality, packing, and shipping systems through Ethernet, APIs, SDKs, serial communication, or middleware.

The production data created in a garment factory can later support RFID for clothing inventory when finished products move into distribution centers, retail stores, or clothing stockrooms.

Textile factories can apply the same RFID manufacturing production tracking principles to connect material movement with production orders, workstations, and process status.
