How to Match RFID Reader with the Right Antenna: A Practical Guide for RFID System Integrators

When RFID system does not perform well, many people look at the reader first.

They ask:

“Is the reader powerful enough?”

But in many real projects, the problem is somewhere else.

The antenna is often the part that decides whether the system works smoothly or becomes difficult to tune.

A good RFID reader with a poorly matched antenna may struggle with missed reads, unstable distance, or unwanted tag detection.

On the other hand, a properly selected antenna can sometimes improve an average system more than upgrading the reader.

This is why experienced RFID solution providers usually do not choose the reader and antenna separately.

They design them together.

---

The reader is the engine, but the antenna decides where the energy goes

A long range RFID reader generates the RF signal.

The antenna determines:

• where the signal travels
• how wide the coverage area is
• how far tags can respond
• how controlled the reading zone becomes

For example:

A warehouse dock door usually needs a focused reading area.

A retail shelf may need wider coverage.

A tool cabinet may need short-distance accuracy.

The same reader can behave completely differently with different antennas.

---

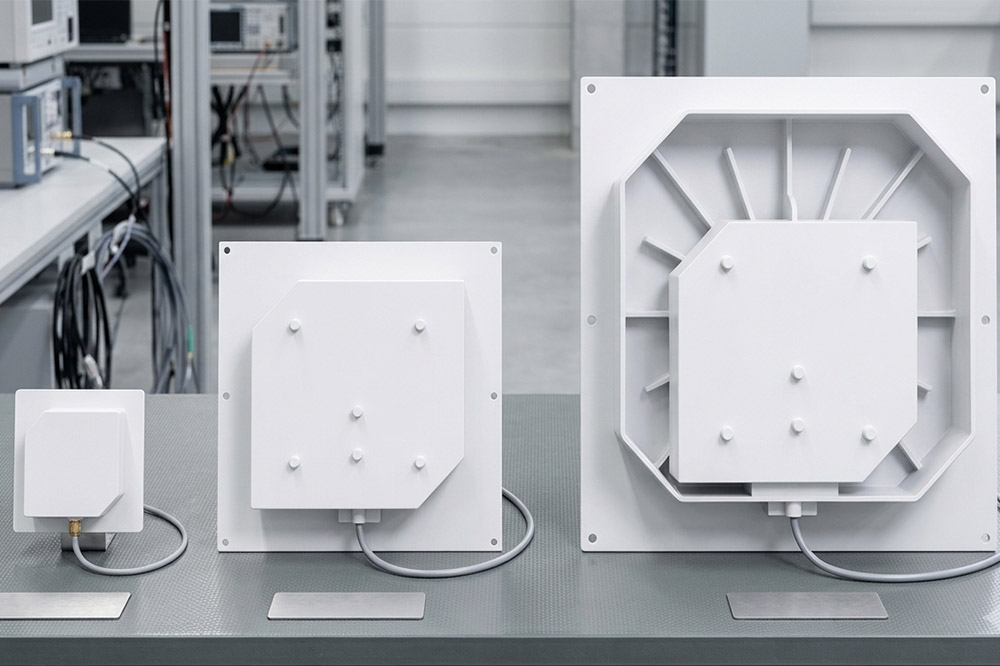

Antenna Gain: 3dBi, 6dBi, 9dBi, 12dBi — What is the difference?

Antenna gain is one of the first specifications engineers check.

But higher gain does not automatically mean better performance.

The right choice depends on the application.

---

3dBi RFID Antenna: Wide coverage, shorter distance

3dBi antennas usually provide a wider radiation pattern.

They are often considered when:

• The reading area is close
• Tag positions change frequently
• Coverage is more important than distance

Typical applications:

• Small inventory areas
• Retail environments
• Indoor tracking points

The advantage is flexibility.

The limitation is that the reading distance is usually shorter.

---

6dBi RFID Antenna: A common industrial balance

6dBi antennas are widely used in industrial RFID projects.

They offer a balance between:

• Reading distance
• Coverage control
• Installation flexibility

Common applications:

• Warehouse entrances
• Production lines
• Asset tracking areas

For many system integrators, 6dBi becomes the “safe choice” because it works well in many medium-distance applications.

---

9dBi RFID Antenna: When distance becomes important

9dBi antennas are usually selected when longer reading distance is required.

Typical scenarios:

• Large warehouse gates
• Vehicle identification
• Outdoor tracking points

However, stronger gain also means a narrower beam.

This can be helpful or problematic.

If the installation position is wrong, the antenna may simply focus energy in the wrong direction.

---

12dBi RFID Antenna: Long distance, but needs careful design

12dBi antennas are usually used for demanding applications.

Examples:

• Large outdoor areas
• Vehicle tracking
• Long-range identification points

But higher gain antennas are less forgiving.

They require more attention to:

• mounting angle
• height
• tag position
• reading zone design

A powerful antenna does not replace good system planning.

---

Circular vs Linear Polarization: Which one should you choose?

This is another area where project requirements matter more than specifications.

---

Circular Polarized RFID Antenna

Circular polarization sends signals in multiple orientations.

It is useful when tag direction is unpredictable.

Examples:

• Pallets
• Clothing
• Tools
• Moving assets

A forklift does not always place a pallet perfectly.

A worker does not always attach a tag at the same angle.

In these situations, circular polarization usually provides more stable reading.

---

Linear Polarized RFID Antenna

Linear polarization focuses energy in one direction.

Advantages:

• Stronger signal in the correct orientation
• More controlled reading area

Common applications:

• Parking lanes
• Conveyor systems
• Fixed-position tags

The limitation:

The tag orientation needs to match.

If the tag rotates, performance can drop.

---

Near Field vs Far Field RFID Antennas

Not every RFID project needs long distance.

Sometimes the goal is accuracy, not range.

---

Near Field RFID Antenna

Near field antennas are designed for short-range identification.

Typical applications:

• Smart cabinets
• Tool management
• Medical storage
• Item-level tracking

The reading area is controlled and localized.

This helps prevent reading nearby unwanted tags.

---

Far Field RFID Antenna

Far field antennas are designed for longer distance communication.

Typical applications:

• Warehouse gates
• Parking systems
• Logistics tracking

They are the common choice for long range RFID readers.

---

Multi-Antenna Systems: When One Antenna Is Not Enough

Large RFID projects rarely rely on one antenna.

A warehouse gate may require several antennas to cover different directions.

A production line may need separate reading zones.

This is where reader ports become important.

---

8-Port RFID Reader Configuration

An 8-port reader allows connection of multiple antennas.

Common applications:

• Medium warehouse gates
• Production checkpoints
• Asset tracking zones

Advantages:

• Flexible coverage
• More controlled reading areas
• Less hardware compared with multiple readers

---

16-Port RFID Reader Configuration

For larger systems, 16-port readers provide more scalability.

Typical applications:

• Large warehouses
• Multiple dock doors
• Complex logistics systems

Instead of installing many separate readers, one unit can manage more antenna points.

The trade-off is system planning.

More antennas mean more configuration work.

---

A common mistake: choosing the antenna after buying the reader

This happens more often than people expect.

A customer selects a reader first because of:

• reading distance
• price
• brand

Then later asks:

“Which antenna should we add?”

The problem is that the antenna should match:

• application
• installation location
• tag movement
• reading zone

Not just the reader model.

---

Practical Matching Examples

Warehouse Dock Door

Recommended:

• Fixed UHF RFID reader
• 6dBi–9dBi directional antennas
• Circular polarization
• Multiple antenna ports

Reason:

Pallet direction changes, but the reading area needs control.

---

Vehicle Parking System

Recommended:

• Long range reader
• 9dBi–12dBi directional antenna
• Linear polarization (depending on tag placement)

Reason:

The system needs a narrow detection zone.

---

Tool Cabinet Tracking

Recommended:

• Near field antenna
• Short-range RFID reader
• Controlled reading area

Reason:

The system needs accuracy, not distance.

---

FAQ

Does a higher dBi antenna always read farther?

Not always. Higher gain increases direction and concentration, but incorrect installation can reduce real performance.

Can any RFID antenna work with any reader?

No. Frequency range, connector type, impedance, and regional requirements need to match.

Should I choose circular or linear polarization?

Choose circular when tag orientation changes frequently. Choose linear when tag position is controlled.

How many antennas can one RFID reader support?

It depends on the reader model. Industrial readers commonly support 4, 8, or 16 antenna ports.
