When customers start an RFID project, many people focus on RFID tags first. However, in real deployments, the RFID reader is often the key component that determines whether the entire system works smoothly.

An RFID reader is responsible for communicating with RFID tags, collecting identification data, and sending information to the software platform for further processing. Whether it is warehouse inventory, asset tracking, smart cabinets, production management, or access control, choosing the right RFID reader directly affects reading accuracy, system stability, and future scalability.

For RFID solution providers and system integrators, selecting a suitable reader is not only about reading distance. Factors such as installation environment, tag density, communication interface, antenna configuration, and software integration capability all need to be considered.

Before choosing hardware, it is important to understand how different types of RFID readers work and where they are best used.

---

What Is an RFID Reader and How Does It Work?

An RFID reader is a device that uses radio frequency signals to communicate with RFID tags.

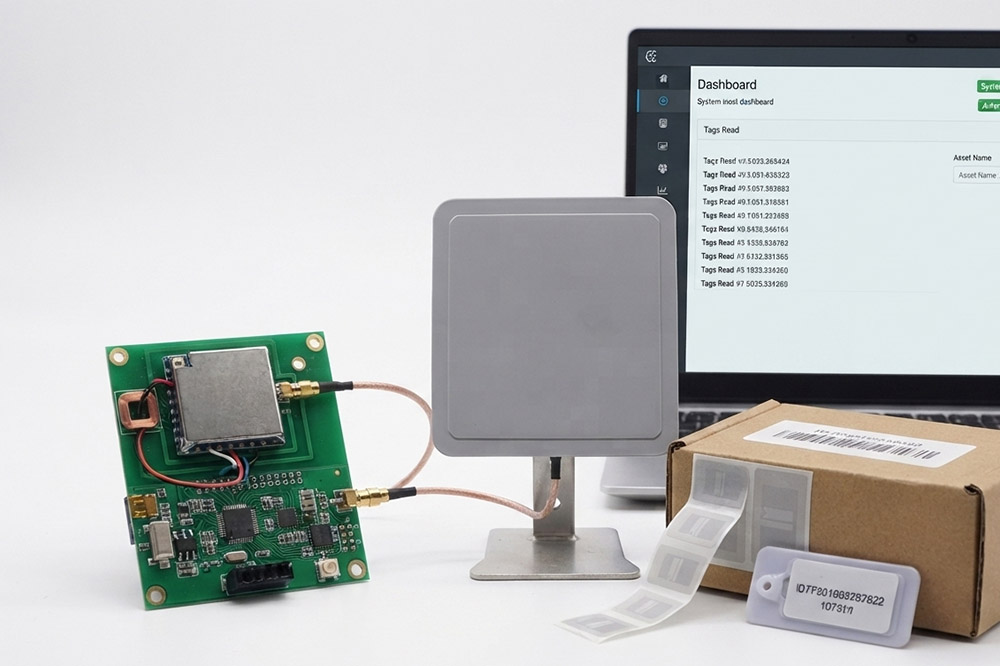

A complete RFID system usually includes three main parts:

• RFID reader
• RFID antenna
• RFID tag

The reader sends RF signals through the antenna. When an RFID tag enters the reading area, it responds with stored identification information. The reader then transfers this data to a backend system such as ERP, WMS, MES, or a customized software platform.

Compared with barcode systems, RFID readers do not require direct line-of-sight scanning. Multiple tags can be identified simultaneously, which makes RFID suitable for automation and high-efficiency tracking applications.

However, different projects require different RFID readers. A warehouse gate, a handheld inventory system, and a smart tool cabinet cannot use the same hardware design.

---

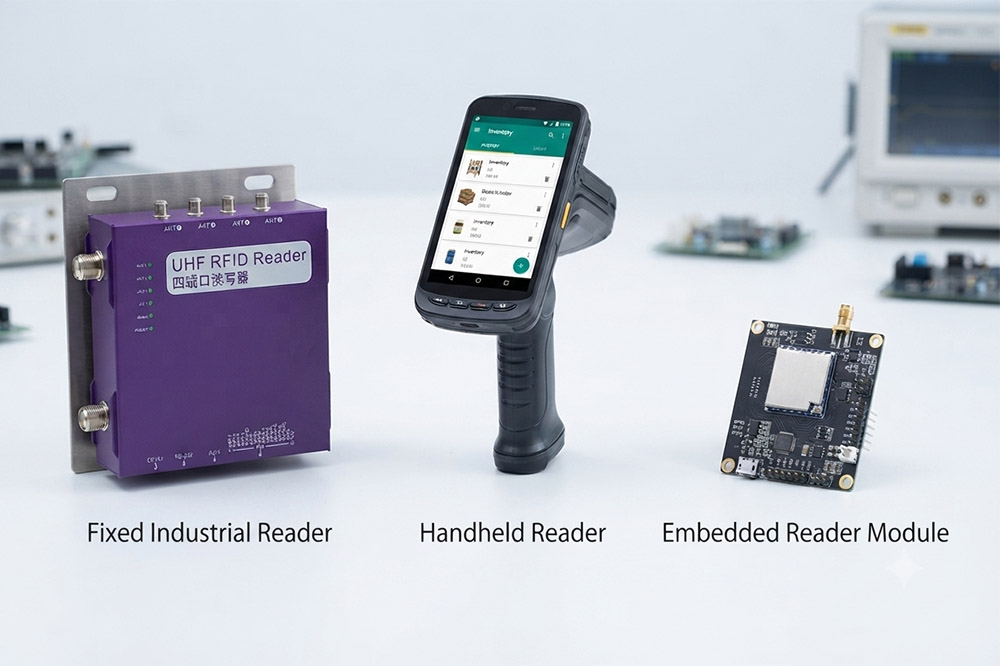

Main Types of RFID Readers for Industrial Applications

1. Fixed RFID Reader: Designed for Automated Tracking

A fixed RFID reader is installed in a specific location and continuously reads RFID tags without manual operation.

Typical applications include:

• Warehouse entry and exit gates
• Production lines
• Logistics sorting systems
• Smart shelves
• Medical equipment tracking

For example, when products pass through an RFID gate, the fixed reader automatically captures tag information and updates inventory records.

For solution providers, fixed RFID readers are usually selected when customers need:

• 24/7 operation
• automatic data collection
• high reading speed
• integration with existing systems

Multi-channel fixed readers can also connect multiple antennas, allowing wider coverage areas and more flexible installation.

---

2. Handheld RFID Reader: Flexible Inventory Management

A handheld RFID reader provides mobility for operators who need to scan items in different locations.

Common applications:

• Warehouse stock counting
• Asset searching
• Retail inventory
• Equipment inspection
• Factory material management

Compared with fixed readers, handheld devices allow workers to move around and scan items where installation of permanent equipment is difficult.

For example, warehouse employees can walk through storage areas and quickly collect hundreds or thousands of tag records without manually checking every item.

A good handheld RFID reader should consider:

• reading speed
• battery capacity
• operating system compatibility
• wireless communication
• durability

---

3. Long Range RFID Reader: For Large Coverage Areas

Long range RFID readers are widely used when tags need to be detected from several meters away.

Typical applications include:

• Vehicle identification
• Parking management
• Warehouse portals
• Industrial access control
• Outdoor asset tracking

In these projects, reading distance alone is not enough.

System integrators also need to consider:

• antenna gain
• installation angle
• environmental interference
• tag orientation
• unwanted reading areas

A poorly designed installation may cause RFID cross-reading problems, where readers detect tags outside the intended zone.

Therefore, the reader, antenna, and software filtering strategy must work together.

---

4. RFID Reader Module: For Custom Equipment Development

For companies developing their own RFID products, an RFID reader module is often a better choice.

Instead of purchasing a complete reader, engineers can integrate the RFID module into:

• smart cabinets
• vending machines
• medical devices
• industrial equipment
• automated workstations

The advantages include:

• smaller size
• easier customization
• lower hardware cost for mass production
• flexible communication interfaces

For OEM customers, selecting a supplier that provides SDK, API support, and technical documentation is very important.

---

What RFID Solution Providers Should Consider Before Buying

Many projects fail not because RFID technology does not work, but because the wrong reader was selected.

Before choosing an RFID reader, solution providers should evaluate the following factors.

---

Reading Environment

Different environments create different challenges.

Examples:

Warehouse:

• metal racks
• moving products
• high tag density

Factory:

• machines
• electromagnetic interference
• continuous operation requirements

Retail:

• customer movement
• compact installation space

The reader must match the real environment.

---

Reading Distance Requirement

A short-range desktop RFID reader cannot replace a long-range industrial reader.

Typical selection:

Short distance:

• desktop RFID reader
• USB RFID reader

Medium distance:

• fixed RFID reader

Long distance:

• long range UHF RFID reader

---

Communication Interface

Industrial RFID projects often require connection with existing systems.

Common interfaces include:

• Ethernet
• RS232
• RS485
• USB
• GPIO
• Wi-Fi

For enterprise projects, API and SDK support can significantly reduce integration time.

---

Antenna Compatibility

The RFID reader is only one part of the system.

The final performance depends on:

• reader power output
• antenna design
• antenna placement
• tag quality

For example, directional antennas can help control reading zones and reduce unwanted tag detection in warehouse applications.

---

RFID Reader Selection Guide for Different Projects

Application	Recommended RFID Reader
Warehouse inventory	Handheld RFID reader / Fixed RFID reader
RFID gate system	Fixed RFID reader + directional antenna
Vehicle tracking	Long range RFID reader
Smart cabinet	Embedded RFID reader module
Retail checkout	Desktop or workstation RFID reader
Factory automation	Industrial fixed RFID reader
Asset management	Handheld RFID reader

---

Why Work With an Experienced RFID Reader Manufacturer?

For RFID solution providers, hardware supply is only part of the project.

A reliable RFID manufacturer should provide:

• different reader options
• antenna matching support
• SDK/API integration
• customization service
• technical testing support

Every RFID project has different requirements. The best RFID reader is not always the one with the longest reading distance, but the one that matches the application.

A professional RFID hardware partner can help reduce development time and avoid problems during deployment.
