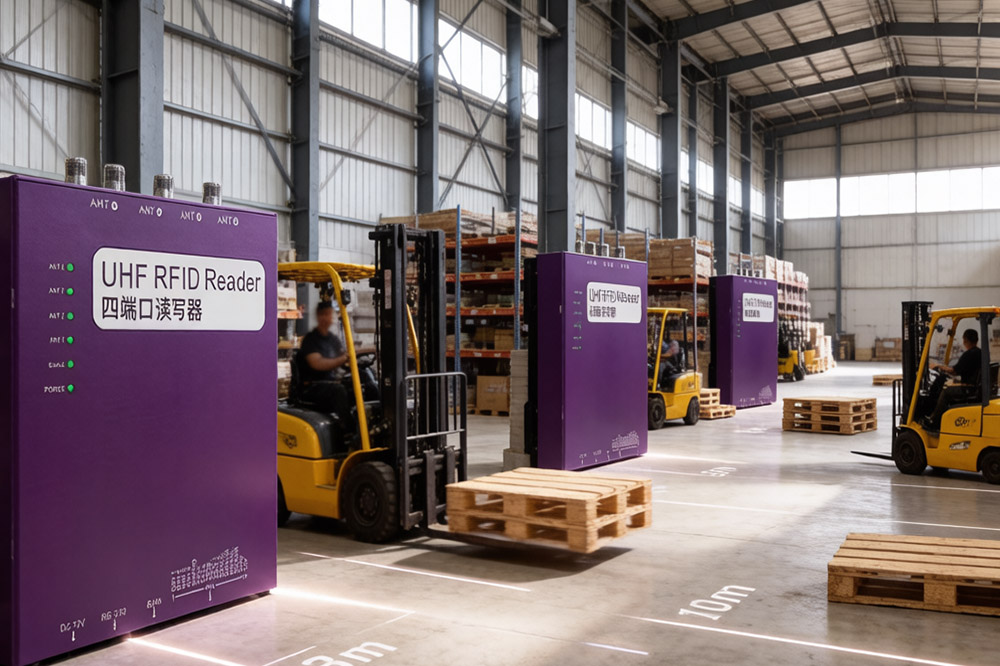

How Far Can a Passive RFID Reader Read?

This is probably one of the first questions people ask when planning an RFID project.

The interesting part is that they’re usually expecting a simple answer, something like “10 meters” or “15 meters.” Unfortunately, RFID doesn’t really work that way.

In real projects, read distance is influenced by several factors working together. The reader is only one of them.

The Reader Is Only Part of the Story

We’ve spoken with customers who wanted a 12-meter reading distance because they had seen it in another supplier’s brochure. After visiting the site, it became clear that their loading dock was surrounded by steel racks and forklifts.

Even with the same reader, the actual performance was different.

That’s why experienced system integrators rarely promise a specific distance before understanding the installation environment.

The RFID Tag Makes a Bigger Difference Than Many People Expect

People often compare readers while paying very little attention to the RFID tag.

A high-quality UHF tag mounted correctly usually performs much better than a low-cost label placed on metal without protection.

For example, a windshield tag on a vehicle can often be detected from several meters away under suitable conditions. A standard paper label attached directly to a metal toolbox may only be readable at a much shorter distance unless an on-metal tag is used.

The tag is part of the antenna system, so changing the tag can sometimes improve performance more than changing the reader.

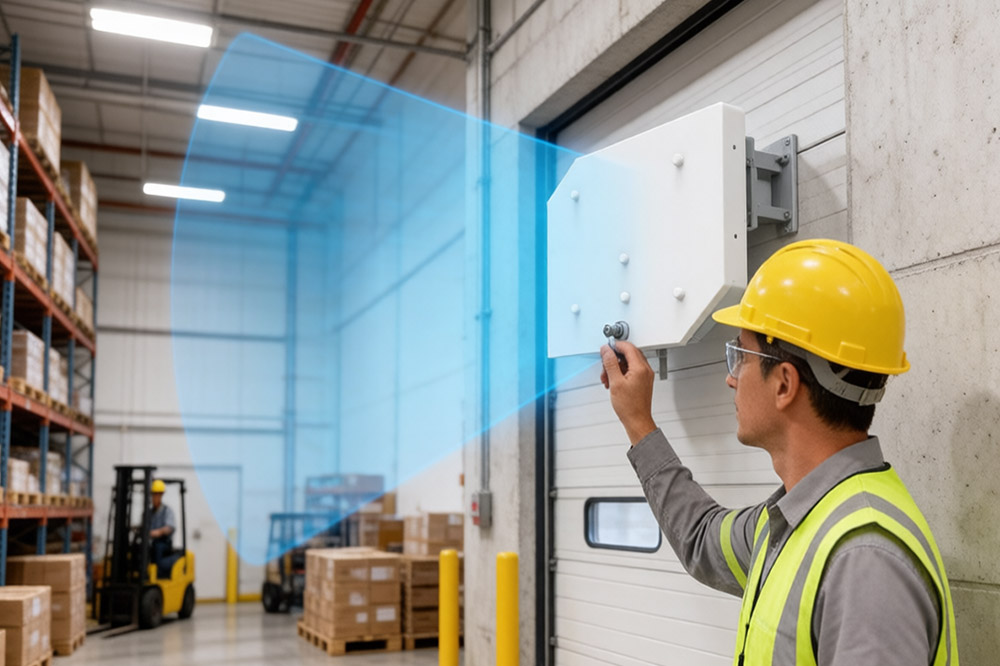

Antenna Selection Changes Everything

Another factor that is frequently underestimated is the rfid antenna.

A directional antenna concentrates RF energy into a specific area, making it ideal for parking entrances, warehouse dock doors and vehicle identification lanes.

An antenna with higher gain may extend the reading distance, but it can also enlarge the reading zone. In some logistics projects, that creates unwanted cross reads from nearby pallets or adjacent traffic lanes.

Sometimes a slightly shorter but better-controlled reading area produces more reliable results.

Installation Matters More Than Maximum Power

We’ve seen projects where installers immediately increased the transmit power because the reader wasn’t detecting every tag.

After a short inspection, the real issue turned out to be antenna placement.

The antenna had been mounted too high, causing the signal to spread beyond the intended reading area. Lowering it by less than half a meter noticeably improved tag detection without changing any software settings.

Little adjustments like this happen more often than people expect.

So, What Read Range Should You Expect?

For many passive UHF RFID systems, practical reading distances typically fall somewhere between 3 and 10 meters, although well-optimized vehicle identification systems can sometimes achieve longer ranges with the right combination of reader, antenna and tag.

That doesn’t mean every installation should aim for the longest possible distance.

If you’re tracking pallets through a warehouse door, reading only within that doorway is usually more valuable than reading fifteen meters into the storage area.

Start with the Application, Not the Number

When customers ask about RFID range today, we usually ask another question first.

“What are you trying to identify?”

A forklift, a pallet, a vehicle, a medical cart or a laundry trolley will all behave differently because their materials, tag locations and movement speeds are different.

Once those details are clear, selecting the reader and antenna becomes much easier.

CYKEO long range passive RFID readers support a wide range of logistics, parking, manufacturing and asset tracking applications. Combined with the right rfid antenna and RFID tag, they provide reliable identification while keeping the reading zone under control. If you’re unsure what reading distance your project really requires, our engineering team can recommend a solution based on your site layout rather than relying on theoretical maximum specifications.
