what is a rfid tracker: A Practical Guide to RFID Tracking

what is a rfid tracker?

A RFID tracker is a tag-and-reader system used to identify and monitor physical objects through radio frequency communication. Depending on the technology, it can record an item’s identity, movement, or presence when the tag is detected by RFID readers installed at defined locations.

The phrase what is a rfid tracker can be slightly misleading because an RFID tracker is not necessarily a GPS-style device showing an object’s exact position on a map.

In most industrial RFID deployments, the tag identifies the object and the reader identifies where and when that object was detected. Software then turns those detection events into an operational record.

GS1 defines RFID as a group of technologies using radio waves to automatically capture an object’s unique identifier. Its explanation of RFID systems describes the basic architecture as a reader and transponder/tag communicating through radio signals.

That distinction has mattered repeatedly in my RFID integration work at Cykeo. A customer may initially ask for “real-time tracking,” but after mapping the workflow, the actual requirement is often simpler: Which items entered this doorway? Which pallet reached this station? Which tools are currently in this room?

Those are RFID detection problems, not necessarily GPS problems.

How Does an RFID Tracker Work?

RFID Tracker vs GPS Tracker

An RFID tracking system normally consists of three practical layers:

1. RFID tag — attached to the physical object.
2. RFID reader and antenna — detects the tag within its reading zone.
3. Software platform — records and interprets the detection event.

When a tagged object enters a reader’s coverage area, the reader captures its identifier. The system can associate that identifier with a reader location and timestamp.

Auburn University RFID Lab describes RFID data in practical terms as providing an ID, timestamp, and reader ID when a tag is captured.

That is an important difference from GPS.

Feature	RFID Tracker	GPS Tracker
Primary identification	RFID tag	GPS-enabled device
Position method	Reader detection zone	Satellite positioning
Typical indoor use	Strong	Can be challenging
Battery required	Not always	Usually
Infrastructure	RFID readers/antennas	Satellite + cellular/network infrastructure, depending on system
Typical application	Inventory and asset movement	Vehicle/person/location tracking

RFID therefore works particularly well when a business controls the locations where an asset needs to be detected.

What Types of RFID Trackers Are Available?

Passive RFID Tracker

A passive RFID tracker does not normally contain its own radio transmitter or battery. Instead, the reader supplies energy to the tag, and the tag communicates by backscatter.

GS1 explains that passive tags draw power from the electromagnetic field generated by the reader, while active tags have their own transmitter and power source.

This makes passive RFID attractive for large quantities of relatively inexpensive objects.

Typical examples include:

• Retail merchandise
• Cartons and cases
• Warehouse inventory
• Library items
• Tools
• Industrial components
• Returnable containers

Active RFID Tracker

An active RFID tracker contains a power source and radio transmitter. It can communicate over substantially greater distances than passive RFID.

GS1 notes that active tags can have read ranges of 100 meters or more, while passive UHF RFID tags typically operate over several meters, with longer distances possible in particular configurations.

Active RFID is therefore more appropriate for some high-value assets or applications where longer-range detection is required.

What Is a Passive RFID Tracker Used For?

Passive RFID Asset Tracking

For most item-level applications, passive UHF RFID is particularly relevant.

GS1 identifies passive UHF RFID, also called RAIN RFID, as a technology used for fast asset identification, inventory, and tracking. Its guidance gives typical UHF passive read ranges of up to around 10 meters, depending on the environment.

But distance is not the only engineering variable.

When testing RFID systems at Cykeo, I pay close attention to the shape of the read zone. A reader that can technically detect a tag from ten meters away is not necessarily suitable for a warehouse doorway. If tags from the adjacent storage area are also captured, the system may record movement that never actually happened.

GS1 makes the same practical point: RFID read range depends on factors including reader power, interference, antenna characteristics, polarization, and tag orientation.

In other words, a controlled three-meter zone can be more useful than an uncontrolled ten-meter zone.

What Can an RFID Tracker Monitor?

RFID Asset Tracking Applications

RFID trackers are commonly used to monitor the presence and movement of identified objects.

Application	What the RFID System Can Capture
Warehouse	Receiving, storage, picking, shipping events
Manufacturing	Movement between production stations
Retail	Product presence and inventory status
Healthcare	Equipment movement and location events
Library	Item registration, return, and circulation
Logistics	Pallet and carton movement
Tool management	Tool identification and transfer records

The technology becomes especially useful when the same asset passes through predictable checkpoints.

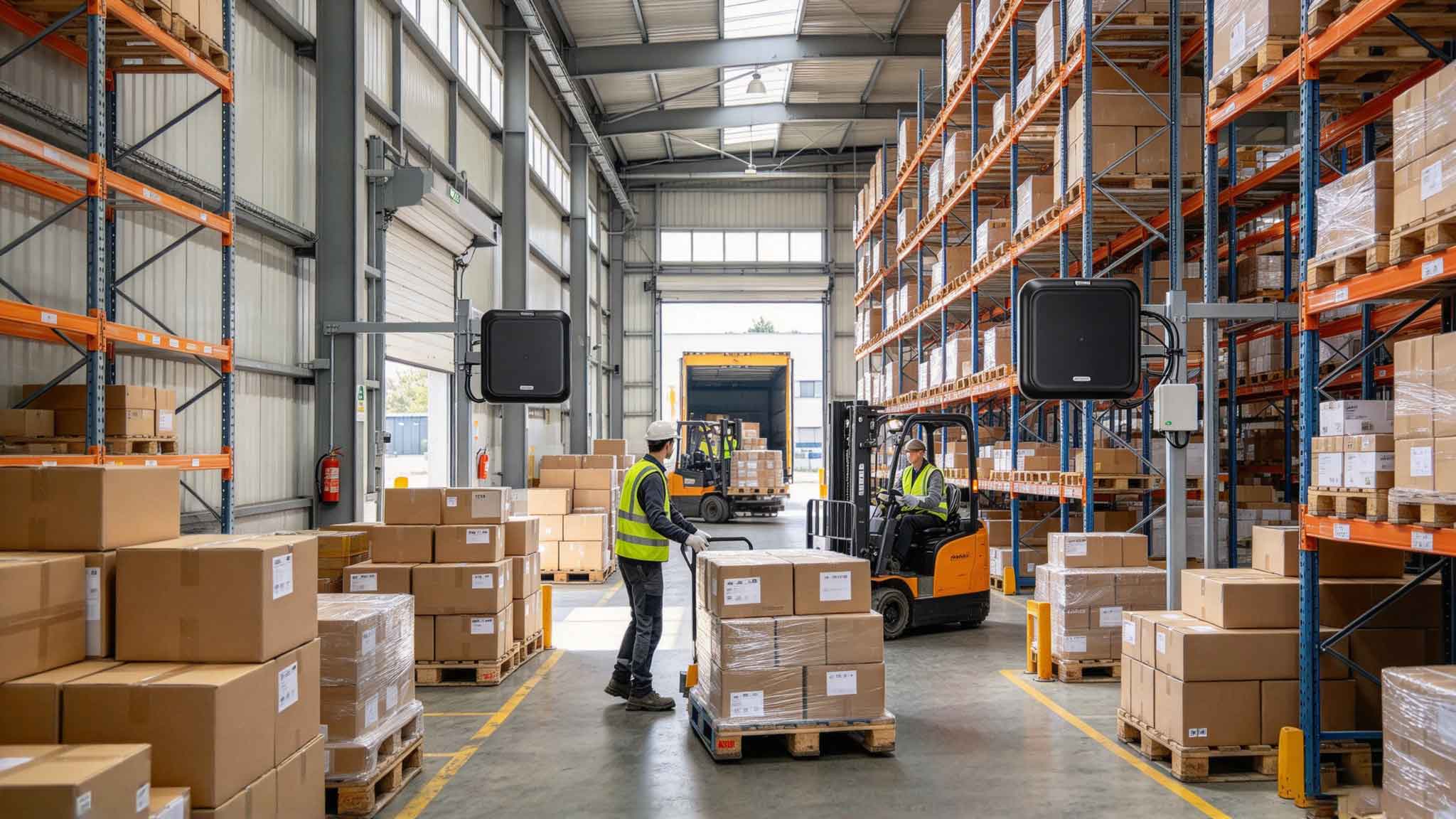

For example, imagine a pallet moving through a warehouse:

Receiving reader → storage reader → picking area → shipping reader

The system can build a movement history from those reader events without requiring an employee to manually scan the pallet at every stage.

That is where RFID tracking becomes operationally interesting.

How Accurate Is RFID Tracking?

RFID Tracking Is Not Automatically Real-Time Location

This is one of the most important points to understand.

If a tag is detected by a reader at 10:32:14, the system knows that the tag was detected within that reader’s effective zone at that time.

It does not automatically know the object’s exact coordinates between reader zones.

For applications requiring continuous location calculation, specialized active RFID real-time location systems can be used. GS1 specifically distinguishes active RFID-based real-time location systems from ordinary passive tag-reader detection.

For inventory applications, however, checkpoint-based tracking can be enough.

Auburn University research provides a useful real-world example. One field experiment involved 13 retail stores over 23 weeks and found that RFID-enabled automatic inventory-record adjustment reduced inventory record inaccuracy by approximately 26%.

That result came from a defined retail experiment; it should not be treated as a universal improvement percentage for every RFID deployment. What it demonstrates is that RFID-generated visibility can produce measurable operational effects when integrated into an appropriate inventory process.

How to Choose an RFID Tracker

RFID Tracker Selection for Real Applications

The right RFID tracker depends on what is being tracked, where it moves, and how often the system needs to detect it.

Before selecting hardware, I normally establish four things:

• Object: carton, pallet, tool, machine, vehicle, or individual product
• Environment: warehouse, factory, outdoor yard, hospital, or retail space
• Detection method: doorway, shelf, conveyor, workstation, or open area
• Tracking requirement: identification, checkpoint history, or continuous location

This sounds straightforward. On an actual installation, it rarely is.

A metal tool cabinet can reflect RF energy. A liquid-filled container can change tag performance. A doorway can produce unwanted reads from the adjacent area. These are not problems that can be solved by looking at the advertised maximum read distance.

For Cykeo RFID deployments, I prefer testing representative tagged objects in the actual environment before fixing the reader and antenna configuration.

RFID Tracker vs RFID Tag: Are They the Same?

Understanding the RFID Tracking System

The terms are sometimes mixed together, but an RFID tag and an RFID tracker are not necessarily the same thing.

An RFID tag is the identification device attached to an object. An RFID tracking system uses tags, readers, antennas, software, and defined detection points to create movement or presence records.

For example:

RFID tag:
A unique identifier attached to a pallet.

RFID reader:
A fixed device positioned at a warehouse entrance.

Tracking software:
Records that the pallet was detected at that entrance at a particular time.

The complete system creates the tracking function.

This distinction becomes particularly important when comparing RFID with GPS. A passive RFID tag can be extremely small and battery-free, but it does not independently transmit its location across a facility.

What Is the Difference Between RFID Tracking and Barcode Tracking?

RFID Tracker vs Barcode Scanner

RFID and barcode technologies can coexist, and many businesses use both.

Capability	RFID Tracking	Barcode Tracking
Identification	Radio frequency	Optical code
Line of sight	Not necessarily	Generally required
Multiple tags	Can be read simultaneously	Usually scanned individually
Automation	High potential	More operator-dependent
Rewriting	Supported by some RFID chips	Printed code cannot be rewritten
Infrastructure	Readers and antennas	Barcode scanners/cameras

The difference becomes obvious at receiving docks.

A worker manually scanning every carton has to present each barcode to the scanner. An RFID portal can potentially capture multiple tagged cartons as they pass through a controlled reading zone.

However, RFID is not automatically better for every application. If only a few items are processed and a barcode scanner already fits the workflow, RFID may add unnecessary infrastructure.

The technology should solve a process problem first.

Where Does RFID Tracking Work Best?

RFID Asset Tracking in Warehouses and Factories

RFID is particularly useful when assets repeatedly pass through known locations.

Good candidates include:

• Warehouse receiving and shipping
• Production-line checkpoints
• Tool rooms
• Equipment storage
• Library circulation
• Retail inventory
• Returnable transport containers

A fixed RFID reader can monitor a doorway or workstation continuously, while a handheld RFID reader can be used when employees need to search for or verify assets manually.

In a Cykeo deployment, I would often combine these approaches rather than forcing one device type to handle every task. Fixed readers handle predictable movement. Handheld equipment handles exceptions, inspections, and assets that do not follow a fixed route.

That combination is considerably more practical than trying to create one enormous reading zone.

What Are the Benefits of RFID Tracking?

Practical RFID Tracking Advantages

When correctly implemented, RFID tracking can provide several operational benefits:

• Automatic identification at defined checkpoints
• Reduced manual data entry
• Improved inventory visibility
• Movement history for tagged assets
• Faster inventory verification
• Integration with warehouse and enterprise software
• Scalable identification for large numbers of objects

The strongest benefit is often not simply speed.

It is consistency.

A manual process depends on someone remembering to scan an item. An RFID system can automatically capture a detection event whenever the tag enters an appropriately designed reader zone.

That difference becomes significant when an operation handles hundreds or thousands of movements every day.

What Are the Limitations of an RFID Tracker?

RFID Tracking Challenges

RFID should not be treated as a universal location technology.

Performance can be affected by:

1. Metal — can detune or reflect RF signals.
2. Liquids — may absorb or alter UHF RF energy.
3. Tag orientation — changes antenna coupling and polarization.
4. Reader placement — determines the actual detection zone.
5. Interference — nearby equipment and RF conditions can affect performance.
6. Poor software design — can turn valid tag reads into confusing business records.

There is another subtle issue: too many reads.

In a warehouse, detecting a pallet is easy. Detecting it only when it crosses a particular doorway is harder.

This is why I usually treat read-zone control as an engineering problem rather than chasing maximum range. Lowering reader power, changing antenna orientation, adding shielding, adjusting reader placement, or refining software filters can sometimes produce a better operational result than simply increasing RF output.

Frequently Asked Questions About What Is a RFID Tracker

1. What is a RFID tracker?

A RFID tracker is a system that uses RFID tags, readers, antennas, and software to identify and monitor physical assets or products. It records detection events when tagged objects enter defined RFID reading zones.

2. Does an RFID tracker use GPS?

Not necessarily. Most passive RFID tracking systems do not use GPS. They determine an asset’s presence or movement based on RFID readers detecting its tag at specific locations.

3. How far can an RFID tracker track an object?

There is no universal tracking distance. Passive UHF RFID systems commonly operate over several meters, while active RFID systems can achieve substantially longer ranges. Actual performance depends on the tag, reader, antenna, environment, and configuration.

4. Can RFID track an object in real time?

Yes, certain RFID architectures can support real-time location tracking, particularly active RFID or specialized RTLS solutions. Standard passive RFID more commonly provides location events when a tagged object passes a reader’s detection zone.

5. Can RFID trackers work indoors?

Yes. RFID is widely suited to indoor applications such as warehouses, factories, hospitals, libraries, and retail facilities. Indoor performance depends on reader placement, antenna design, tag selection, and surrounding materials.

6. What is the difference between an RFID tracker and an RFID tag?

An RFID tag is attached to the object and stores its identification information. The RFID tracking system includes the tag plus readers, antennas, software, and detection points used to monitor the object’s movement or presence.

Practical RFID Tracking Insight from Cykeo

When someone asks what is a rfid tracker, the simplest answer is “a system for identifying and monitoring tagged objects.” The engineering answer is more specific.

RFID does not magically know where an object is.

The system knows where a reader is, when that reader detects a particular tag, and what the software does with that event.

That distinction changes how a system should be designed.

For a warehouse, I would rather have four carefully controlled reader zones that correspond to receiving, storage, picking, and shipping than one extremely powerful reader attempting to cover the entire building.

For manufacturing, the useful question may be which production station last detected a component.

For tool management, it may be whether a tool has returned to its cabinet.

For retail, it may be whether inventory records reflect what is physically on the shelf.

Different questions. Same basic technology.

Frequently Asked Questions About What Is a RFID Tracker

1. What is a RFID tracker?

A RFID tracker is a system that uses RFID tags, readers, antennas, and software to identify and monitor physical assets or products. It records detection events when tagged objects enter defined RFID reading zones.

2. Does an RFID tracker use GPS?

Not necessarily. Most passive RFID tracking systems do not use GPS. They determine an asset’s presence or movement based on RFID readers detecting its tag at specific locations.

3. How far can an RFID tracker track an object?

There is no universal tracking distance. Passive UHF RFID systems commonly operate over several meters, while active RFID systems can achieve substantially longer ranges. Actual performance depends on the tag, reader, antenna, environment, and configuration.

4. Can RFID track an object in real time?

Yes, certain RFID architectures can support real-time location tracking, particularly active RFID or specialized RTLS solutions. Standard passive RFID more commonly provides location events when a tagged object passes a reader’s detection zone.

5. Can RFID trackers work indoors?

Yes. RFID is widely suited to indoor applications such as warehouses, factories, hospitals, libraries, and retail facilities. Indoor performance depends on reader placement, antenna design, tag selection, and surrounding materials.

6. What is the difference between an RFID tracker and an RFID tag?

An RFID tag is attached to the object and stores its identification information. The RFID tracking system includes the tag plus readers, antennas, software, and detection points used to monitor the object’s movement or presence.

Practical RFID Tracking Insight from Cykeo

When someone asks what is a rfid tracker, the simplest answer is “a system for identifying and monitoring tagged objects.” The engineering answer is more specific.

RFID does not magically know where an object is.

The system knows where a reader is, when that reader detects a particular tag, and what the software does with that event.

That distinction changes how a system should be designed.

For a warehouse, I would rather have four carefully controlled reader zones that correspond to receiving, storage, picking, and shipping than one extremely powerful reader attempting to cover the entire building.

For manufacturing, the useful question may be which production station last detected a component.

For tool management, it may be whether a tool has returned to its cabinet.

For retail, it may be whether inventory records reflect what is physically on the shelf.

Different questions. Same basic technology.

Conclusion

What is a rfid tracker? It is best understood as an RFID-based identification and monitoring system rather than simply a physical tracking device. Depending on the architecture, it can provide asset presence, movement history, inventory visibility, or more advanced real-time location information.

Passive RFID is particularly useful for large numbers of relatively low-cost items, while active RFID can support longer-range applications and specialized tracking requirements.

At Cykeo, the practical starting point is always the physical workflow: what moves, where it moves, where detection needs to occur, and what the business needs to know afterward.

That is what turns an RFID reader and tag into an actual RFID tracker.
