Fixed RFID Reader vs Integrated RFID Reader vs Handheld RFID Reader: Full Industrial Comparison Guide

If you stay long enough in RFID projects, you’ll notice something a bit ironic.

People often start by asking “which reader is best,” but later they end up asking a different question entirely:

“Which one actually fits this site without causing trouble?”

Because in real deployments, the difference between fixed, integrated, and handheld readers is not just technical—it quietly affects installation speed, system stability, and even how the whole workflow behaves.

Let’s break it down in a more practical way, not just datasheet style.

---

Fixed RFID Reader

Fixed readers usually show up in places where automation matters more than flexibility.

Warehouses, parking gates, production lines—these are typical examples.

What people like about them (in real projects):

• Stable performance once tuned
• Supports multiple antennas
• Good for large-scale deployment
• Works well with WMS / ERP systems

But there’s a catch that often shows up later.

Installation is not “plug and play.”

You start thinking about:

• antenna angle
• cable loss
• reading zone control
• interference from metal structures

Some engineers say fixed readers are not hard, just “sensitive.” That might be a better word.

Cost-wise: higher initial investment
Maintenance: low once stable
Installation: needs planning and tuning
Best fit: warehouse automation, parking systems, logistics hubs

---

Integrated RFID Reader

Integrated readers feel attractive at the beginning of a project.

One device, one installation point, less wiring.

In small sites, it really can be enough.

But in real industrial environments, the limitations start to appear quietly:

• Limited antenna control
• Fixed coverage area
• Hard to scale for multi-zone systems
• Less flexible for tuning

I’ve seen cases where integrators started with integrated readers, then later had to replace them with fixed systems when the project expanded.

Not because integrated readers are bad—but because the system outgrew them.

Cost-wise: medium
Maintenance: simple
Installation: very easy
Best fit: small access control, compact inventory points, light industrial use

---

Handheld RFID Reader

Handheld readers behave differently from the other two.

They don’t run systems—they support them.

Most often used for:

• inventory checks
• asset audits
• exception handling
• manual scanning tasks

In warehouse environments, handheld readers often appear when something goes wrong in the system:

Missing items, inconsistent data, or offline verification needs.

But here’s the reality that doesn’t always get mentioned:

results depend heavily on the operator

Two people scanning the same shelf can get slightly different outcomes depending on speed, angle, and discipline.

Cost-wise: lowest hardware cost
Maintenance: low
Installation: none
Best fit: audits, backup operations, temporary scanning tasks

---

A comparison that actually reflects real projects

Instead of theory, here’s how integrators usually experience them:

Fixed readers feel like infrastructure.
Integrated readers feel like convenience.
Handheld readers feel like support tools.

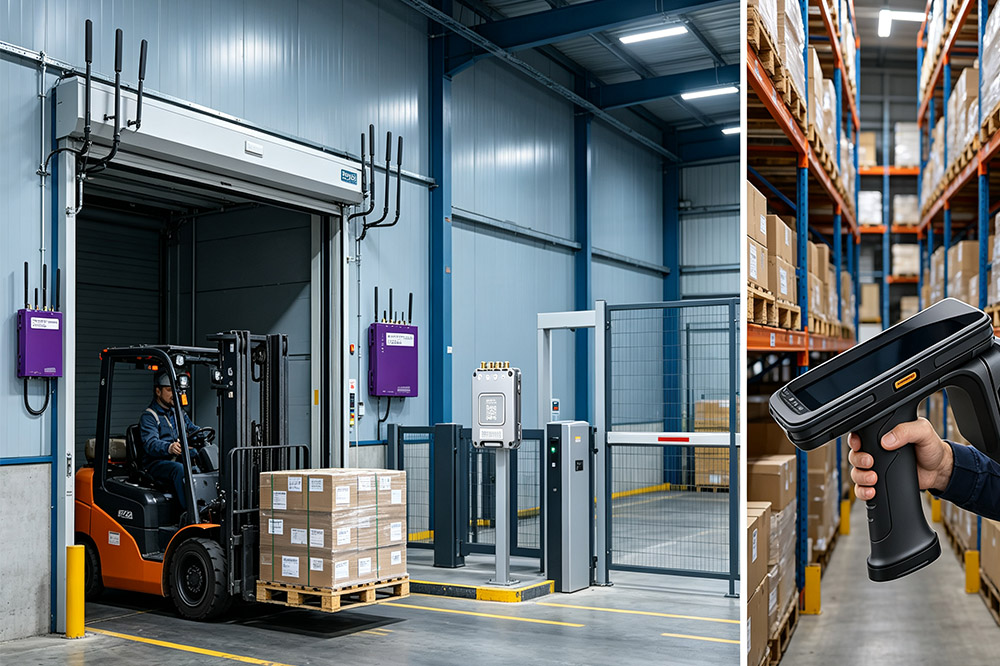

And in many real systems, they are used together instead of separately.

For example:

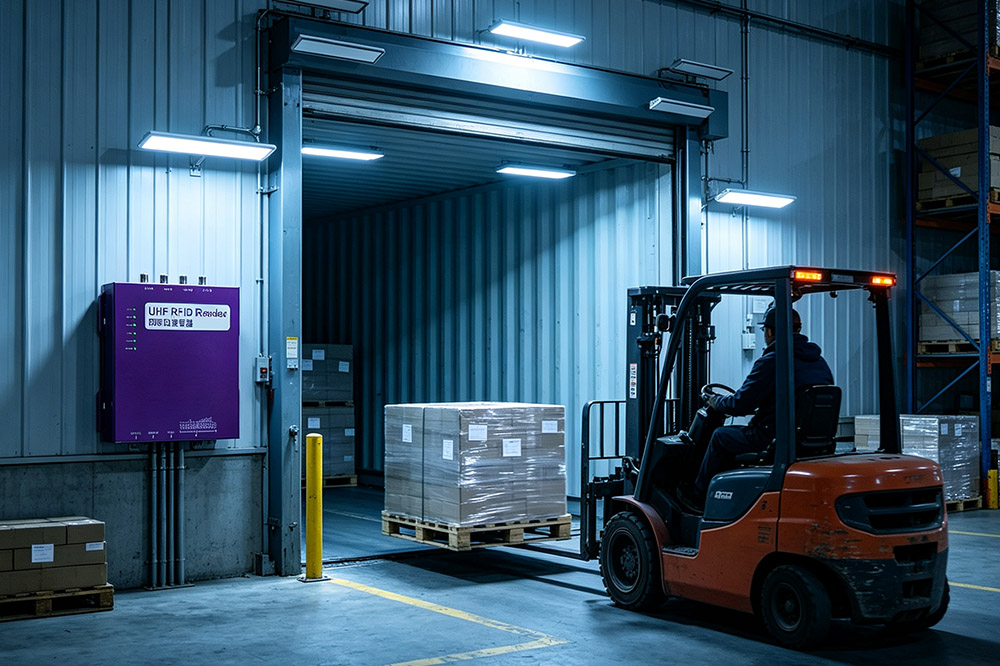

• Fixed readers handle dock doors
• Handheld readers fix exceptions
• Integrated readers cover small entry points

This combination shows up more often than any single “perfect choice.”

---

Where people usually make mistakes

It’s not uncommon to see early-stage decisions based on simplicity:

• “Let’s use handheld everywhere, it’s cheaper”
• “Integrated is enough for everything”
• “Fixed readers are too complicated”

Then later, the system runs into problems like:

• slow operation
• missed automation opportunities
• inconsistent data
• scaling issues

In most cases, the issue is not the reader itself, but the mismatch between tool and workflow.

---

So which one should you actually choose?

There isn’t a universal answer, but in real projects, the logic usually goes like this:

• If the process is automated → fixed reader
• If the point is small and simple → integrated reader
• If the work is manual or auditing → handheld reader

It sounds simple, but in practice, this is where most stable RFID systems start.

---

FAQ

Which RFID reader is best for warehouse systems?

Most warehouse automation systems use fixed RFID readers with external antennas for stable dock door or zone-based tracking.

Can handheld RFID readers replace fixed systems?

Not really. They are designed for manual operations, not continuous automated tracking.

Are integrated RFID readers good for industrial use?

They work well in small or simple setups, but may struggle in large-scale or multi-zone environments.

Can all three RFID reader types be used together?

Yes, and in many real projects they are combined for full system coverage.
