How close does RFID need to be? RFID does not require a single fixed distance. Passive UHF RFID tags can often be read from several meters away, while HF/NFC systems usually require the tag to be much closer. The practical distance depends on frequency, reader power, antenna design, tag construction, orientation, and the surrounding environment.
When someone asks how close an RFID tag needs to be, the first question should be:
Which RFID technology?
An NFC card being tapped against a reader and a UHF pallet tag being detected across a warehouse are both RFID applications, but their operating distances are completely different.
| RFID technology | Typical operating distance | Common application |
|---|---|---|
| LF RFID | Usually centimeters | Animal identification, access systems |
| HF RFID | Usually several centimeters | Cards, libraries, ticketing |
| NFC | Usually a few centimeters | Phones, payments, access |
| UHF / RAIN RFID | Several meters | Logistics, retail, asset tracking |
| Active RFID | Often tens of meters or more | Real-time asset tracking |
GS1 identifies LF RFID as operating around 125–134 kHz, HF around 13.56 MHz, and UHF around 860–960 MHz depending on regional regulations. The different frequency ranges contribute to substantially different operating characteristics.
So there is no technically useful answer such as “RFID needs to be within 1 meter.”
The correct answer depends on the system.

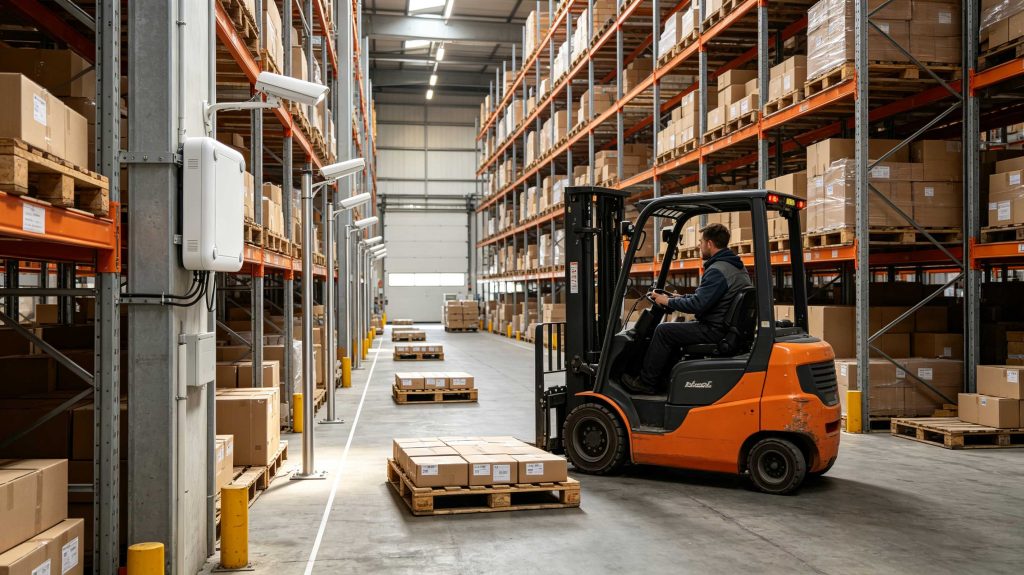

For industrial and logistics applications, UHF RFID is usually the relevant technology.
GS1 states that typical passive UHF RFID systems can read tags at distances of several meters, with up to approximately 15 meters possible in special circumstances. The actual distance depends on reader power, antenna gain, tag sensitivity, orientation, and the environment.
GS1 also notes that RFID performance is affected by the tag’s position relative to the reader antenna and by materials surrounding the tag.
That explains why two installations using the same reader can produce very different results.
A tag sitting flat on a cardboard carton may be detected several meters away.
The same tag placed against a steel machine can behave very differently.
A tag rotated sideways behind a liquid-filled container can behave differently again.
The distance printed in a product specification is therefore a reference condition, not a guarantee for every installation.
For practical planning:
These ranges should be treated as engineering starting points, not universal guarantees.
In an actual project, I prefer to define the required distance from the business process.
If a worker places a tool directly in front of a desktop reader, a 20 cm read zone may be ideal.
If a forklift passes through a warehouse doorway, several meters may be necessary. <h2>Read Range Is Not the Same as Reliable Read Range</h2>
This distinction matters more than maximum distance.
A reader may detect a tag at 10 meters once.
That does not mean the system can reliably identify that tag at 10 meters while:
GS1 recommends evaluating RFID performance under the actual environmental conditions because RF reflections, tag orientation, materials, and antenna configuration affect the readable area.
In commissioning work, I would rather specify a repeatable 4-meter detection zone than advertise a theoretical 12-meter read.
The former can become an operating requirement.
The latter is just a number.
Reader power affects how much RF energy reaches the tag.
Higher power can extend the usable read range, but more power is not automatically better. A warehouse portal needs a controlled read zone, not maximum RF coverage in every direction.
Cykeo UHF RFID reader products can provide output power up to 33 dBm, depending on the specific model and configuration.
The antenna determines where the RF energy goes.
A directional rfid antenna can concentrate energy into a defined area. A different antenna pattern may provide broader coverage but less control.
For a warehouse portal, antenna placement is often more important than simply increasing reader power.
The RFID reader and tag form an RF link.
GS1 specifically notes that tag antenna characteristics, orientation, and the materials surrounding the tag influence read range.
A small tag designed for a plastic package should not automatically be expected to perform well when attached to steel.
Polarization matters.
A tag facing the antenna may produce a strong response. Rotate the tag and the coupling can change significantly.
For moving assets, this is why antenna polarization and tag orientation should be tested together rather than separately.
Metal and liquids are particularly important.
GS1 notes that metal can reflect and diffract electromagnetic waves, while liquids can absorb RF energy and affect tag performance. Specialized tag constructions are available for these environments.
Writing is a different requirement from reading.
For a desktop RFID issuing device, long range can actually be undesirable.
Cykeo’s desktop RFID issuing platform uses a near-field antenna, with the effective reading range controlled to approximately 30 cm and the writing range controlled to approximately 10 cm.
That shorter writing zone helps the operator isolate the intended tag.
Imagine 30 RFID cards lying across a desk.
A long-range writer might detect many of them simultaneously.
A controlled near-field writer can make the programming area much more predictable.
For tag issuance, controlled distance is often more valuable than maximum distance.
The right read distance depends on what the operator is trying to accomplish.
| Requirement | Preferred RFID approach |
|---|---|
| Individual card programming | Near-field |
| Desktop tag registration | Near-field |
| Library item identification | Short to medium range |
| Retail shelf inventory | Medium range |
| Warehouse inventory | Medium to long range |
| Forklift portal | Long controlled zone |
| Conveyor identification | Controlled read zone |
| Vehicle gate | Long-range directional setup |
A desktop writer should not be judged by the same metric as a warehouse reader.
One is designed to avoid unintended tags.
The other is designed to capture moving tags automatically.
The best answer is: as close as necessary to produce a stable, controlled read zone for the application.
That might be 5 cm for an NFC interaction.
It might be 10 cm for desktop RFID writing.
It might be 3 meters for a warehouse shelf.
It might be 8 meters for a forklift portal.
And in a specialized UHF installation, substantially farther may be possible.
The mistake is specifying the distance first and the application second.
For Cykeo RFID system design, the practical sequence is the opposite: define the asset, movement, tag, operating environment, required detection zone, and desired event accuracy first; then select the reader and antenna configuration.
That is how how close does RFID need to be becomes an engineering specification rather than a generic marketing number.
There is no advantage in making an RFID reader reach as far as physically possible if the extra range creates unwanted reads.
GS1 makes this point clearly: for passive UHF RFID, read range is typically several meters and can reach 15 meters in special cases, while phased-array systems with high sensitivity can reach up to 20 meters. GS1 also emphasizes that the shape of the readable volume can matter more than the headline distance.
That distinction becomes obvious in a warehouse.
A reader mounted above a conveyor may need to identify tags passing through a narrow zone. A reader at a dock door may need a much wider field. A desktop station may deliberately require only a few centimeters.
The specification should therefore describe the read zone, not simply “maximum distance.”
| Application | Practical distance target | Main design concern |
|---|---|---|
| NFC / access card | Few centimeters | Very close coupling |
| Desktop tag programming | 5–30 cm | Tag isolation |
| RFID Smart cabinet | 5–100 cm | Preventing adjacent reads |
| Retail shelf | 0.5–3 m | Coverage and orientation |
| Warehouse shelving | 2–6 m | Antenna placement |
| Conveyor | 1–5 m | Movement and timing |
| Forklift portal | 3–8 m | Directional coverage |
| Large warehouse zone | 5–10+ m | Interference and zone control |
These are engineering targets rather than universal limits. Actual performance depends on the selected tag, antenna, reader configuration, local RF conditions, and regulatory transmit-power limits.
Impinj, for example, describes RAIN RFID as capable of reading tags from approximately 10 meters in suitable applications, while its antenna portfolio ranges from tightly controlled proximity antennas to longer-distance antennas.
Near-field RFID is useful when the objective is controlled identification rather than maximum range.
Impinj defines near-field applications as having a read range of less than 30 cm and notes that readability in near-field configurations is less affected by dielectric materials such as water or metal than far-field operation.
This is useful for:
Impinj’s current antenna portfolio includes proximity antennas designed for very tight zones. Its MatchBox antenna, for example, is specified for a 0–5 cm coverage zone, while its Mini-Guardrail antenna is specified for 0–7.5 cm.
That is a good illustration of why “RFID range” cannot be treated as one number.
Far-field UHF RFID is the familiar warehouse model.
The reader sends RF energy through an antenna. A passive tag collects enough energy to activate its chip and communicates back by modulating the reflected signal. Because no optical line of sight is required, the tag does not have to face the reader in the same way a barcode must face a scanner.
But orientation still matters.
GS1 identifies antenna directivity, antenna gain, polarization, and tag orientation as important factors affecting the readable volume.
In field testing, this is one of the first things worth checking.
A tag that reads at 6 meters while facing the antenna does not automatically give you a six-meter operational zone when the tagged carton is rotating on a conveyor.
Metal can reflect and diffract electromagnetic waves and can make conventional RFID tags difficult to read. Purpose-designed on-metal tags use different antenna structures to compensate for the material.
Water and other liquids absorb RF energy and can detune a tag antenna, reducing sensitivity and range. Specialized tag designs can reduce this effect.
A tag’s antenna needs a suitable relationship with the reader antenna’s polarization. Rotating a tag can change the available RF link margin.

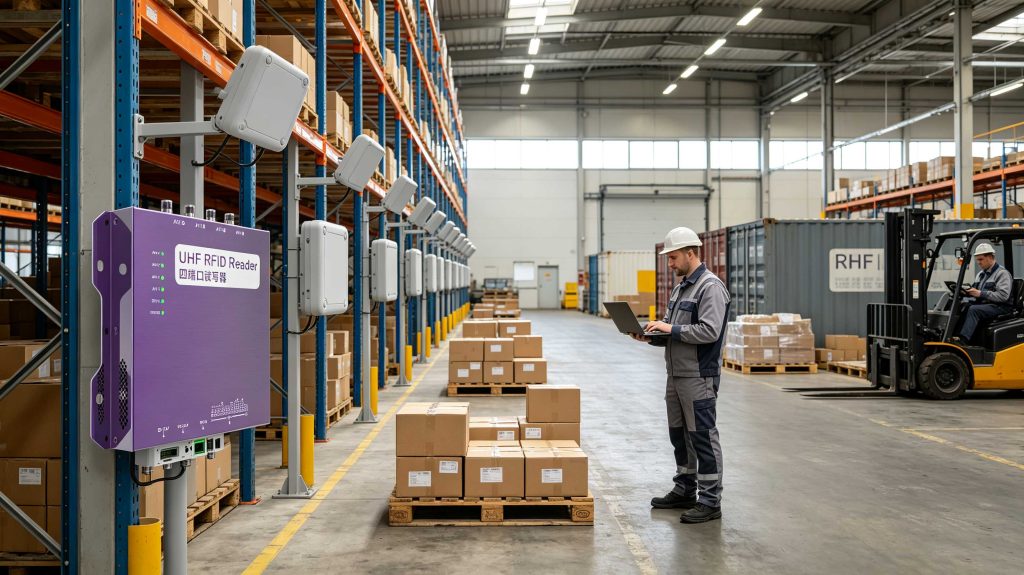

The antenna establishes the shape of the detection area. A high-gain directional antenna and a compact proximity antenna are solving completely different problems.
Reader configuration can also affect performance. Impinj reports that a 2 dB sensitivity difference in one reader-mode comparison translated into approximately a 26% difference in read range. In its test, the most sensitive mode also increased coverage area by more than 40% compared with the least sensitive modes.
That is a useful engineering reminder: range is not determined by transmit power alone.
Metal requires a different answer.
A standard label-style UHF RFID tag may perform poorly when directly attached to steel. An on-metal RFID tag is engineered specifically to maintain an RF response when mounted on conductive surfaces.
GS1 confirms that dedicated RFID tags are available for metallic objects including medical devices, beer kegs, automotive components, and aerospace parts.
In a real deployment, test the finished tag on the finished asset.
Do not validate an RFID inlay on a cardboard sample and assume the same performance after it is mounted on a steel cabinet.
That shortcut is responsible for many disappointing field trials.
Liquid creates a similar problem, but through a different mechanism.
GS1 explains that liquids absorb electromagnetic energy and can detune RFID tags, reducing their sensitivity.
A bottle containing water, for example, can behave differently from an empty bottle.
For liquid-heavy products, test:
The important measurement is not “Can the tag be read?”
It is:
At what distance can the tag be read consistently under the actual operating conditions?
RFID tracking is usually based on read events, not continuous GPS-style positioning.
A reader sees a tag.
The software records the tag ID.
The system associates the event with a reader, antenna, location, and timestamp.
Impinj describes this model directly: RAIN RFID systems combine tags, readers, antennas, and software, allowing organizations to associate tag reads with locations and times for supply-chain tracking.
That means a tracking system does not necessarily need centimeter-level positioning.
A warehouse may only need to know:
Zone A → Dock Door → Loading Area → Truck
For that application, controlled read zones can be more useful than trying to calculate an exact physical coordinate.
Cykeo’s UHF RFID portfolio covers both controlled and longer-distance identification requirements.
For applications requiring longer detection distances, fixed and integrated UHF readers can be paired with appropriately selected antennas and mounting positions.
For desktop RFID programming, the requirement is completely different. Cykeo’s desktop RFID issuing platform uses a near-field antenna with an effective read range controlled to approximately 30 cm and a writing range controlled to approximately 10 cm.
The platform also supports:
That short writing distance is intentional.
When a technician has a pile of RFID labels on a desk, the best system is not the one that reads the farthest. It is the one that reads the intended tag and not the one sitting beside it.
Before fixing the reader position, run a simple distance test.
Place one finished RFID tag at increasing distances from the antenna.
Record:
Attach the tag exactly as it will be used in production.
Repeat the test.
Move the asset through the intended read zone.
A stationary tag can produce an excellent result while a moving tag fails at the same distance.
Rotate the tag.
Do not only test the orientation that produces the strongest signal.
Test with the surrounding racks, machinery, liquids, metal, cartons, and people present.
Add the actual tag population.
A single-tag range test tells you very little about a pallet containing 50 or 100 tagged items.
Impinj likewise recommends site surveys and testing to determine suitable reader modes and performance for the actual application.
Passive UHF RFID tags are typically readable several meters away. GS1 states that up to approximately 15 meters is possible in special cases, while some phased-array systems can reach approximately 20 meters.
No. UHF RFID can operate without direct optical line of sight. However, materials, tag orientation, antenna polarization, and surrounding objects can still affect the RF link.
No. Excessive range can cause unwanted reads outside the intended zone. For tracking applications, a controlled read volume is often more valuable than maximum distance.
For a controlled desktop application, a short range is generally preferable. Cykeo’s desktop RFID platform controls effective reading to approximately 30 cm and writing to approximately 10 cm.
It can. Metal reflects and diffracts electromagnetic waves and can interfere with conventional RFID tags. Purpose-designed on-metal tags are available for metallic assets.
Yes. Water and other liquids can absorb RF energy and detune RFID antennas, reducing tag sensitivity and read performance. Specialized tag designs can mitigate some of the effect.
There is no universal number. Many warehouse applications work in the multi-meter range, but the required distance should be established from the aisle geometry, tag type, antenna pattern, asset orientation, movement speed, and required read-zone accuracy.
How close does RFID need to be? Close enough to create a reliable read zone for the actual application.
For NFC, that may mean a few centimeters.
For a desktop RFID writer, it may mean around 10 cm for controlled writing.
For warehouse UHF RFID, it may mean several meters.
GS1’s published guidance reinforces the point: UHF passive RFID commonly operates over several meters, with exceptional systems reaching substantially farther, but antenna characteristics and tag orientation determine the actual readable volume.
The useful specification is therefore not simply “maximum RFID range.”
It is:
Required distance + required coverage shape + tag orientation + asset material + movement + read reliability.
That is the combination worth testing before deployment.
CYKEO CYKEO-D1LA USB RFID Reader is a compact desktop solution with near-field control for precise tag reading and encoding. Powered by USB, supporting ISO 18000-6C, and built for stable batch writing, this usb rfid tag reader fits retail, libraries, offices, and controlled RFID encoding tasks.
CYKEO CYKEO-D1L RFID scanner USB is a compact desktop UHF RFID scanner designed for short-range tag writing and verification. This usb rfid scanner supports batch encoding, stable 0–26 dBm output, and works across Windows, Linux, and Android systems.
CYKEO CYKEO-D1C USB RFID Card Reader is a near-field UHF desktop writer designed for secure, short-range tag encoding. With USB-C connectivity and stable 26 dBm output, this rfid reader usb c is ideal for badge issuance, label encoding, and controlled desktop RFID workflows.
CYKEO CYKEO-D2L RFID Reader USB is a compact desktop encoder built on the Impinj R500 chip. With near-field control and stable USB power, this usb rfid card reader delivers precise tag writing for offices, retail counters, and small-scale logistics encoding tasks.
CYKEO CYKEO-D3L USB RFID Tag Reader delivers stable UHF tag reading and writing for daily desktop and light industrial tasks. Designed for controlled short-range operation, this USB RFID Tag Reader works reliably with rfid tag and reader systems in libraries, tool tracking, and inventory registration.
The CYKEO CYKEO-D4L UHF RFID Tag Reader is a stable Desktop RFID Reader designed for accurate tag registration, borrowing, and return workflows. Built with the Impinj R2000 chip, this UHF RFID Tag Reader delivers controlled short-range reads for libraries, asset tracking, and inventory management environments.
The CYKEO CYKEO-D5L Desktop RFID Card Reader is a stable UHF RFID Card Reader designed for controlled short-range reading and writing. Built for libraries, tool rooms, and asset desks, this UHF RFID Card Reader supports dense tag handling, secure data processing, and easy USB integration.
The CYKEO CYKEO-D6L RFID Reader Writer is a heavy-duty Desktop RFID Reader designed for short-range, high-accuracy tag programming. Built for libraries, labs, and asset desks, this RFID Reader Writer supports batch processing, stable 33dBm output, and seamless integration with existing management systems.
Cykeo CYKEO-D8B UHF RFID tunnel and RFID Desktop Reader features 30+ items batch reading,
Cykeo CYKEO-D8A embedded RFID badge reader offers 30+ tags/sec scanning, 20cm anti-crosstalk precision, and DC 12V power for unmanned stores, warehouses, and smart inventory systems.
Cykeo’s CYKEO-D8C UHF RFID gate reader achieves 200-tag/batch scanning with adjustable power control, ideal for retail inventory and smart warehouse management.
CYKEO Embedded RFID Modules are designed for compact industrial and IoT devices that require stable UHF performance. These UHF RFID Modules support global protocols, flexible power control, and reliable multi-tag reading for smart cabinets, production lines, and asset tracking systems.
CYKEO Embedded RFID Module is built for compact IoT and industrial devices that need stable UHF performance. This UHF module supports global protocols, low power operation, and reliable multi-tag reading for smart lockers, production lines, and always-on RFID systems.
CYKEO CYKEO-M1 drone rfid module is a compact UHF RFID reader module designed for drones and UAV platforms. It supports long-range aerial scanning, fast multi-tag reading, and stable performance in wind, vibration, and outdoor environments.
CYKEO CYKEO-M4 RC522 RFID Module is an industrial-grade UHF RFID reader with 4 ports, supporting ISO, EPC, and GB protocols. High-speed, accurate reading for IoT, automation, and warehouse applications.
CYKEO CYKEO-M8 Module RFID is an 8-port UHF R2000 RFID Module designed for high-density, multi-tag environments. Stable 33dBm output, ISO & GB protocol support, ideal for warehouses, factories, and automated systems.
CYKEO CYKEO-M16 RFID Module is a 16-port UHF RFID reader module based on the R2000 chipset. Designed for dense tag environments, it supports ISO and GB standards and delivers stable multi-antenna control for industrial automation.
The CYKEO CYKEO-M16L RFID Reader Module is a 16-channel UHF RFID core designed for dense tag environments. With adjustable 33dBm output, multi-protocol support, and stable multi-antenna control, this RFID Tag Reader Module fits industrial automation, warehouse systems, and large-scale IoT deployments.
CYKEO CYKEO-M8L module RFID is a compact industrial UHF module built for dense tag and multi-antenna environments. With 8 RF ports, adjustable 33 dBm output, and ISO & GB protocol support, it is widely used in factories, warehouses, and automated tracking systems.
CYKEOCYKEO-M4L UHF RFID Module is a compact 4-channel RFID tag reader module designed for dense tag environments. Supporting ISO and GB protocols, it delivers stable reads up to 10 meters for industrial and IoT systems.
Cykeo CYKEO-A11 UHF RFID reader antenna delivers 11dBi gain, 840-960MHz frequency range, and IP65 ruggedness for retail, logistics, and industrial RFID systems. Features low VSWR and easy installation.
CYKEO Antenna RFID Reader delivers stable long-range UHF performance with a 10.5dBi directional design, built for warehouses, conveyor portals, and industrial RFID systems. This rfid reader antenna provides 20m+ read distance and rugged IP67 protection.
Cykeo CYKEO-PHF3 industrial HF RFID Antenna offers 24-point dynamic tracking, ISO 14443A/15693 protocols, metal-environment stability for archives/libraries/manufacturing.
Cykeo CYKEO-A5B industrial Linear RFID Antenna delivers 5dBi gain, ≤1.5:1 VSWR, and IP65 rugged design for warehouse, production line, and logistics UHF systems.
Cykeo’s CYKEO-B12 Long Range RFID Antenna delivers 15m+ read range with 12dBi gain, IP65 rugged design, and global 840-960MHz UHF support. Ideal for warehouse/logistics asset tracking.
Cykeo CYKEO-B10 Long Distance RFID Antenna offers 10dBi gain, 840-960MHz frequency range, IP65 rating, and 20m+ coverage for logistics/warehousing/ETC systems. Low VSWR ensures stable signal transmission.
Cykeo CYKEO-A6 UHF RFID panel antenna features 6dBi gain, 840-960MHz broadband, IP65 metal-ready housing for logistics/smart retail. 18mm ultra-thin design with tool-free mounting.
Cykeo CK-A3 industrial antenna RFID UHF offers 5m+ tag detection, ≤1.3:1 VSWR, IP65 rugged design, and global UHF spectrum compatibility (840-960MHz) for warehouses, factories, and retail.
Cykeo CYKEO-B5 directional RFID antenna provides 5dBi gain with 60° narrow beamwidth for precise inventory tracking. IP65-rated, global UHF frequency support, and low VSWR.
Create your own high-performance DIY RFID antenna! 5dBi gain, 840-960MHz tunable, step-by-step guides. Compatible with Arduino, Raspberry Pi, and commercial UHF readers.
Cykeo CYKEO-A7 Flexible RFID Antenna features 840-960MHz wideband tuning, 7dBi gain, and IP68 rating for medical/retail/industrial curved surface deployments. 98% read accuracy with peel-and-stick installation.
Cykeo CYKEO-B5A industrial Passive RFID Antenna delivers 5dBi gain, 70° beamwidth, and -40°C~55°C operation for warehouses/smart cabinets. Compatible with Zebra/Impinj readers.
Cykeo’s CYKEO-A9B High Gain RFID Antenna delivers 15m+ read range with 9dBi amplification. Features IP54 rugged design, 840-960MHz bandwidth, and 80° beamwidth for warehouse/manufacturing RFID systems.
Cykeo’s enterprise-grade 8dbi Impinj RFID Antenna 10m+ read range with 840-960MHz tuning. Features IP65 housing, 1.4 VSWR, 35° beamwidth for retail/warehouse RFID systems.
Cykeo CYKEO-A9 industrial UHF RFID antenna delivers 9dBi gain, 840-960MHz frequency range, and IP65 protection for warehouse/logistics/retail RFID systems. Features N-type connector and ≤1.3:1 VSWR.
CYKEO UHF RFID Antenna built for long-distance and industrial applications. This antenna rfid uhf delivers strong gain, outdoor durability, and reliable tag performance in warehouses, yards, and vehicle ID systems.
CYKEO Antenna RFID delivers reliable long-range UHF performance in warehouses, retail shelves, and cold-chain environments. This compact uhf rfid antenna provides stable reads with circular polarization and ultra-wide 840–960 MHz support, ideal for industrial tracking, smart shelves, and asset monitoring.
Cykeo’s CYKEO-C8 UHF RFID antennas delivers 8dBi gain, 840-960MHz full-band coverage, and IP65 ruggedness for manufacturing/warehouse RFID systems. Industrial RFID Antennas Features
Cykeo’s 8dBi UHF RFID antenna and reader kit delivers 10m+ range, 840-960MHz broadband, and IP65 ruggedness for factories, warehouses, and logistics. ISO 18000-6C & EPC Gen2 certified.
Cykeo CYKEO-A9A industrial UHF RFID reader and antenna kit delivers 10m range, 500 tags/sec, IP65 ruggedness for manufacturing/logistics. Supports EPC Gen2, ISO18000-6C.
Cykeo’s CYKEO-A12C UHF Large RFID Antenna delivers 12dBi gain, 840-960MHz global frequency, IP65 ruggedness for logistics/warehousing/automotive. 40° beamwidth ensures stable 15m+ tag reads.
CYKEO Near Field RFID Antenna provides precise 5–30 cm reading for shelves, cabinets, and workstations. This compact rfid shelf antenna delivers stable short-range performance around metal and clutter, ideal for pharmacies, libraries, and electronics sorting.
Cykeo CYKEO-C1 industrial Forklift RFID Reader features 20m read range, 600 tags/sec scanning, Impinj R2000 chipset, and IP67 rugged design. Ideal for warehouse logistics and manufacturing. Supports ISO 18000-6C/6B protocols.
Cykeo CYKEO-R4 industrial UHF RFID Fixed Reader features 4 TNC ports, 400+ tags/sec speed, IP67 housing, and global frequency compliance for vehicle inspection, smart warehouse, and asset management systems.
Cykeo’s CYKEO-R4L 4-port Fixed UHF RFID Reader delivers 400 tags/sec scanning, ISO 18000-6C compliance, and IP65 protection. Ideal for warehouse automation, manufacturing WIP tracking, and logistics management.
CYKEO CYKEO-R8L Fixed RFID Reader with 8-port UHF design, Impinj-based RF core and up to 20m read range. An industrial Fixed RFID Reader for vehicle inspection, warehouse portals, smart manufacturing lines and secure access checkpoints.
RFID Fixed Reader from CYKEO – the CYKEO-R16L 16-port UHF fixed reader for warehouses, smart cabinets, and production lines. Long-range, multi-tag reading, stable performance for 24/7 industrial use.
Discover how Impinj RFID reader solutions improve healthcare asset tracking, medical equipment management, and hospital inventory visibility with RFID automation.
More
Curious why more tires are starting to use RFID? This article explains, in plain language, how the chip is built into the tire, how it helps factories, logistics, and fleets, and why it makes managing tires way easier from production to recycling.
More
Discover the 10 essential RFID reader features for warehouses in 2025. Learn how UHF technology, IoT integration, and AI-powered analytics boost efficiency. Get expert insights now.
More
can rfid reader read multiple tags at once? Learn how UHF RFID readers identify multiple tags simultaneously and improve inventory, checkout, and tag-writing efficiency.
More
Cykeo RFID IoT Solution Products R&D Manufacturer
