In many factories, tools do not stay inside one department.
A maintenance technician may borrow a tool from the central tool crib. A production engineer may need the same equipment for a short task. Later, another department may request it.
The tool itself has not changed.
What changes is who is responsible for it and where it is being used.
Traditional tool borrowing may depend on paper forms, spreadsheets, verbal requests, or messages between employees. These methods can become difficult to follow when tools are shared across departments and shifts.
An RFID tool cabinet can connect the physical tool with a digital borrowing record.
The system can record the tool ID, borrower, department, checkout time, expected return time, current status, and latest known location. When the tool comes back, the RFID system can update the transaction and return the tool to the appropriate status.
This creates a clearer borrowing history without requiring staff to manually identify every tool.
RFID tool borrowing management is a system for recording and controlling temporary tool use.
Instead of viewing a tool only as an inventory item, the system treats it as an asset that can move between users.
A typical record may include:
This creates a digital relationship between the tool and the person currently responsible for it.
A small tool room may handle borrowing with a simple sign-out sheet.
The situation changes when:
A simple question such as:
“Who has the torque wrench?”
can become surprisingly difficult to answer.
The problem is often not that the tool is physically lost.
The problem is that the borrowing record is incomplete.

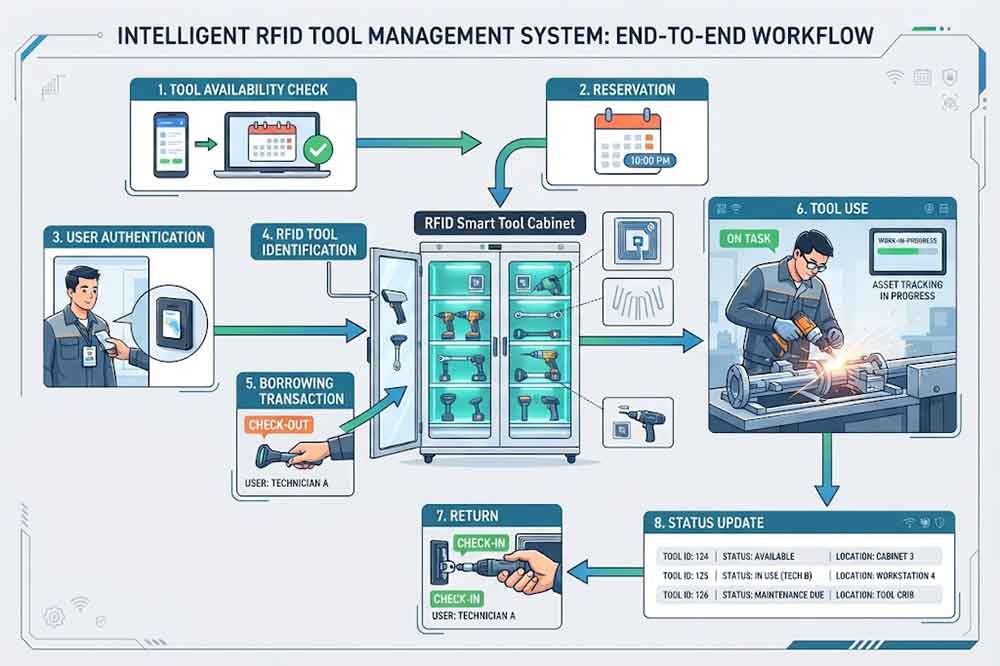

A practical workflow can look like this:
Check availability → Request tool → Authenticate user → Borrow tool → Record transaction → Use tool → Return tool → Update status
Each step has a specific purpose.
The user first checks whether the tool is:
This avoids unnecessary trips to the tool room.
The system identifies who is borrowing the tool.
Authentication can use an employee card, RFID credential, PIN, or another supported method.
The RFID reader detects the tagged tool.
The system records the transaction.
The tool status can change from:
Available → Borrowed
A return time or borrowing period can be assigned when appropriate.
When the tool comes back, RFID detection can close or update the borrowing record.
The terms “borrowing” and “checkout” are sometimes used interchangeably, but they can describe different business concepts.
Checkout focuses on the physical transaction.
Borrowing focuses more on responsibility and the temporary relationship between the tool and the user.
For example:
Technician A checks out a tool at 9:00 AM.
This is a transaction.
Technician A is responsible for the tool until 1:00 PM.
This describes the borrowing relationship.
An RFID tool management system can support both.
Not every tool needs the same lending period.
A factory may define different rules.
| Tool Type | Example Borrowing Rule |
|---|---|
| General hand tool | Shift-based |
| Shared maintenance tool | Several hours |
| Specialized equipment | Work-order based |
| High-value tool | Manager-approved |
| Calibration instrument | Task-based |
| Emergency tool | Immediate issue, rapid return |
These are examples rather than universal rules.
The correct borrowing period should come from the actual workflow.

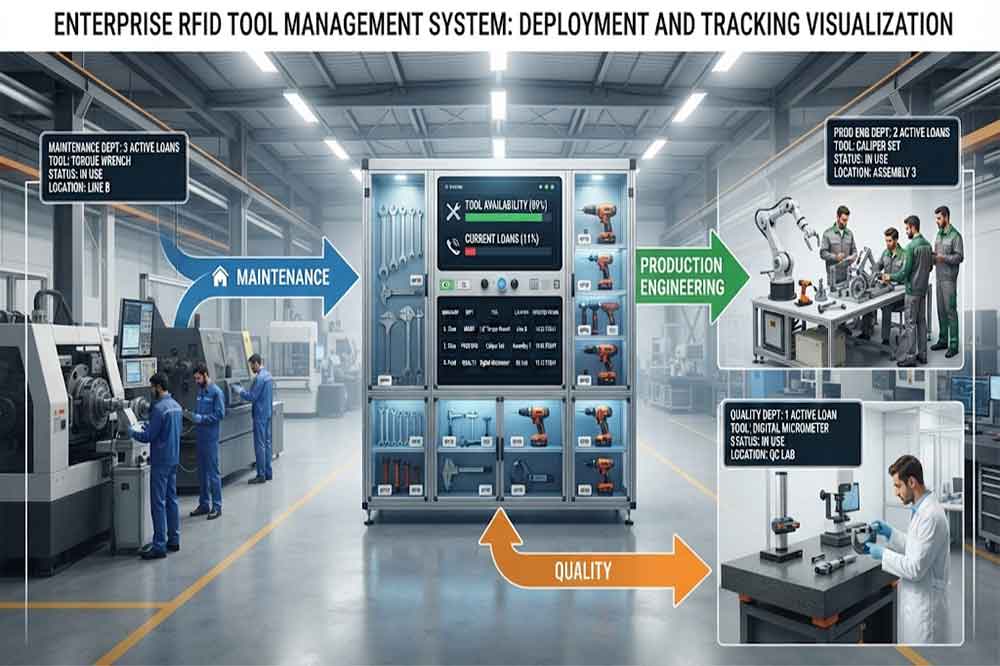

Cross-department lending is common in larger factories.
For example:
Central Tool Crib → Maintenance Department
or:
Central Tool Crib → Production Engineering
or:
Quality Department → Maintenance
The tool may temporarily belong to another department operationally while remaining owned by the original department.
This distinction can be useful.
The system can record:
This creates better visibility without changing asset ownership records.

A borrowing record should answer a simple question:
Who is currently responsible for this tool?
This does not necessarily mean the employee is personally liable for every problem.
It means the system can identify the person associated with the current transaction.
That information helps supervisors investigate:
For more detailed accountability workflows, see RFID tool cabinet for high-value tools.
Some tools are used by many people.
Examples include:
When demand is high, availability becomes important.
A user should ideally see whether the tool is:
Available
Reserved
Borrowed
Under maintenance
Restricted
This can reduce duplicate requests and unnecessary trips.
For availability planning, see RFID Tool Cabinet Tool Reservation and Availability Management.
Reservation and borrowing should be connected but not treated as the same event.
A reservation means:
“I plan to use this tool.”
A borrowing transaction means:
“I have taken responsibility for this tool.”
A practical workflow can therefore be:
Reservation → Availability confirmation → RFID checkout → Borrowing record → Return
If the reserved tool is not collected within a defined period, the reservation can expire or require review.
This helps prevent tools from appearing unavailable indefinitely.
An overdue borrowing event occurs when the expected return time has passed.
For example:
Expected return: 14:00
Current time: 15:30
The software can change the status or trigger a notification.
Possible escalation:
User reminder → Supervisor notification → Exception report
The escalation rules should reflect the importance of the tool.
A common hand tool may only require a reminder.
A critical shared instrument may require faster intervention.
For alert design, see RFID Tool Cabinet Alerts and Notifications.
A borrowing system should not track only time.
Tool condition can also matter.
When a tool returns, it may be:
The RFID event identifies the tool, while the software can store or retrieve its condition record.
This is especially useful for precision tools.
See RFID Tool Cabinet for Tool Calibration for related management workflows.
A tool may be borrowed from one cabinet and returned to another.
For example:
Central Tool Crib → Production Line A → Maintenance Room
The system should retain the same tool identity throughout the movement.
The latest transaction can provide information about:
This becomes more important as factories add multiple RFID cabinets.
See RFID tool cabinet for multi-location tool management.

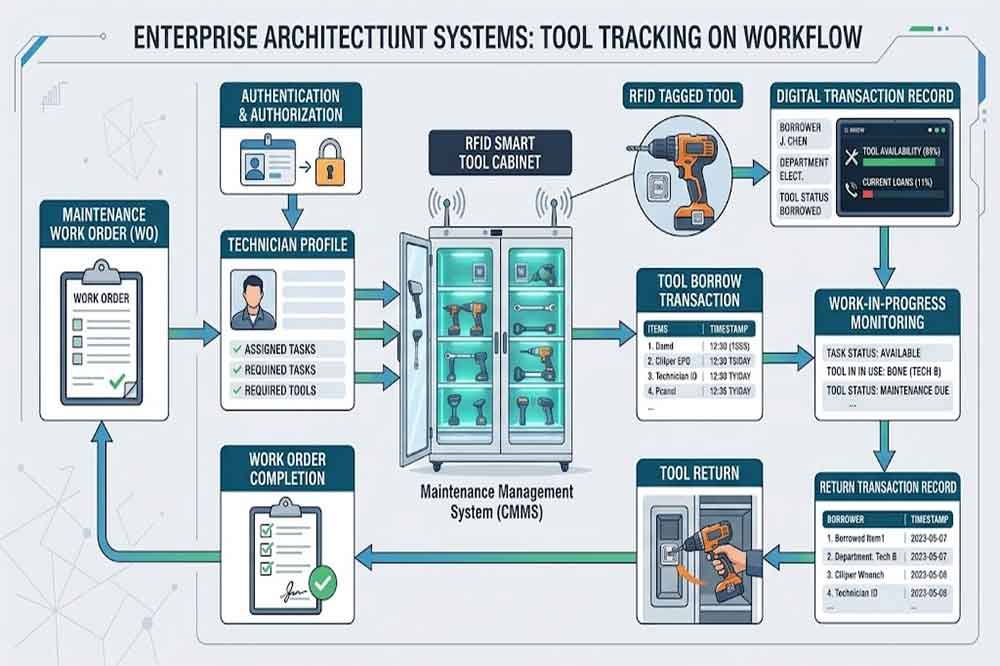

Tool borrowing can be associated with a specific maintenance or production task.
For example:
Work Order #1058
→ Technician requests torque wrench
→ Tool borrowed from RFID cabinet
→ Tool linked to work order
→ Maintenance work completed
→ Tool returned
→ Return recorded
This creates a connection between tool usage and the job being performed.
It can also help managers understand which tools are repeatedly required for certain types of work.

A digital borrowing history can provide useful operational information.
For each tool, the system may show:
This can help identify tools that are heavily shared or frequently unavailable.
For broader analysis, see RFID Tool Cabinet Reporting and Analytics.
Not every employee needs the same borrowing rights.
For example:
Can borrow standard maintenance tools.
Can approve selected restricted tools.
Can borrow specialized measurement equipment.
May have temporary access.
Can manage tool and user records.
Role-based rules can make borrowing more controlled.
For detailed permission management, see RFID tool cabinet access control.
A clear escalation process is useful.
Notify the borrower.
Notify the responsible supervisor if the tool remains overdue.
Mark the tool as an overdue or missing-tool exception.
Check the latest transaction and known location.
Return, locate, replace, repair, or otherwise close the exception.
The exact escalation should depend on the tool and business process.
In a tool crib, RFID borrowing can reduce repetitive administrative work.
Instead of manually writing:
Tool 105 — John — Maintenance — 10:15 AM
the system can associate the information digitally.
The tool crib employee can then focus more on:
This is particularly useful when tool traffic is high.
For broader tool crib operations, see RFID Tool Cabinet for Tool Crib Management.
Different tools have different borrowing requirements.
Without an expected return, overdue management becomes difficult.
A reservation does not prove that the tool has physically left the cabinet.
Ownership and borrowing department may be different.
A returned tool may not be ready for immediate reuse.
Excessive approvals can slow down maintenance work.
An overdue tool needs a defined next action.
Start with tools that frequently move between employees or departments.
Set appropriate periods and permissions.
Test tags on actual tools.
Define how employees identify themselves.
Set borrowing, return, inspection, and exception rules.
Integrate with CMMS, ERP, MES, WMS, or custom systems if required.
Use actual employees and actual tools.
Monitor:
Simplify workflows where possible before wider deployment.
For testing methodology, see RFID Tool Cabinet Pilot Project.
Before deployment, confirm:
A clear borrowing policy makes the RFID configuration much easier.
Yes. When RFID tool identification is combined with user authentication, the system can associate the tool with the employee who borrowed it.
Yes. The system can record the borrowing department separately from the tool’s owning department when the workflow requires it.
Yes. If an expected return time is configured, software can identify overdue transactions and generate reminders or alerts.
No. A reservation indicates planned use, while borrowing records actual possession or checkout. The two can be connected in one workflow.
Potentially, yes. A multi-cabinet system can record the new location if the software and cabinet architecture support cross-location returns.
