Long Range RFID Scanner Reading Distance Explained: What You Need to Know Before Buying

When customers ask about a long range RFID scanner, the first question is usually simple:

“How many meters can it read?”

It sounds like a specification question, but in real projects, the answer is rarely just a number.

A long range RFID scanner may read a tag from 10 meters away in an open warehouse, but the same device may struggle at 3 meters when there are metal shelves, liquid products, or dense packaging around.

This is something we often see when discussing RFID projects with system integrators and distributors. Many buyers focus on the maximum reading distance listed in the product datasheet, but the actual working distance depends on many small details.

The reader, antenna, RFID tag, environment, and application design all work together.

---

So, How Far Can a Long Range RFID Scanner Actually Read?

For most UHF RFID systems operating in the EPC Gen2 / ISO18000-6C frequency range, a long range RFID scanner can typically achieve:

• Handheld RFID scanner: around 5–15 meters
• Fixed RFID reader with external antenna: around 10–30 meters
• High-power industrial RFID system: sometimes beyond 30 meters in ideal conditions

But these numbers are laboratory or open-area conditions.

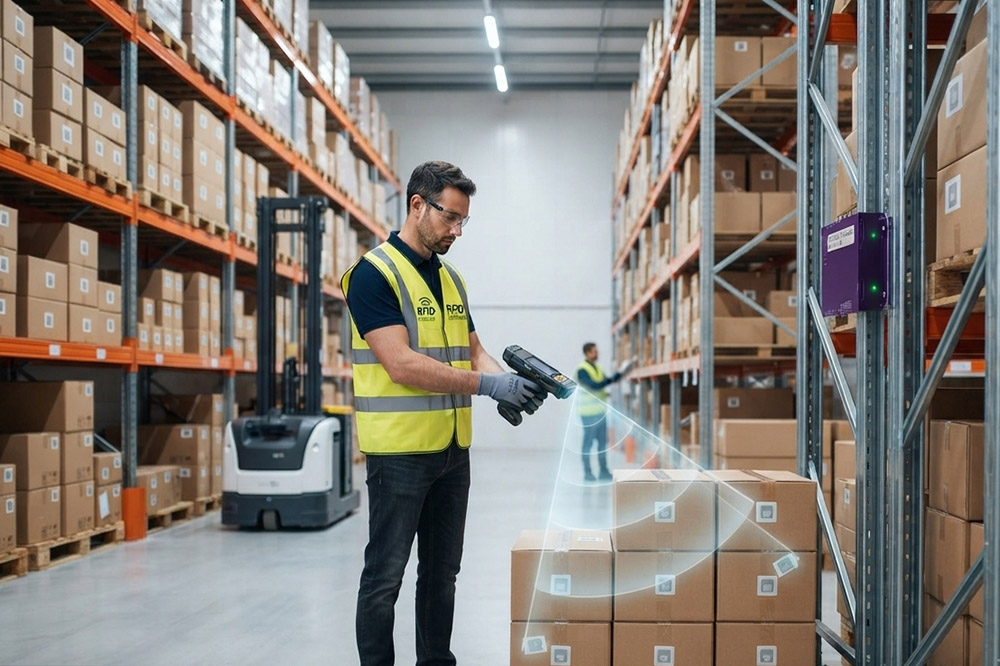

For example, imagine a warehouse worker using a handheld RFID scanner to check pallets.

If the pallet is placed in an open loading area, the scanner may easily identify hundreds of tags several meters away.

Move the same pallet between metal racks, and the reading distance can drop quickly because RFID signals are affected by reflection and interference.

So when selecting an RFID scanner, the question is not only:

“How far can it read?”

A better question is:

“Can it reliably read tags in my actual working environment?”

---

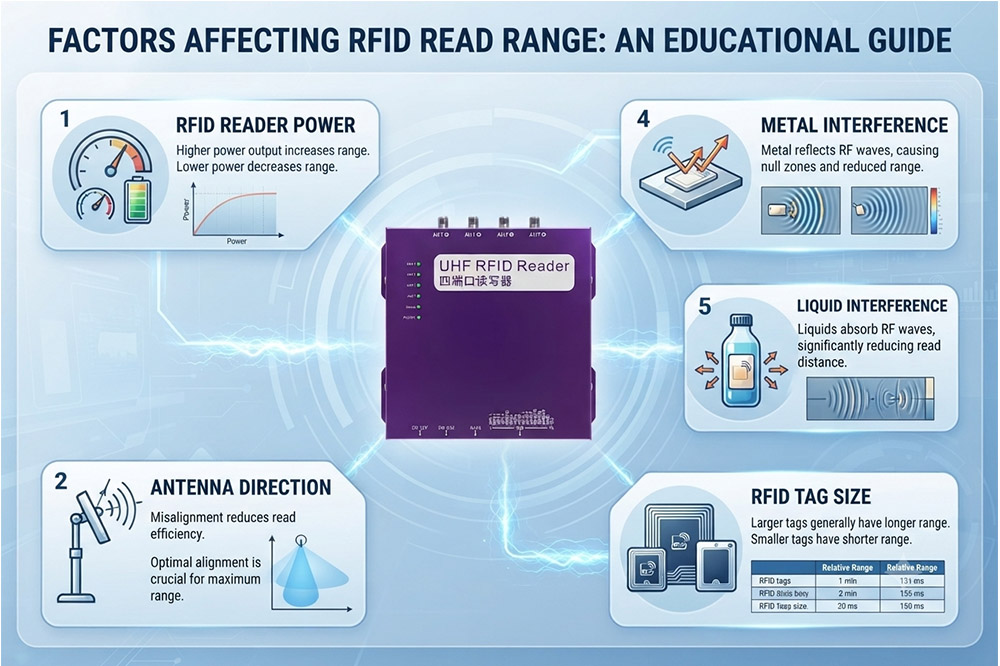

Why RFID Reading Distance Is Not Fixed

1. RFID Reader Power Affects Distance

The first factor is reader output power.

A stronger RFID reader can generate a stronger RF field, allowing the signal to reach farther distances.

Most UHF RFID readers allow adjustable power settings. Higher power usually means longer reading distance, but it also increases the possibility of reading unwanted tags nearby.

For example, in a warehouse entrance gate, reading tags from 10 meters away may sound impressive. However, if the system also reads items inside nearby shelves, the data becomes inaccurate.

Sometimes a shorter range with better control works better than maximum distance.

---

2. RFID Tag Type Makes a Big Difference

Many people compare RFID scanners but forget the RFID tag itself.

The scanner does not communicate with empty space. It communicates with a specific RFID tag.

Different tags have different performance levels.

A large warehouse pallet tag usually has a bigger antenna and can achieve longer reading distances.

A small RFID label attached to a product may only work within a few meters.

Common factors affecting tag performance include:

• Antenna size
• Tag design
• Chip sensitivity
• Installation position
• Material around the tag

For example, a UHF RFID tag attached directly to a metal machine surface may have almost no reading distance unless it is a special on-metal RFID tag.

---

Metal and Liquid: The Two Biggest Challenges

In real RFID deployments, metal and liquid are often the biggest problems.

Metal can reflect RFID signals and create unexpected reading areas.

Liquid absorbs RF energy, reducing communication efficiency.

A typical example is a factory tracking tools.

A normal RFID label may work perfectly on cardboard boxes, but when attached to a steel tool cabinet, the reading distance becomes very poor.

This is why professional RFID suppliers usually recommend testing tags together with readers before mass production.

---

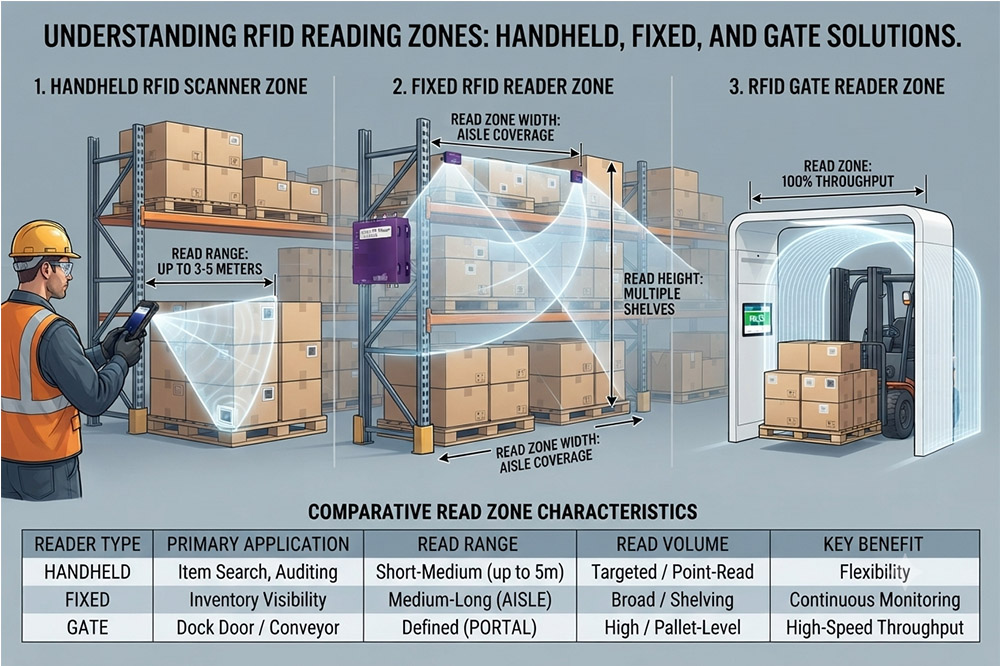

Handheld vs Fixed Long Range RFID Scanner

Choosing the right scanner depends heavily on the application.

Handheld Long Range RFID Scanner

Handheld devices are commonly used for:

• Warehouse inventory checking
• Asset tracking
• Retail stock counting
• Equipment management

The advantage is flexibility.

Workers can walk around and scan different areas without installing fixed equipment.

A good handheld UHF RFID scanner can often read hundreds of tags within seconds, which is much faster than barcode scanning.

However, operators need to control the scanning direction because handheld devices may capture nearby tags unintentionally.

---

Fixed Long Range RFID Reader

Fixed RFID scanners are better for automated applications:

• Warehouse entrances
• Production lines
• Smart cabinets
• Library management
• Vehicle tracking

A fixed reader combined with directional antennas can create a controlled reading zone.

For example, an RFID gate installed at a warehouse exit should only read products passing through the doorway, not items stored several meters away.

The antenna design is just as important as the reader itself.

---

How to Improve RFID Scanner Reading Distance

If your current RFID system cannot reach the expected distance, changing the reader is not always the first solution.

Here are several practical improvements:

Use a Higher Performance RFID Tag

Sometimes the tag is the limitation, not the scanner.

A better designed UHF tag can significantly improve reading distance.

Adjust Antenna Position

A small antenna angle change can influence performance.

During installation, testing different positions is usually necessary.

Reduce Signal Interference

Avoid placing RFID antennas close to:

• Large metal structures
• Strong electromagnetic sources
• Dense liquid products

Choose the Correct Antenna Type

A directional antenna focuses energy in one direction.

A circular polarized antenna provides better flexibility when tag orientation changes.

The right antenna choice often improves system performance more than simply increasing reader power.

---

What Distance Should You Expect for Different Applications?

Application	Typical Reading Distance
Warehouse inventory	5–15 meters
RFID smart cabinet	0.5–3 meters
Warehouse gate	3–10 meters
Vehicle tracking	10+ meters
Industrial asset tracking	5–20 meters

These numbers are only general references.

Every project has different conditions.

A warehouse storing clothing products is very different from a factory managing metal components.

---

Choosing Long Range RFID Scanner Supplier

For distributors, system integrators, and RFID solution companies, reading distance is only one part of the decision.

A reliable RFID supplier should provide:

• Stable UHF RFID modules
• Different antenna options
• SDK and API support
• Tag testing support
• OEM customization
• Application experience

Many RFID projects fail not because the reader is weak, but because the entire system was not tested together.

The best approach is usually to test the reader, antenna, and RFID tags under real working conditions before large-scale deployment.

---

Final Thoughts

A long range RFID scanner is not simply a device with the longest possible reading distance.

In practical applications, stable reading performance matters more than the maximum number shown on a specification sheet.

A 10-meter RFID system that accurately reads the right tags is often more valuable than a 30-meter system that creates interference and unwanted reads.

When selecting an RFID scanner for warehouse, logistics, or industrial use, always consider the complete system: reader power, antenna design, tag type, and environment.

That is the difference between an RFID demo that works and an RFID solution that works every day.
