Long Range RFID Scanner Antenna Guide: Choosing the Right Antenna for Real RFID Projects

When people search for a long range RFID scanner, they often pay attention to the reader power, scanning speed, or maximum reading distance.

But after working on RFID projects, one thing becomes clear:

The antenna is usually the part that decides whether the system performs well or not.

A powerful RFID reader with the wrong antenna setup may still create unstable reading results.

We have seen cases where a customer purchased a high-performance UHF RFID reader expecting 20 meters reading distance, but after installation, the system could not reliably identify tags beyond a few meters.

The problem was not the reader.

It was the rfid antenna selection and installation.

In a real warehouse, factory, or asset tracking project, the antenna works like the “bridge” between the RFID reader and the tags. The design, direction, polarization, and installation position all affect the final performance.

---

Why RFID Antenna Matters More Than Many Buyers Expect

A long range RFID scanner is not a single device working alone.

The complete RFID system usually includes:

• RFID reader module
• Antenna
• RFID tags
• Software platform
• Installation environment

The antenna controls how the RF energy is transmitted and received.

Think about a warehouse entrance.

If you want to detect products passing through a doorway, you do not always need the strongest signal.

You need a controlled signal area.

A wide-angle antenna may read items on both sides of the door, creating unnecessary data.

A directional antenna may create a more accurate reading zone.

Sometimes reducing the reading area improves the whole system.

---

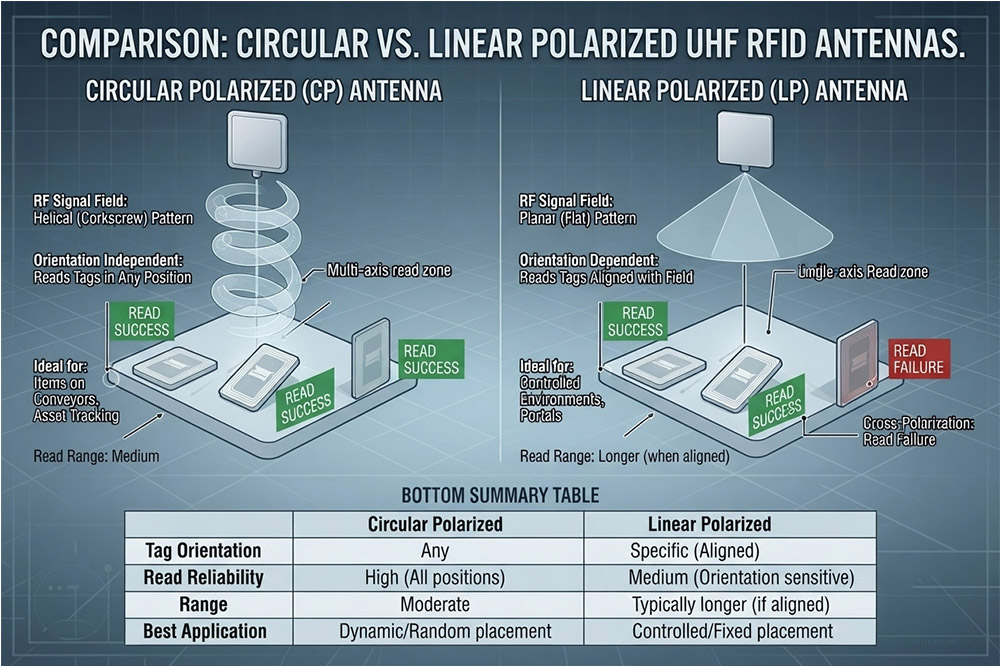

Common Antenna Types Used with Long Range RFID Scanners

1. Circular Polarized RFID Antenna

Circular polarized antennas are one of the most commonly used antennas in UHF RFID applications.

The reason is simple.

RFID tags are not always placed in the same direction.

During warehouse inventory, one tag may face upward, another may face sideways, and another may be attached at an angle.

Circular polarization helps maintain stable communication when tag orientation changes.

Typical applications include:

• Warehouse inventory
• Retail tracking
• Asset management
• Smart shelves

For most general-purpose RFID projects, circular polarized antennas are often a safer choice.

---

2. Linear Polarized RFID Antenna

Linear polarized antennas focus RF energy in one direction.

They can provide stronger performance in certain situations because the energy is concentrated.

However, tag orientation becomes more important.

If the RFID tag antenna direction does not match the reader antenna polarization, the reading distance can decrease.

They are commonly used in:

• Conveyor systems
• Vehicle identification
• Industrial automation

For fixed applications where tag movement is predictable, linear antennas can work very well.

---

Antenna Gain and Reading Distance

Many buyers look at antenna gain numbers, such as 6dBi, 9dBi, or higher.

A higher gain antenna generally provides stronger signal concentration and longer reading distance.

However, higher gain does not always mean better.

For example:

A 12dBi directional antenna may perform excellently in an open loading area.

But inside a small room with metal shelves, the reflected signals may create unwanted reads.

A medium gain antenna with better positioning may deliver more stable results.

This is why experienced RFID suppliers usually test different antenna options instead of choosing only based on specifications.

---

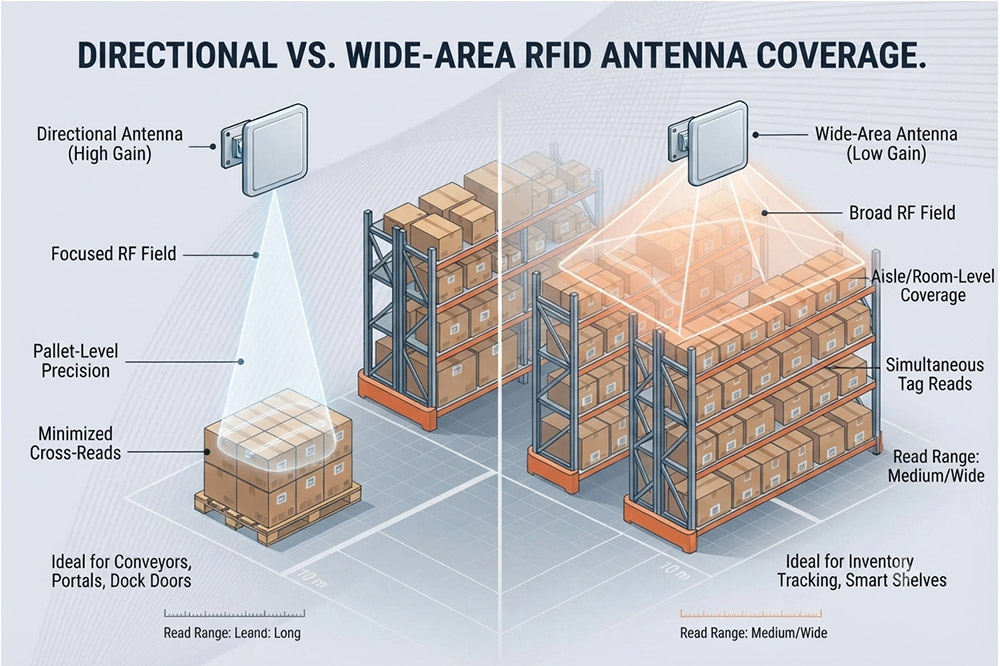

Directional Antenna vs Wide Coverage Antenna

One common question from system integrators is:

“Should we choose a long distance antenna or a wide coverage antenna?”

The answer depends on the application.

Directional RFID Antenna

Best for:

• RFID gates
• Long corridor tracking
• Vehicle access systems
• Production lines

The antenna sends energy in a focused direction.

It works like a flashlight beam.

---

Wide Coverage RFID Antenna

Best for:

• Warehouse shelves
• Room-level tracking
• Inventory areas

It covers a larger space.

However, controlling unwanted reads becomes more difficult.

---

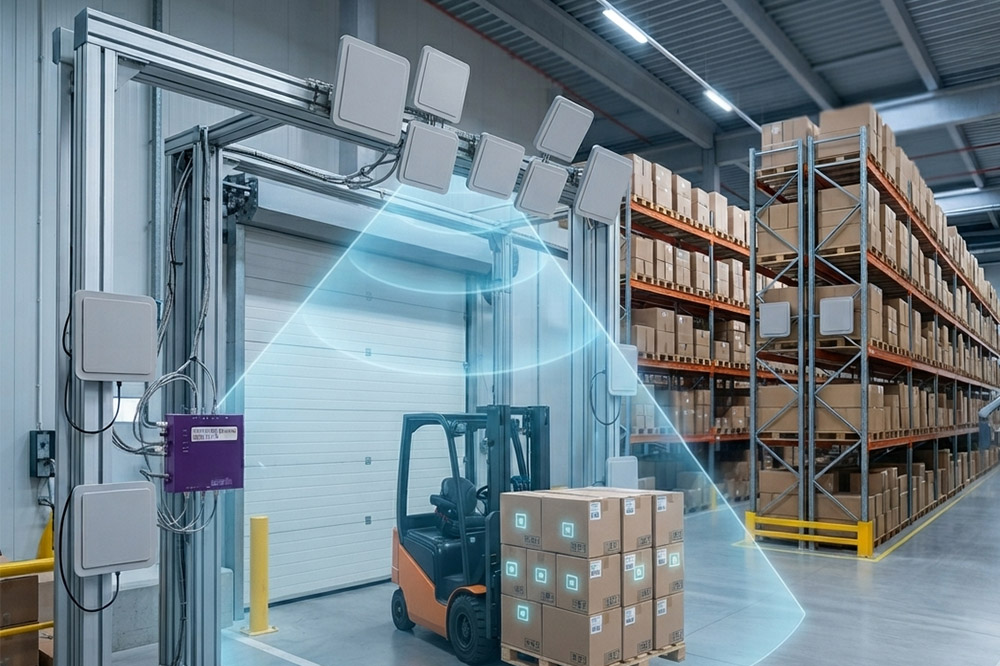

Real Installation Example: RFID Warehouse Gate

Imagine a warehouse where finished products leave through one gate.

The customer wants the system to automatically record every outgoing pallet.

At first, they install two powerful RFID antennas facing the gate.

The reading distance is impressive.

But soon they discover a problem:

The system also reads pallets waiting nearby.

The data becomes confusing.

After adjusting antenna direction, reducing power, and changing antenna placement, the system becomes much more accurate.

This example shows an important point:

RFID performance is not about reading the farthest distance.

It is about reading the correct tags at the correct time.

---

How to Install Long Range RFID Scanner Antenna Correctly

Several small installation details can make a big difference.

Keep Distance from Metal Structures

Metal can reflect RFID signals.

When possible, avoid placing antennas directly against metal surfaces.

If the application requires metal installation, special testing is recommended.

---

Adjust Antenna Angle

A small angle adjustment can change the reading zone.

During installation, technicians usually test:

• Antenna height
• Antenna direction
• Reader power
• Tag position

Real-world testing is almost always necessary.

---

Use Multiple Antennas Carefully

Adding more antennas does not automatically improve the system.

Too many antennas may create overlapping reading areas.

A well-designed two-antenna system can sometimes outperform a four-antenna setup.

---

Choosing RFID Antennas for Wholesale Projects

For RFID distributors, solution providers, and system integrators, antenna selection is not only about buying a product.

You need a supplier who understands application requirements.

Important factors include:

• Compatible frequency range
• Antenna gain options
• Indoor or outdoor usage
• Waterproof requirements
• Connector type
• Reader compatibility
• OEM customization ability

A supplier who only provides a datasheet may not solve installation problems later.

For large RFID deployments, technical support before mass production can save significant time.

---

Long Range RFID Scanner Antenna Selection Checklist

Before purchasing, consider:

✓ What is the target reading distance?
✓ Do tags move or stay in fixed positions?
✓ Are there metal or liquid materials nearby?
✓ Is a focused reading area needed?
✓ Should the system cover a large area?
✓ Are circular or linear polarized antennas more suitable?
✓ Does the supplier provide testing support?

These questions are usually more valuable than simply asking for the maximum range.

---

Final Thoughts

A long range RFID scanner depends heavily on antenna design.

The reader provides the power, but the antenna decides how that power is used.

In practical RFID projects, the best antenna is not always the one with the longest range.

It is the one that matches the environment, tag type, and application process.

For warehouse automation, industrial tracking, and asset management systems, choosing the correct RFID antenna early can make the difference between a smooth deployment and constant troubleshooting.
