Long Range RFID Scanner for Railways: How RFID Tracks Rail Cars and Railway Assets

A long range RFID scanner can help railway operators identify rail cars, containers, maintenance equipment, and other tagged assets as they pass through yards, depots, checkpoints, and maintenance areas. By combining UHF RFID readers, suitable tags, directional antennas, and railway management software, operators can automatically record which asset was detected, where it was detected, and when it passed the checkpoint.

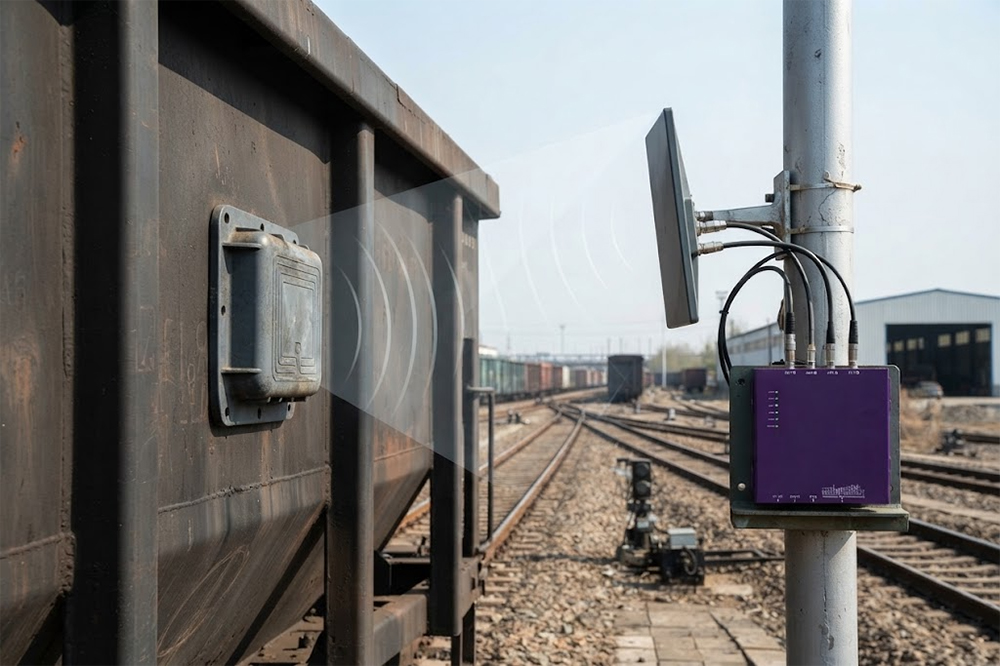

How Does RFID Tracking Work in Railways?

The basic process is fairly simple.

RFID tag is attached to a rail car, container, maintenance asset, or other equipment. When the tagged asset enters an RFID reading zone, the antenna receives the tag signal and sends it to the reader. The reader captures the EPC and sends the identification data to the software system.

The software can then create an event such as:

Rail Car A123 → Yard Entrance → 10:32 AM

That sounds simple, but the installation environment makes railway RFID more interesting.

A rail yard can contain long metal structures, multiple tracks, moving vehicles, electrical equipment, containers, and many RFID tags in a relatively small area. The reader itself is only one part of the system.

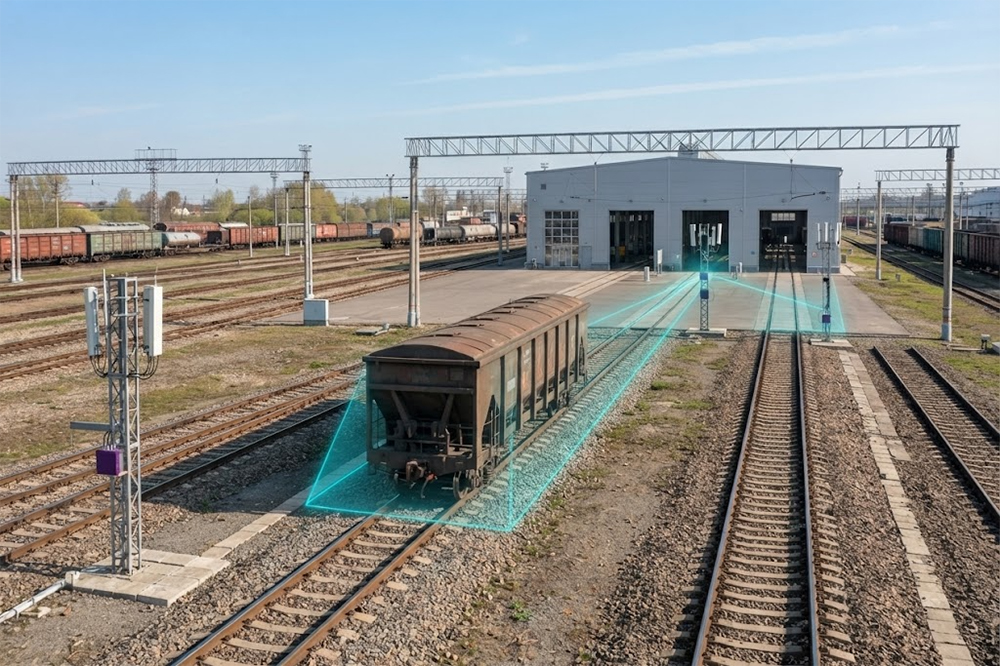

Tracking Rail Cars at Railway Yards

One useful application is automatic rail car identification.

A railway yard may handle many rail cars during the day. Employees may need to record when cars arrive, move between areas, enter maintenance facilities, or leave the yard.

With RFID, a fixed reader can be installed at selected checkpoints.

For example, a rail car may pass:

Yard Entrance → Storage Track → Inspection Area → Loading Area → Exit

Each checkpoint can create an RFID event.

This does not mean RFID continuously knows the exact position of the rail car like GPS. Instead, the system knows that the tagged asset was detected at a particular RFID checkpoint.

For many railway operations, that information is already useful.

It can help answer practical questions such as:

• Did the rail car enter the yard?
• When did it reach the maintenance area?
• Which cars passed through a particular checkpoint?
• Has a specific container left the facility?
• Which maintenance assets are currently recorded in the depot?

Why Rail Cars Are More Difficult Than Ordinary RFID Assets

Railway environments are not especially friendly to RF signals.

A rail car contains a large amount of metal. Containers, locomotives, maintenance equipment, and railway structures can also affect RFID performance.

This means that simply attaching a standard RFID tag to a metal surface may not produce reliable results.

An on-metal RFID tag may be more appropriate for some applications.

However, the important point is not just choosing an “on-metal” label from a catalog.

The actual installation position matters.

A tag mounted close to a large metal structure may behave differently from the same tag mounted on another part of the vehicle. The orientation can also change the reading performance.

For this reason, railway RFID projects should test the actual rail car or equipment before a large deployment.

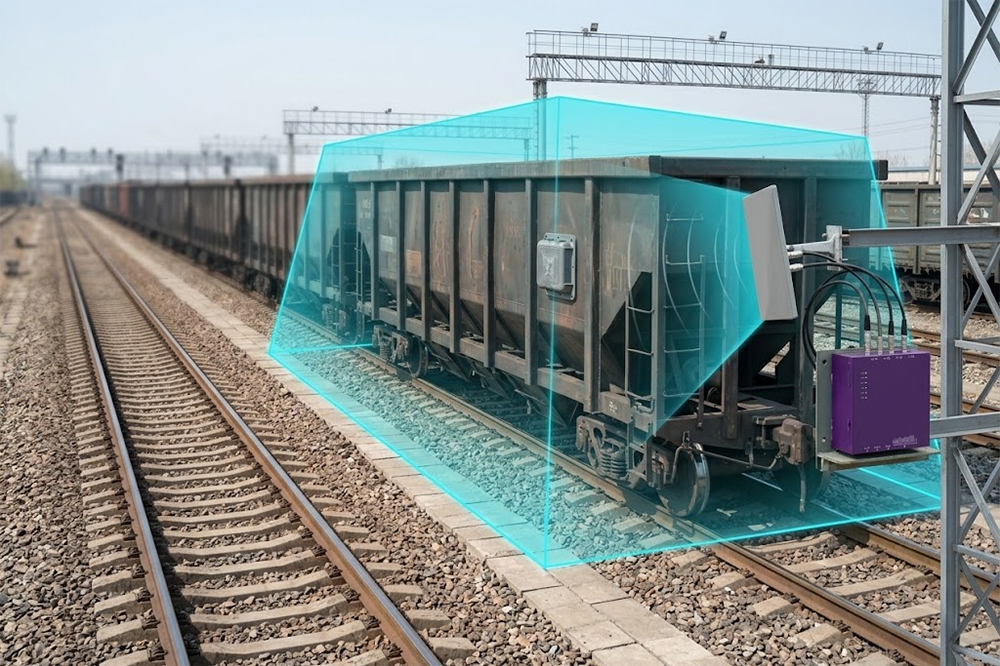

Antenna Position Controls the Reading Zone

Railway RFID systems often need a controlled reading zone.

Imagine two railway tracks running next to each other.

If a reader on Track A can also detect a tagged rail car on Track B, the software may receive an event that does not belong to the intended checkpoint.

Increasing reader power is not necessarily the solution.

In many installations, antenna direction and mounting position are more important.

A directional antenna can be positioned toward the target track while reducing unnecessary coverage outside the intended area.

The goal is not:

“Read as far as possible.”

The goal is:

“Read the correct rail car at the correct checkpoint.”

That difference becomes important when several tracks are close together.

Reading Moving Rail Cars

Rail cars do not always stop in front of an RFID reader.

Some applications require identification while the vehicle is moving.

That creates another variable: reading time.

A slowly moving rail car gives the reader more time to detect the tag. A faster vehicle passes through the reading zone more quickly.

Rfid Tag orientation, rfid antenna angle, reader power, distance, and the size of the reading zone all affect the result.

A practical test should therefore include several operating conditions.

For example:

• Low-speed movement
• Normal operating speed
• Higher operating speed
• Different rail car types
• Different tag positions
• Different tag orientations
• Single-tag detection
• Multiple-tag detection

A reader that works well with one stationary tag is not necessarily ready for railway deployment.

Can One RFID Reader Identify Multiple Rail Cars?

UHF RFID can identify multiple tags within its reading area.

That can be useful when a train or group of rail cars passes through a checkpoint.

But the system still needs to distinguish the individual assets correctly.

Suppose five rail cars pass through a reading zone within a short period. The reader may detect several EPCs almost at the same time.

The software may need to associate those tags with:

• Checkpoint
• Direction
• Time
• Track
• Train or vehicle group
• Expected asset list

This is where RFID hardware and software have to work together.

In some installations, sensors can also help determine when a vehicle enters or leaves the reading zone.

RFID for Railway Maintenance Equipment

Rail cars are not the only assets worth tracking.

A railway depot can contain many reusable and expensive items:

• Maintenance tools
• Equipment carts
• Spare parts containers
• Inspection equipment
• Service equipment
• Portable machines
• Reusable transport bins

These assets can disappear into different areas of a large facility surprisingly easily.

RFID can provide a simple event history.

For example:

Tool Cart T028 → Maintenance Workshop → 09:14

Later:

Tool Cart T028 → Storage Area → 15:46

This does not require every asset to have continuous indoor positioning.

The system simply needs strategically placed checkpoints.

That can already reduce manual searching and inventory work.

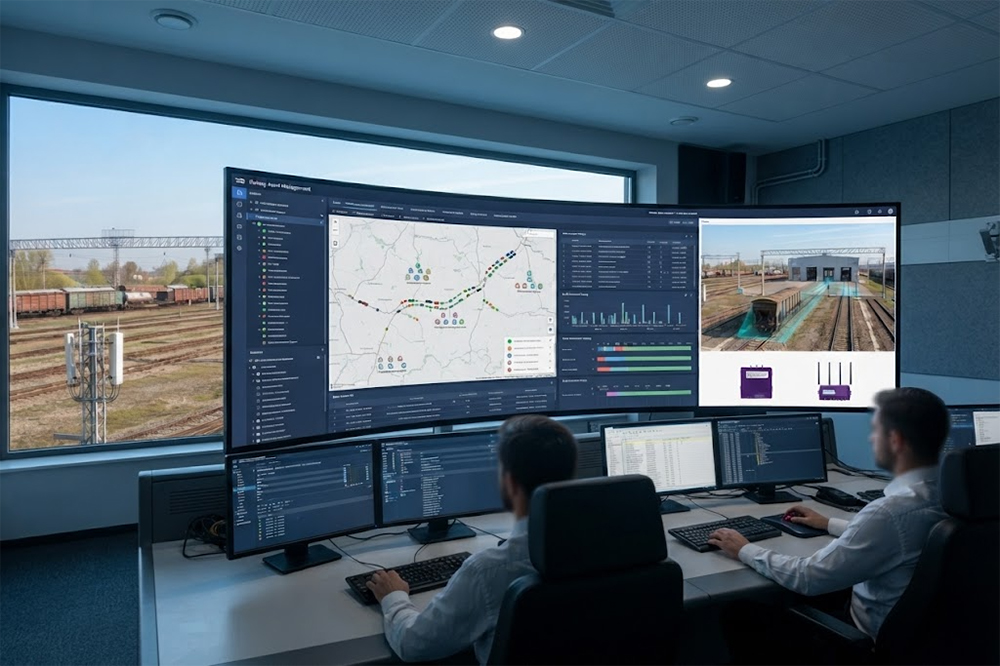

Railway RFID and Software Integration

RFID reader produces identification data, but the railway management system needs to turn that data into something useful.

Depending on the reader and project, integration may use:

• Ethernet
• TCP/IP
• Serial communication
• Digital I/O
• API
• SDK
• HTTP
• MQTT

The final system could connect RFID data with an asset management platform, railway management software, ERP, maintenance software, or another industrial system.

For example, when a rail car is detected at a maintenance checkpoint, the software could automatically update its status.

Instead of an employee manually entering:

Rail Car 1028 — Arrived at Maintenance

the RFID event can provide the trigger.

The exact workflow depends on the customer’s software architecture, so integration should be discussed before selecting the reader.

A Simple Railway RFID Example

Imagine a depot handling several hundred rail cars and containers every week.

The operator wants to know when each asset enters the facility and when it moves into the maintenance area.

The integrator installs fixed RFID readers at the entrance and maintenance checkpoint.

Each rail car receives a suitable RFID tag.

When the vehicle passes the entrance, the reader captures its EPC.

The software matches the EPC with the asset database.

A second RFID checkpoint records the movement into the maintenance area.

After several weeks, the operator has a basic movement history without asking workers to scan every vehicle manually.

But during testing, the team discovers something unexpected.

The reader sometimes detects a tagged rail car on the neighboring track.

Instead of simply increasing the reader power, the team changes the antenna angle, adjusts the reading zone, moves the tag position, and improves software filtering.

The system becomes more predictable.

This is a common lesson in RFID projects: better RF control is often more useful than simply more RF power.

What Should You Test Before Buying a Long Range RFID Scanner?

Railway RFID projects should be tested with the real application.

A useful test checklist includes:

• Rail car or equipment material
• RFID tag type
• Tag mounting position
• Tag orientation
• Reader frequency
• Reader output power
• Antenna type
• Antenna position
• Reading distance
• Vehicle speed
• Number of tags
• Distance between tracks
• Nearby metal structures
• Electrical equipment
• Expected reading zone
• Software filtering
• Communication interface

If the application involves moving rail cars, test moving rail cars.

If it involves containers, test actual containers.

If the reader will be installed beside two tracks, test both tracks.

A laboratory test using a single tag on a table cannot reproduce the complete railway environment.

What Should Distributors and System Integrators Look For?

For RFID distributors and system integrators, the reader specification is only part of the purchasing decision.

It is useful to check:

• Frequency range
• EPC C1G2 / ISO18000-6C support
• Reader sensitivity
• Output power
• Antenna ports
• Supported antennas
• Communication interfaces
• API or SDK availability
• Digital I/O options
• Firmware functions
• Multiple-tag reading capability
• OEM customization
• Sample availability
• MOQ
• Production lead time
• Technical support
• Bulk supply capability

For a railway project, sample testing can also help the buyer compare different tag and antenna combinations before committing to a larger order.

Long Range Does Not Always Mean Better

There is a temptation to compare RFID readers mainly by reading distance.

A specification such as 20 meters may look attractive.

But a railway application may not actually need a 20-meter reading zone.

If the reader is supposed to identify a rail car on Track A while ignoring Track B, excessive range could create another problem.

A controlled and repeatable reading zone is often more valuable than the maximum theoretical distance.

That is why antenna selection, installation, tag placement, reader settings, and software logic should be considered together.

Final Takeaway

A long range RFID scanner can give railway operators automatic identification at yards, depots, maintenance areas, and other checkpoints.

The basic idea is straightforward: identify the asset, record the checkpoint, and connect the event to the railway management system.

The difficult part is making the system reliable in a real railway environment.

Large metal surfaces, multiple tracks, moving rail cars, different tag positions, and nearby RFID assets can all affect performance.

For this reason, a successful railway RFID project should not focus only on the reader.

The tag, antenna, installation position, reading zone, software, and real-world testing all matter.

For distributors and system integrators, this also creates an opportunity to supply more than a reader. A complete railway RFID project may require readers, antennas, tags, software integration, testing support, and customized hardware.
