how to read an rfid tag

To read an rfid tag, use a compatible RFID reader that transmits radio signals to activate the tag and receives its stored identification data. The reading process depends on RFID frequency, reader type, antenna design, tag placement, and application environment.

RFID tag reading is the foundation of automatic identification systems used in logistics, manufacturing, healthcare, retail, and asset management. Unlike barcodes, RFID tags do not require direct visual contact. A reader communicates with the tag wirelessly and captures digital information stored inside the RFID chip.

During my years working with RFID hardware evaluation and system deployment, I have tested RFID solutions in environments ranging from small desktop workstations to industrial warehouses. One detail becomes clear quickly: successful RFID reading is rarely about the reader alone. A powerful reader cannot compensate for an unsuitable tag, poor antenna placement, or incorrect software configuration.

In one warehouse deployment test, the first challenge was not detecting RFID tags. The reader captured hundreds of signals. The real challenge was identifying which signals represented actual inventory movement. This experience changed how I evaluate RFID systems — accuracy and data quality matter more than simply increasing reading distance.

According to GS1, RFID technology enables automatic identification and data capture through radio communication between tags and readers. RFID systems are widely adopted to improve supply chain visibility, traceability, and inventory management. GS1 RFID Standards

How RFID tag reading works

The communication process between RFID reader and tag

An RFID tag contains an antenna and an integrated circuit that stores identification information. When an RFID reader sends a radio frequency signal, the tag receives energy and responds by transmitting its stored data.

The basic reading process includes:

Step	RFID Reading Operation
1	RFID reader sends a radio frequency signal
2	RFID tag antenna receives the signal
3	RFID chip activates and processes information
4	Tag sends identification data back
5	Reader captures and decodes the response
6	Software records and manages the data

Most RFID tags used in supply chain and industrial applications are passive RFID tags. They do not contain batteries and receive energy directly from the reader signal.

The performance of an RFID reading system depends on:

• RFID tag frequency compatibility
• Reader sensitivity
• Antenna configuration
• Tag orientation
• Surrounding materials
• Software processing capability

Different RFID tag types and reading methods

Low Frequency RFID tags

LF RFID tags usually operate between 125 kHz and 134 kHz.

They are commonly used for:

• Animal identification
• Access control
• Specialized tracking applications

LF RFID systems provide reliable communication in certain environments but normally have shorter reading distances.

High Frequency RFID tags

HF RFID tags operate at 13.56 MHz.

Common applications include:

• Smart cards
• Library management
• NFC-enabled devices
• Authentication systems

HF RFID is suitable when controlled short-range reading is required.

Ultra High Frequency RFID tags

UHF RFID tags operate mainly between 860 MHz and 960 MHz.

They are widely used for:

• Warehouse inventory
• Logistics tracking
• Manufacturing automation
• Asset management

UHF RFID technology supports longer reading distances and multiple-tag identification, making it suitable for industrial environments.

The ISO/IEC 18000-63 standard defines communication requirements for UHF RFID systems, including reader-to-tag communication and anti-collision mechanisms for multiple tag identification.

What equipment is needed to read an RFID tag?

RFID reader

The RFID reader is the main device responsible for communicating with the tag.

Common RFID reader types include:

Reader Type	Application
Desktop RFID reader	Tag registration and programming
Fixed RFID reader	Warehouse and production automation
Handheld RFID reader	Mobile inventory checking
Embedded RFID module	OEM equipment integration

Choosing the correct reader depends on the application.

For example:

A warehouse gate requires a fixed UHF RFID reader capable of detecting moving tags.

A desktop station for RFID tag programming requires controlled reading and writing distance.

RFID antenna

The antenna determines how radio signals interact with RFID tags.

Antenna selection influences:

• Reading range
• Signal coverage
• Detection accuracy
• Interference resistance

During real RFID deployment testing, antenna installation is often adjusted several times before achieving stable performance.

A reader installed in an open warehouse environment behaves differently from the same reader installed beside metal equipment or liquid products.

RFID software system

An RFID reader only collects tag information.

The software layer converts that information into useful business data.

A complete RFID system usually follows this structure:

RFID Tag
    ↓
RFID Reader
    ↓
Communication Interface
    ↓
RFID Middleware
    ↓
Business Application

Software can manage:

• Tag identification
• Inventory updates
• Location tracking
• User operations
• Historical records

This is why professional RFID systems focus on data accuracy instead of only reading speed.

How to read an RFID tag step by step

Step 1: Identify the RFID tag frequency

Before selecting a reader, confirm the RFID tag type.

RFID Frequency	Typical Usage
LF	Animal tracking and access systems
HF	Cards and NFC applications
UHF	Logistics and industrial tracking

A reader designed for UHF RFID cannot normally communicate with HF RFID tags.

Step 2: Select the correct RFID reader

The reader should match the working environment.

Consider:

• Required reading distance
• Number of tags
• Movement speed
• Installation conditions
• Communication interface

For industrial systems, readers often need:

• Multi-tag recognition
• Adjustable output power
• Data filtering
• Network communication

Step 3: Test RFID tag placement

RFID tag position strongly affects performance.

Testing should include:

• Different angles
• Different distances
• Moving objects
• Multiple tags together

A tag attached to cardboard may perform differently from the same tag attached to metal equipment.

Practical applications of RFID tag reading

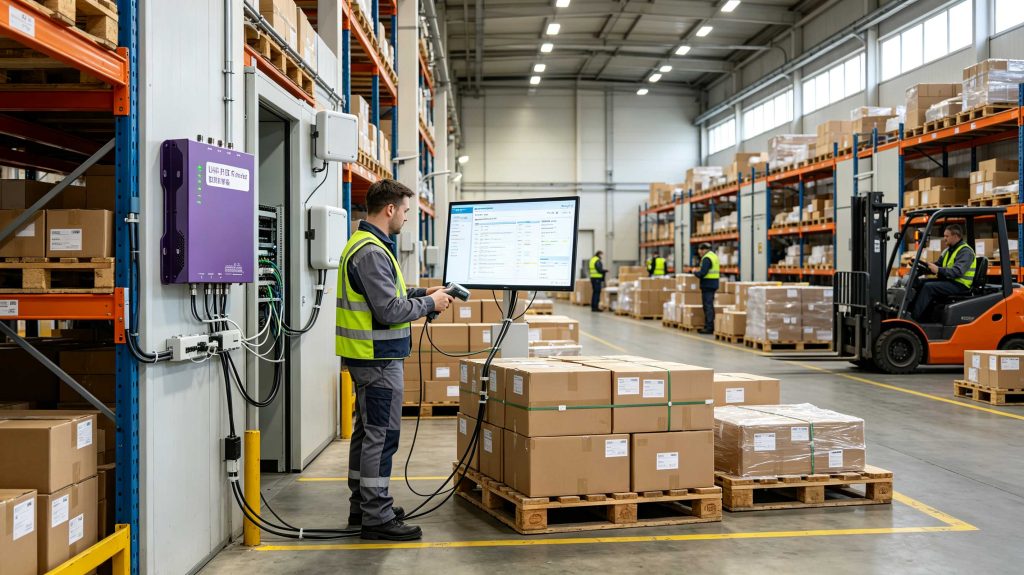

Warehouse inventory management

Warehouses use RFID tag reading for:

• Receiving goods
• Inventory counting
• Shipment verification
• Location tracking

RFID allows organizations to automatically identify tagged products without manually scanning each item.

Research from the Auburn University RFID Lab has shown that RFID-enabled inventory processes can improve inventory accuracy in retail environments. Their research investigated RFID-based automatic inventory adjustment and its impact on inventory record accuracy.

Manufacturing tracking

Manufacturers use RFID tags to monitor:

• Raw materials
• Production components
• Tools
• Finished products

RFID provides visibility into product movement throughout production stages.

Healthcare asset management

Healthcare organizations use RFID tag reading for:

• Medical equipment tracking
• Surgical instrument management
• Supply monitoring

In these environments, accurate identification is more valuable than maximum reading distance.

Advanced methods to improve RFID tag reading performance

Reading an RFID tag in a laboratory environment is usually straightforward. The difficult part begins when the RFID system enters a real workplace.

In practical deployments, RFID tags may be attached to metal containers, placed inside cartons, surrounded by hundreds of other tags, or moved quickly through a detection area. The reader must not only detect the tag — it must detect the correct tag at the correct moment.

During RFID system testing, I normally evaluate three separate results:

1. Detection capability — Can the reader receive the tag signal?
2. Reading reliability — Can the system repeatedly identify the same tag?
3. Data usability — Can the software convert the reading into a meaningful business event?

Many unsuccessful RFID projects fail because they only test the first point.

How to improve RFID tag reading accuracy

Optimize RFID tag installation position

The physical location of an RFID tag directly affects communication quality.

Common installation problems include:

• Tag attached directly to metal surfaces
• Tag placed behind liquid containers
• Incorrect tag orientation
• Multiple tags overlapping
• Tag mounted too close to interference sources

For industrial applications, specialized RFID tags such as on-metal tags are often required because ordinary labels may experience signal degradation when attached to conductive materials.

A practical testing method is to evaluate the same tag in different positions before final installation.

Test Item	Purpose
Tag angle test	Check signal stability
Distance test	Determine reliable reading zone
Material test	Identify interference
Movement test	Verify real operating performance

Adjust RFID reader power correctly

Increasing reader power does not always create a better RFID system.

A higher power level may increase the reading area, but it can also introduce unwanted reads.

For example:

A warehouse doorway may require long-distance detection.

A desktop RFID programming station needs a controlled reading area.

Different applications require different power settings.

Professional RFID readers normally support adjustable output power to balance reading distance and accuracy.

Cykeo UHF RFID readers and modules support adjustable RF output power and multi-tag identification features for different application environments. Some Cykeo RFID modules support up to 33 dBm RF output power, adjustable in 1 dB steps, with multi-tag recognition and filtering functions.

Select the correct RFID antenna

The antenna is one of the most underestimated parts of an RFID system.

A powerful reader with an unsuitable antenna may still perform poorly.

Antenna selection depends on:

• Coverage area
• Reading direction
• Tag movement speed
• Installation space
• Environmental conditions

Typical examples:

Application	Antenna Requirement
Warehouse entrance	Wide coverage antenna
Smart shelf	Focused reading area
Production line	Stable directional reading
Desktop writing station	Near-field controlled antenna

For desktop RFID tag programming, a controlled reading area prevents nearby tags from being accidentally detected.

RFID tag reading in real industrial environments

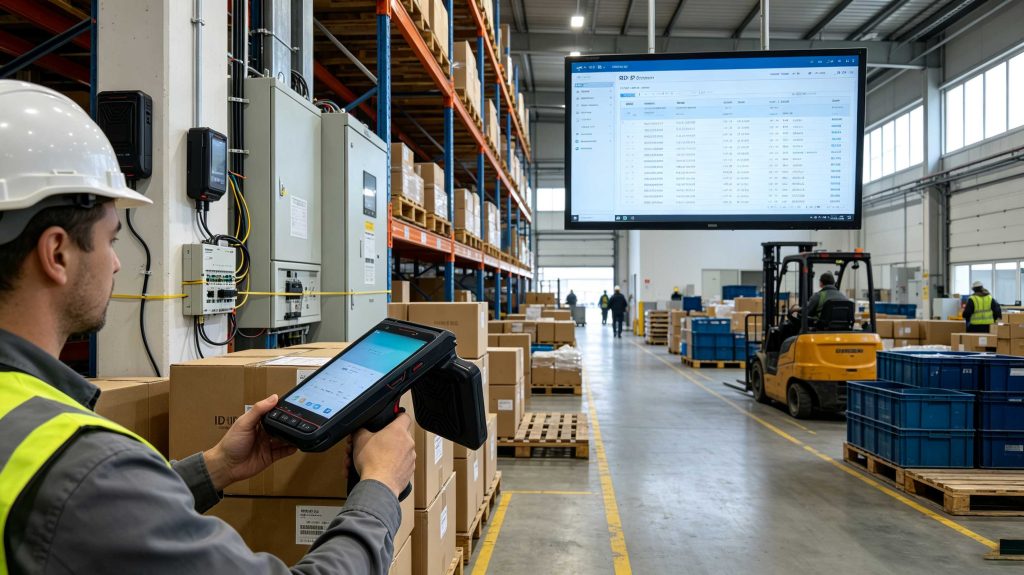

Warehouse inventory counting

Warehouses often contain thousands of RFID tags.

A successful RFID inventory system must handle:

• Dense tag environments
• Fast-moving goods
• Metal storage racks
• Network communication
• Real-time database updates

The goal is not simply reading more tags.

The goal is creating reliable inventory records.

For example:

Incorrect result:

Reader detected 500 RFID tags.

Useful result:

Warehouse zone A completed inventory check, 498 expected items confirmed, 2 exceptions generated.

This difference is where RFID software becomes important.

Manufacturing production tracking

Manufacturers use RFID tag reading to monitor:

• Raw materials
• Production tools
• Work-in-progress products
• Finished goods

A production line may require RFID readers to identify products moving at different speeds.

The system needs:

• Stable reading performance
• Fast data processing
• Anti-collision capability
• Integration with MES or ERP systems

Healthcare and medical asset management

Healthcare environments require careful RFID implementation.

Typical applications include:

• Surgical instrument tracking
• Medical equipment management
• Supply inventory monitoring

In hospitals, incorrect identification can create operational problems.

Therefore, controlled reading zones and accurate software records are usually more valuable than maximum reading distance.

How Cykeo RFID solutions improve tag reading

Cykeo develops RFID hardware for industrial identification applications, including RFID readers, modules, and integrated RFID equipment.

Cykeo RFID solutions focus on several practical requirements: <ul> <li>Stable RFID tag reading performance</li> <li>Multi-tag identification capability</li> <li>Adjustable RF power configuration</li> <li>Tag data filtering technology</li> <li>SDK and API integration support</li> <li>Compatibility with industrial RFID applications</li> </ul>

Cykeo RFID readers support protocols including EPC C1G2 and ISO 18000-6C/6B for UHF RFID applications. Certain fixed RFID reader models support adjustable reading distance, multiple label identification, and communication interfaces such as Ethernet and RS-232.

For developers and system integrators, Cykeo also provides development resources including C# and Java support for customized RFID applications.

Common problems when reading RFID tags

Why cannot my RFID reader detect the tag?

Possible causes:

Problem	Solution
Wrong frequency	Match reader and tag frequency
Poor tag placement	Adjust installation position
Metal interference	Use suitable RFID tags
Incorrect settings	Configure reader parameters
Damaged tag	Replace RFID tag

Why does the RFID reader detect incorrect tags?

This usually happens when the reading area is too large.

Possible solutions:

• Reduce reader power
• Adjust antenna direction
• Add software filtering
• Create controlled reading zones

A good RFID system is not the one that reads everything.

It is the one that reads what matters.

FAQ: how to read an rfid tag

1. What equipment is needed to read an RFID tag?

You need an RFID reader compatible with the RFID tag frequency. The system may also include antennas, software, and communication interfaces.

2. Can RFID tags be read without touching them?

Yes. RFID technology uses radio communication, allowing readers to identify tags without physical contact or direct visual scanning.

3. How far can an RFID tag be read?

The reading distance depends on RFID frequency, reader power, antenna design, and environment. UHF RFID systems generally provide longer ranges than HF RFID systems.

4. Can one RFID reader read multiple tags?

Yes. UHF RFID readers use anti-collision technology to identify multiple RFID tags in the same reading area.

5. Why does RFID reading fail near metal?

Metal can affect RFID signal behavior. Specialized RFID tags and correct antenna configuration are often required for metal applications.

6. Can RFID tags be rewritten after reading?

Many RFID tags support writing and rewriting depending on chip type and reader capability.
