how to read a rfid chip

To read a RFID chip, use a compatible RFID reader that sends radio signals to activate the chip, receives the returned identification data, and transfers the information to software for processing. The correct reader, frequency, and environment determine reading accuracy and reliability.

Reading an RFID chip is the foundation of every RFID application, from warehouse inventory and industrial asset tracking to retail management and smart identification systems. Unlike barcode scanning, RFID does not require direct visual contact. The reader communicates wirelessly with the chip through electromagnetic signals and captures stored information automatically.

From my experience working with RFID deployment projects, the most misunderstood part of chip reading is that “detecting a tag” and “creating useful data” are two different things. A reader may successfully capture hundreds of RFID responses, but the application still needs to determine which event matters.

For example, a warehouse reader at a loading gate may detect a pallet entering, leaving, or simply passing nearby. The engineering challenge is not only increasing reading distance. It is creating accurate identification within the real operating environment.

According to GS1, RFID systems use standardized identification methods to enable automatic data capture and supply-chain visibility. EPC-based RFID systems allow organizations to identify objects and share information across business processes.

Understanding how RFID chips communicate with readers

RFID chip reading principle

An RFID chip does not transmit information continuously like a wireless device. Most RFID tags are passive and obtain energy from the reader’s radio frequency field.

The basic reading process includes:

Step	Operation
1	RFID reader sends RF energy
2	RFID chip receives energy
3	Chip activates internal circuit
4	Stored information is transmitted back
5	Reader processes returned signal
6	Software records identification data

The communication method depends on RFID frequency.

Common RFID frequency categories include:

Frequency	Typical Application	Reading Range
LF 125 kHz	Access control, animal identification	Short range
HF 13.56 MHz	Cards, libraries, NFC applications	Short to medium range
UHF 860–960 MHz	Logistics, inventory, asset tracking	Longer range

For industrial applications, UHF RFID is widely adopted because it supports fast multi-tag identification and longer reading distances.

The RFID air-interface standard ISO/IEC 18000-63 defines communication requirements between UHF RFID readers and tags, supporting interoperability between compliant devices.

How to read a RFID chip step by step

Step 1: Select the correct RFID reader

The first decision is choosing a reader that matches the RFID chip type.

A reader must support:

• Correct frequency
• Compatible protocol
• Required reading distance
• Application environment

Examples:

Application	Recommended Reader Type
Employee access card	HF RFID reader
Library management	HF RFID reader
Warehouse pallet tracking	UHF fixed reader
Asset identification	UHF handheld reader
Desktop registration	RFID desktop reader writer

Using an incompatible reader is one of the most common reasons RFID chips cannot be detected.

A UHF reader cannot normally read a 13.56 MHz HF card because they operate on different frequency systems.

Step 2: Connect RFID reader with software

After selecting the reader, the next step is connecting it with software.

Typical connection methods include:

• USB
• RS-232
• Ethernet
• TCP/IP
• Wireless communication

The software receives RFID information from the reader and converts raw signals into useful records.

A basic RFID reading system contains:

RFID Chip
     ↓
RFID Reader
     ↓
Communication Interface
     ↓
RFID Software
     ↓
Database / Application System

In professional projects, software integration is essential because the RFID chip number alone does not explain business meaning.

A tag ID becomes useful only when connected with:

• Product information
• Asset records
• Location data
• User information
• Transaction history

Factors affecting RFID chip reading performance

Reading distance is not determined only by reader power

Many users assume a higher-power reader always provides better performance.

In reality, RFID reading depends on multiple factors:

RFID chip type
Antenna design
Reader sensitivity
Tag orientation
Material environment
Interference sources
Software filtering strategy

For example, metal surfaces can affect ordinary RFID tags because they influence electromagnetic behavior. In industrial applications, special on-metal RFID tags or optimized antenna solutions are often required.

Reading multiple RFID chips at the same time

One major advantage of RFID compared with barcode systems is multi-tag reading.

A warehouse portal may need to identify:

• Multiple cartons
• Several pallets
• Different asset tags

simultaneously.

This requires:

• Anti-collision algorithms
• Proper RF configuration
• Data filtering
• Suitable antenna placement

Cykeo UHF RFID solutions support multi-tag identification technology and data filtering functions to improve practical reading efficiency in industrial environments.

Choosing the right RFID reader for chip reading

Different applications require different hardware designs.

RFID Reader Type	Application
Desktop RFID reader	Tag registration, card issuing
Fixed RFID reader	Warehouse gateways, production lines
Handheld RFID reader	Mobile inventory
Embedded RFID module	OEM equipment integration

For example, a desktop RFID reader is optimized for controlled short-distance operations, while a fixed UHF reader is designed for continuous identification in larger areas.

Common problems when reading RFID chips

RFID chip cannot be detected

Possible causes:

• Wrong reader frequency
• Damaged RFID chip
• Incorrect antenna connection
• Excessive distance
• Environmental interference

Solution:

Check compatibility first, then verify the physical installation.

RFID reading distance is shorter than expected

Possible reasons:

• Low-quality tags
• Incorrect antenna position
• Metal or liquid interference
• Incorrect reader settings

A professional RFID installation usually requires field testing rather than relying only on theoretical specifications.

Too many unwanted RFID reads

In dense environments, a reader may detect nearby tags that are not part of the current operation.

Solutions include:

• Adjusting reader power
• Using directional antennas
• Setting read zones
• Applying software filtering

Professional insight: reading RFID chips in real projects

In real RFID deployments, the question is rarely just “Can the reader read the chip?”

The better question is:

Can the system read the correct chip at the correct time and convert it into useful information?

A successful RFID solution combines:

• Suitable RFID chips
• Correct reader hardware
• Optimized antenna installation
• Reliable communication
• Application software

Cykeo RFID solutions focus on this complete approach by combining reader hardware performance, software integration support, and practical deployment experience.

A reliable RFID system does not simply collect signals.

It creates accurate digital visibility.

Advanced methods for reading a RFID chip in professional systems

Reading a RFID chip in a real business environment requires more than placing a reader near a tag. Industrial RFID systems must handle different materials, moving objects, multiple tags, and continuous data communication.

In my experience supporting RFID application development, the biggest difference between a test environment and a production environment is data quality. A reader can capture a signal in seconds, but building a reliable identification system requires controlling when, where, and why that chip is read.

A mature RFID reading process usually includes:

• RFID chip identification
• Reader parameter optimization
• Antenna positioning
• Data filtering
• Software event processing
• System integration

For UHF RFID applications, standards such as ISO/IEC 18000-63 define the communication interface between RFID readers and tags, including physical communication parameters, commands, and collision handling methods for multiple-tag environments.

How to read a RFID chip with different RFID reader types

Using a desktop RFID reader

Desktop RFID readers are commonly used when operators need controlled reading conditions.

Typical applications include:

• RFID sticker registration
• Access card management
• Asset labeling
• Library item registration
• Smart checkout systems

Advantages:

Feature	Benefit
Fixed reading area	Reduces accidental reads
USB connection	Easy computer integration
Short-distance operation	Better control
Writing capability	Supports tag registration

For example, Cykeo RFID desktop reading platforms use near-field antenna technology to control the reading area, making them suitable for environments where operators need predictable tag detection rather than maximum distance.

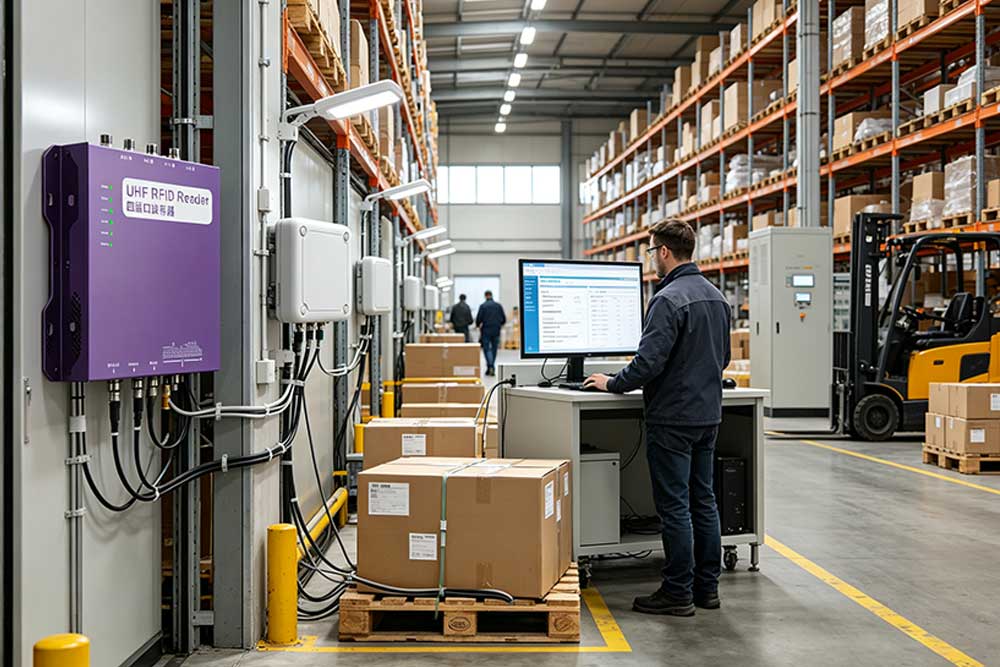

Using fixed RFID readers

Fixed readers are designed for continuous operation.

Typical scenarios:

• Warehouse entrances
• Production lines
• Tool rooms
• Smart cabinets
• Logistics channels

A fixed RFID reader normally works with multiple antennas to create a reading zone.

The system needs to answer practical questions:

• Did the item really pass the checkpoint?
• Which direction did it move?
• Was the tag read once or repeatedly?
• Does the event require database action?

The reader provides the identification.

The software creates the meaning.

Using handheld RFID readers

Handheld RFID readers are used when mobility is required.

Common applications:

• Warehouse inventory
• Equipment inspection
• Retail stock counting
• Field asset management

The advantage is flexibility.

The limitation is that the operator controls the reading position, so workflow design becomes important.

How RFID software processes chip reading data

Raw RFID data is not the final result

An RFID reader may generate many observations:

EPC123456 detected
EPC123456 detected
EPC123456 detected

A business system usually needs:

Asset EPC123456 entered storage area at 14:25

The software layer performs:

• Duplicate filtering
• Time filtering
• Location association
• User identification
• Database update

GS1 describes RFID infrastructure as a combination of readers and tags where readers send standardized commands and receive tag responses through radio communication. EPC/RFID workflows transform these interactions into usable business information.

Improving RFID chip reading performance

1. Choose the correct RFID chip type

Not every RFID chip works for every application.

Consider:

Requirement	Recommended Consideration
Long reading distance	UHF RFID chip
Card applications	HF RFID chip
Metal environment	On-metal RFID tag
Small item tracking	Compact RFID label

A mismatch between tag and environment is one of the most common reasons for poor performance.

2. Optimize antenna installation

The antenna is one of the most overlooked parts of RFID deployment.

Poor installation may cause:

• Blind areas
• Weak signals
• Unwanted reads
• Missed tags

During actual deployments, antenna testing should include:

• Tag orientation tests
• Distance tests
• Movement tests
• Environmental interference tests

A warehouse pallet tag and a medical instrument tag rarely require the same antenna setup.

3. Adjust reader parameters

Professional RFID readers allow configuration of:

• Output power
• Reading mode
• Frequency settings
• Antenna selection
• Filtering rules

Maximum power is not always the best solution.

A stronger signal may read more tags, but it can also create unwanted detection zones.

The goal is controlled identification.

RFID chip reading in healthcare and asset management

Healthcare environments are a good example of why RFID reading requires precision.

Hospitals may use RFID chips for:

• Medical equipment tracking
• Surgical instrument management
• Supply inventory
• Medication management

A successful system must know:

• Which item was detected
• Where it was detected
• Who handled it
• When the action happened

For high-value assets, incorrect identification is more serious than slow identification.

This is why professional RFID systems combine reliable readers with software traceability.

Cykeo RFID solutions for reading RFID chips

Cykeo develops RFID hardware solutions for industrial identification applications, including UHF RFID readers, desktop RFID writers, and embedded RFID modules.

Key capabilities include:

Support for ISO 18000-6C / EPC C1G2 compatible applications
Multi-tag identification algorithms
Adjustable RF output power
Tag data filtering
SDK and API integration support
USB, Ethernet, and serial communication options

For OEM developers, RFID modules can be integrated into:

• Smart cabinets
• Industrial equipment
• Self-service terminals
• Asset tracking devices

For system integrators, fixed readers can support:

• Warehouse automation
• Manufacturing tracking
• Logistics visibility

The engineering objective remains consistent:

Make RFID chip reading accurate, repeatable, and useful.

RFID chip reading troubleshooting guide

Problem	Possible Reason	Recommended Action
Chip cannot be detected	Wrong frequency	Check reader compatibility
Short reading distance	Poor antenna setup	Adjust position and power
Multiple unwanted reads	Coverage too wide	Reduce range or filter data
Unstable communication	Network issue	Check connection
Reading failure near metal	Tag interference	Use suitable RFID tag

A troubleshooting process should begin with hardware compatibility before changing software.

FAQ: how to read a RFID chip

1. What device is needed to read a RFID chip?

A compatible RFID reader is required. The reader type depends on the RFID chip frequency, such as LF, HF, or UHF.

2. Can a phone read every RFID chip?

No. Smartphones usually support NFC/HF RFID only. They cannot normally read UHF RFID chips used in logistics and industrial applications.

3. How far can an RFID reader detect a chip?

The reading distance depends on chip type, reader power, antenna design, and environment. UHF systems can achieve longer distances than HF systems.

4. Why is my RFID chip not reading?

Common causes include incompatible frequency, damaged tags, incorrect positioning, interference, or unsuitable reader settings.

5. Can RFID readers read multiple chips at the same time?

Yes. UHF RFID systems are designed for multi-tag reading using anti-collision technology and proper configuration.

6. Do RFID chips need batteries to work?

Most passive RFID chips do not need batteries. They receive energy from the reader signal and respond through backscatter communication.

Final thoughts on how to read a RFID chip

The practical answer to how to read a RFID chip is simple: use the correct RFID reader and software system.

But reliable RFID identification requires deeper engineering.

A successful RFID solution depends on:

• Correct chip and reader compatibility
• Proper antenna deployment
• Optimized RF settings
• Accurate software processing
• Real-world testing

From warehouse automation to medical asset tracking, RFID chip reading is not only about detecting a signal.

It is about creating trusted digital information from physical objects.

Cykeo RFID solutions focus on this complete process by combining reliable hardware design, software integration capability, and application-focused engineering.
