How RFID Parking Access Control Works in Real Parking Projects

In most parking projects, RFID looks simple on paper. A car comes in, a tag is read, barrier opens. Done.

But when you actually go on site, things rarely feel that clean.

Sometimes the system works perfectly in the morning and becomes unstable in the afternoon. Sometimes one lane reads smoothly while the other lane keeps missing tags. And in a few cases, the gate opens even when the vehicle is still slightly far away, which confuses the operator more than it should.

RFID parking access control is not just about “reading a tag”. It is more like a chain reaction between hardware timing, RF environment, and vehicle behavior.

---

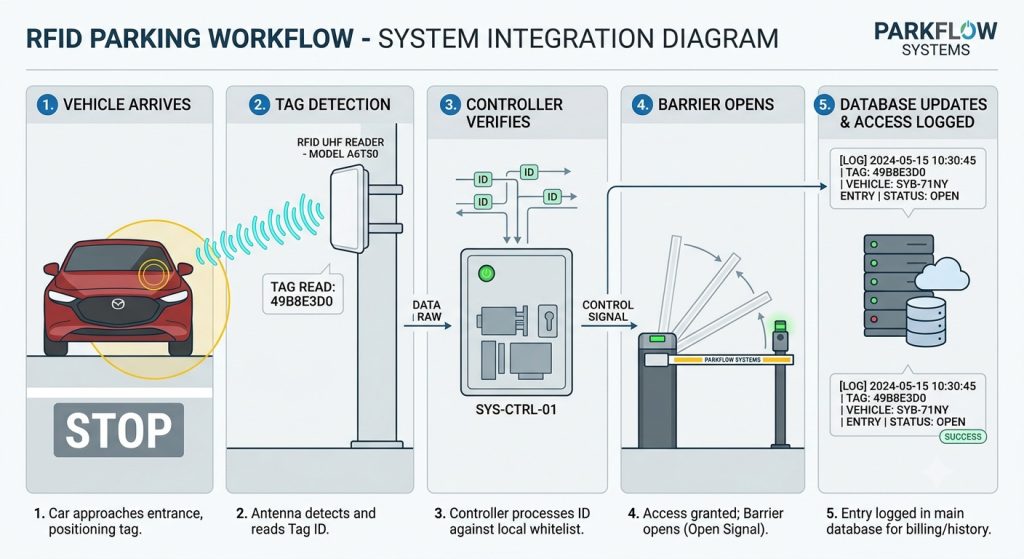

Vehicle entry flow

In most RFID vehicle access control systems, the flow looks simple:

• Vehicle arrives
• RFID reader starts detecting tag
• Controller verifies ID
• Barrier gate opens
• Database updates entry record

But in real deployment, these steps don’t always happen in a perfectly linear way.

For example, the reader might detect the tag first, but the controller response is delayed because of network latency or slow backend validation. In some older parking systems, this delay is noticeable enough that drivers already start pressing the horn.

---

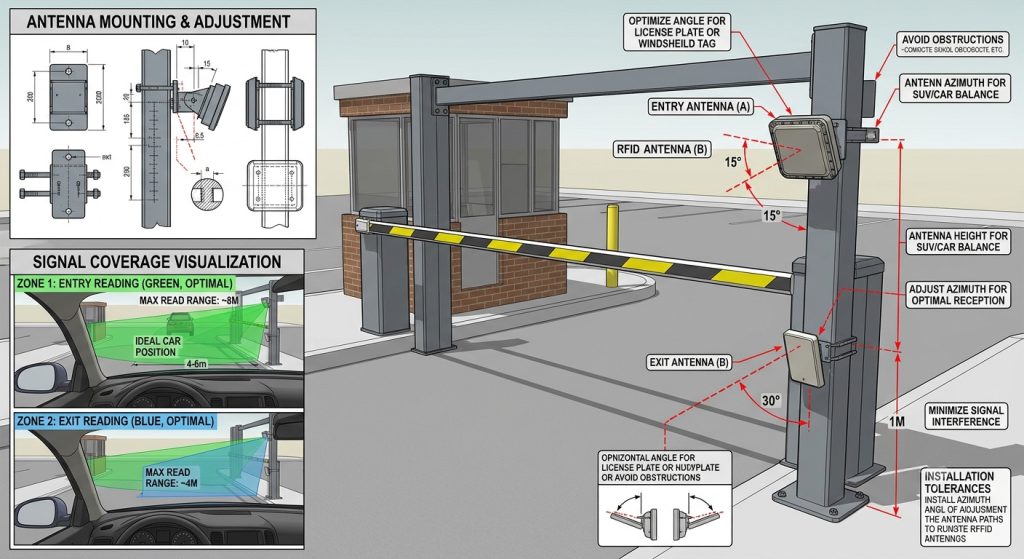

Why reading distance is never stable

On product datasheets, you often see things like “6–12 meters read range”.

In real parking lots, that number feels more like a reference than a guarantee.

We’ve seen a few patterns that repeatedly affect performance:

• Tag angle on windshield (slightly tilted cars read better or worse depending on polarization)
• Vehicle speed (fast entry reduces stable reading window)
• Antenna height (too low = blocked by bumper, too high = misses tag center)
• Metal surroundings (guard booth, barrier pole reflections)
• Tag quality (cheap passive tags behave inconsistently in heat)

So when a solution provider says “range issue”, it is rarely just the reader itself.

---

RFID parking is actually a timing system

One thing many integrators realize after a few projects:
RFID parking is less about “distance” and more about “timing window”.

The system needs to:

• detect tag early enough
• avoid reading wrong lane vehicles
• hold the signal long enough for controller validation
• trigger barrier at the right moment

If the timing is too aggressive, you get false opens.
If it is too slow, drivers stop in front of the gate waiting.

This is why tuning reader power and antenna angle often matters more than changing hardware brand.

---

Different tag types behave differently

In parking deployments, we usually see a mix of:

• Windshield UHF tags
• Headlight tags
• Hang tags for temporary users
• License plate RFID tags (less common but growing)

Windshield tags are still the most stable in most cases, but even then, we’ve seen differences between laminated glass and UV-coated glass affecting readability.

One interesting case: a project in a commercial complex had nearly 95% success rate during testing, but dropped after residents started applying reflective sun film on windshields. That small change was enough to reduce RF penetration.

---

RFID gate control is not isolated hardware

A mistake some system designs make is treating RFID reader as a standalone device.

In reality, RFID gate control is usually integrated with:

• barrier gate controller
• ANPR camera (in many modern projects)
• parking software backend
• whitelist/blacklist database
• sometimes mobile app verification

So even if RFID reading is perfect, the gate may still not open if API response is delayed or database sync fails.

That’s why integrators often spend more time debugging “system logic” than RF itself.

---

Where RFID parking works best

It’s not universal.

RFID parking access control performs better in:

• residential communities with stable vehicles
• factory campuses with controlled fleets
• logistics yards with repetitive entry patterns

It becomes more complex in:

• shopping malls (mixed traffic, visitors, temporary cars)
• airports (high speed + multi-lane interference)
• city center parking with tight entry angles

In mixed environments, RFID is often combined with ANPR instead of used alone.

---

What solution providers usually care about

From conversations with integrators, the real concerns are not “reading distance” only:

• Can the reader be tuned remotely?
• Does it support SDK/API integration easily?
• What happens under high traffic load?
• How stable is firmware after 6–12 months?
• Can antennas be adjusted without full system recalibration?
• Is OEM/ODM possible for project bidding?

Hardware specs matter, but project success usually depends on integration flexibility.

---

Typical RFID parking system structure

Entrance side:

Vehicle → UHF Reader + Antenna → Controller → Barrier Gate → Database Server

Exit side:

Same logic, sometimes with ANPR fallback if RFID fails

In more advanced systems, cloud sync is added for multi-site management.

---

Closing observation

In most stable projects, success doesn’t come from using the “best reader”, but from tuning the entire chain:

small antenna angle adjustments
slightly reduced power output
clean whitelist logic
and stable API response time

RFID parking access control is less like a product installation, more like a field calibration process that keeps going even after handover.
