Long Range RFID Scanner for Asset Tracking: A Practical Guide for Industrial RFID Projects

A long range RFID scanner for asset tracking is a UHF RFID system that identifies tagged equipment, tools, containers, and other assets from several meters away. It can reduce manual inventory checks and provide a clearer record of where assets move. For industrial projects, the result depends heavily on tag selection, antenna placement, reading zones, and software integration—not just the reader’s maximum range.

Keeping track of company assets sounds easy until the number of assets gets large.

A factory may have hundreds of tools.

A logistics company may have thousands of reusable containers.

A maintenance department may have equipment moving between different workshops every day.

At that point, the question is no longer simply “Where is this item?”

It becomes:

“Where was it last seen, when did it move, and who needs to deal with it now?”

This is where a long range RFID scanner for asset tracking can be useful.

Unlike a barcode system, RFID does not require a worker to point a scanner directly at every label. Tagged assets can be detected automatically as they pass through a defined reading area.

That sounds simple. In practice, the design of that reading area matters quite a lot.

---

Where RFID Asset Tracking Makes Sense

RFID is particularly useful for assets that move frequently.

Typical examples include:

• Production tools
• Maintenance equipment
• Returnable containers
• Industrial carts
• Medical equipment
• Warehouse assets
• Machinery components

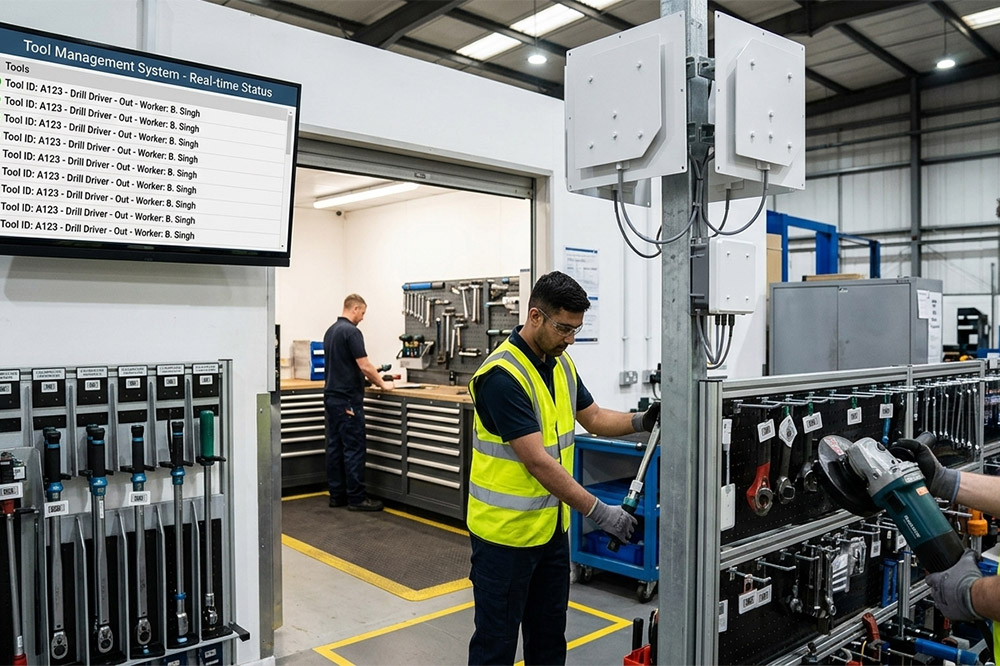

Take a tool room as an example.

A worker takes a torque wrench in the morning and returns it later.

With a manual system, someone has to record the movement.

With RFID, the tool can have an RFID tag and pass through an RFID reading point when it leaves or returns.

The system records the event automatically.

It does not mean RFID removes every management problem, but it can remove a surprisingly large amount of repetitive checking.

---

Why Long Range RFID Is Useful for Asset Management

Not every asset tracking project needs a long reading distance.

If workers are standing directly in front of a cabinet, a short-range reader might be enough.

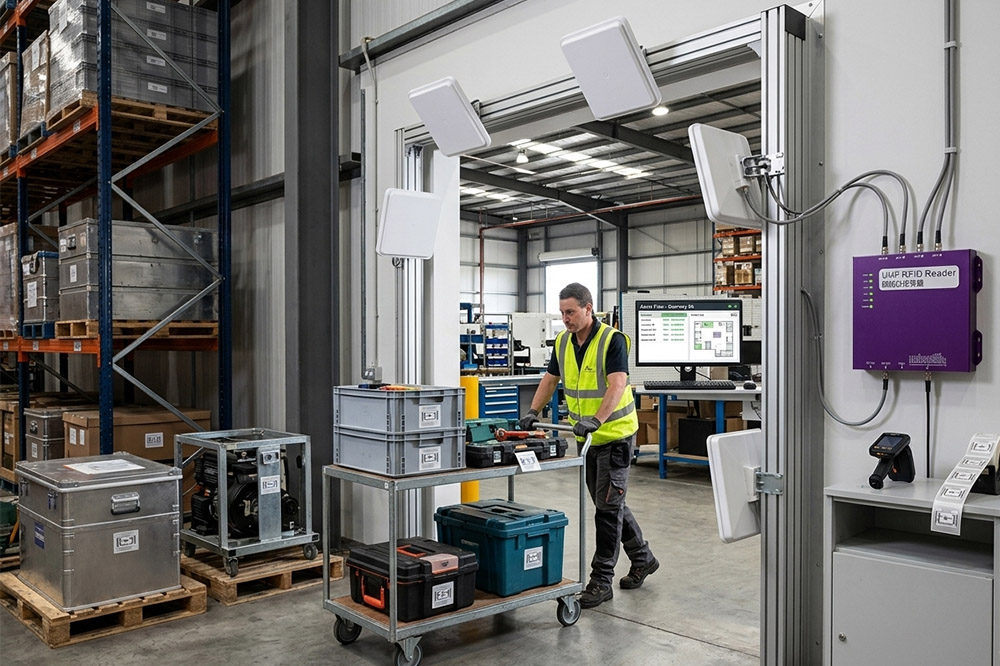

But consider a factory entrance where equipment is moved on carts.

You probably don’t want workers stopping at the doorway to scan each item.

A fixed long range RFID scanner can create an automatic checkpoint.

As the cart passes through, the reader detects the tagged assets.

This is one of the more practical uses of long range UHF RFID.

---

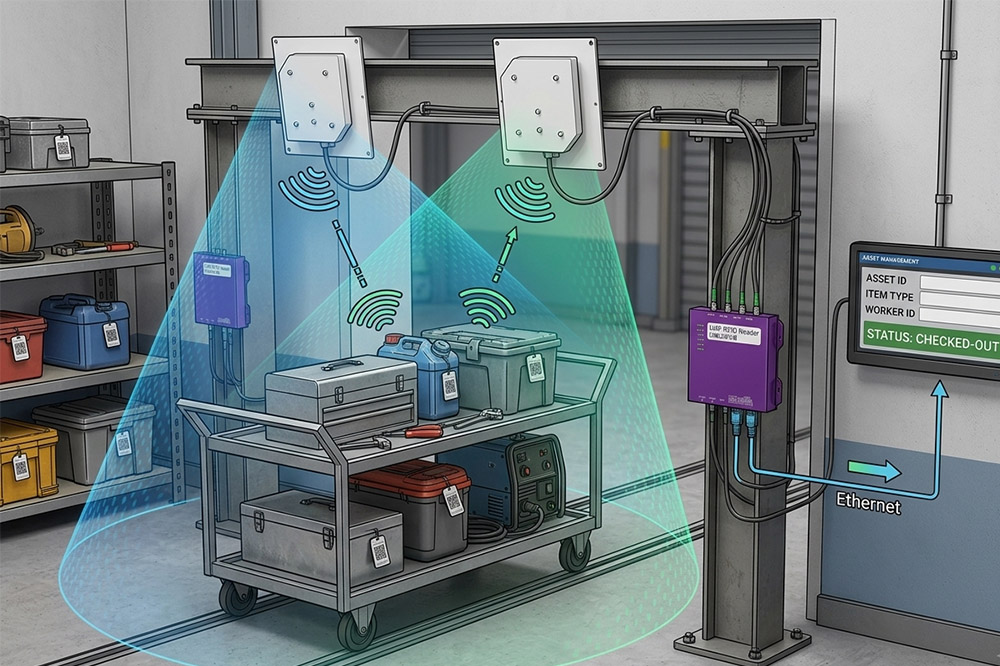

The Reading Zone Needs to Be Controlled

One thing I would pay attention to before buying equipment is the reading zone.

Suppose a factory has an RFID reader at an equipment exit.

The goal is to detect tools leaving the building.

If the reader also detects tools sitting ten meters away in a nearby room, the software may record movements that never happened.

Now the system has more data, but less useful information.

This is why the highest possible reading distance is not always desirable.

For asset tracking, controlled detection can be more important than maximum range.

---

RFID Tags Matter More Than Many Buyers Expect

The reader gets most of the attention, but the RFID tag is just as important.

Assets come in different materials.

You may be tracking:

• Plastic boxes
• Metal tools
• Steel equipment
• Wooden containers
• Electronic devices

A standard RFID label may work well on cardboard but perform poorly when attached directly to metal.

For metal assets, an on-metal RFID tag is often a better choice.

Tag orientation also matters.

If assets can face any direction as they move through the reading zone, the antenna and tag design need to accommodate that.

This is one reason field testing is worth doing before a large order.

---

A Realistic Factory Example

Imagine a manufacturing company with 500 production tools.

The company currently has a simple spreadsheet.

Every department is supposed to record when tools are borrowed.

It sounds organized.

In reality, some records are late. Some are forgotten. And when one expensive tool disappears, people start asking around.

The company installs RFID tags on the tools and fixed RFID readers at two important points.

One reader monitors the tool room entrance.

Another monitors the production area.

Now the company has automatic movement records for those checkpoints.

It still needs proper management rules, of course, but the information is much easier to maintain.

---

Long Range RFID Scanner for Containers and Returnable Assets

Returnable containers are another interesting application.

Manufacturers and logistics companies often reuse:

• Plastic totes
• Metal bins
• Pallet boxes
• Shipping containers
• Specialized transport cases

The problem is that these assets move between different locations.

If 5,000 containers are circulating, losing even a small percentage every year becomes expensive.

RFID can help companies monitor when containers enter or leave a facility.

For system integrators, this can be a good application because the RFID system can often be connected to an existing ERP or asset management platform.

---

Fixed RFID Reader or Handheld Scanner?

Asset tracking does not always require fixed RFID readers.

A handheld RFID scanner can be useful when employees need to search for assets inside a warehouse or factory.

For example:

The system says that a particular tool should be in Zone B.

A worker walks through the area with a handheld scanner and searches for the tag.

Fixed readers are better for automatic checkpoints.

Handheld readers are better for mobile searching.

Many larger projects use both.

---

What Should RFID Integrators Consider?

For RFID solution providers and distributors, the customer application should come before the hardware order.

A few questions are worth asking:

How many assets need to be tracked?

A system for 100 tools is different from one for 50,000 containers.

How often do assets move?

If assets rarely move, continuous RFID monitoring may not provide much value.

Where should the system detect movement?

Doorways, production lines, storage areas, and vehicle gates all need different antenna arrangements.

What software is already being used?

The RFID reader may need to communicate with WMS, ERP, MES, or custom software.

---

Common Problems During Deployment

RFID asset tracking can run into a few practical issues.

Metal Interference

Metal assets often require specialized tags and careful antenna positioning.

Unwanted Reads

Too much coverage can cause the reader to detect assets outside the intended area.

Poor Tag Placement

A tag hidden behind metal or installed in the wrong position may have weaker performance.

Software Problems

The reader can work perfectly while the actual asset database still produces incorrect records.

That last problem is easy to overlook.

RFID is a physical identification technology, but the final result is a software workflow.

---

What RFID Distributors Should Look for in a Supplier

For bulk buyers, the relationship with the RFID manufacturer matters.

A supplier should ideally support:

• UHF RFID readers
• Different antenna options
• Industrial RFID tags
• SDK/API integration
• OEM customization
• Application testing
• Stable bulk supply

This gives integrators more flexibility when different customers have different asset tracking requirements.

One customer might need tool tracking.

Another might need container management.

The hardware does not necessarily need to be completely different, but the configuration probably will be.

---

Before Ordering in Bulk

For a new RFID asset tracking project, I would recommend testing at least:

• Actual RFID tags
• Actual asset materials
• Reader power settings
• Antenna positions
• Reading distance
• Movement speed
• Software data flow

A short field test can reveal problems that never appear in a product specification sheet.

For RFID system integrators, that testing stage is often where the final solution starts to take shape.

---
