How Far Can Long Range RFID Scanner Read? Real Factors That Affect RFID Reading Distance

long range RFID scanner can typically read RFID tags from 5 to 15 meters away, depending on the RFID reader power, antenna gain, tag performance, and installation environment. In some optimized industrial applications, the reading distance can reach beyond 20 meters. However, the actual working range is not determined by the scanner alone. Proper antenna selection, tag type, and reading zone design are equally important for achieving stable RFID performance.

A common question we receive from customers looking for RFID solutions is:

“How many meters can a long range RFID scanner read?”

The answer sounds simple, but in real projects, it is usually not just about the scanner.

Many buyers expect a long range RFID scanner to reach 20 meters because they see that number in product descriptions. However, after installation, the actual performance may be different.

A warehouse with metal shelves, a factory with moving machines, or an outdoor gate with vehicles can create completely different RFID environments.

In most industrial applications, a long range UHF RFID scanner can usually achieve around 5 to 15 meters reading distance, but the final result depends on many conditions.

---

The Reading Distance of a Long Range RFID Scanner Depends on More Than Power

When selecting an RFID reader, some customers focus only on output power.

Higher power can help increase reading distance, but it is not the only factor.

For example, a high-power RFID reader with a poor antenna setup may perform worse than a standard reader with the correct antenna.

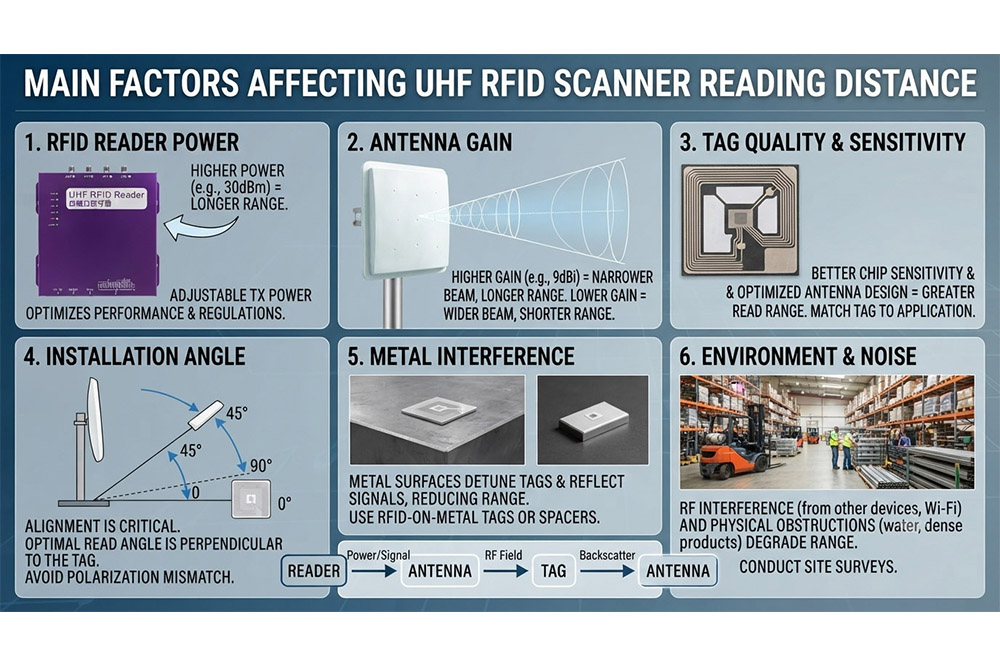

The main factors include:

• RFID reader output power
• Antenna gain
• Antenna direction
• RFID tag sensitivity
• Installation environment
• Cable quality
• Interference from metal or liquids

From our experience, many RFID projects do not fail because the reader is weak. They fail because the reading area was not planned correctly.

---

Typical Long Range RFID Reading Distance

There is no universal distance that works for every project.

A general reference:

Application	Typical Distance
Warehouse doorway	3-8 meters
Industrial gate	5-12 meters
Vehicle identification	8-15 meters
Open outdoor area	10 meters or more

For example, a warehouse customer may only need to identify pallets passing through a loading door.

In this situation, a controlled 5-meter reading zone may actually be better than a 15-meter range.

Why?

Because reading unwanted tags from nearby areas can create inventory mistakes.

---

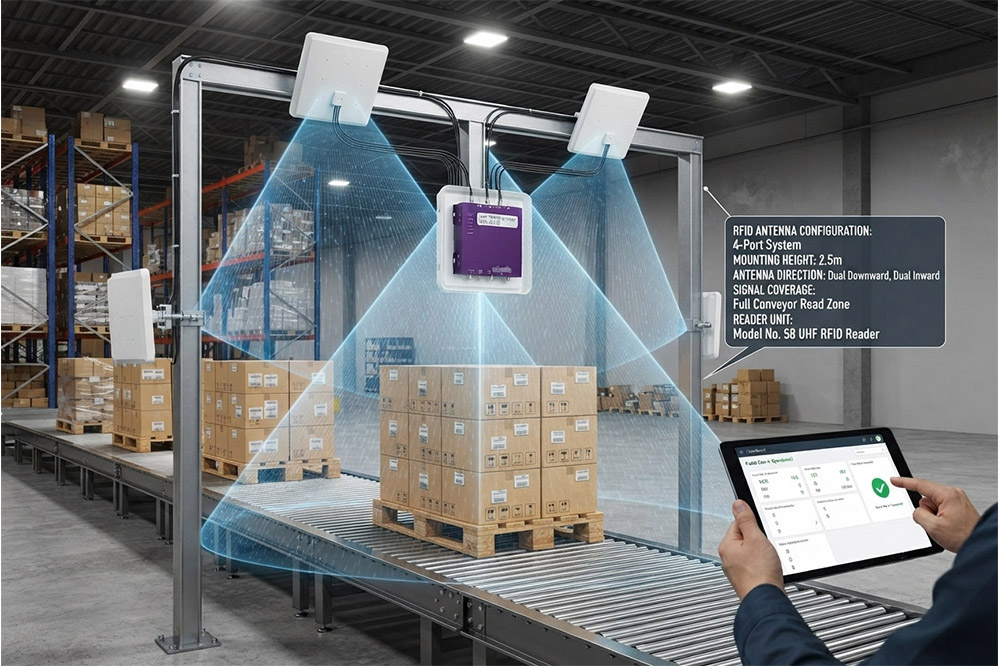

Why Antenna Selection Changes RFID Reading Distance

The antenna is one of the most overlooked parts of an RFID system.

A fixed RFID reader might support different antenna options:

• 6dBi antenna
• 9dBi antenna
• 12dBi antenna

Higher gain antennas usually provide longer reading distance, but they also create a narrower reading area.

This means:

A 12dBi antenna may work well for a vehicle checkpoint.

But inside a warehouse aisle, it might not be the best choice.

Sometimes a wider coverage antenna with a shorter distance gives better results.

The right choice depends on how the customer moves products through the area.

---

Real Example: Why a 20-Meter Reading Range May Not Be Necessary

Imagine a logistics company installing RFID at a warehouse entrance.

The original requirement:

“Need 20-meter reading distance.”

After checking the site, the actual workflow was:

• Trucks stop at the gate.
• Workers unload pallets.
• Products move through a fixed doorway.

A 20-meter reading range would detect tags from nearby storage areas, creating unnecessary data.

The final solution used a shorter reading zone with better antenna positioning.

The customer got fewer false reads and more reliable tracking.

This is something that product specifications usually cannot explain.

---

How RFID System Integrators Improve Reading Distance

Experienced RFID solution providers usually optimize the whole system.

Common improvements include:

Adjust Antenna Position

Small changes in antenna angle can significantly affect performance.

Select Better RFID Tags

Not all RFID tags have the same performance.

Tags designed for metal surfaces may perform better on equipment and containers.

Control Reading Zones

Using directional antennas and proper installation helps avoid unwanted reads.

Test Before Mass Deployment

Large projects normally require field testing before purchasing hundreds or thousands of devices.

---

Long Range RFID Scanner Applications Requiring Longer Distance

Some industries naturally need longer reading ranges.

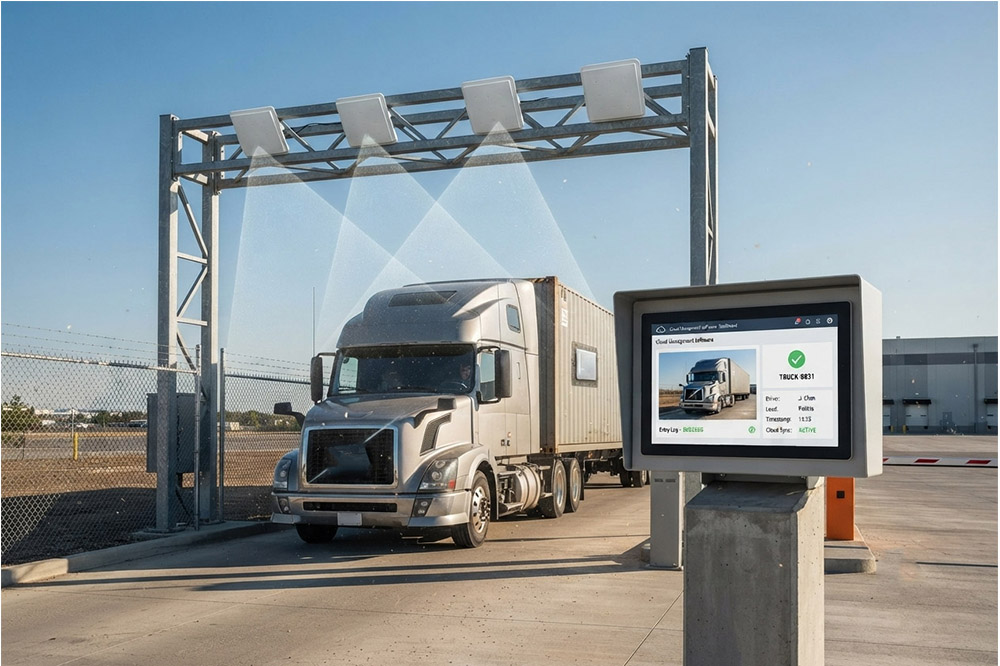

Vehicle Tracking

Vehicles cannot always stop at the exact same position.

A longer reading distance improves identification reliability.

Logistics Yard Management

Outdoor environments require wider coverage because vehicles and containers are constantly moving.

Industrial Asset Tracking

Large equipment and tools may be distributed across large areas.

However, longer distance is not always the goal. Accuracy and stability usually matter more.

---

Choosing the Right Long Range RFID Scanner Supplier

For distributors and RFID system integrators, the hardware supplier is an important part of the project.

A good supplier should provide:

• Stable UHF RFID readers
• Different antenna options
• SDK and API support
• Technical documents
• OEM customization
• Bulk pricing support

Many RFID projects are customized. One customer may need warehouse tracking, while another needs vehicle access control.

A supplier who understands different applications can save a lot of testing time.

---

FAQ

Can long range RFID scanner read 20 meters?

Some systems can achieve 20 meters in suitable environments, but most industrial projects operate around 5-15 meters for better control and accuracy.

Does stronger RFID reader always read farther?

Not always. Antenna selection, tag quality, and installation often have a bigger impact.

Which RFID frequency provides long distance reading?

UHF RFID (860-960MHz) is commonly used for long range applications.

Can RFID reading distance be customized?

Yes. Reader power, antenna type, tag selection, and installation design can be adjusted according to project requirements.

---

Need a Long Range RFID Scanner for Your Project?

We provide UHF RFID readers, rfid antennas, and customized RFID solutions for system integrators, distributors, and industrial automation projects.

Contact us for technical specifications, OEM options, and bulk cooperation opportunities.
