Common Problems with Long Range RFID Readers

Most RFID projects don’t fail because the hardware is “bad.”

They usually fail quietly—during tuning, installation, or real operation.

What looks stable in a demo room can behave completely differently in a warehouse, parking gate, or factory line. And interestingly, the same set of problems shows up again and again, no matter the country or industry.

Below are the issues we see most often in real deployments, especially from system integrators and distributors working on industrial RFID projects.

---

1. RFID reaer range is too short

This is usually the first complaint after installation.

The expectation is simple: “It should read 8–12 meters.”
But on site, it reads 4 meters… then 7… then misses tags completely.

In most cases, the reader is not the real issue.

What we usually find:

• RFID Antenna gain too low
• Poor cable quality or long cable loss
• Tag orientation not aligned with antenna beam
• Metal structures absorbing or reflecting signals
• Power set too conservatively during testing

Sometimes increasing power helps, but not always. In a few cases, reducing interference or changing antenna direction works better than increasing distance.

---

2. Reading too many tags at the same time

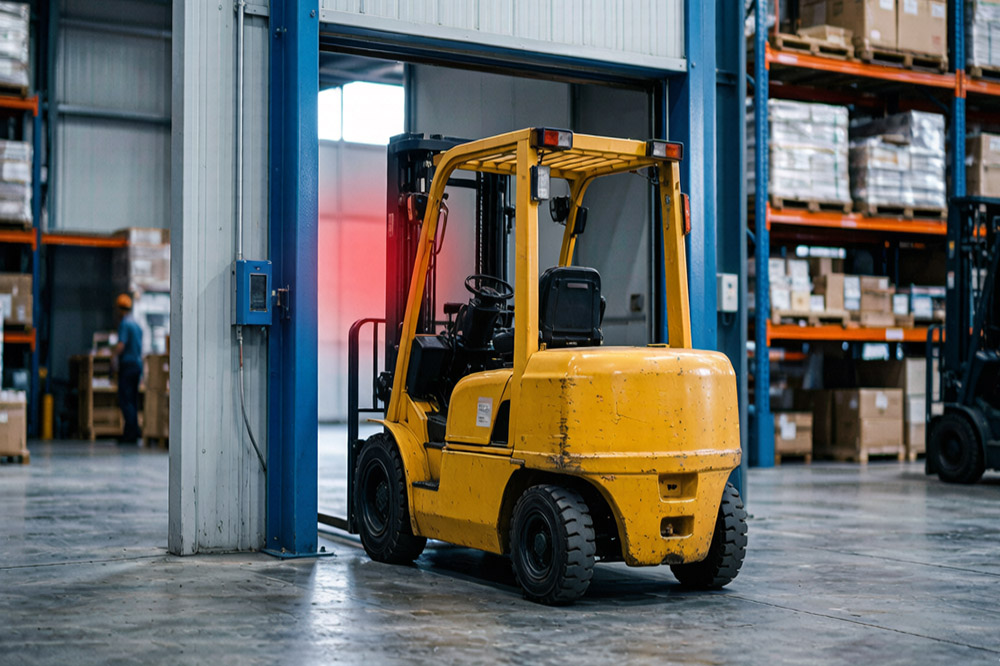

This problem often appears in warehouse and logistics projects.

Instead of missing rfid tags, the system suddenly reads too many tags at once, including:

• Tags from adjacent shelves
• Pallets outside the intended gate
• Reflections from metal surfaces

It usually happens when the reading zone is too wide or not properly controlled.

A common misunderstanding is thinking “more range = better performance.”
In reality, uncontrolled range often creates noise instead of value.

Many experienced integrators solve this by:

• Narrowing antenna beam direction
• Lowering RF power slightly
• Repositioning antenna height

---

3. Cross-lane or wrong-zone reading

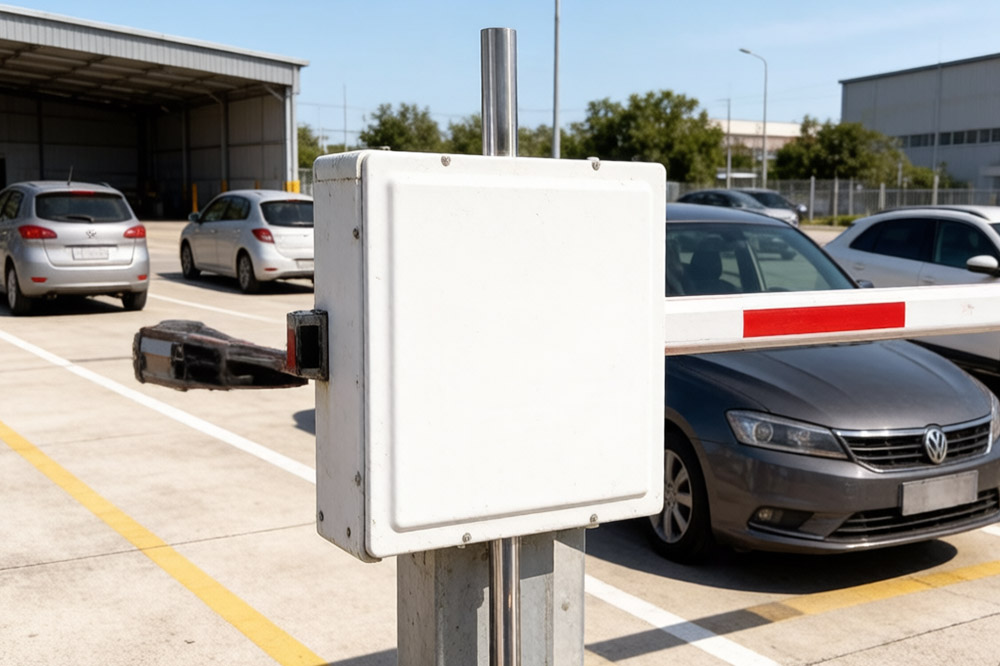

This is especially common in parking systems.

A vehicle enters Lane A, but the system also detects Lane B.
Or worse, a car waiting nearby triggers a gate it should never affect.

This is not a software issue in most cases.

It usually comes from:

• Wide antenna coverage angle
• Poor physical separation between lanes
• Reflective surfaces (glass walls, metal fences)
• Incorrect antenna tilt angle

In real projects, reducing the read zone is often more effective than trying to “filter” the data in software.

---

4. Tags are not being read consistently

This is one of the most frustrating problems because it feels random.

One pallet is read perfectly.
The next one is missed.
Then it works again.

When we look deeper, common causes include:

• RFID tag not properly attached (especially on metal or curved surfaces)
• Mixed tag types in the same system
• Weak tag sensitivity
• Moisture or liquid interference
• Tag orientation changing during movement

In many warehouse cases, simply standardizing tag placement solves more problems than changing hardware.

---

5. Interference from metal and environment

Industrial environments are not “RFID friendly.”

Warehouses, factories, and parking structures all share one thing: metal everywhere.

RF signals behave unpredictably in such environments:

• Reflection creates false reading zones
• Signal bouncing reduces accuracy
• Dead zones appear near steel racks

Sometimes the system works perfectly during testing, then behaves differently after full warehouse operation starts.

This is why real-world tuning is always required after installation—not just pre-installation testing.

---

6. Reader detects tags from the wrong time or direction

This problem is less obvious but very common in dynamic environments.

Example:

• A forklift passes a dock door
• RFID reader detects pallet too early
• System logs wrong timestamp or location

This usually happens when:

• Reading zone is too long
• Tag speed is not considered in configuration
• Antenna angle is too wide

In real deployments, timing control is often as important as distance control.

---

7. System works in testing but fails in real operation

This is probably the most expensive problem for integrators.

Everything works in pilot testing:

• Good read rate
• Stable detection
• Clean data

Then after deployment:

• Missed reads appear
• Data becomes inconsistent
• Users report “system is unreliable”

The reason is usually simple:

Testing environment is controlled. Real environment is not.

Real operation introduces:

• More traffic
• More RF noise
• More random tag behavior
• Different user behavior

This is why RFID projects almost always require on-site tuning after installation.

---

8. Communication or SDK integration issues

Sometimes the hardware works fine, but the system still fails.

Common issues include:

• TCP/IP disconnection
• Delayed data transmission
• SDK compatibility issues
• Middleware integration problems
• ERP/WMS communication mismatch

From a system integrator perspective, this can be more critical than RF performance itself.

Because even perfect reading is useless if the data cannot reach the system correctly.

---

What experienced RFID integrators do differently

After a few real projects, most engineers stop focusing only on hardware specs.

Instead, they prioritize:

• Controlling reading zones first
• Designing antenna layout carefully
• Testing real tag behavior early
• Adjusting power gradually
• Validating software integration before scaling

In many cases, improving system stability does not require new hardware—only better tuning.

---

FAQ

Why is my long range RFID reader not reading consistently?

Most inconsistency comes from tag placement, antenna alignment, or environmental interference rather than reader failure.

How do I fix RFID cross-reading issues?

Reduce antenna beam width, adjust installation angle, and control RF power to limit the reading zone.

Why does RFID work in testing but fail in real deployment?

Real environments introduce metal reflection, traffic variation, and RF interference that are not present in controlled testing.

Can software fix RFID read problems?

Software can filter data, but physical issues like antenna placement and tag orientation must be solved at hardware level.
