Can One RFID Reader Control Four Antennas?

The short answer is yes.

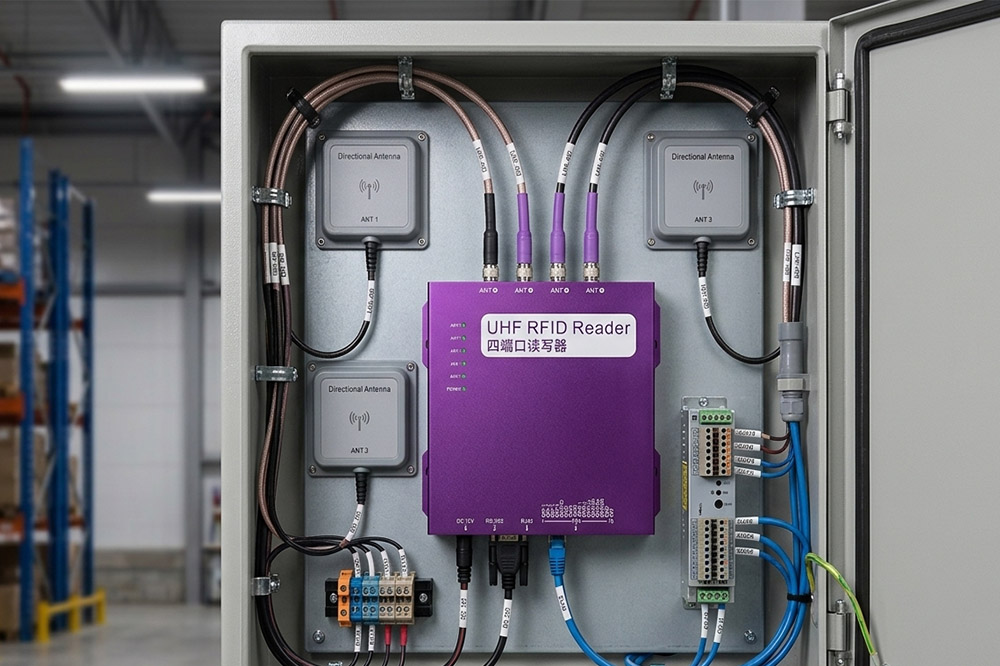

In fact, that’s exactly what a 4-port fixed RFID reader is designed to do. Each antenna port can connect to one external antenna, allowing a single reader to cover multiple reading zones without installing several separate devices.

Even so, connecting four antennas doesn’t automatically mean you’ll get four times the coverage.

The layout of the site still matters.

Why Use Four Antennas Instead of Four Readers?

One customer asked us this question while planning a warehouse project.

They had four dock doors sitting side by side and assumed each door needed its own reader. After looking at the layout, we suggested a single 4-port reader with four directional antennas instead.

The installation became much simpler.

There were fewer network cables, fewer power supplies and only one reader to configure. Software integration was also easier because all antenna data came from the same device.

For projects with several nearby reading points, this approach is often more practical.

Do All Four Antennas Read at the Same Time?

Not exactly.

Most fixed UHF RFID readers switch rapidly between antenna ports. This process is called antenna multiplexing.

The reader activates one antenna, collects tag data, then moves to the next antenna within milliseconds. Because the switching is so fast, the process appears almost simultaneous in everyday applications.

For warehouse doors, conveyor systems and asset tracking, this is usually more than sufficient.

Where Is a Four-Antenna Reader Commonly Used?

We’ve seen 4-port readers used in many different environments.

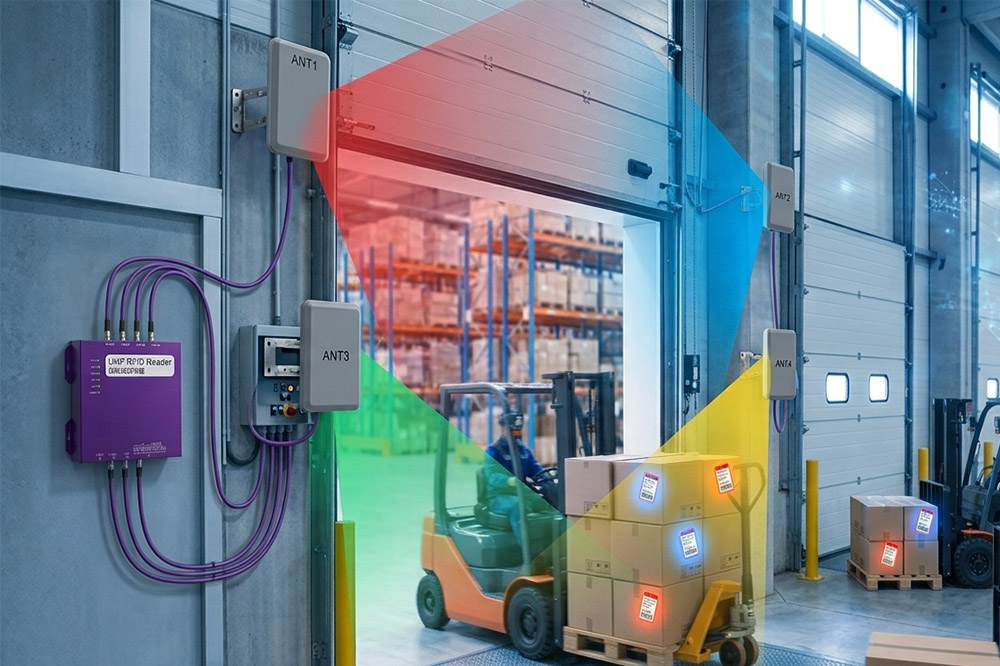

A warehouse may install one antenna on each side of a dock door.

A factory might place antennas at several production stations.

Some smart cabinets use multiple antennas inside different compartments to improve item detection.

Although the applications vary, the idea stays the same—one reader manages several reading areas without requiring multiple independent devices.

Will Adding More Antennas Increase Reading Distance?

This is probably the biggest misunderstanding.

Adding extra antennas doesn’t make one tag readable from farther away.

Instead, it expands the overall coverage area.

Think of it this way: one antenna watches one zone. Four antennas allow the reader to monitor four different zones. The read distance of each antenna still depends on its gain, installation angle, RFID tag and surrounding environment.

If longer distance is the goal, choosing the right antenna is usually more effective than simply adding more ports.

What Should You Consider Before Connecting Four Antennas?

Cable length is one factor people sometimes overlook.

Very long RF cables introduce signal loss, so keeping cable runs reasonably short generally improves performance.

Antenna spacing is another consideration.

If two antennas point toward the same area, they may create overlapping read zones and occasionally detect the same tag. During commissioning, installers often spend time adjusting antenna angles and transmit power until each reading area is well defined.

These small adjustments usually have a bigger impact than changing reader settings later.

Is a 4-Port Reader Enough for Future Expansion?

For many warehouses and logistics facilities, the answer is yes.

However, if you already know the project will expand to eight or twelve reading points in the near future, starting with an 8-port or 16-port RFID reader may reduce future installation work.

It really depends on the site’s development plan rather than today’s requirements alone.

CYKEO 4-port fixed RFID readers support multiple external antennas, high-speed tag reading and standard communication interfaces including TCP, Serial and REST API. Whether you’re building a warehouse management system, conveyor tracking solution or industrial asset management platform, our engineering team can help recommend the most suitable antenna layout before installation, making future expansion much easier.
