A few years ago, many customers came to us with the same request: “We need a 15-meter RFID reader.” After asking a few more questions, it often turned out that distance wasn’t the real issue. Some projects needed a wider reading area, others needed to stop reading tags from the next lane, and a few simply required stable performance in a warehouse full of metal shelves.
That is why choosing a long range RFID reader is rarely about finding the highest power output. It’s about matching the reader, antenna, tags, and installation environment to the actual project.
A long range RFID reader is typically a fixed UHF RFID reader designed to identify passive RFID tags from several meters away. In a well-planned deployment, reading distances usually range from 5 to 15 meters, depending on the antenna, tag type, installation angle, and surrounding environment.
Unlike handheld readers, fixed long range readers stay in one location and continuously monitor vehicles, pallets, tools, or tagged assets as they move through a designated reading zone.

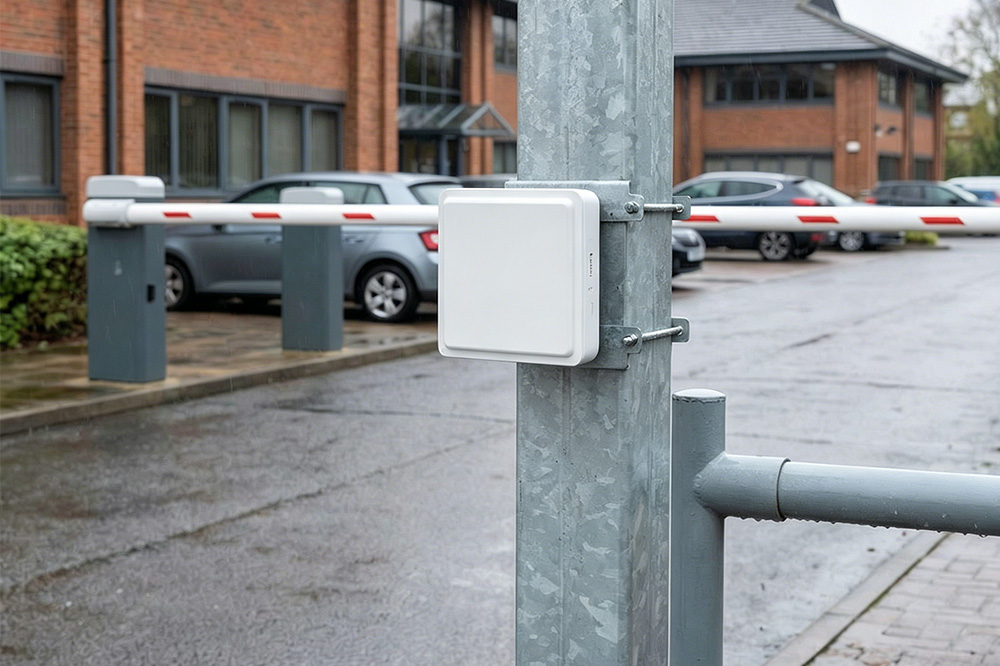

You’ll commonly see them installed at warehouse dock doors, factory production lines, vehicle entrances, logistics centers, and automated inventory systems.

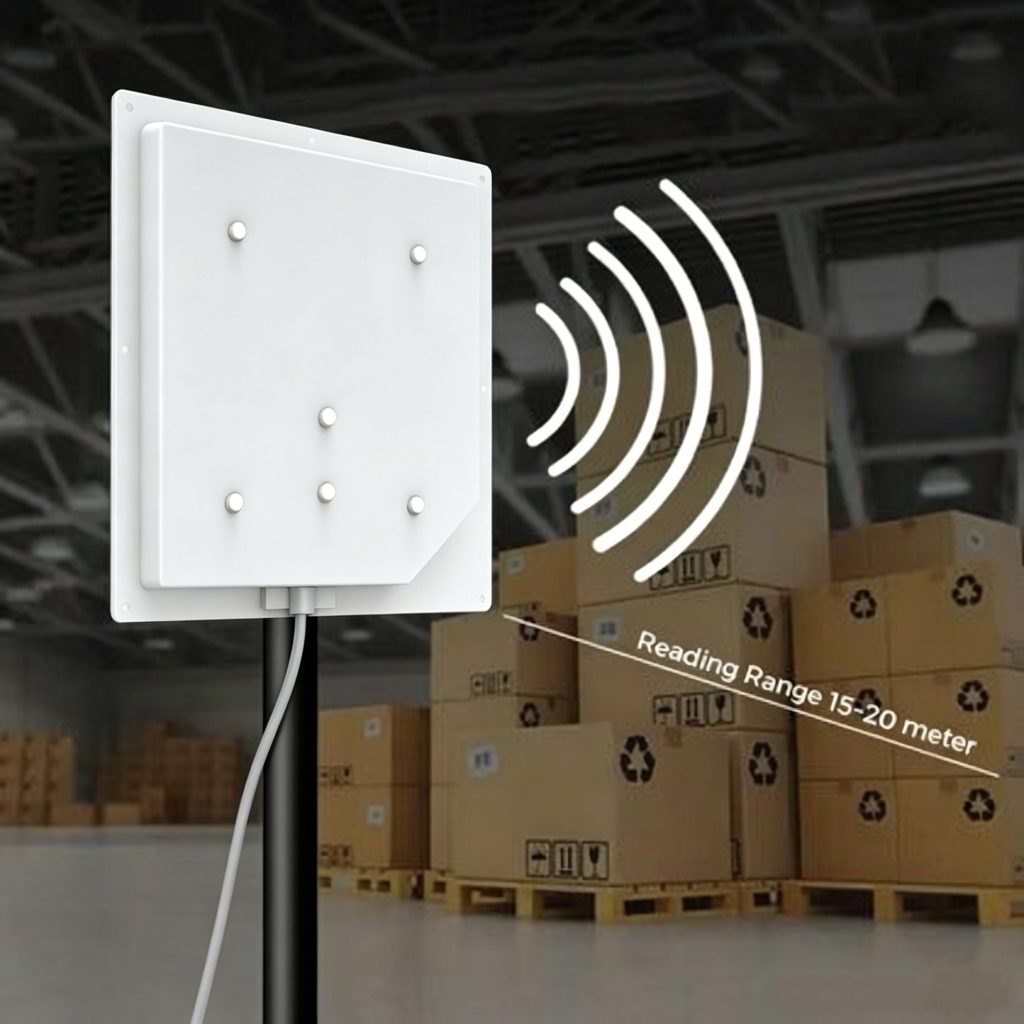

The reader sends radio frequency signals through an external antenna. When a compatible RFID tag enters the field, it reflects back its stored EPC data. The reader captures that response and forwards the information to warehouse software, ERP, WMS, or access control systems through interfaces such as Ethernet, RS232, RS485, or TCP/IP.
In real projects, however, performance depends on much more than the reader itself. Metal structures, liquid products, antenna placement, cable quality, and even the speed of moving tags can all influence the final reading result.
Most of our customers are system integrators rather than end users, so the applications are usually project-based.
Typical deployments include:
Each application requires different antenna layouts and reading zones. A parking system, for example, focuses on accurate lane control, while a warehouse often prioritizes fast multi-tag reading.
One mistake we see quite often is selecting a reader based only on maximum reading distance. A longer range isn’t always better. If the reading area becomes too large, the system may detect tags from neighboring aisles or adjacent lanes.
Before choosing a reader, consider these questions:
Answering these questions usually narrows the options much faster than simply comparing power specifications.
A reliable long range RFID solution is built around the entire system rather than a single device. Reader performance, antenna selection, tag quality, and installation experience all play equally important roles.
If you’re developing an RFID project or sourcing products for distribution, working with a manufacturer that offers technical support, SDKs, OEM services, and project-level guidance can save considerable testing time and reduce deployment risks.
Looking for a long range RFID reader for your next project? CYKEO provides fixed UHF RFID readers, integrated readers, multi-port RFID modules, and technical support for system integrators, software developers, and wholesale partners worldwide.
Q: How far can a passive long range RFID reader read?
Most passive UHF RFID systems achieve 5–15 meters under normal conditions, depending on the reader, antenna, tag, and installation environment.
Q: Can one RFID reader support multiple antennas?
Yes. Many industrial RFID readers support 4, 8, or even 16 antennas for larger coverage areas.
Q: Is a longer reading distance always better?
Not necessarily. An oversized reading zone can increase unwanted tag reads and make system tuning more difficult.
