How Far Can Long Range RFID Reader Read?

One question comes up in almost every RFID project discussion: “How far can this reader actually read?”

It sounds like a simple question, but the answer is rarely a single number. We’ve seen two projects using the same reader produce completely different results. One consistently reached 12 meters, while another struggled to read beyond 6 meters. The difference wasn’t the reader—it was everything around it.

If you’re sourcing RFID equipment for a customer or planning a new deployment, understanding what affects read range will save far more time than simply comparing datasheets.

---

There Isn’t One Standard Read Distance

Many manufacturers advertise reading distances of 10, 15, or even 20 meters. Those figures are usually measured under ideal test conditions using large, high-performance tags positioned perfectly in front of the antenna.

Real projects are less predictable.

A warehouse full of metal racks, a loading dock with moving forklifts, or a parking entrance exposed to rain can all change the result. For most passive UHF RFID systems, a practical reading distance falls between 5 and 12 meters. Well-designed installations may reach 15 meters, but only when the rfid reader, rfid antenna, and tag are carefully matched.

---

The Reader Is Only One Part of the System

A common misunderstanding is that buying a more powerful reader automatically increases range.

In reality, the reader is only one component. Think of an RFID system as a team rather than a single device. Even the best reader can’t perform well if it’s paired with the wrong antenna or low-quality tags.

Several factors work together:

• Reader output power
• Antenna gain and beam angle
• RFID tag size and sensitivity
• Installation height
• Cable quality
• Nearby metal or liquid
• Tag orientation
• Vehicle or conveyor speed

Ignoring any one of these can reduce performance more than expected.

---

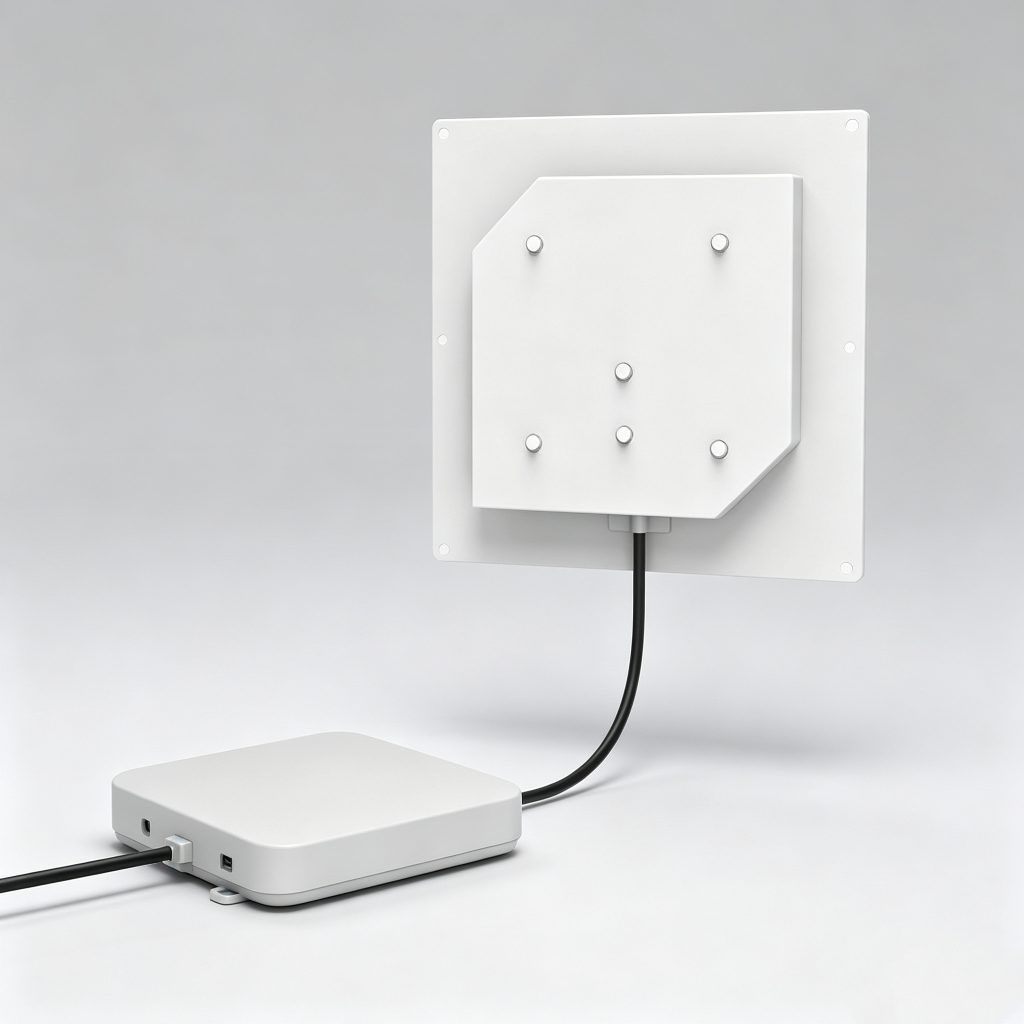

Antenna Choice Often Makes the Biggest Difference

If there’s one component that deserves extra attention, it’s the antenna.

A high-gain directional antenna can focus energy into a narrow reading zone, making it suitable for parking systems or dock doors. Circularly polarized antennas are often chosen when tag orientation changes frequently, such as cartons moving along a conveyor.

We’ve seen projects where replacing the antenna—not the reader—increased the reading distance by several meters while improving stability at the same time.

---

Tags Matter More Than Many People Expect

Not all RFID tags respond equally.

Small labels are convenient, but they generally have shorter reading distances than larger UHF tags. Metal surfaces require specialized on-metal tags, while products containing liquids may need different placement to avoid signal loss.

During pilot testing, it’s worth trying several tag models before committing to large-scale purchasing. A slightly more expensive tag often reduces installation adjustments later.

---

Installation Environment Changes Everything

Laboratory tests rarely include steel shelving, concrete walls, or passing vehicles.

In warehouses, reflections from metal racks can create unexpected read zones. At parking entrances, nearby barriers and multiple lanes may cause unwanted tag reads if antennas are not positioned carefully.

Sometimes reducing transmit power or narrowing the antenna beam produces better results than simply trying to extend the reading distance.

---

Passive vs. Active RFID Read Range

This is another area that causes confusion.

Passive UHF RFID systems rely on energy transmitted by the reader, making them cost-effective for inventory, logistics, manufacturing, and access control. Most industrial deployments achieve reliable performance within several meters.

Active RFID tags contain their own batteries and can communicate over much longer distances, sometimes exceeding 100 meters. However, they also cost significantly more and are typically used in specialized tracking applications.

For most warehouse and industrial automation projects, passive UHF RFID remains the preferred choice because it balances performance, scalability, and operating cost.

---

Choosing the Right Distance for Your Project

Instead of asking, “What’s the longest distance available?”, it’s usually better to ask, “What’s the right distance for this application?”

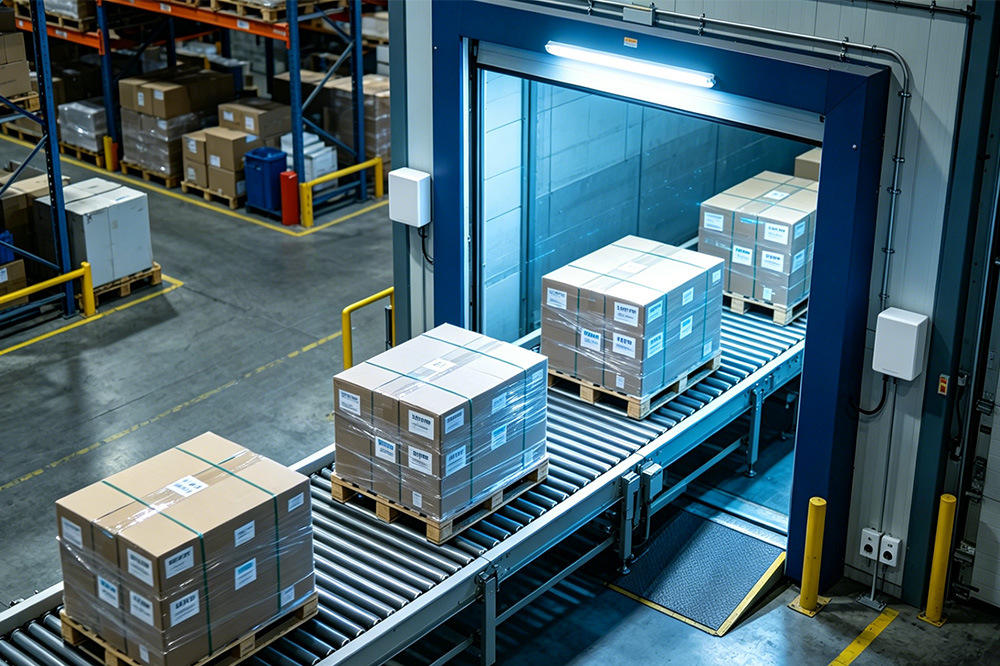

A warehouse dock door may only require an accurate 4–6 meter reading zone. A vehicle identification system might need 8–10 meters with precise lane control. Reading too far can introduce duplicate reads or capture tags outside the intended area.

The most reliable RFID systems are rarely the ones with the longest range. They’re the ones designed around the actual workflow.

If you’re planning a warehouse, parking, manufacturing, or asset tracking project, working with an RFID manufacturer that can recommend readers, antennas, and tags as a complete solution often delivers better results than selecting components individually.

---

FAQ

How far can a passive long range RFID reader read?

Most passive UHF RFID systems achieve 5–12 meters in typical industrial environments. Under optimized conditions with suitable antennas and tags, the distance may reach around 15 meters.

Can changing the antenna improve RFID read distance?

Yes. In many cases, selecting a higher-gain or better-matched antenna improves both reading distance and stability without replacing the reader.

Does higher reader power always mean better performance?

Not always. Excessive power can create unwanted reading zones and increase interference. Proper antenna selection and installation are often more important.

What reduces RFID read range?

Metal objects, liquids, poor tag placement, damaged cables, incorrect antenna alignment, and low-quality tags are among the most common causes.
