Long Range RFID Scanner for Mining: How to Track Equipment and Assets

A long range RFID scanner helps mining companies identify and track vehicles, tools, equipment, containers, maintenance assets, and material-handling items at mine entrances, workshops, storage areas, processing facilities, and other checkpoints. By combining UHF RFID readers, suitable tags, directional antennas, and asset management software, mining operators can record where tagged assets were detected and when, improving equipment visibility and reducing manual tracking work.

How Does RFID Tracking Work in Mining?

Mining operations often cover large areas and involve expensive equipment, mobile tools, spare parts, containers, and maintenance assets. Equipment may move between extraction areas, workshops, warehouses, processing facilities, and transport zones.

Tracking these movements manually can become difficult, especially when several teams use the same tools or when equipment operates across different areas.

An RFID system creates an automatic identification process.

A tag is attached to a vehicle, tool, container, equipment case, or other asset. When the asset passes through an RFID reading zone, the antenna receives the signal and sends it to the reader. The reader captures the tag’s EPC and transfers the information to the management software.

The software can then create an event such as:

Equipment M018 → Maintenance Workshop → 09:25

Or:

Container C104 → Mine Storage Area → 16:40

This does not mean RFID provides continuous GPS positioning. Instead, it records detection events at selected checkpoints. That information can still be valuable for equipment accountability, maintenance planning, and inventory management.

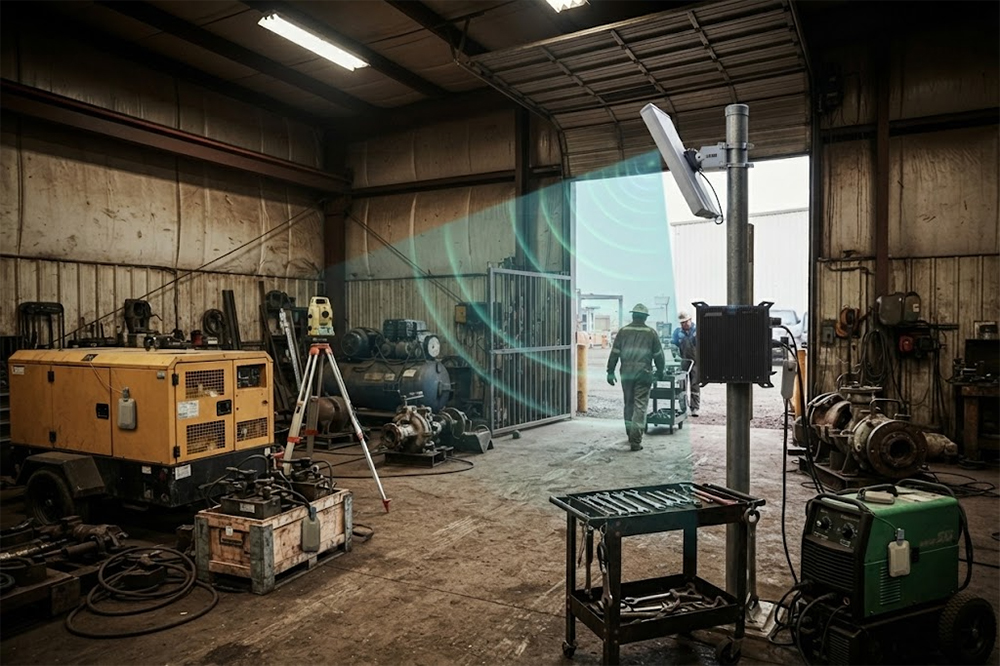

Tracking Mining Equipment

Mining companies may need to track many types of equipment, including:

• Drilling equipment
• Portable generators
• Compressors
• Pumps
• Welding machines
• Maintenance tools
• Tool carts
• Inspection equipment
• Spare parts containers
• Reusable equipment cases

Some assets are expensive. Others are frequently moved between teams and can be difficult to locate when needed.

A long range RFID scanner can be installed at:

• Equipment storage entrances
• Maintenance workshops
• Warehouse doors
• Fuel or service areas
• Processing facilities
• Restricted access points
• Equipment transfer lanes

When tagged equipment passes through a checkpoint, the system records the event automatically.

This can help answer questions such as:

• Where was the equipment last detected?
• Was a tool returned to the workshop?
• Which assets entered a particular work area?
• Has a maintenance container left the warehouse?
• Which equipment is still recorded at the mine site?

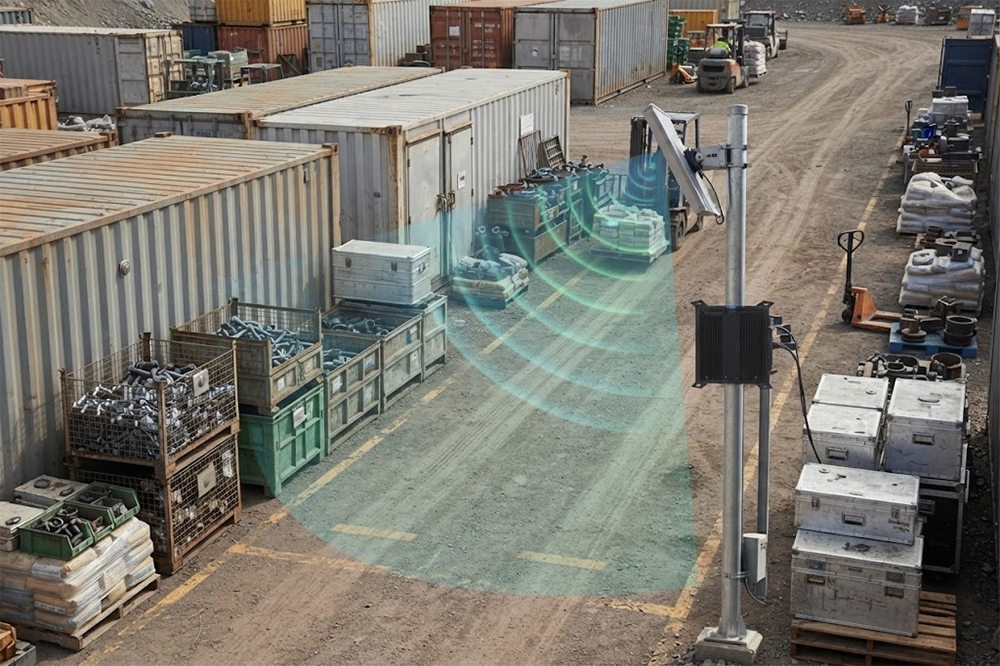

RFID for Mining Containers and Materials

RFID can also support the tracking of material-handling items.

Mining operations may use reusable containers, pallets, bins, drums, equipment cases, and transport units. These items may move between warehouses, workshops, processing facilities, and loading areas.

A tag can be attached to the container or its protective housing. RFID checkpoints can then record movements such as:

Warehouse → Processing Area → Maintenance Workshop → Loading Zone

This can improve visibility without requiring workers to scan every container individually.

However, the material itself matters.

Metal containers, liquid-filled drums, dense spare parts, and heavy machinery may affect RFID performance. The tag type and mounting position should be selected according to the actual application.

Metal, Dust, and Harsh Industrial Conditions

Mining environments can be more demanding than ordinary warehouses.

Large metal machinery, vehicles, steel structures, electrical equipment, dust, vibration, moisture, and changing site layouts may influence RFID performance.

A standard RFID tag may not work reliably when attached directly to a metal surface. An on-metal RFID tag may be more suitable for machinery, tools, containers, and steel equipment.

The tag should also be able to withstand the expected operating conditions.

Depending on the site, buyers may need to consider:

• Waterproofing
• Dust resistance
• Impact protection
• Temperature range
• UV exposure
• Vibration
• Chemical exposure
• Abrasion resistance
• Protective housing

A tag that performs well in a clean indoor warehouse may not provide the same result in an outdoor mining environment.

The complete tag installation should be tested rather than evaluated only from a datasheet.

Why Antenna Position Matters at Mining Sites

Mining sites often contain several nearby zones.

A reader installed at a workshop entrance should identify equipment passing through that entrance. It should not continuously detect every tagged machine operating in the surrounding area.

This is why a controlled RFID reading zone is important.

A directional antenna can focus the reading area toward a gate, doorway, storage lane, or equipment passage. Reader power can then be adjusted to provide reliable detection without creating unnecessary coverage.

More reading distance is not always better.

If the reading zone is too large, the reader may detect an asset that has not actually passed through the intended checkpoint. This can create incorrect movement records.

The practical goal is to identify the correct asset at the correct location and time.

Tracking Equipment Between Mining Areas

Mining equipment may move between extraction zones, workshops, warehouses, processing plants, and loading areas.

RFID readers installed at selected transfer points can create a movement history.

For example:

Central Warehouse → Open-Pit Area → Maintenance Workshop → Processing Facility

Each checkpoint can update the asset record.

This can be useful for shared equipment and reusable assets that move frequently between teams. It may also help maintenance departments understand when equipment returned for inspection or when a spare parts container reached a specific workshop.

For heavy vehicles and mobile machinery, RFID should not be presented as a replacement for GPS.

RFID confirms that a tagged asset passed a particular checkpoint. GPS or another positioning technology may still be needed for continuous location tracking.

In some mining projects, RFID and GPS can complement each other.

Can RFID Read Multiple Mining Assets?

UHF RFID readers can detect multiple tags within their reading zone.

This may be useful when several tools, containers, or equipment cases pass through an entrance together.

However, mining assets may have different shapes, materials, and orientations. Metal tools stacked together may behave differently from plastic containers or tagged equipment cases.

The system should be tested with the expected number of tags and the actual asset arrangement.

Software filtering is also important.

If a tagged container remains near an antenna for several seconds, the reader may detect it repeatedly. The software should combine repeated reads into one meaningful event instead of creating many duplicate movement records.

Sensors, gate signals, or other equipment may also help define when an asset enters or leaves the reading zone.

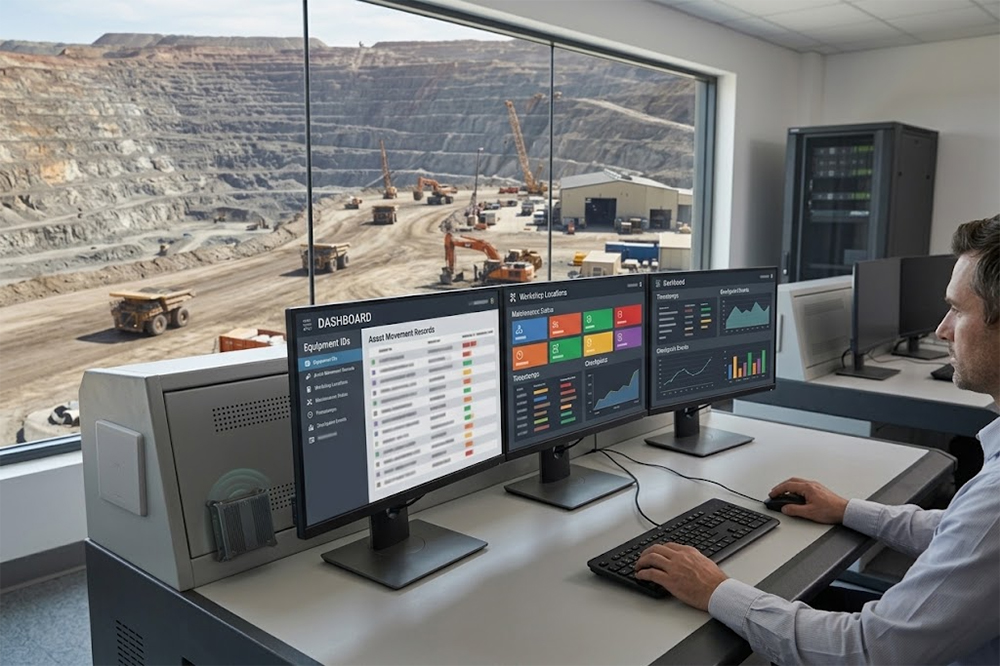

RFID Integration with Mining Management Software

The RFID reader produces identification data, but the management system must convert that data into useful information.

Depending on the reader and software architecture, integration may use:

• Ethernet
• TCP/IP
• Serial communication
• Digital I/O
• API
• SDK
• HTTP
• MQTT

The RFID system may connect with:

• Mining asset management software
• ERP
• WMS
• Maintenance management systems
• Equipment rental platforms
• Warehouse inventory systems
• Industrial automation software
• Project management platforms

For example, when a tagged pump enters a maintenance workshop, the software may update its status to “received for inspection.”

When a spare parts container leaves the warehouse, the system may associate the event with a work order or maintenance request.

The exact workflow depends on the customer’s existing software and operating procedures.

A Practical Mining RFID Example

Imagine a mining company managing several workshops and a central equipment warehouse.

The company frequently moves tools, equipment cases, and spare parts containers between locations. Manual records are often delayed, so employees cannot always determine where an asset was last used.

The integrator installs fixed RFID readers at the warehouse entrance, workshop door, and equipment transfer gate.

Each tool cart and container receives a suitable RFID tag.

When an asset leaves the warehouse, the reader captures the EPC and sends the event to the asset management system. When the asset arrives at the workshop, a second checkpoint records the movement.

During testing, some metal tools show inconsistent reading performance. The team changes the tag type, adjusts the mounting position, and changes the antenna angle.

The final system provides more consistent movement records and reduces manual inventory checks.

The lesson is practical: the reader, tag, rfid antenna, installation, and software must be tested as one system.

What Should Be Tested Before Deployment?

A mining RFID project should be tested under realistic site conditions.

Important factors include:

• Equipment material
• Container material
• RFID tag type
• Tag mounting position
• Tag orientation
• Metal surfaces
• Reader output power
• Antenna type
• Antenna position
• Reading distance
• Asset movement speed
• Number of tags
• Asset spacing
• Dust and moisture
• Nearby machinery
• Electrical equipment
• Reading-zone boundaries
• Software filtering
• Entry and exit logic
• Communication interface

If the system will track heavy equipment, test the actual equipment.

If the system will operate outdoors, test outdoors.

If several assets pass the reader together, test the complete group rather than a single tag.

What Should Distributors and Integrators Consider?

For RFID distributors and system integrators, mining projects may require a complete equipment package rather than a reader alone.

The procurement checklist should include:

• Frequency range
• EPC C1G2 / ISO18000-6C support
• Reader sensitivity
• Output power
• Antenna ports
• Compatible antennas
• Communication interfaces
• API or SDK availability
• Digital I/O
• Firmware functions
• Multiple-tag reading performance
• Tag compatibility
• Rugged tag options
• OEM customization
• Sample availability
• MOQ
• Lead time
• Technical support
• Bulk supply capability

It is also useful to confirm whether the supplier can provide matching RFID tags for metal equipment, containers, tools, and outdoor assets.

Final Takeaway

A long range RFID scanner can help mining companies track equipment, tools, containers, and reusable assets at selected checkpoints.

The most reliable system does not necessarily try to cover the entire mine with one reader. Instead, it creates controlled reading zones at warehouses, workshops, gates, processing facilities, and equipment transfer points.

Metal surfaces, harsh outdoor conditions, tag placement, antenna direction, and software filtering all influence performance.

For this reason, the reader should be evaluated together with the tag, antenna, installation environment, and management software.

For distributors and system integrators, mining RFID projects can create opportunities to supply readers, antennas, rugged tags, testing support, OEM customization, and long-term bulk supply.
