how to scan an rfid tag: A Complete Guide to RFID Tag Reading

To scan an RFID tag, use a compatible RFID reader that matches the tag frequency, activate the reader, and capture the wireless signal returned by the tag. The reader then transfers the tag ID or stored data to software for tracking, inventory, or identification applications.

Understanding How to Scan an RFID Tag in Real Applications

How to scan an RFID tag is a common question when companies begin evaluating RFID technology. Unlike barcode scanning, RFID scanning does not require direct visual contact. The reader communicates with the tag through radio frequency signals and automatically collects identification information.

From my experience working with RFID hardware testing and deployment projects, the scanning process is rarely just about pressing a button on a reader. In warehouses, production lines, and asset management environments, successful RFID scanning depends on selecting the correct frequency, installing antennas properly, adjusting reader parameters, and understanding the surrounding environment.

A tag that reads perfectly in a laboratory may behave differently beside metal racks, liquids, or dense product packaging. During field installation, engineers usually spend significant time testing tag orientation and reader placement before moving into full deployment.

According to GS1, RFID enables automatic identification and data capture by using radio communication between electronic tags and readers. This technology has become an important foundation for supply chain visibility, inventory management, and asset tracking.

How RFID Tag Scanning Works Step by Step

When an RFID reader scans a tag, several technical processes happen within milliseconds.

Step	RFID Scanning Process
1	Reader sends radio frequency energy through an antenna
2	RFID tag receives the signal
3	Internal chip processes stored information
4	Tag sends data back to the reader
5	Reader transfers information to software

For passive RFID tags, the reader provides the energy required for communication. The tag does not need an internal battery and responds using backscatter technology.

Active RFID tags work differently because they contain their own power source. They are commonly used when longer communication distances or additional sensor functions are required.

In industrial environments, UHF RFID readers are frequently selected because they can identify multiple tags quickly. A warehouse operator may scan an entire pallet without manually locating each individual item.

Choosing the Right RFID Reader to Scan Tags

The RFID reader is the key device responsible for capturing tag information. Different applications require different reader types.

Common RFID reader categories include:

RFID Reader Type	Typical Application
Handheld RFID Reader	Field inventory, equipment inspection
Fixed RFID Reader	Warehouse gates, production lines
Desktop RFID Reader	Tag writing, registration, small item management
Embedded RFID Module	OEM equipment integration

Before scanning an RFID tag, users should confirm:

• RFID frequency compatibility
• Reader communication interface
• Required reading distance
• Environmental conditions
• Software integration requirements

For example, an HF 13.56 MHz card cannot be scanned by a UHF 860–960 MHz reader because they operate using different communication standards.

RFID Frequency Determines Scanning Performance

RFID technology uses different frequency ranges, and each frequency is designed for different scenarios.

Frequency	Characteristics	Applications
LF 125–134 kHz	Short-range communication	Access control, animal identification
HF 13.56 MHz	Medium-range communication	Smart cards, libraries, NFC
UHF 860–960 MHz	Longer reading distance	Logistics, retail, warehouses

For supply chain applications, UHF RFID is commonly used because it supports fast reading of multiple tags.

The RFID Lab at Auburn University has conducted extensive RFID research in retail and supply chain environments. Their studies have shown that properly implemented RFID systems can improve inventory visibility and reduce inaccuracies compared with manual processes.

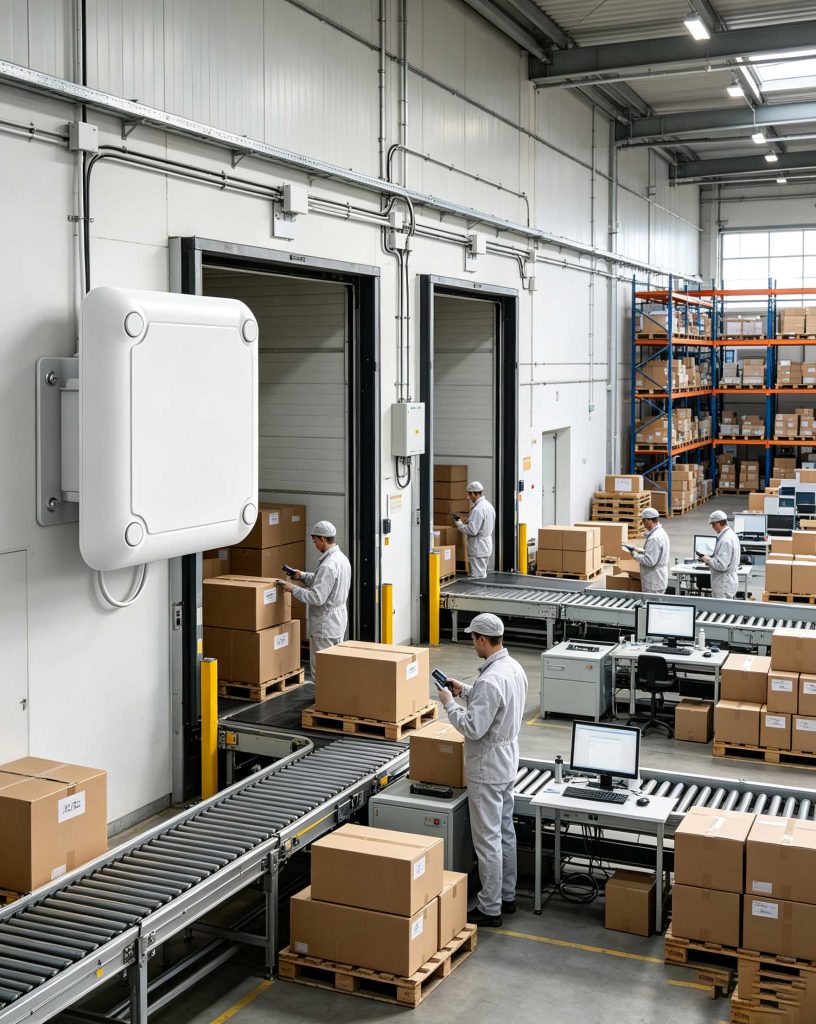

Practical Experience: Scanning RFID Tags in Warehouses

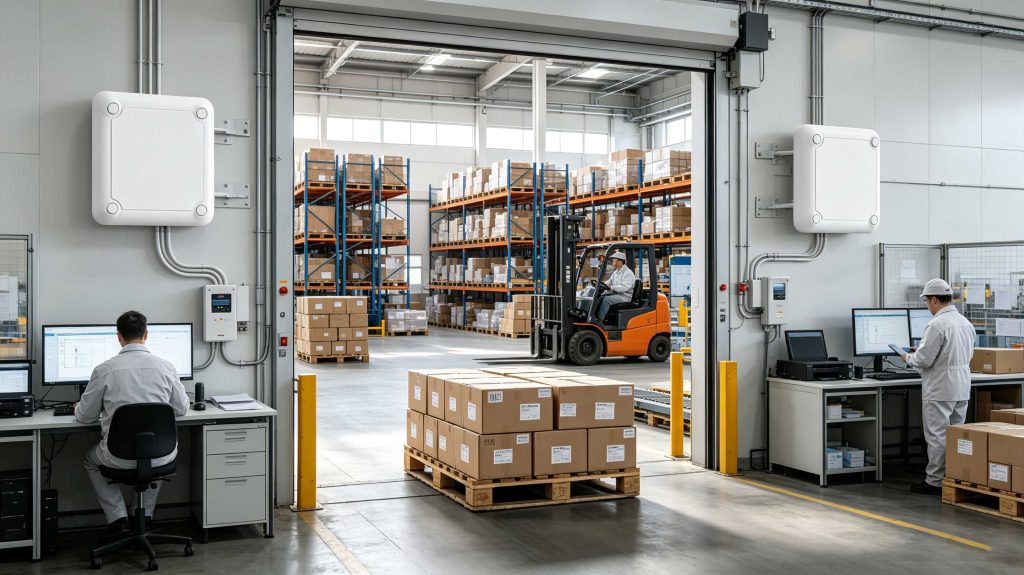

In real warehouse deployments, scanning RFID tags requires more than installing a reader near products.

A typical workflow may include:

1. RFID tags are attached to products, pallets, or assets.
2. Readers are installed at entry, exit, or storage locations.
3. Software receives scanned tag information.
4. Data is matched with inventory records.
5. Management systems update item status automatically.

One challenge frequently seen during deployment is unexpected tag interference. For example, metal shelving can reflect radio waves and create unstable reading zones. Liquid products can absorb UHF signals and reduce performance.

This is why professional RFID installation usually includes site testing before final deployment.

Common Factors That Affect RFID Scanning Results

A successful RFID scanning system depends on several technical factors.

Important considerations include:

• Reader power settings: Higher output power does not always mean better performance. Excessive power may increase unwanted reads.
• Antenna positioning: Correct antenna direction improves reading consistency.
• Tag selection: Different materials require different RFID tag designs.
• Software filtering: Prevents duplicate or unnecessary data records.
• Installation environment: Metal, liquid, and electromagnetic interference can affect results.

During RFID system testing, engineers often measure:

Testing Item	Purpose
Read distance	Determines effective scanning range
Read rate	Measures identification reliability
Multi-tag performance	Tests simultaneous scanning ability
False reads	Checks unwanted tag detection

A reliable RFID solution balances hardware performance and application requirements rather than focusing on a single specification.

Technical Implementation: How to Scan an RFID Tag in Real Applications

Scanning an RFID tag is not only about placing a reader near a tag and collecting an ID number. In commercial deployments, reliable scanning depends on the relationship between RFID tag design, reader performance, antenna configuration, operating frequency, and software processing.

During Cykeo RFID system deployment projects, engineers usually begin testing from the physical environment instead of software settings. A warehouse shelf filled with metal containers, a medical cabinet with liquid supplies, or a retail checkout counter can produce completely different RF performance. The same RFID reader may achieve different results depending on tag orientation, material interference, and antenna placement.

According to GS1, an RFID system consists of RFID readers and RFID tags communicating through standardized radio interfaces. For UHF passive RFID, EPC Gen2 technology defines the communication requirements between interrogators and tags, operating mainly in the 860–960 MHz range.

How RFID Tag Scanning Works Step by Step

A typical RFID scanning process includes several technical stages:

Stage	Technical Process	Practical Example
1. Reader activation	Reader sends RF energy through antenna	Fixed reader installed at warehouse gate
2. Tag response	Passive tag receives energy and backscatters information	Product label returns EPC number
3. Data decoding	Reader converts RF signals into digital data	Software receives tag ID
4. Data processing	System filters and manages collected information	Inventory database updates automatically

Unlike barcode scanning, RFID does not require direct line-of-sight. A reader can identify multiple tagged items within its communication field, which is why RFID is widely used for inventory management, logistics tracking, and automated identification.

GS1 explains that passive RFID tags receive operating energy from the reader signal and respond by modulating reflected signals back to the reader.

Choosing the Right RFID Reader for Accurate Tag Scanning

The RFID reader determines how effectively tags can be detected. Different environments require different reader types.

RFID Reader Type	Suitable Applications	Characteristics
Desktop RFID Reader	Tag registration, writing, small-item management	Short-range controlled scanning
Fixed RFID Reader	Warehouses, production lines, access gates	Continuous automated reading
Handheld RFID Reader	Field inventory, maintenance	Mobile scanning capability
Embedded RFID Module	OEM equipment integration	Flexible hardware design

For example, a desktop RFID reader is often preferred for controlled tag operations because the reading area can be limited. Cykeo desktop RFID solutions use near-field antenna designs to control reading and writing distance, reducing accidental reads from nearby tags.

A typical desktop RFID writing workstation can support:

• Automatic tag reading and writing
• Batch RFID tag programming
• Fast tag filtering
• Software demonstration tools
• USB communication
• Developer resources including C# and Java examples

For applications requiring precise tag programming, controlling the electromagnetic field is often more important than simply increasing transmission power.

Common Problems When Scanning RFID Tags

Even when hardware is correctly installed, RFID scanning performance can be affected by several factors.

1. Incorrect RFID Frequency Selection

RFID operates at different frequency ranges:

Frequency	Typical Usage
LF 125–134 kHz	Animal identification, access systems
HF 13.56 MHz	NFC cards, smart cards
UHF 860–960 MHz	Logistics, retail, warehouse inventory

Using an incompatible reader and tag combination will result in unsuccessful scanning.

2. Metal and Liquid Interference

Metal surfaces can reflect RF signals, while liquids can absorb energy. Industrial environments often require specially designed RFID tags or adjusted antenna placement.

3. Poor Antenna Position

A tag may not be detected if its antenna orientation creates weak coupling with the reader.

4. Excessive Tag Density

When hundreds of tags appear within the same reading area, anti-collision algorithms become important. EPC Gen2 standards include mechanisms that allow readers to manage multiple tag responses efficiently.

How Cykeo Improves RFID Tag Scanning Reliability

Cykeo RFID solutions focus on practical deployment requirements rather than only laboratory performance.

Key technical advantages include:

Multi-Tag Identification

Cykeo UHF RFID readers support multi-tag recognition, helping warehouses and production environments capture multiple items efficiently.

Adjustable RF Output

Adjustable power settings allow engineers to balance reading distance and interference control.

Stable Communication Interfaces

Depending on the product model, communication options include:

• USB
• Ethernet
• RS-232

This allows RFID systems to integrate with warehouse software, inventory platforms, and enterprise applications.

Developer-Friendly Integration

Cykeo provides SDK and API resources for system developers, allowing RFID functions to be integrated into customized software platforms.

RFID Tag Scanning Use Cases

Warehouse Inventory Management

RFID scanning enables companies to identify large quantities of tagged products without manually scanning every barcode.

Retail Item Tracking

Retailers use RFID readers to improve stock visibility, reduce manual counting work, and support automated checkout solutions.

Medical Asset Management

Hospitals can use RFID scanning for equipment tracking, medicine cabinet management, and controlled inventory monitoring.

Manufacturing Production Lines

Factories use RFID readers to track components, work-in-progress materials, and finished products.

FAQ About How to Scan an RFID Tag

1. Can RFID tags be scanned without touching them?

Yes. RFID technology uses radio communication, allowing readers to detect compatible tags without physical contact. The reading distance depends on frequency, antenna design, reader power, and environmental conditions.

2. What device is needed to scan an RFID tag?

An RFID reader compatible with the tag frequency is required. UHF tags require UHF readers, while HF and LF tags require corresponding readers.

3. Can one RFID reader scan multiple tags at the same time?

Yes. Modern UHF RFID readers support anti-collision technology, allowing multiple tags to be identified within the reader field.

4. Why is my RFID tag not being detected?

Common reasons include incorrect frequency matching, insufficient reader power, antenna positioning problems, damaged tags, or environmental interference.

5. Can RFID tags be scanned through packaging?

In many cases, yes. RFID does not require direct visual contact like barcodes, but packaging materials and contents can influence performance.

6. How far can an RFID tag be scanned?

The scanning distance depends on the RFID frequency, tag type, reader output power, antenna design, and application environment.

Final Conclusion

Learning how to scan an RFID tag requires understanding more than the reader operation itself. Reliable RFID performance comes from matching the correct tag, reader, antenna, and software architecture. In real-world deployments, careful testing of materials, placement, and communication parameters determines whether an RFID system performs consistently.

Cykeo helps companies build practical RFID solutions with stable readers, controlled scanning environments, and flexible integration options for warehouses, healthcare, retail, and industrial applications. From simple desktop tag operations to large-scale fixed reader deployments, accurate RFID scanning starts with the right system design.
