what is a passive rfid tag: Understanding Battery-Free RFID Identification Technology

A passive RFID tag is a battery-free identification device that receives energy from an RFID reader’s radio signal to transmit stored information. It is widely used for inventory tracking, asset management, supply chains, and automated identification because of its low cost and long service life.

In practical RFID projects, passive RFID tags are often the first choice when companies need to identify thousands or millions of items without maintaining batteries. Unlike active RFID tags that contain their own power source, passive tags depend entirely on energy transferred from the reader.

During my work with RFID system integration at Cykeo, I have tested passive RFID tags across different environments, including warehouses, production areas, libraries, and equipment management systems. One detail that repeatedly affects performance is not the tag alone, but the relationship between tag design, reader antenna configuration, and the material carrying the tag.

A passive RFID tag attached to a cardboard box and the same tag attached to a metal container can behave completely differently.

What Is a Passive RFID Tag Used For?

How Passive RFID Tags Work in Real Applications

A passive RFID tag consists of three main components:

Component	Function
RFID chip	Stores identification data and memory information
RFID Antenna	Receives energy and communicates with readers
Substrate/material	Supports the chip and antenna structure

When an RFID reader sends a radio frequency signal, the passive tag antenna captures energy from that signal. The chip then uses this energy to respond by transmitting stored information back to the reader.

This simple design creates several advantages:

• No internal battery replacement required
• Lightweight and compact structure
• Suitable for large-scale deployment
• Long operational lifespan
• Lower maintenance requirements

According to GS1, passive UHF RFID systems based on EPC standards are widely used in supply chain applications because they provide standardized identification methods across different industries.

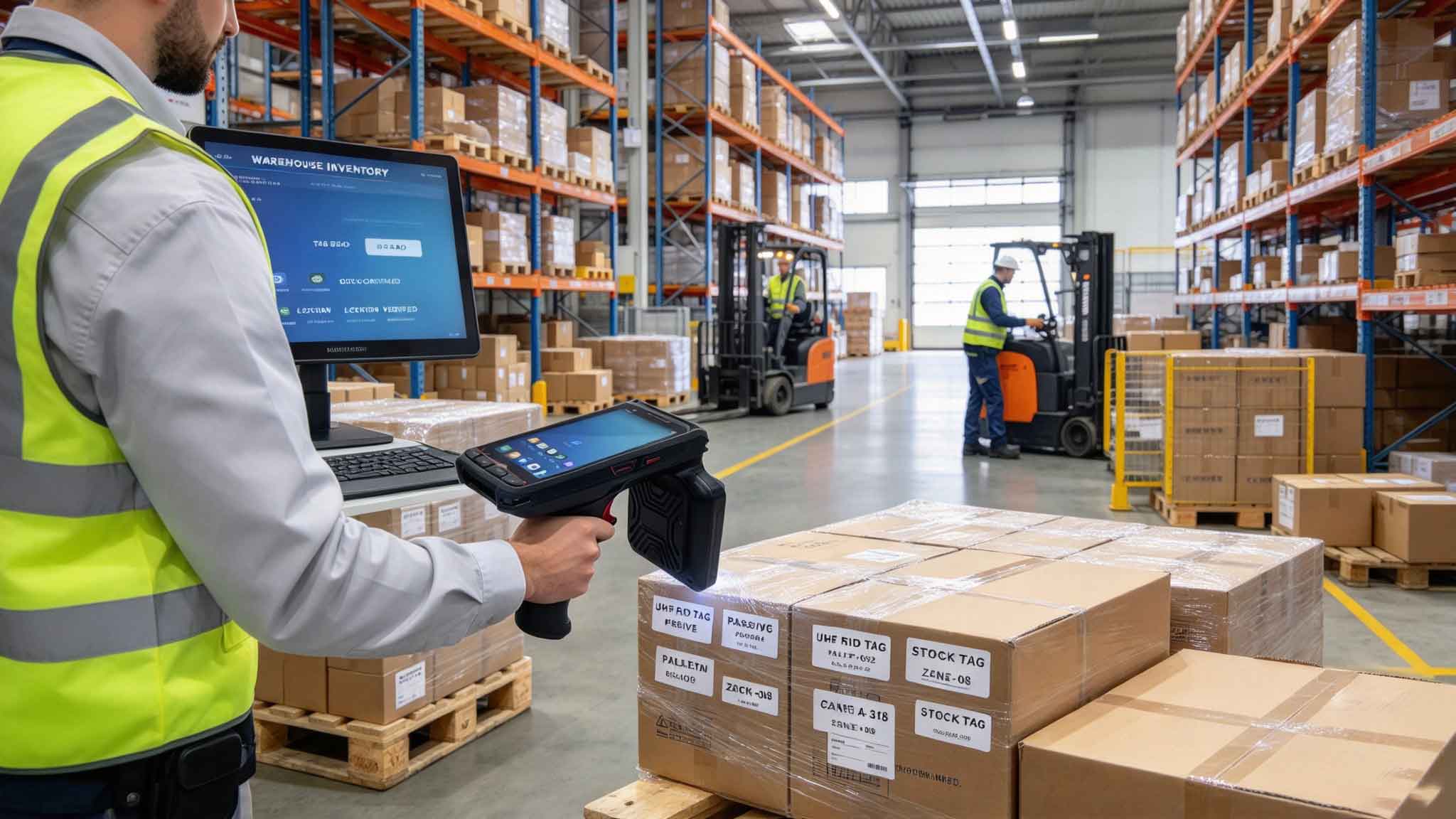

In warehouse environments, I have seen passive RFID tags applied to pallets, cartons, tools, and individual products. The important factor is usually not achieving the longest reading distance, but creating a reliable reading process around how items actually move.

What Are the Different Types of Passive RFID Tags?

Passive RFID Tag Types by Frequency

Passive RFID tags are commonly classified by operating frequency.

Frequency	Typical Range	Common Applications
LF (125–134 kHz)	Short range	Animal identification, access systems
HF (13.56 MHz)	Short to medium range	Libraries, smart cards, NFC applications
UHF (860–960 MHz)	Longer range	Logistics, inventory, supply chains

For industrial applications, passive UHF RFID tags are frequently selected because they support faster identification of multiple items.

The RAIN RFID Alliance explains that passive UHF RFID technology operates within the UHF frequency range and is commonly used for item-level identification in supply chain and inventory applications.

What Are the Advantages of Passive RFID Tags?

Why Companies Choose Passive RFID Technology

The biggest advantage of passive RFID tags is scalability.

A company managing 100 items and a company managing one million items have very different identification challenges. Passive RFID technology is designed for situations where tags need to be attached to many objects while keeping maintenance requirements low.

Key advantages include:

1. Battery-Free Operation

Because passive RFID tags do not contain batteries, they can remain functional for many years under suitable conditions.

2. Lower Deployment Cost

Passive tags are generally more economical for large-volume applications compared with battery-powered alternatives.

3. Small and Flexible Design

Passive RFID tags can be produced in various formats:

• Labels
• Cards
• Hard tags
• Industrial tags
• Special-purpose tags

4. Easy Integration

Passive RFID systems can connect with warehouse software, inventory platforms, and enterprise management systems.

What Is the Difference Between Passive RFID Tags and Active RFID Tags?

Passive RFID Tag vs Active RFID Tag

A common question during RFID planning is whether passive or active tags should be used.

Feature	Passive RFID Tag	Active RFID Tag
Power source	Reader-powered	Internal battery
Cost	Lower	Higher
Size	Smaller	Usually larger
Maintenance	Minimal	Battery replacement required
Typical use	Inventory and item tracking	Long-range monitoring

Passive RFID tags are usually selected when organizations need identification of large numbers of items. Active RFID tags may be preferred when longer communication distance or additional sensor functions are required.

From my experience, many successful RFID deployments begin by understanding the movement of the tagged object rather than choosing technology first. A passive RFID tag works best when its characteristics match the operational environment.

How Do Passive RFID Tags Perform in Real Industrial Environments?

Passive RFID Tags and Material Challenges

Although passive RFID tags are simple in design, their performance depends heavily on the environment where they are installed.

During RFID deployment testing, I have found that the same passive UHF RFID tag can produce different results depending on the surface it is attached to. A label placed on a cardboard carton may achieve stable reading, while the same tag placed directly on a metal container may experience reduced performance because of signal reflection and detuning effects.

Common factors affecting passive RFID tag performance include:

• Material of the tagged object
• Reader antenna position
• Distance between reader and tag
• Surrounding metal structures
• Liquid content near the tag
• Reading environment design

This is why professional RFID projects usually include a testing stage before large-scale tag deployment.

A practical RFID engineer does not only ask, “How far can this tag read?” The more important question is, “Will this tag work consistently where the business process actually happens?”

How Are Passive RFID Tags Used in Supply Chain Management?

Passive RFID Tags for Inventory Visibility

Supply chain management is one of the largest application areas for passive RFID technology.

A passive RFID tag attached to a product can provide identification information throughout different stages:

1. Manufacturing
2. Packaging
3. Warehouse storage
4. Transportation
5. Retail distribution

This creates a digital connection between physical goods and enterprise systems.

Research from Auburn University’s RFID Lab has demonstrated improvements in retail inventory accuracy through RFID adoption. One study involving multiple retail stores over a 23-week period reported inventory accuracy improvements of approximately 26% after RFID implementation.

In real warehouse environments, the value of passive RFID tags is often visible during exceptions. When an item cannot be located quickly, RFID records can help employees understand where that item was last identified.

What Factors Should Be Considered When Choosing a Passive RFID Tag?

Selecting the Right Passive RFID Tag for Your Application

Choosing a passive RFID tag requires more than checking frequency compatibility.

Important selection factors include:

Selection Factor	Consideration
Frequency	Match reader and regional requirements
Read range	Suitable for operational distance
Tag material	Compatible with mounting surface
Memory capacity	Enough space for required information
Durability	Suitable for indoor or industrial conditions
Size	Fits the product or asset

For example, a warehouse handling plastic containers may use a different passive RFID tag compared with a factory tracking metal tools.

At Cykeo, RFID testing often starts with physical samples rather than theoretical specifications. A tag that performs well in a laboratory environment may require adjustment when introduced to real production conditions.

What Is the Future of Passive RFID Technology?

Passive RFID Tags in Connected Business Systems

The future of passive RFID tags is closely connected with automation, IoT platforms, and digital supply chain management.

As businesses require more accurate asset visibility, passive RFID provides a practical method to identify physical objects at scale.

Future applications may include:

• Automated inventory systems
• Smart warehouse operations
• Industrial asset tracking
• Healthcare equipment management
• Retail inventory optimization

The continued development of RFID standards also supports wider adoption. EPC-based RFID systems provide a common framework that allows different manufacturers’ readers and tags to communicate effectively.

According to GS1, EPC standards are designed to provide unique identification and information sharing for physical objects across global supply chains.

The technology itself is not complicated. The difficult part is applying it correctly to real-world operations.

Frequently Asked Questions About What Is a Passive RFID Tag

1. What is a passive RFID tag?

A passive RFID tag is a battery-free RFID identification device that receives energy from an RFID reader signal. It stores information and sends data back to the reader, making it suitable for inventory, asset tracking, and supply chain applications.

2. How does a passive RFID tag work?

A passive RFID tag works by receiving radio frequency energy from an RFID reader. The energy activates the chip inside the tag, allowing it to transmit stored identification information back to the reader.

3. How long does a passive RFID tag last?

A passive RFID tag can often operate for many years because it does not rely on an internal battery. Its lifespan depends on tag materials, environmental conditions, and application requirements.

4. Can passive RFID tags be rewritten?

Some passive RFID tags support rewriting depending on the chip type and memory configuration. Users must verify whether the tag allows data updates before writing information.

5. Are passive RFID tags waterproof?

Some passive RFID tags are designed for waterproof or industrial environments, while standard RFID labels may not be. The correct tag housing should be selected according to application conditions.

6. What is the reading distance of a passive RFID tag?

The reading distance depends on frequency, reader power, antenna design, tag size, and environment. Passive UHF RFID tags can typically provide longer reading distances than LF or HF passive tags.

Conclusion: Understanding What Is a Passive RFID Tag

Understanding what is a passive rfid tag means understanding how businesses connect physical objects with digital information without relying on batteries.

Passive RFID tags provide a practical balance between cost, size, durability, and scalability. They are widely used because companies can attach them to large numbers of assets and manage information automatically.

From Cykeo’s RFID implementation experience, the most important factor is not simply selecting a passive RFID tag with the highest specifications. Successful deployments come from matching tag design, reader configuration, installation environment, and business workflow.

A well-designed passive RFID system becomes almost invisible during daily operation — but the data it creates continues supporting better decisions.
