What Does “Tracking” Mean in an RFID System?

In real deployments, tracking an RFID chip usually means tracking the tagged object through reader events.

That distinction matters.

A passive UHF RFID chip does not contain GPS and does not continuously transmit its position. When it enters the electromagnetic field of a compatible reader, it receives energy from the reader and sends information back through backscatter. The reader identifies the tag, and the software can associate that event with a known location.

So a warehouse might record:

Event	RFID data
Receiving dock	Tag detected
Storage aisle	Tag detected by zone reader
Packing area	Tag detected
Shipping gate	Tag detected
Retail store	Tag detected at store reader

This produces a movement history rather than a GPS-style coordinate trail.

That difference is easy to miss when an RFID project is first specified.

Passive RFID Chip Tracking vs. Active RFID

The type of RFID chip determines what “tracking” can realistically mean.

Passive RFID

Passive RFID tags have no conventional radio transmitter and normally have no battery. They harvest energy from the reader’s RF field and backscatter their response.

For UHF/RAIN RFID, GS1 states that read ranges are generally several meters and can reach up to 15 meters in special cases, while highly sensitive systems with phased-array antennas can reach farther.

This makes passive RFID particularly useful for:

• Inventory movement
• Warehouse receiving and shipping
• Retail stock visibility
• Tool management
• Library assets
• Work-in-process identification
• Automated doorway detection

The important word is detection.

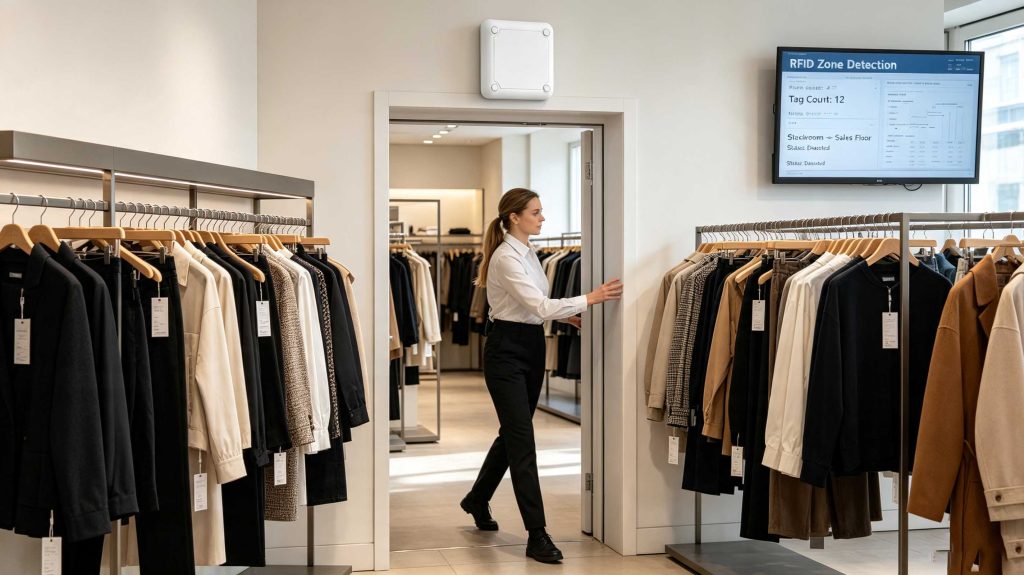

If a tagged garment passes through a reader-equipped doorway, the system can know that the garment was detected there. It does not necessarily know that the garment is sitting at exactly 3.2 meters from the door.

Active RFID

Active RFID tags contain their own power source and transmitter. They can periodically broadcast signals that readers receive, allowing software to calculate location in an RTLS architecture. GS1 specifically distinguishes these active RFID systems from passive RFID systems used primarily for identification.

That makes active RFID more appropriate when an application requires:

• Real-time asset location
• Continuous monitoring
• Wider coverage
• Vehicle tracking
• High-value equipment tracking
• RTLS applications

The trade-off is straightforward: active tags cost more and require battery management.

How RFID Chip Tracking Works in Practice

A typical Cykeo RFID deployment follows a much less glamorous path than the diagrams suggest.

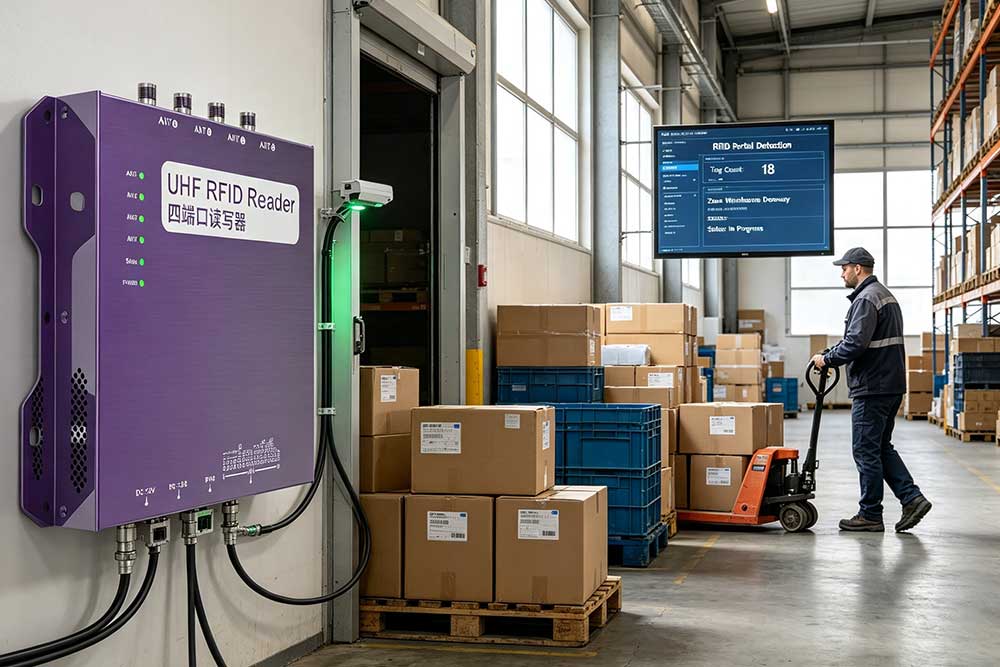

A tag is attached to an item. A fixed rfid reader is installed at a doorway, workstation, conveyor, cabinet, or inventory zone. The reader detects the tag and passes the tag ID to middleware or application software.

The software adds the context:

Tag ID + Reader ID + Time + Location = Tracking Event

For example:

EPC: 3034…A821
Reader: Receiving Door 02
Time: 09:42:16
Location: Warehouse Receiving

After several events, the application can reconstruct the item’s movement history.

This is where RFID becomes operationally useful. The chip does not need to know its own location. The infrastructure knows where the reader is.

How Far Can RFID Chips Be Tracked?

There is no universal RFID tracking distance.

GS1 notes that passive RFID performance depends on frequency, reader power, antenna characteristics, tag orientation, interference, and the surrounding environment.

For UHF RFID, GS1 describes several-meter read ranges as typical, with up to 15 meters possible in special cases.

In an actual installation, I would not start with the advertised maximum range.

I start with the required read zone.

A doorway may need to detect tags crossing a 1.5-meter passage without detecting inventory sitting on the adjacent shelf. A long-range antenna that looks impressive on a specification sheet can actually make that installation harder.

Metal and liquids are another practical issue. GS1 notes that metal can reflect and diffract RF energy, while water can absorb energy and detune an RFID antenna, reducing performance.

Can Passive RFID Provide Real-Time Location?

Yes, but only when the RFID infrastructure is designed for location detection.

A passive RFID tag can participate in an RTLS deployment when multiple readers, antennas, zones, or other positioning techniques determine where the tag was detected. RAIN RFID Alliance material describes passive RTLS as a combination of passive RAIN RFID tags and reader infrastructure, while active RTLS uses powered tags with transmitters.

For many commercial applications, however, precise continuous coordinates are unnecessary.

A retailer may only need:

Back Room → Sales Floor → Checkout → Exit

A hospital may need:

Storage Room → Treatment Area → Cleaning → Storage

A manufacturer may need:

Station 01 → Assembly → Inspection → Finished Goods

That is often enough to eliminate manual searching.

RFID Tracking Is Mostly an Infrastructure Problem

After working with RFID systems, one issue appears repeatedly: people focus heavily on the chip and not enough on the reader layout.

The tag is only one component.

A reliable deployment also depends on:

• Antenna placement
• Reader power
• Polarization
• Tag orientation
• Reader sensitivity
• Read-zone geometry
• Metal and liquid interference
• Reader collision management
• Middleware filtering
• Location mapping
• Database integration

GS1 recommends testing RFID solutions in their actual operating environment because tag, antenna, encapsulation, and environmental conditions all affect readability.

That is why a laboratory reading distance should never be treated as the guaranteed tracking distance of a finished installation.

RFID Chip Tracking Data

A useful RFID tracking system normally does not store only the chip number.

It can associate the identifier with business information such as:

RFID field	Example
EPC	Unique item identifier
Reader ID	Reader-03
Zone	Warehouse A
Timestamp	14:23:08
Event	Received
Item ID	SKU-48291
Status	In stock

GS1 explains that EPC provides a mechanism for serializing identifiers such as GTINs for RAIN RFID applications, creating a bridge between product identification and supply-chain visibility.

That distinction is important for Cykeo system design: RFID identifies the object; the software layer gives the identification business meaning.

A Practical Cykeo RFID Tracking Architecture

For a typical asset-tracking project, the architecture can remain relatively compact:

RFID Tag → Cykeo Reader → Antenna → Middleware → Database → Tracking Application

A fixed reader can continuously monitor a defined zone, while handheld readers can be used for exception handling and inventory verification.

For controlled desktop operations, a near-field RFID reader can deliberately restrict the read/write area. That is useful when the operator needs to work with one tag rather than accidentally reading every tag on a nearby table.

For larger UHF deployments, reader power, antenna direction and filtering become much more important.

The system should be designed around the physical movement of the asset—not around a theoretical maximum read range.

FAQ

1. Can RFID chips be tracked without GPS?

Yes. RFID does not require GPS. Passive RFID tracking normally relies on reader detection and known reader locations, while active RFID can support more continuous location tracking.

2. Can a passive RFID chip transmit its location?

Not by itself. A passive tag responds when energized by a reader. The system determines location from the reader or zone that detected the tag.

3. How far can an RFID chip be tracked?

For passive UHF RFID, several meters is common. GS1 notes that special systems can reach approximately 15 meters, with some highly sensitive configurations reaching farther.

4. Can RFID track an item inside a warehouse?

Yes. Fixed readers can be positioned at doors, aisles, workstations, conveyors, or storage zones to create movement events.

5. Does RFID provide exact GPS coordinates?

Usually not with ordinary passive RFID. Zone-level detection is more typical. Precise positioning requires an appropriately designed RTLS architecture.

6. Can RFID track multiple items?

Yes. UHF/RAIN RFID is designed for rapid identification of multiple tagged objects, making it suitable for inventory and asset-tracking environments.

Final Takeaway

Can you track RFID chips? Yes—but the tracking comes from the RFID infrastructure, not from a passive chip acting like a miniature GPS device. Cykeo RFID readers can provide the detection layer needed to turn RFID identifiers into practical movement and inventory events.

For warehouse, retail, manufacturing, library, and asset-management applications, the strongest design is usually the one that defines the right read zones, reader positions, antenna coverage, and software events before worrying about maximum theoretical range.
