What’s the Maximum Read Range for Industrial UHF RFID Tags with Handheld Scanners?

2025-04-11Cykeo News RFID FAQ 10640

The maximum read range for industrial UHF RFID tags using RFID handheld scanners typically falls between 5 meters (16 ft) and 20 meters (65 ft), depending on tag type, environment, and scanner power. Advanced setups can achieve even longer ranges under ideal conditions. Below, we break down the factors that determine performance and highlight top-rated scanners for industrial use.

1. Key Factors Affecting Read Range

Factor	Impact on Range
Tag Type	Metal-mount tags: 5–10m; plastic tags: 10–20m
Scanner Power (ERP)	1–4W (30–36 dBm): Higher power = longer range
Environment	Metal/liquid interference cuts range by 50–70%
Antenna Design	Directional antennas add 30–50% range vs. omnidirectional

2. Maximum Range by Scenario

Open Warehouse (No Interference):
- Tags: Impinj H47 (metal-mount), Alien Higgs-9 (plastic).
- Range: Up to 20 meters (65 ft) with Cykeo CK-B4 (4W ERP).
Metal-Rich Environments (e.g., Machinery):
- Tags: Metalcraft MTI 240 (anti-metal).
- Range: 5–8 meters (16–26 ft) with Feig OBID iScan UHF.
Near Liquids (e.g., Chemical Drums):
- Tags: Smartrac Short Dipole (hydrophobic coating).
- Range: 3–5 meters (10–16 ft) due to signal absorption.

3. Top Handheld Scanners for Maximum Range

Cykeo CK-B4 (4W ERP):
- Max Range: 20m (open), 8m (metal).
- Best For: Large factories and outdoor yards.
Cykeo CK-B2G (2W ERP):
- Max Range: 15m (open), 6m (metal).
- Budget Pick: Ideal for mid-sized warehouses.
Cykeo CK-B2:
- Max Range: 18m (open), 7m (metal).
- Best For: High-speed scanning in logistics hubs.

4. How to Extend Read Range

Upgrade Antennas: Use 9 dBi directional antennas.
Boost Scanner Power: Set ERP to 4W (check local regulations like FCC/ETSI).
Optimize Tag Placement: Mount tags 2–5 cm away from metal surfaces.
Reduce Interference: Schedule scans during low Wi-Fi/Bluetooth activity.

5. Case Study: 18m Range in Automotive Plant

Challenge: A German auto plant needed to track 10,000+ metal parts across a 50m assembly line.
Solution:
- Deployed Cykeo CK-B4 scanners with Impinj H47 metal tags.
- Installed directional antennas and reduced Wi-Fi channel overlap.
Result: Achieved consistent 18m read range, reducing manual checks by 80%.

PgUp: How to Integrate RFID Handheld Readers with Hospital Equipment Tracking Systems?PgDn: RFID Reader Compatibility: Integrating Seamlessly with Legacy Systems

Relevance

Where Is RFID Reader Used? A Complete Guide to Real-World Applications
2026-03-22 66
Wondering where is RFID reader used? From warehouse inventory to retail checkout and healthcare asset tracking, we explore the many industries and applications that rely on RFID readers. Real guidance from CYKEO engineers.
More
How to Choose the Best RFID Reader for Your Business Needs
2025-04-16 461
Struggling to pick the right RFID reader? Learn key factors like frequency, range, and integration to optimize your business operations. Expert insights from Cykeo.
More

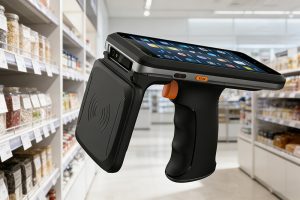

handheld rfid writer RFID retail security tags: How Do They Prevent Retail Loss?
