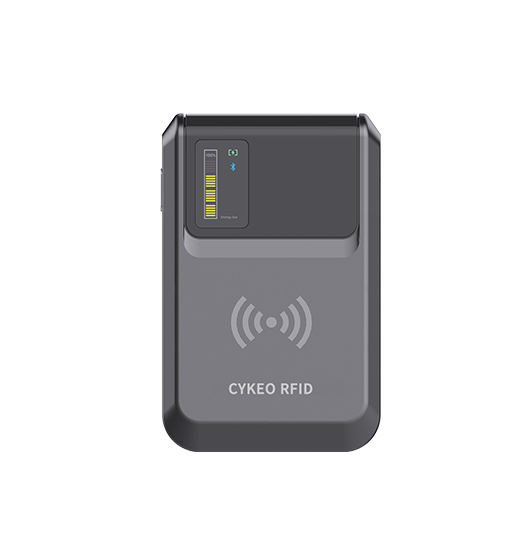

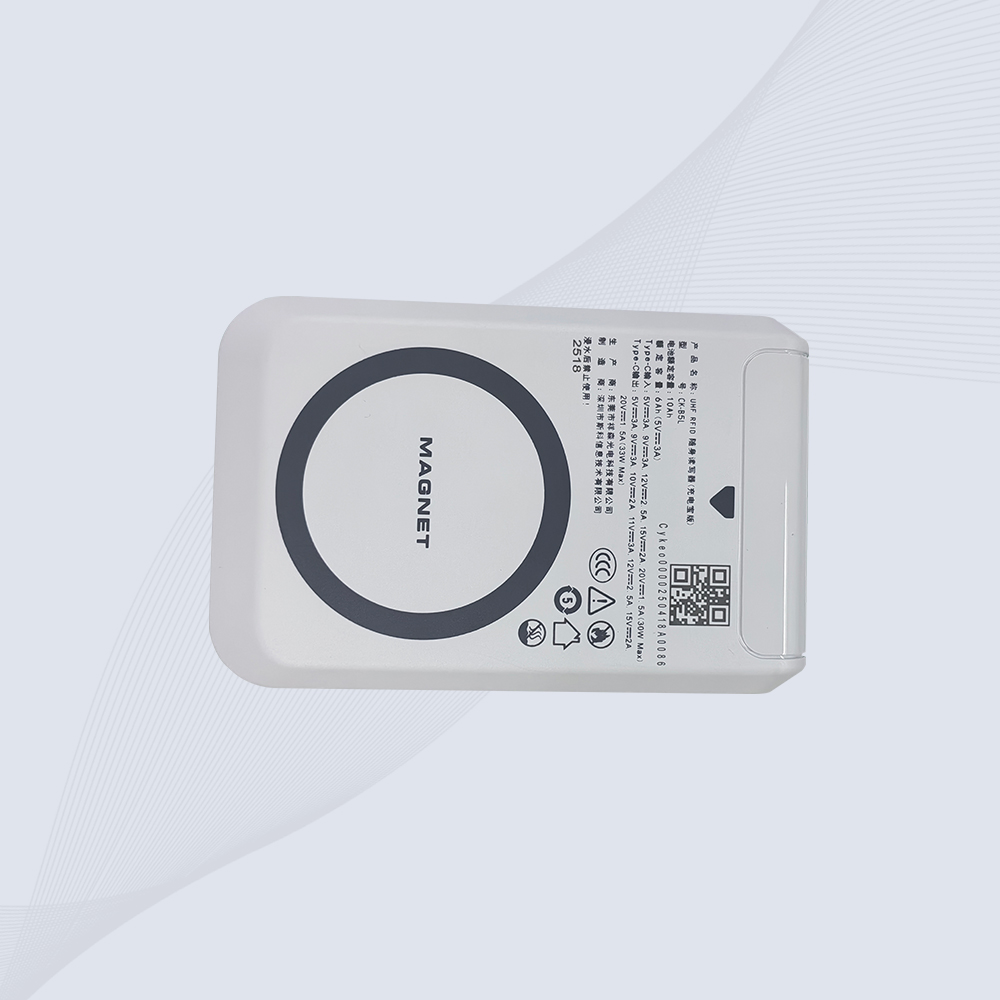

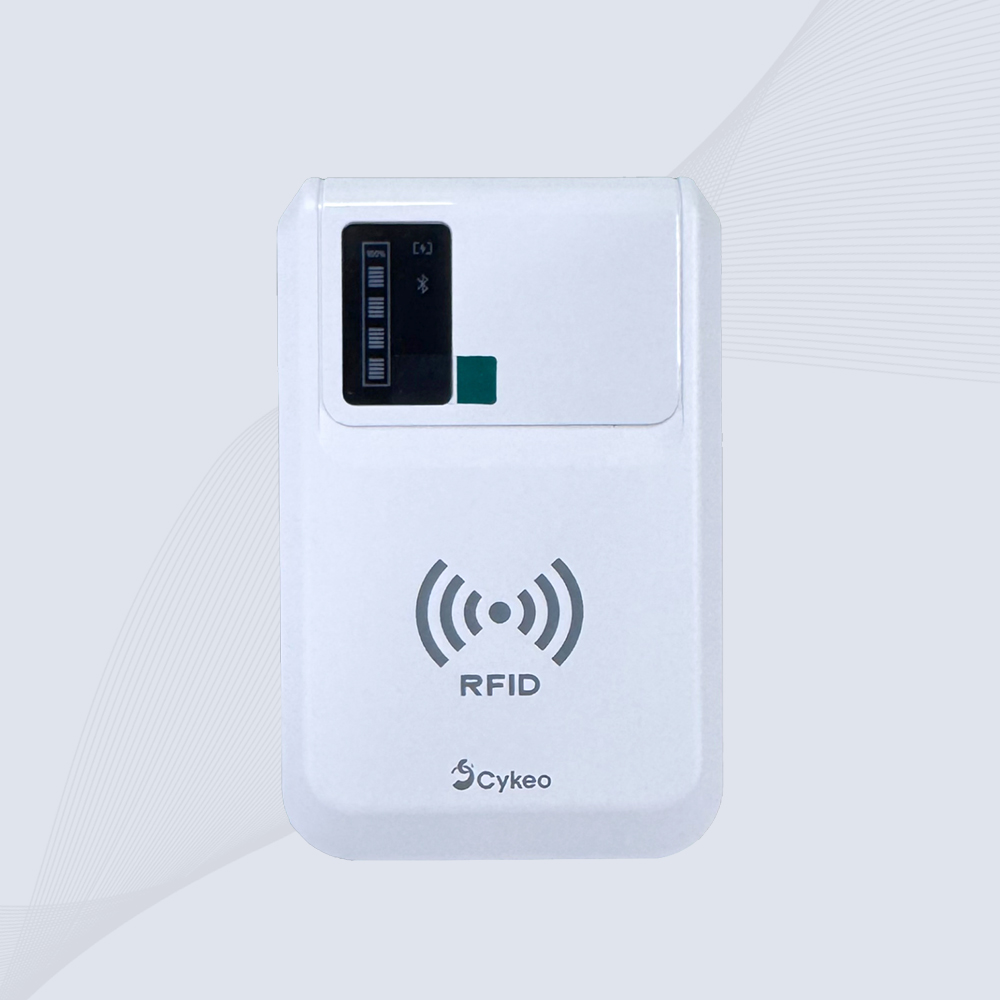

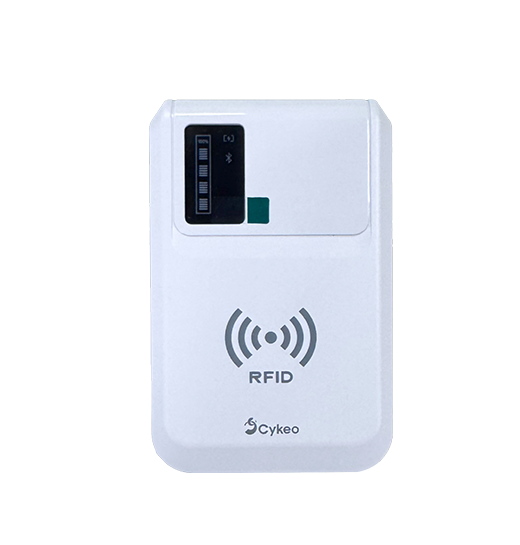

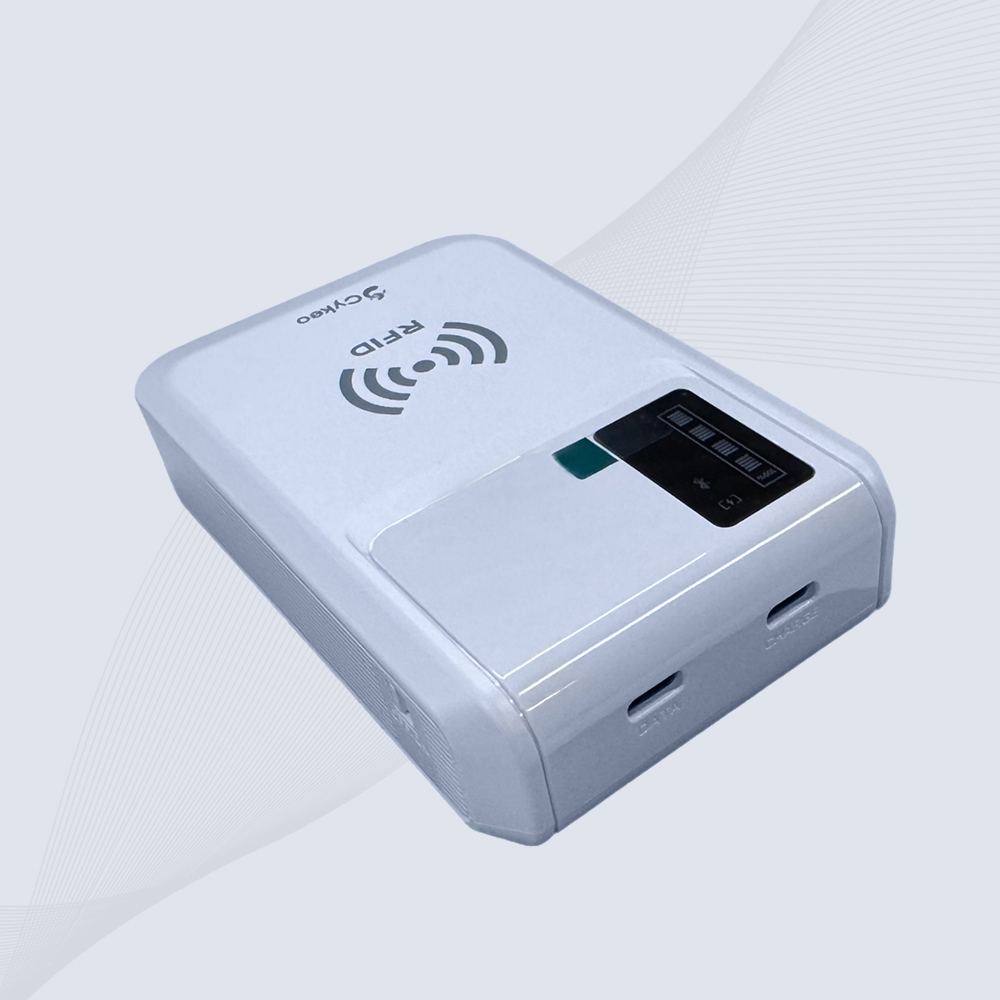

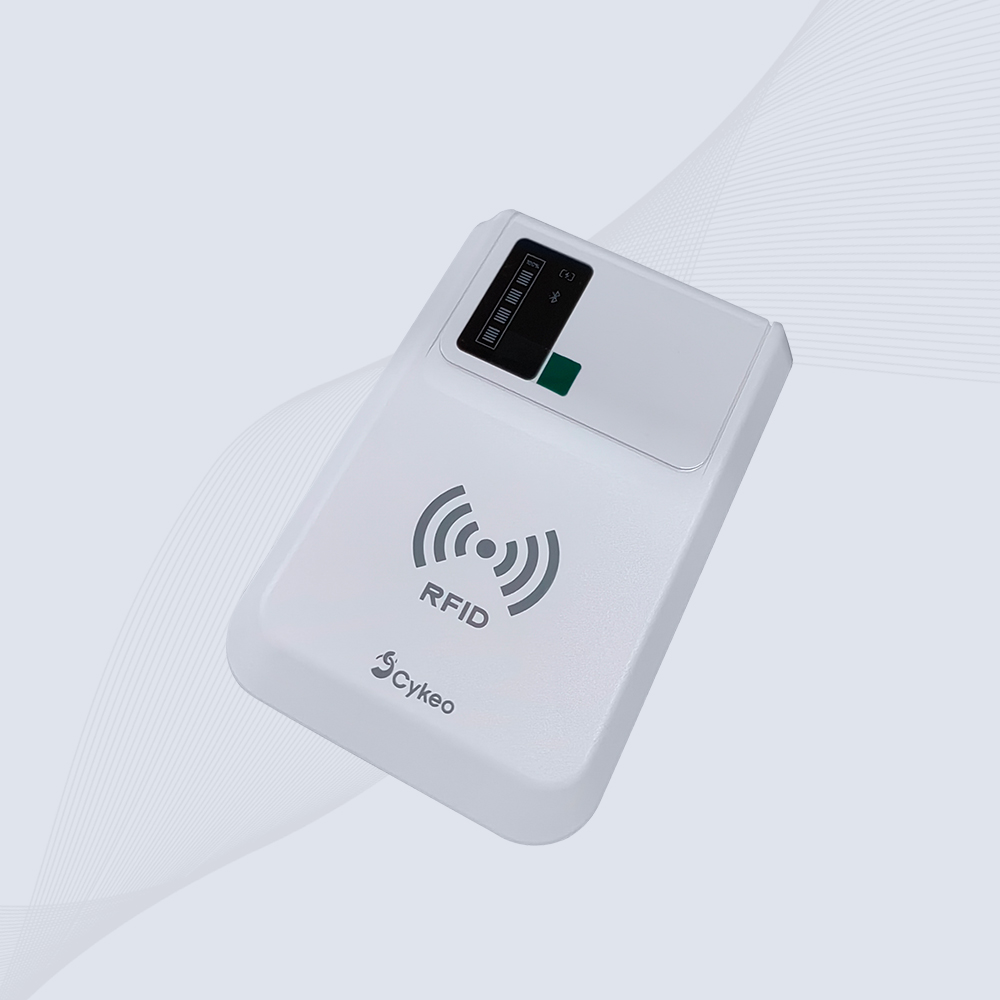

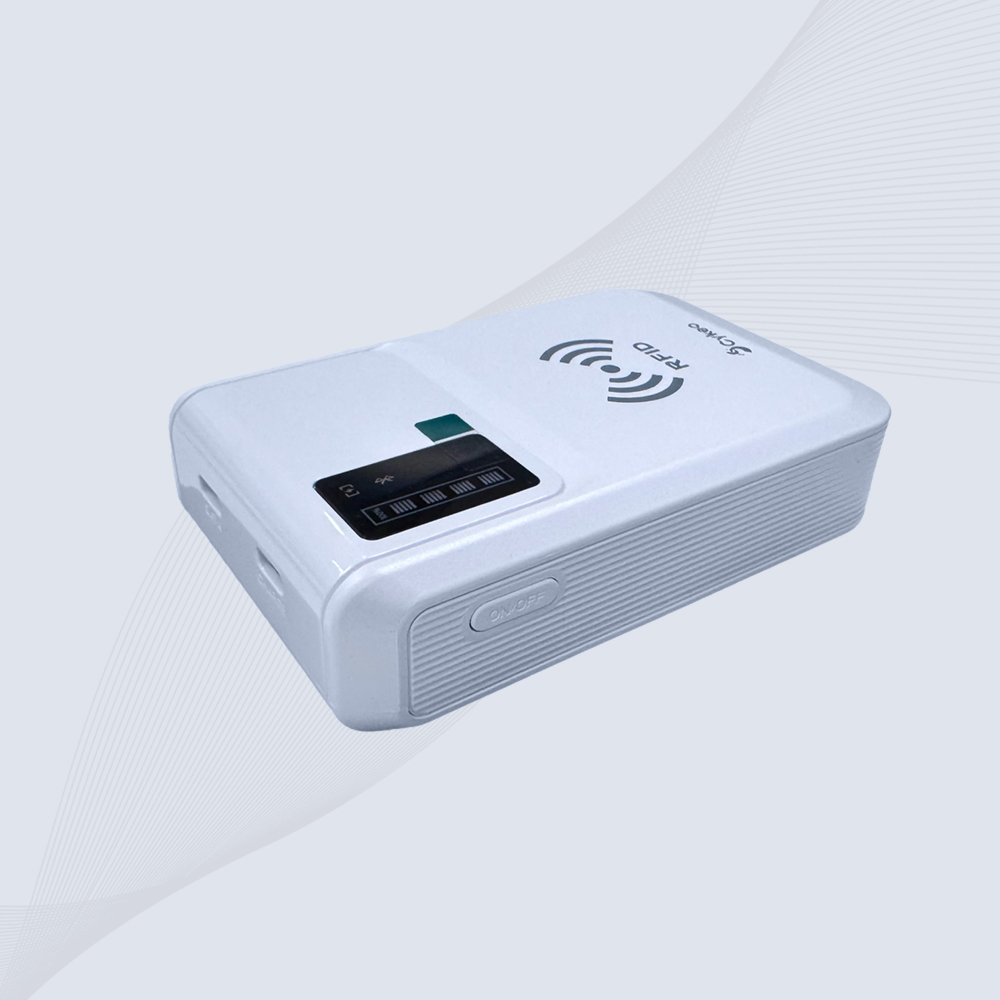

CYKEO-B5L
Enterprise Mobile RFID Scanning for Real-Time Data Capture
✔️ 10000mAh Power Bank 18H Continuous iOS Operation
✔️ iPhone-Integrated Design with Lightning/USB-C Connect
✔️ Multi-Protocol Support: ISO 18000-6C/6B + Apple Core NFC

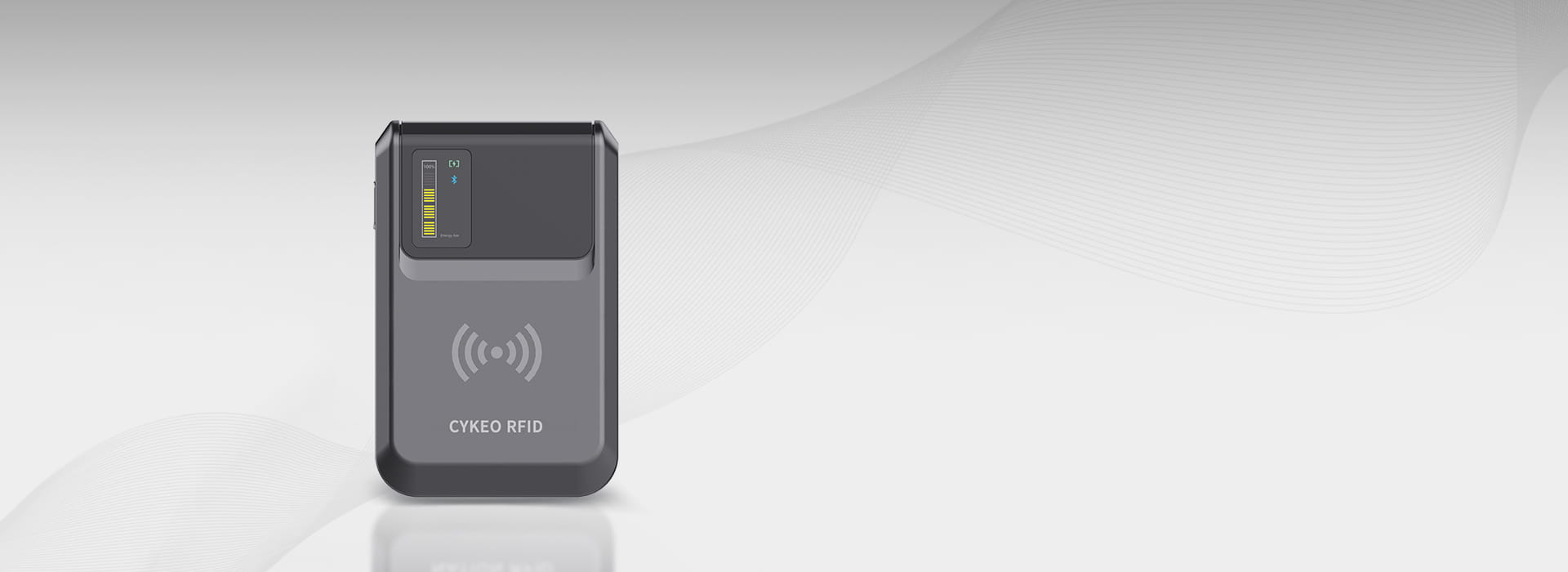

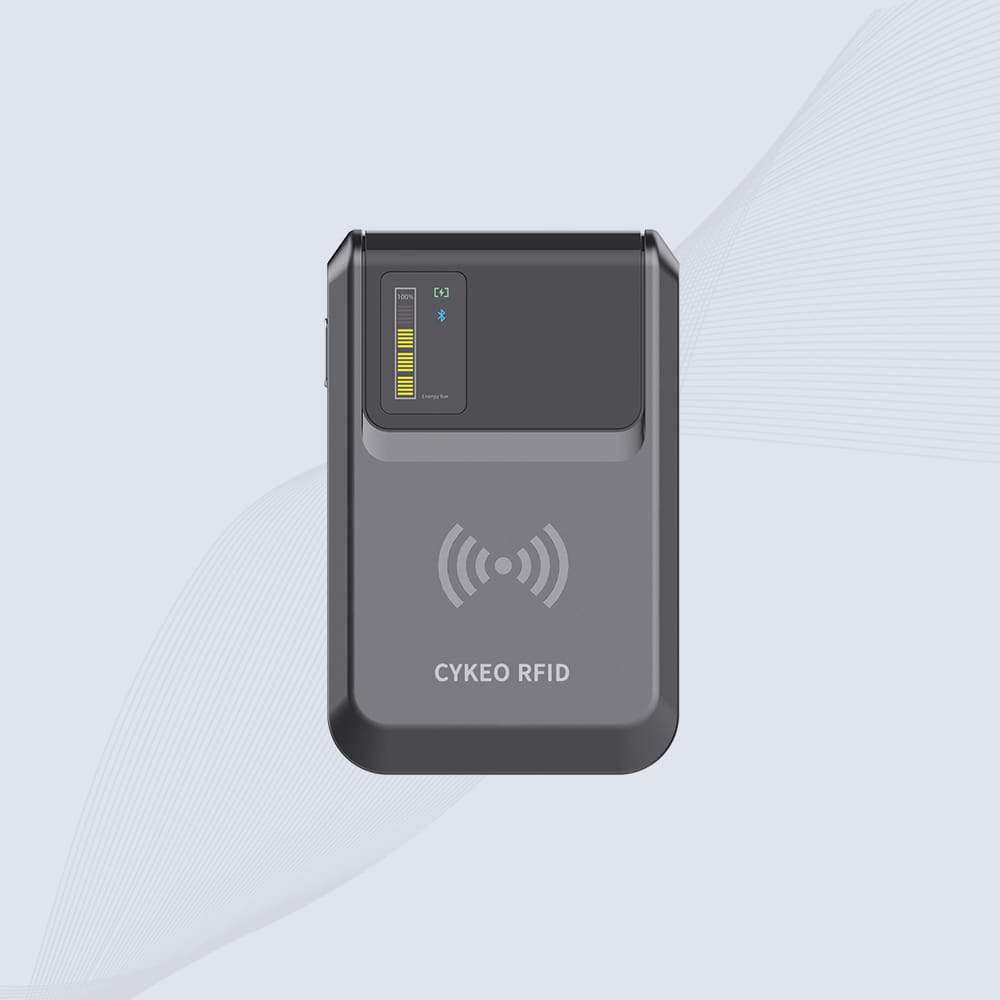

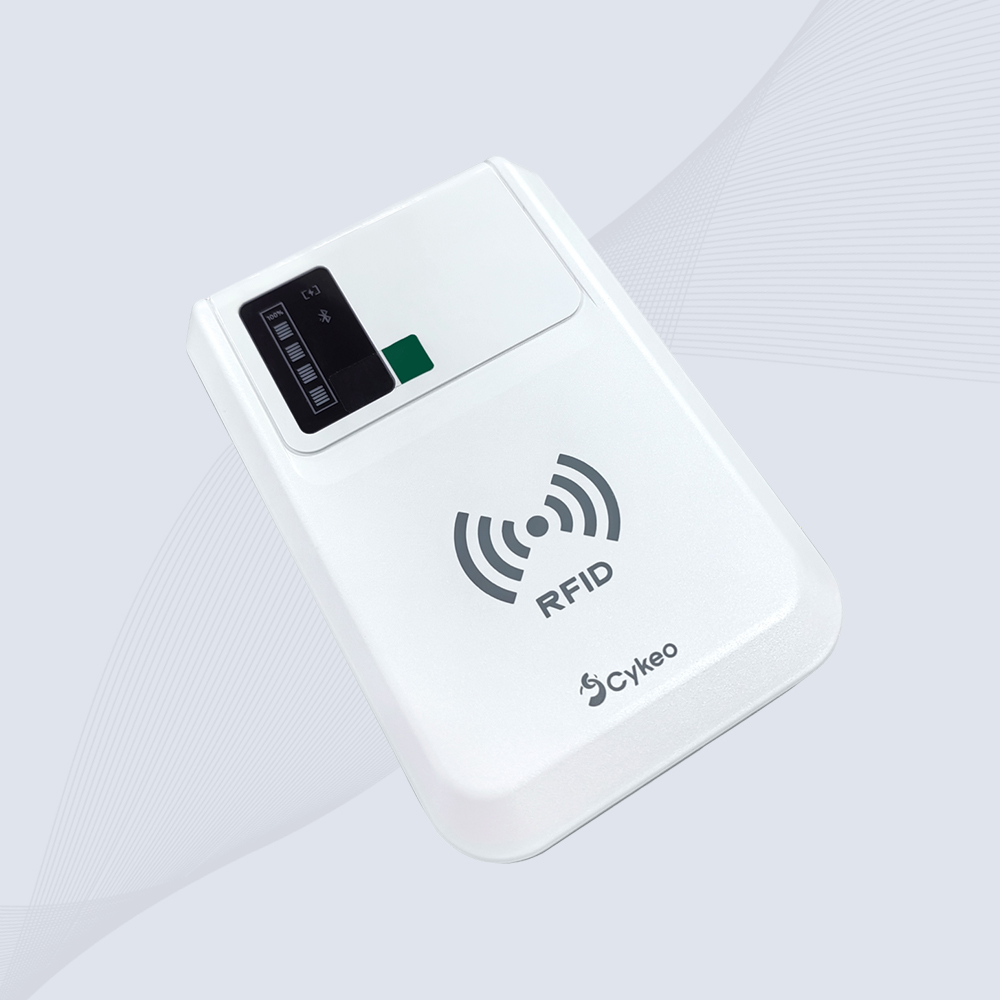

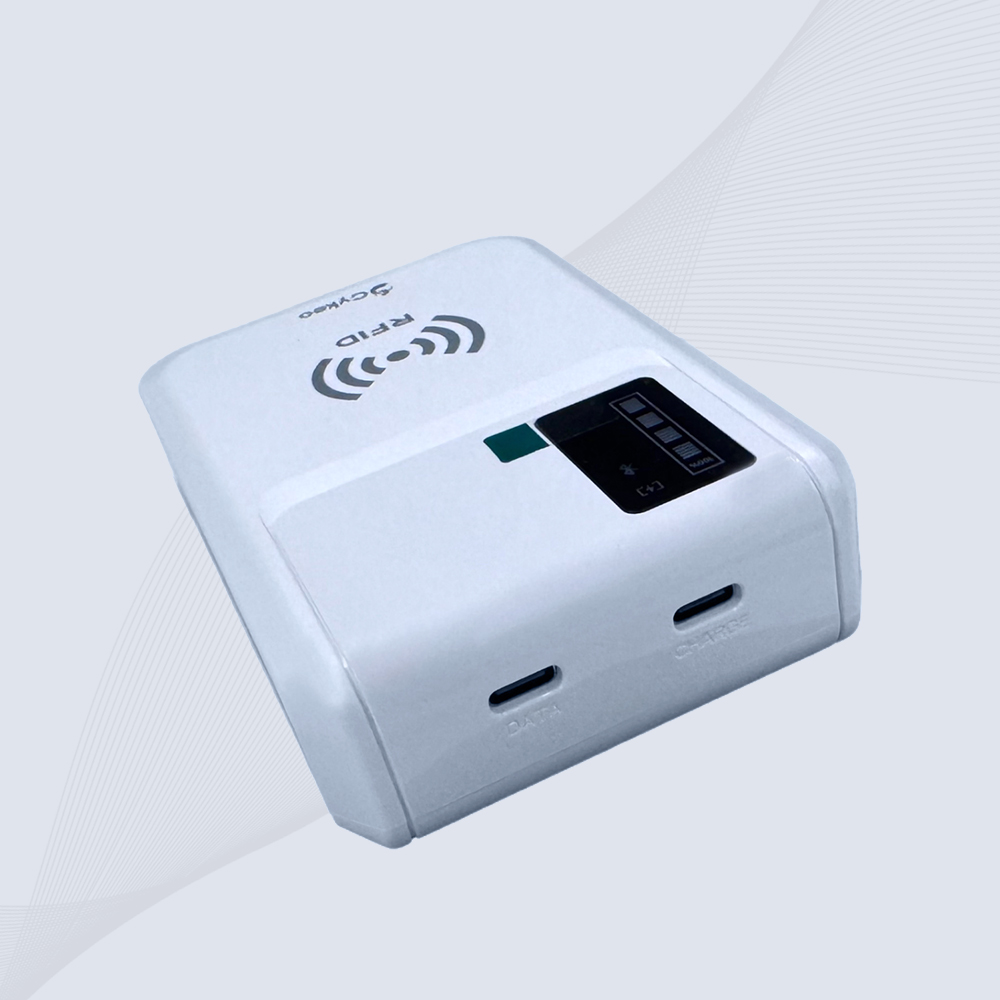

CYKEO-B5L rfid scanner iphone that hooks up to iPhones via Bluetooth 5.2 and doubles as a 10,000mAh charger. It reads tags up to 8 meters, making it great for retail checks, warehouse audits, and manufacturing, all controlled through iOS apps. Perfect for teams who need mobile, iPhone-ready inventory tracking.
* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.
UHF iPhone RFID Reader lets iPhones and iPads scan RFID tags via Bluetooth 5.2 or Lightning/USB-C. Its app, RFID Scan Pro for iOS, handles batch scanning, filtering, and real-time syncing with iCloud or ERP platforms, and SDKs let you add RFID features to custom apps. Connect via Bluetooth or Lightning and sync data to the device or cloud.
UHF iPhone RFID Reader is rugged and portable, scans 8–10 hours (standard) or 14+ hours (Eco), charges in 2.5 hours, and doubles as a 10,000mAh power bank, with IP67 protection, shockproofing, and -20°C to 55°C operation.
Field Test Results:
| Scenario | Battery Life | Read Accuracy |
|---|---|---|
| Retail Store Audits | 9.5 hours | 99.3% |
| Construction Site Scans | 8 hours | 97.8% |
| Freezer Warehouse (-15°C) | 7 hours | 98.5% |
The reader’s hardware and firmware flex to different needs: in hospitals, track sterilized gear with RFID and update patient records via NFC; on factory floors, read metal tags and trigger maintenance alerts; in stores, spot unpaid items and keep shelves updated. You can set rules and export data however you like.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 840–960 MHz (Global UHF) |
| Read/Write Distance | 0.1–12m (adjustable) |
| Bluetooth Connectivity | 5.2 BLE + Classic |
| Battery Life | 10,000mAh (14 hours continuous) |
| Charging Time | 3 hours (USB-C PD 3.0) |
| Supported Standards | EPC C1G2, ISO 18000-6C, NFC Forum |
An rfid scanner iPhone is a handheld device that works together with an iPhone to read RFID tags wirelessly. Instead of installing a built-in reader inside the phone, the scanner connects through Bluetooth and sends tag data directly to an iOS app.
Devices like the CYKEO-B5L act as the scanning engine. Once connected, the iPhone becomes the display and control interface. You can scan inventory, track assets, or check tagged products in real time. In most warehouse or retail scenarios, the reader simply streams tag IDs to the app, which then matches them with the database.
Short answer—usually no.
An rfid reader iPhone setup normally requires an external reader. iPhones only support short-range NFC, which is very different from UHF RFID used in logistics, retail inventory, and asset tracking.
That’s why external devices like the CYKEO-B5L portable reader exist. They provide the UHF antenna, RF module, and decoding system, while the iPhone handles the app and data management.
So if the goal is scanning tags several meters away, an external reader is necessary.
Many people mix these two up.
An rfid reader for iPhone used in supply chain or warehouse systems normally refers to a UHF RFID reader. These readers can scan tags from several meters away and read hundreds of tags per second.
NFC on the other hand works only within a few centimeters.
For example, the CYKEO-B5L can read tags up to around 8 meters, which makes it suitable for inventory counting, apparel tracking, and warehouse audits—situations where NFC simply wouldn’t work.
Yes, that’s actually one of the most common use cases.
An iphone rfid scanner allows staff to walk through a warehouse or retail store while scanning items instantly. Instead of manually checking barcodes one by one, RFID tags can be detected automatically within the reader’s range.
In practice, teams use it for:
With a reader like CYKEO-B5L, the scanning results go directly to the iOS app, which makes the process much faster than traditional barcode checks.
Most rfid iphone reader devices connect through Bluetooth, which keeps the setup simple.
Once paired, the reader sends tag data directly to the mobile application. Developers usually integrate the reader using SDKs or APIs. For example, the CYKEO-B5L provides development tools for Java and C#, allowing companies to integrate the reader with ERP, WMS, or asset tracking systems.
In real deployments, the iPhone simply acts as the mobile terminal while the reader handles the RF scanning.
A typical rfid tag reader iphone solution supports UHF EPC standards used in logistics and retail.
For example, the CYKEO-B5L supports:
These are widely used for:
Because the reader uses a circular polarized antenna and high transmit power, it can scan large groups of tags quickly—even in dense inventory environments.
