what does a rfid scanner look like

An RFID scanner looks like a handheld device, desktop unit, or fixed industrial reader with antennas and electronic components inside. Its appearance depends on the application, ranging from portable inventory scanners to compact desktop RFID readers and large warehouse tracking systems.

Understanding What a RFID Scanner Looks Like in Real Applications

When people search what does a rfid scanner look like, they are usually trying to visualize the actual hardware used in warehouses, stores, factories, or asset management environments. Unlike a traditional barcode scanner with a visible laser window, an RFID scanner communicates through radio frequency signals, so its appearance is mainly determined by the antenna design, reading distance requirements, and installation environment.

An RFID scanner may appear as:

• A handheld scanning terminal with a grip and display
• A compact desktop device used for tag reading and writing
• A fixed reader installed near doors, production lines, or shelves
• An integrated RFID module built into equipment

The internal structure is more important than the external shape. Most RFID scanners contain an RFID communication module, antenna system, processor, and communication interface. These components work together to send signals, receive tag responses, and transfer identification data to software systems.

From my experience working with RFID hardware testing and deployment, customers often expect an RFID scanner to look like a barcode scanner. In practice, the two devices can look very different. A warehouse UHF RFID scanner may have a large antenna area because it needs wider coverage, while a desktop RFID scanner used for tag registration may be much smaller because it requires a controlled reading zone.

During a library RFID implementation project, for example, the preferred device was not the one with the longest range. Administrators needed a compact scanner that could quickly identify books placed on a workstation without accidentally reading nearby shelves. This difference between specification performance and actual workflow is often overlooked.

Different Types of RFID Scanner Designs

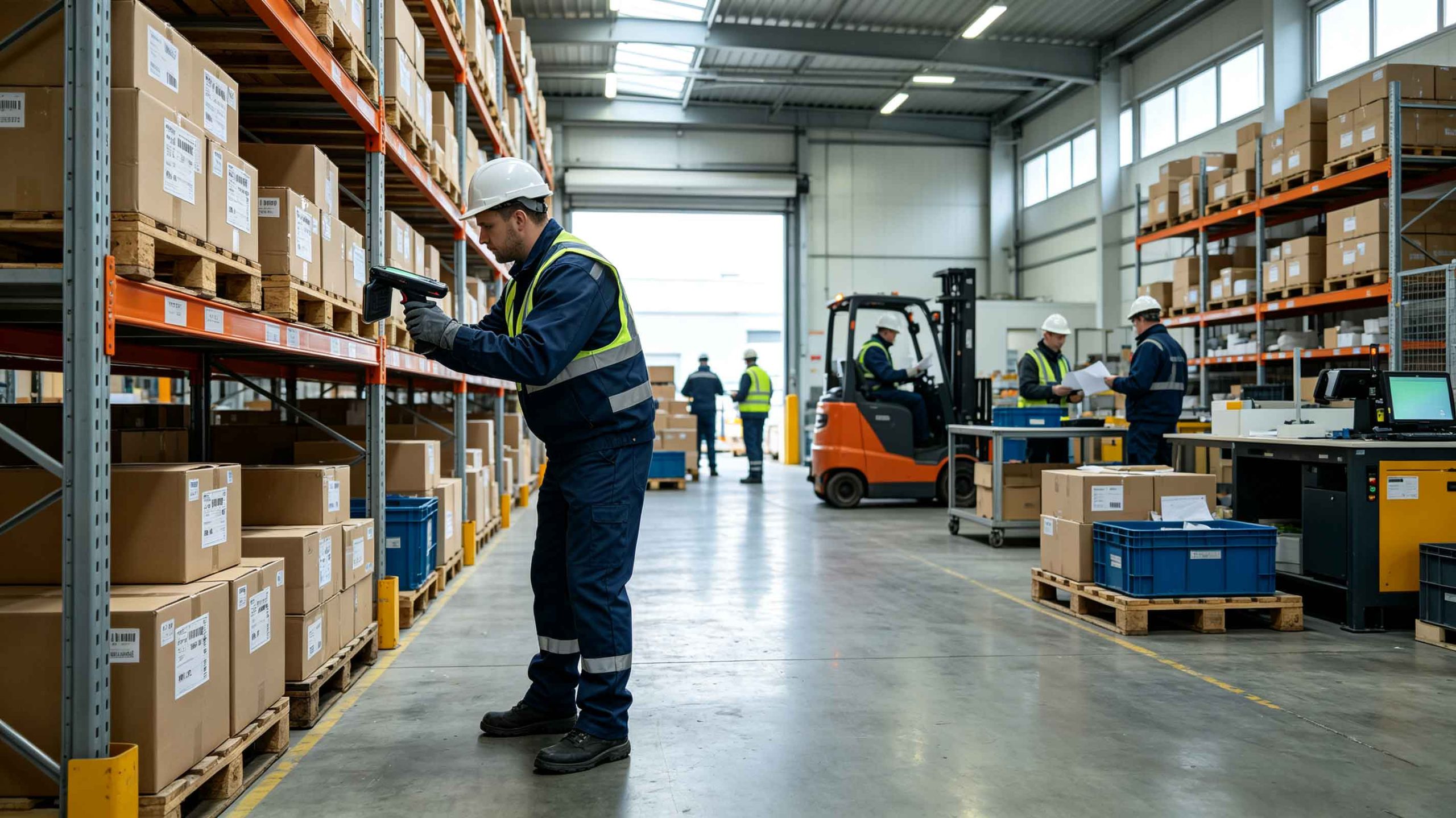

Handheld RFID Scanner Appearance

A handheld RFID scanner usually looks similar to a rugged mobile computer or industrial terminal. It often includes:

• A built-in RFID antenna
• Trigger button for scanning
• Touchscreen display
• Battery compartment
• Wireless communication modules

These scanners are designed for mobility. Warehouse workers, technicians, and inventory teams can carry them while moving between locations.

Typical handheld RFID scanner applications include:

Application	How It Is Used
Warehouse inventory	Counting tagged products
Asset tracking	Locating equipment and tools
Retail management	Checking product availability
Maintenance	Updating equipment records

The appearance of handheld RFID scanners is usually more durable than consumer electronics because many operate in industrial environments where dust, vibration, and frequent handling are common.

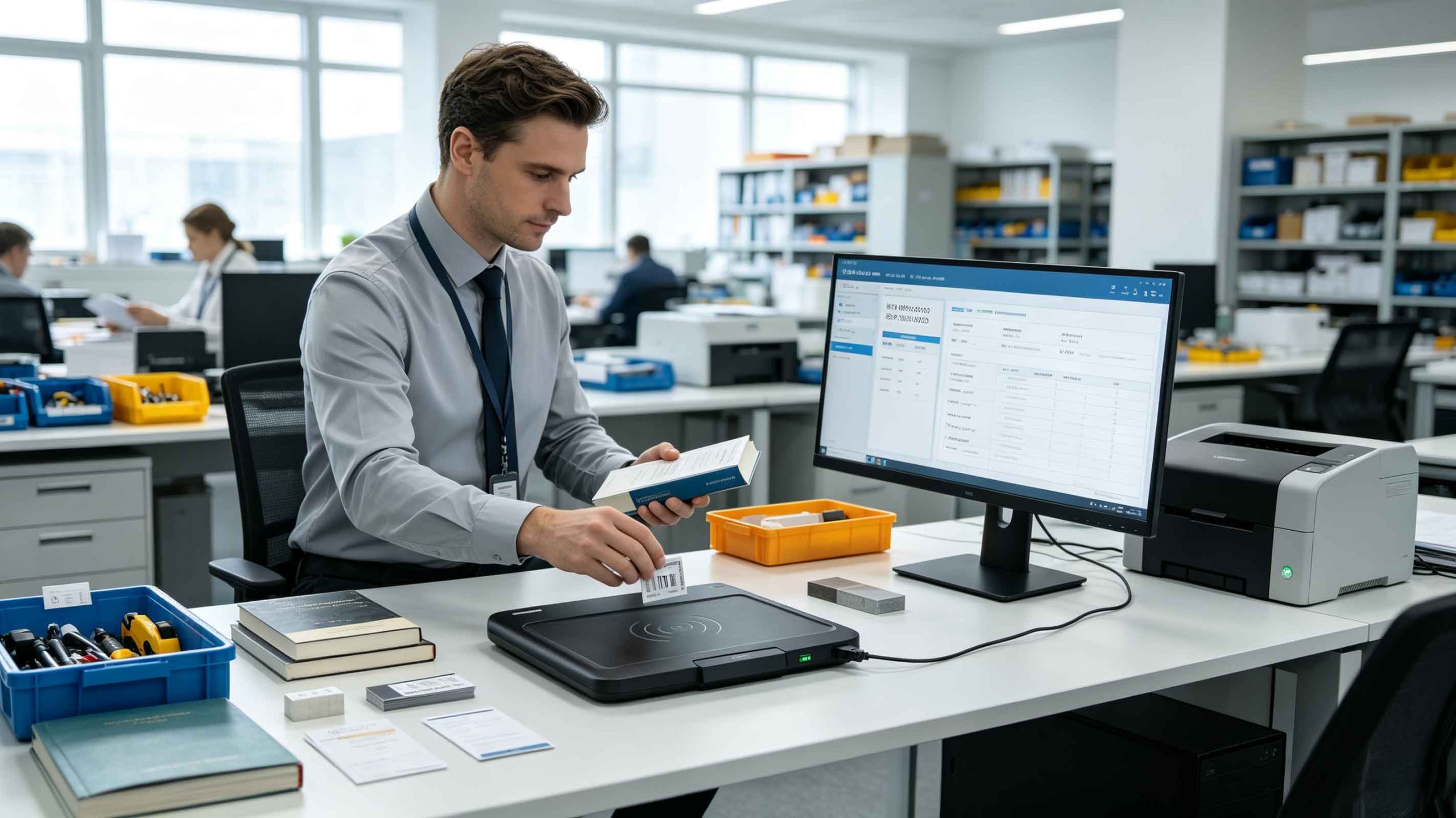

Desktop RFID Scanner Appearance

A desktop RFID scanner usually has a smaller and cleaner design. It is placed on a workstation and used for controlled operations such as tag registration, writing, and verification.

A typical desktop RFID scanner includes:

Component	Purpose
RFID Antenna	Communicates with tags
USB Interface	Connects with computers
Control Circuit	Processes RFID signals
Software Interface	Manages tag information

Cykeo desktop RFID reading platforms are designed for administrators who need reliable tag management in fixed locations.

Typical applications include:

• Library registration
• Tool management
• Textile tracking
• Asset labeling

The design focuses on accuracy rather than maximum reading distance. Near-field antenna technology helps control the reading area and prevents unwanted tag detection.

What Does an Industrial RFID Scanner Look Like?

Fixed RFID Scanner Systems

Industrial RFID scanners are usually larger because they are designed for continuous operation.

They may include:

• External antennas
• Protective housing
• Ethernet or serial interfaces
• Mounting brackets
• Industrial communication systems

Fixed RFID scanners are commonly installed at:

• Warehouse entrances
• Production stations
• Conveyor systems
• Storage areas

In supply chain environments, fixed RFID scanners help automatically identify tagged cartons, pallets, or containers as they move through controlled areas.

According to GS1, EPC-based RFID technology is widely used for supply chain identification because standardized RFID communication allows businesses to track products across different systems and regions.

RFID Scanner Appearance Compared With Barcode Scanner

Many users ask how RFID scanners visually differ from barcode scanners.

Feature	RFID Scanner	Barcode Scanner
Reading Method	Radio frequency communication	Optical scanning
Visible Laser	Usually no	Usually yes
Direct Line of Sight	Not required	Required
Multi-Tag Reading	Supported	Usually single item
Writing Function	Supported by some models	Not available

The biggest visual difference is that RFID scanners do not need a scanning window or laser beam. Their performance depends on antenna design rather than optical components.

How RFID Scanner Design Affects Performance

The physical design of an RFID scanner directly influences how it works.

Important design factors include:

Antenna Structure

The antenna determines signal coverage, reading direction, and communication stability.

Frequency Compatibility

RFID scanners may support:

• LF RFID (125–134 kHz)
• HF RFID (13.56 MHz)
• UHF RFID (860–960 MHz)

UHF RFID scanners are commonly used for inventory and logistics because they support longer reading distances and faster multi-tag identification.

Environmental Adaptation

A scanner designed for a clean office environment may not perform well in factories with metal equipment or electromagnetic interference.

Professional RFID deployment requires matching the scanner design with the actual environment.

Choosing the Right RFID Scanner Based on Appearance and Function

The correct RFID scanner is not always the largest or most powerful device. The best choice depends on how people interact with it.

For example:

• A warehouse requires mobility and fast inventory counting.
• A library needs controlled reading for registration tasks.
• A factory requires durability and stable communication.
• A retail store may need compact equipment integrated into daily operations.

At Cykeo, RFID scanner designs focus on practical application requirements, including reliable tag recognition, stable communication, and compatibility with business management systems.

The appearance of an RFID scanner is only the visible part. Inside the device, antenna technology, signal processing algorithms, and software integration determine whether the system works effectively in real environments.

Inside an RFID Scanner: Components That Determine Its Appearance

Although RFID scanners may look different from each other, the basic hardware structure follows similar principles. The external shape changes according to the working environment, but the internal components determine how effectively the scanner communicates with RFID tags.

A professional RFID scanner usually contains:

Internal Component	Function
RFID Module	Generates and processes radio frequency signals
Antenna System	Sends and receives RFID communication signals
Processor	Controls data processing and device operations
Communication Interface	Transfers information to software systems
Power System	Provides stable operation

For example, a warehouse handheld RFID scanner requires an antenna designed for wider coverage, while a desktop RFID scanner used for tag encoding requires a more controlled near-field antenna.

During RFID system evaluations, I have found that many performance issues are not caused by the reader module itself. The antenna position, installation method, tag material, and surrounding environment often have a greater impact on the final result.

A scanner that performs well in an open test area may behave differently when placed near metal shelves, liquid containers, or dense groups of tagged items.

How RFID Scanner Design Changes by Application

RFID Scanner for Library and Document Management

Library RFID scanners usually have a compact desktop design because the operator works at a fixed station.

The device needs to support:

• Book registration
• RFID label writing
• Borrowing management
• Return processing
• Inventory checking

A desktop RFID scanner platform allows administrators to place books or documents directly on the reading area and complete identification tasks quickly.

The main design goal is accuracy, not maximum reading distance.

For example, a library workstation does not need to detect every RFID tag several meters away. Instead, it needs to identify the selected book while ignoring nearby shelves.

RFID Scanner for Tool and Asset Management

Industrial tool rooms often use RFID scanners to create digital records for equipment.

The scanner may be used for:

• Tool registration
• Equipment borrowing
• Return confirmation
• Maintenance tracking
• Usage history recording

In this environment, durability and reliable identification are more important than appearance.

A compact RFID scanner connected with management software can help companies understand:

• Which employee borrowed equipment
• When an item was returned
• How frequently a tool is used
• Whether equipment is available

RFID Scanner for Textile and Laundry Management

Textile management is another common RFID application.

Laundry companies often attach RFID tags to:

• Uniforms
• Bed sheets
• Towels
• Workwear

RFID scanners help track items through washing, sorting, storage, and distribution processes.

The scanner design must consider:

• High-volume tag processing
• Fast identification speed
• Reliable operation in industrial environments

Cykeo RFID Scanner Solutions for Professional Tag Management

Cykeo develops RFID equipment designed around practical business workflows rather than only hardware specifications.

A desktop RFID scanner platform from Cykeo is designed for administrators who need daily tag management functions, including:

• Item borrowing management
• Item return processing
• RFID tag registration
• ID card registration
• Shelf label registration
• Item search
• Borrowing statistics
• Return history queries
• Registration statistics
• Operation log review

The platform also supports RFID tag conversion, allowing administrators to rewrite and manage tag information according to different operational requirements.

The system uses proprietary high-efficiency signal processing algorithms to maintain fast reading and writing performance while keeping recognition accuracy stable.

Key technical characteristics include:

Feature	Description
Connection	USB interface for convenient operation
Output Power	Up to 33dBm
Antenna Type	Near-field antenna
Reading Range	Within 30cm
Writing Range	Within 10cm
Recognition	Multi-tag identification
Processing	Tag collision handling algorithm
Data Function	Filtering and RSSI support
Development	C# and Java resources

These specifications make the device suitable for controlled environments where accurate tag processing is required.

What Should You Look for When Buying an RFID Scanner?

Choosing an RFID scanner requires understanding the actual workflow.

Important evaluation points include:

1. Tag Compatibility

The scanner must support the RFID tags used by the business.

Different applications may require:

• LF tags
• HF tags
• UHF tags

2. Reading Environment

The installation environment affects performance.

Consider:

• Metal objects nearby
• Tag placement
• Required reading area
• Number of tags processed simultaneously

3. Software Integration

An RFID scanner should connect smoothly with existing systems.

Useful integration options include:

• SDK support
• API access
• Database connection
• Custom software development

Cykeo provides C# and Java development resources to help companies integrate RFID hardware into customized applications.

Frequently Asked Questions About RFID Scanners

1. What does a RFID scanner look like?

A RFID scanner can look like a handheld terminal, desktop device, or industrial fixed reader. Its appearance depends on the application. Handheld scanners are designed for mobility, while desktop and fixed scanners focus on controlled identification and automation.

2. Does a RFID scanner look like a barcode scanner?

Some handheld RFID scanners have a similar shape to barcode scanners, but RFID scanners usually do not require a visible laser window. They use antennas and radio frequency communication instead of optical scanning.

3. What is inside an RFID scanner?

An RFID scanner typically contains an RFID module, antenna system, processor, communication interface, and power components. These parts work together to communicate with RFID tags and transfer collected information.

4. Can RFID scanners write information to tags?

Some RFID scanners support writing functions. These devices can program compatible RFID tags, update stored information, and verify data for applications such as asset registration and inventory management.

5. What industries use RFID scanners?

RFID scanners are widely used in logistics, manufacturing, libraries, healthcare, retail, textile management, and industrial asset tracking. They help organizations identify, manage, and monitor physical items digitally.

6. How far can an RFID scanner read?

The reading distance depends on frequency, antenna design, reader power, tag type, and environment. Desktop RFID scanners often use shorter controlled ranges, while industrial UHF RFID scanners can support longer-distance applications.

7. Are RFID scanners difficult to integrate?

Professional RFID scanners usually provide software development resources such as SDKs, APIs, or programming examples. With proper integration support, they can connect with inventory, asset, and management systems.

Final Thoughts: Understanding What a RFID Scanner Looks Like

When exploring what does a rfid scanner look like, the answer depends on where and how the technology is used. A RFID scanner may be a handheld device carried through a warehouse, a compact desktop platform used for tag registration, or a fixed industrial system installed in an automated process.

The visible design is only one part of the solution. Antenna technology, signal processing, tag compatibility, and software integration determine whether an RFID scanner can perform reliably in real operations.

Cykeo focuses on RFID scanner solutions that support practical workflows, from library registration and tool management to industrial asset tracking. A well-designed RFID scanner connects physical items with accurate digital information, helping organizations build more efficient identification systems.
